€ 5,67
€ 4,69
?
SKU
NE8FAH

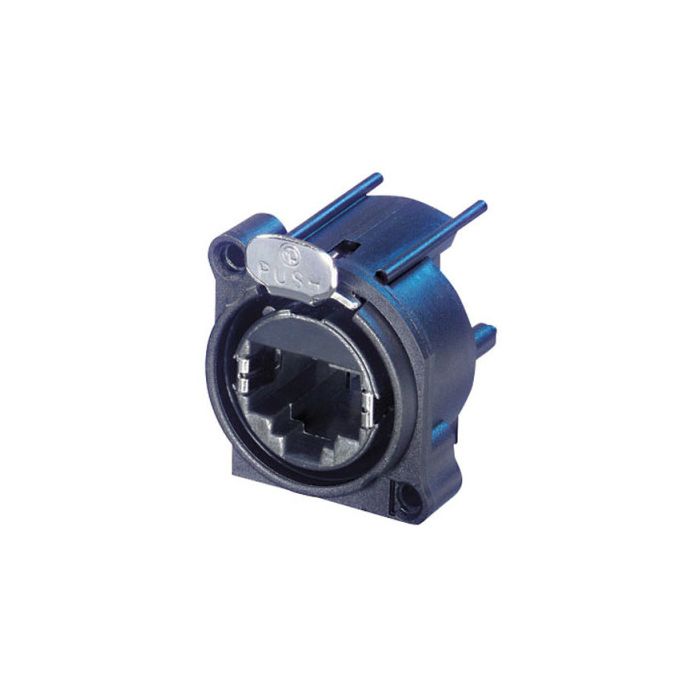

Neutrik Ethercon D-size PCB mount Feedthrough receptacle in D-sized flange with the secure latching system. Plastic
Neutrik Ethercon D-size PCB mount Feedthrough receptacle in D-sized flange with the secure latching system. Plastic
Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm
Specifications
Specifications
Electrical
Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m Ohm
Insulation resistance: > 500 M Ohm
Category: 5e
Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m Ohm
Insulation resistance: > 500 M Ohm
Category: 5e
Mechanical
Lifetime: 1000 mating cycles
Retention method: latch lock
Panel thickness: max. 3 mm
Lifetime: 1000 mating cycles
Retention method: latch lock
Panel thickness: max. 3 mm
Materials
Housing: PBTP 15% GR
D-flange: PBTP 15% GR
Strain relief clamp: Ck67, Ni plated
Contacts: Bronze CuSn6
Contact surface: Au (gal 0.2 µm over Ni plating)
Temperature range: -30°C to +80°C
Flammability: UL94-V0
Housing: PBTP 15% GR
D-flange: PBTP 15% GR
Strain relief clamp: Ck67, Ni plated
Contacts: Bronze CuSn6
Contact surface: Au (gal 0.2 µm over Ni plating)
Temperature range: -30°C to +80°C
Flammability: UL94-V0
