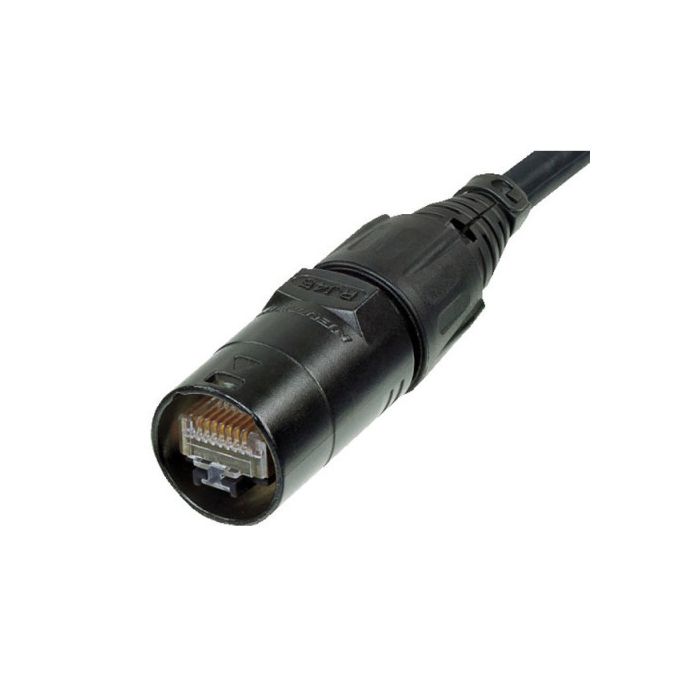

Neutrik Ethercon RJ45 carrier Black Housing

RJ45 cable carrier consisting of shell, fixing disk, chuck, bush and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. For pre-assembled RJ45 plugs. Standard bushing colour is black, 9 different coding colours available by request only. Also available on stock NE8MC Nickel.
Specifications

Electrical
Specs depend on type of RJ45 plugs used.
Cable O.D. range: max. 8 mm / 0.315"

Mechanical
Life time: > 1000 mating cycles

Materials
Housing: ZnAl4Cu1, gal Ni
Strain relief clamp: POM
Bushing: PA 6 15% GR
Boot: PA 6
Temperature range: -30°C to +80°C
Flammability: UL94-V0
