€ 3,98
€ 3,29
?
SKU
NE8MCB

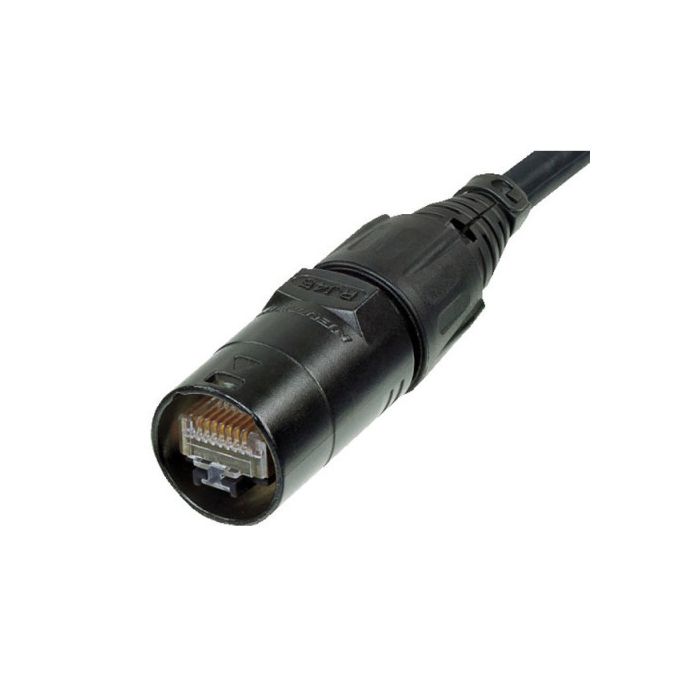

Neutrik Ethercon RJ45 carrier Black Housing
Neutrik Ethercon RJ45 carrier Black Housing
RJ45 cable carrier consisting of shell, fixing disk, chuck, bush and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. For pre-assembled RJ45 plugs. Standard bushing colour is black, 9 different coding colours available by request only. Also available on stock NE8MC Nickel.
Specifications
Specifications
Electrical
Specs depend on type of RJ45 plugs used.
Cable O.D. range: max. 8 mm / 0.315"
Specs depend on type of RJ45 plugs used.
Cable O.D. range: max. 8 mm / 0.315"
Mechanical
Life time: > 1000 mating cycles
Life time: > 1000 mating cycles
Materials
Housing: ZnAl4Cu1, gal Ni
Strain relief clamp: POM
Bushing: PA 6 15% GR
Boot: PA 6
Temperature range: -30°C to +80°C
Flammability: UL94-V0
Housing: ZnAl4Cu1, gal Ni
Strain relief clamp: POM
Bushing: PA 6 15% GR
Boot: PA 6
Temperature range: -30°C to +80°C
Flammability: UL94-V0
