€ 4.694,99
€ 3.880,16
?
SKU
st20000384

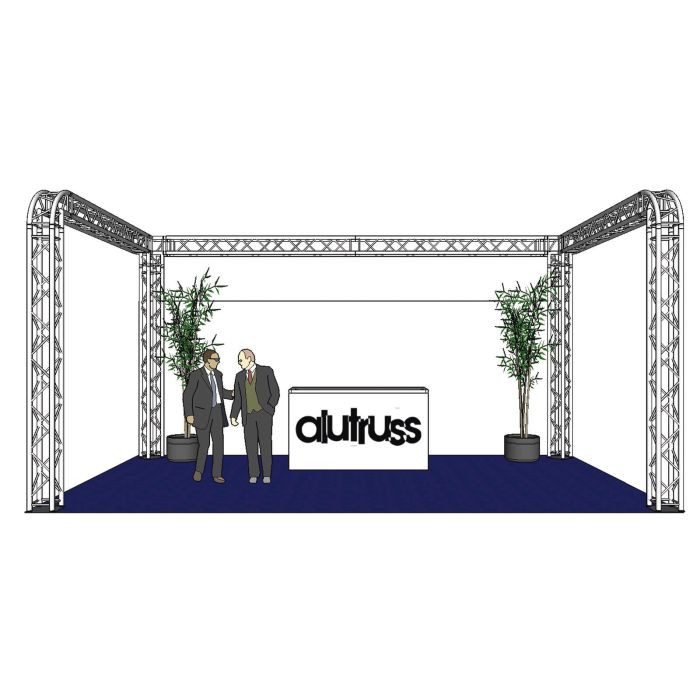

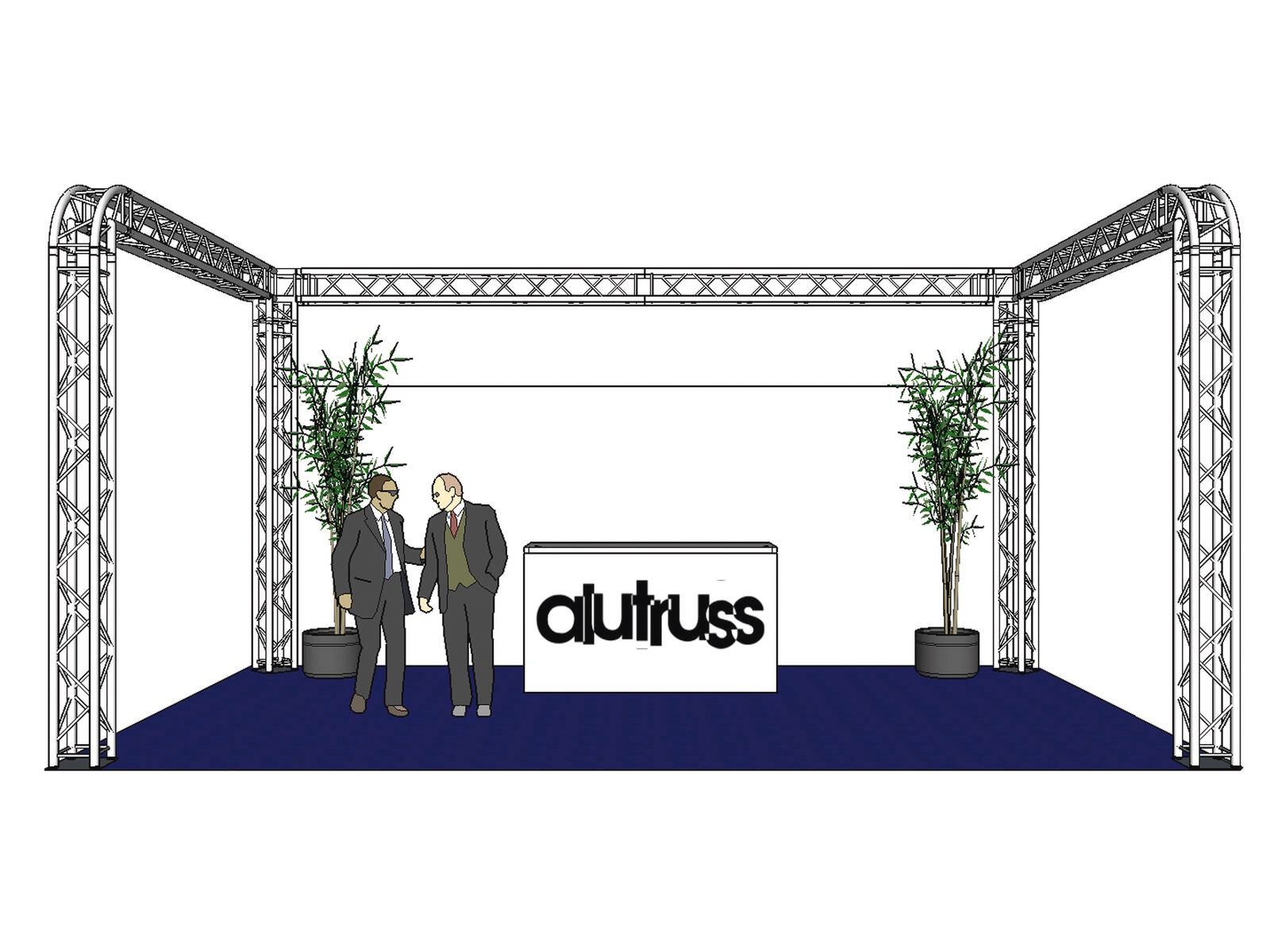

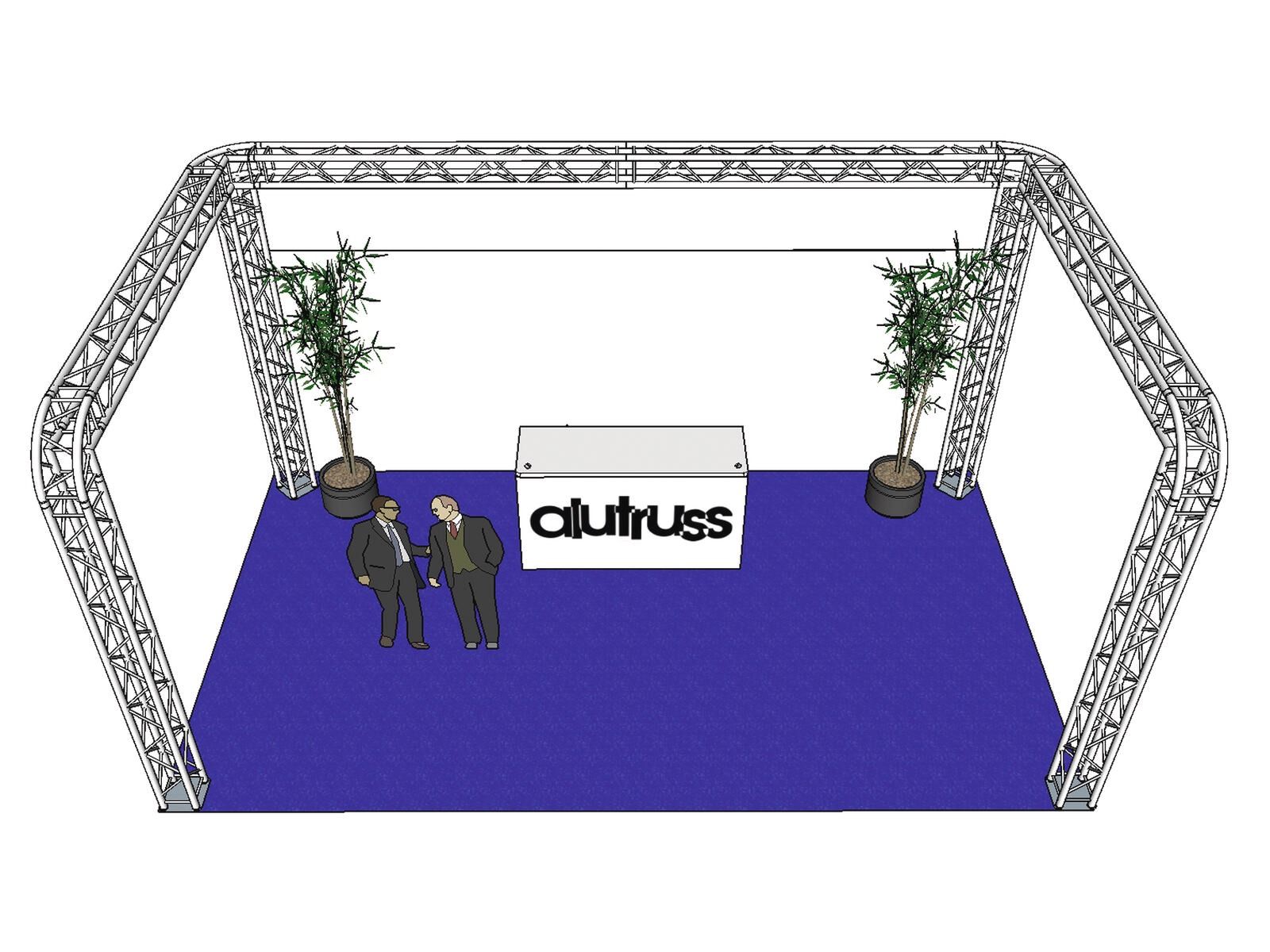

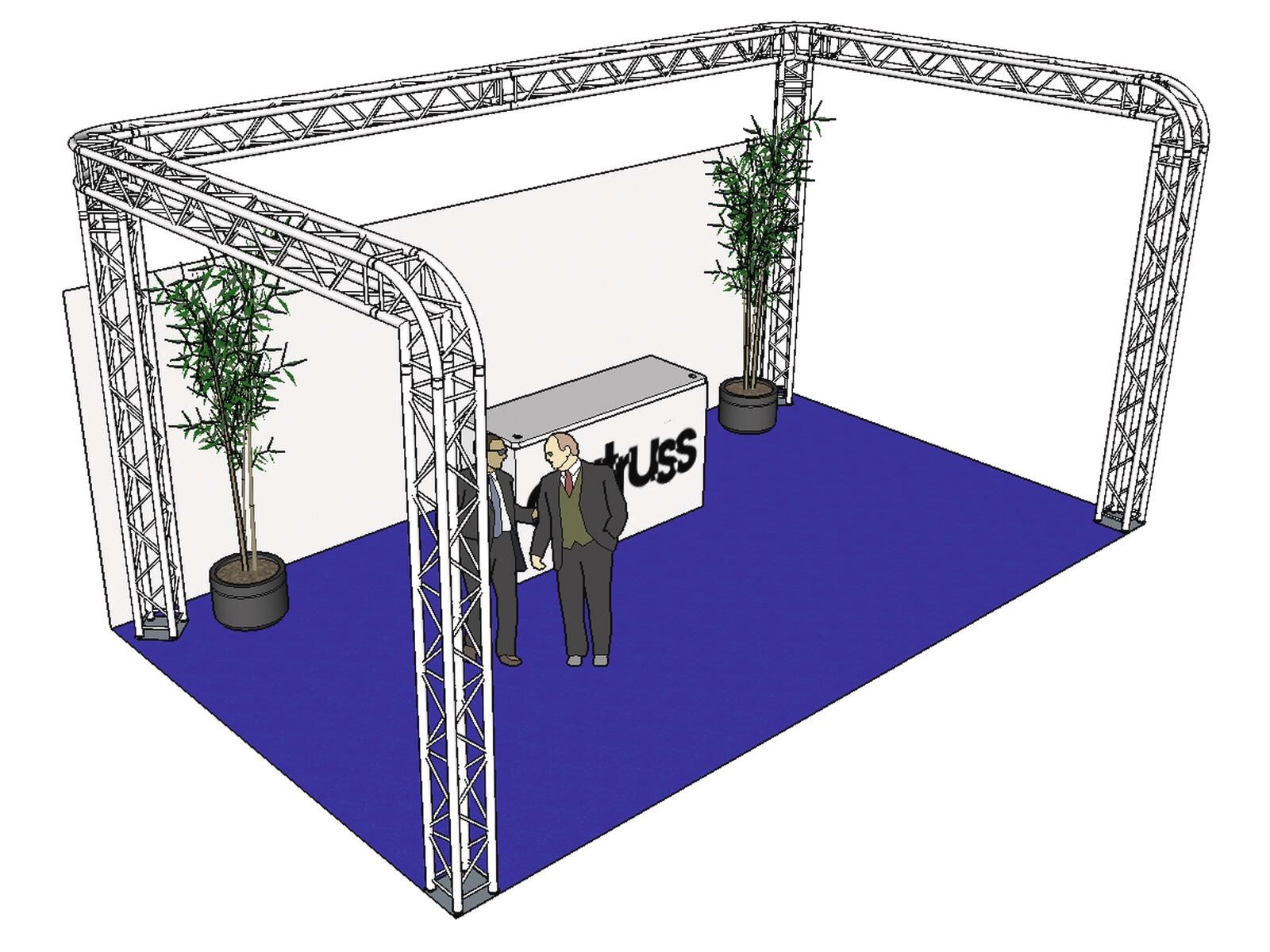

ALUTRUSS Truss set QUADLOCK 6082R U-Figure 7x4x3.5m (WxDxH)
ALUTRUSS Truss set QUADLOCK 6082R U-Figure 7x4x3.5m (WxDxH)
Set consisting of:
8 x ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam
2 x ALUTRUSS QUADLOCK 6082C-21R 2-way Corner 90°
2 x ALUTRUSS QUADLOCK 6082C-30R 3-way Corner 90°
8 x ALUTRUSS QUICK-LOCK Spare Pivot with Pin
4 x ALUTRUSS QUADLOCK End Plate QQGP-Male M-10
Three-sided Quadlock exhibition stand
ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- For further information about this product, please refer to the Data Sheet under "Downloads"
ALUTRUSS QUADLOCK 6082C-21R 2-way Corner 90°
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
ALUTRUSS QUADLOCK 6082C-30R 3-way Corner 90°
4-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
ALUTRUSS QUICK-LOCK Spare Pivot with Pin
QUICK-LOCK set
- Accessories for the robust truss system with QUICK-LOCK
- For use with TRI/QUAD system
- Trusspipe: 50 mm
- Made in Europe
ALUTRUSS QUADLOCK End Plate QQGP-Male M-10
Baseplate for mobile use (connectors 6082 included)
- Easy installation
- The article is delivered pre-assembled
- Trusspipe: 50 mm
- Made in Europe
- Application possibility: Standing
half cone
- M10 thread
- Technical specifications
Weight: 147.44 kg ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam Setup: Easy installation Trusspipe: 50 mm x 2 mm Welding technique: TIG-welding Welding material: AlMg 5 Alloy: AIMgSi1 T6 Color: Alu colored Strut diameter x thickness: 16 x 2mm Dimensions: Length: 300 cm
Width: 29 cm
Height: 29 cmWeight: 14.2 kg ALUTRUSS QUADLOCK 6082C-21R 2-way Corner 90° Setup: Easy installation Trusspipe: 50 mm x 2 mm Color: Alu colored Strut diameter x thickness: 16 x 2mm Dimensions: Length: 50 cm
Width: 50 cm
Height: 29 cmWeight: 5.30 kg ALUTRUSS QUADLOCK 6082C-30R 3-way Corner 90° Setup: Easy installation Trusspipe: 50 mm x 2 mm Color: Alu colored Strut diameter x thickness: 16 x 2mm Dimensions: Length: 50 cm
Width: 50 cm
Height: 50 cmWeight: 8.15 kg ALUTRUSS QUICK-LOCK Spare Pivot with Pin Trusspipe: 50 mm Color: Alu colored Weight: 0.09 kg ALUTRUSS QUADLOCK End Plate QQGP-Male M-10 Setup: Easy installation Trusspipe: 50 mm Material: Aluminum Color: Alu colored Dimensions: Length: 30.7 cm
Width: 30.7 cm
Height: 5 cmWeight: 1.55 kg Half cone Thread: M10 thread
