American Audio DB-DISPLAY MKII

American Audio DB-DISPLAY MKII

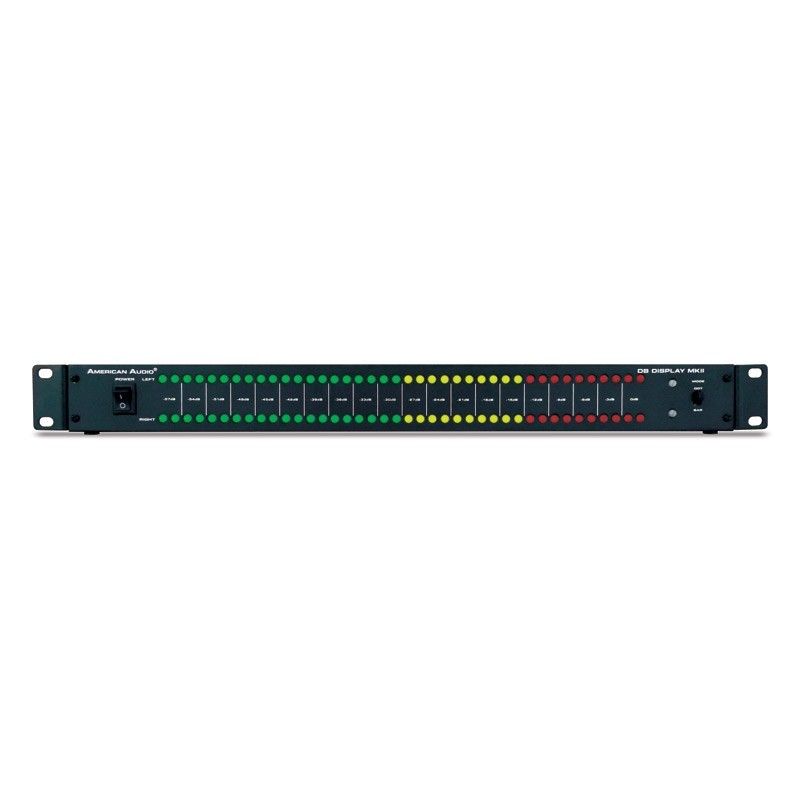

The all metal DB DISPLAY MKII decibel display from American Audio is great for monitoring your sound volume. It also creates a great lightship in your amp rack. Make sure your speakers stay in great shape by keeping those dBs under control through this monitoring system.

The LED display progresses from green through amber, to red. There are two different operating modes: Dot or Bar. A 5V power supply is included so you can get the unit plug in an running right away. The dB-DISPLAY is perfect a stage, church, club or bar install or for a mobile entertainer.




Specifications



• Designed to set in an amp rack to view your decibel level

• Creates a great light show in your amp rack

• Display progresses from green through amber to red

• Sensitivity adjustment on both left and right channels

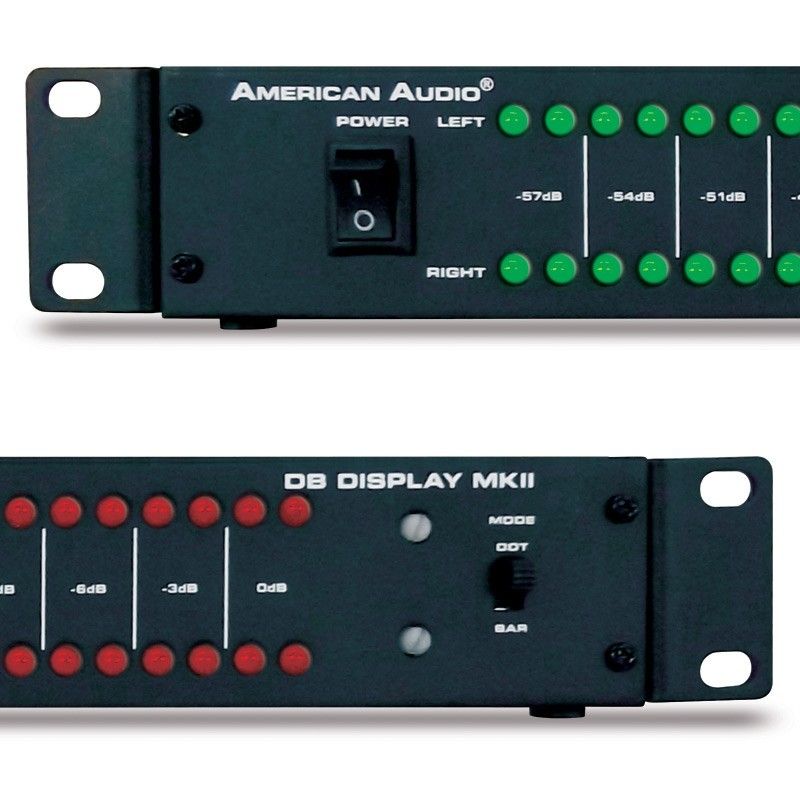

• 2 separate modes: dot and bar

• Includes 5V power supply

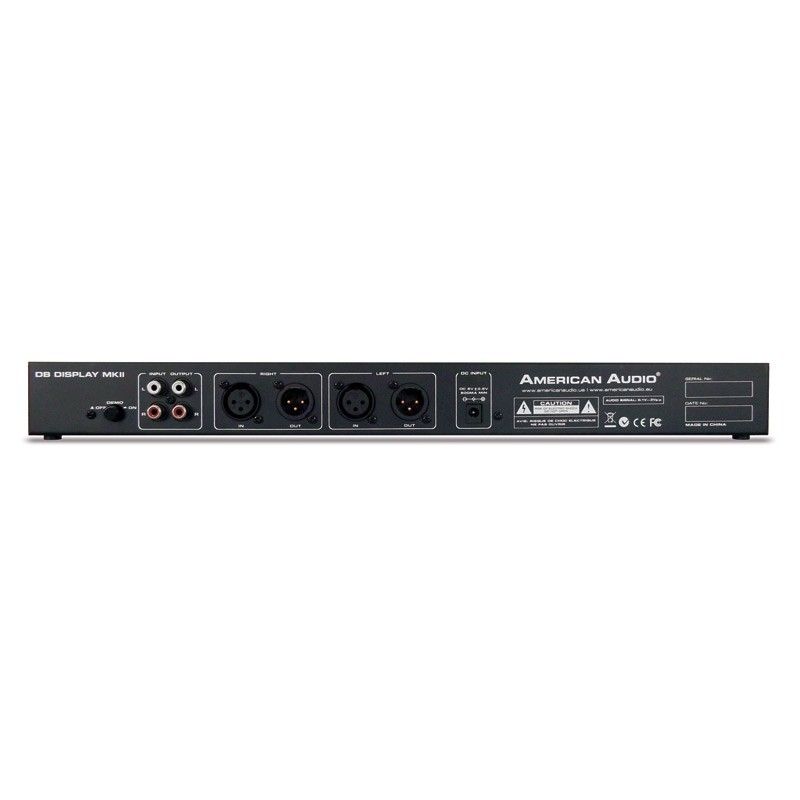

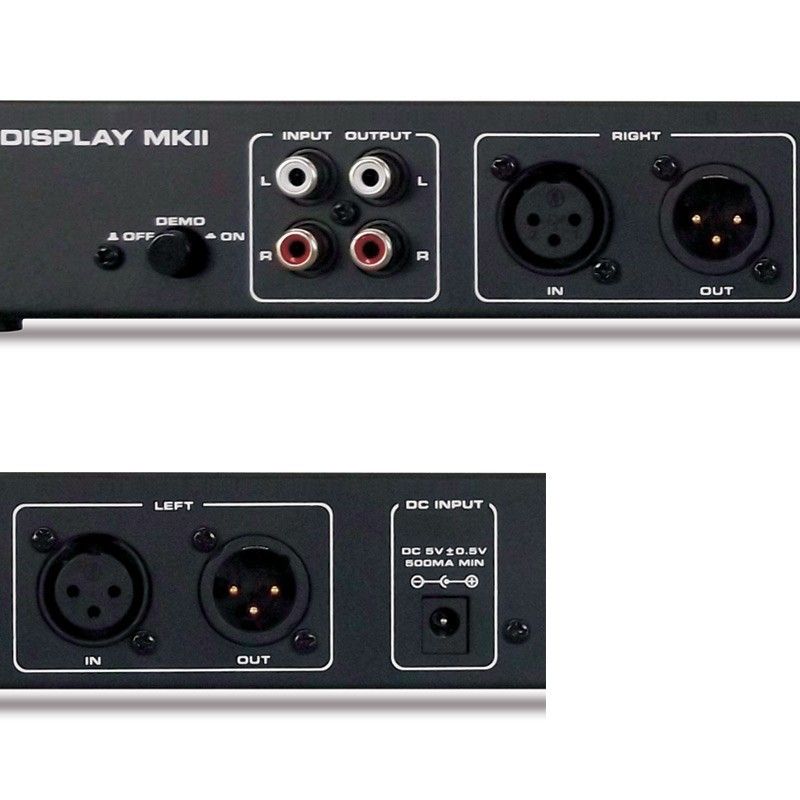

• Line Inputs: Left & Right RCA

• Line Outputs: Left & Right RCA

• Voltage Operation: DC 5V, 500mA Power Supply included

• Dimensions: (LxWxH): 19” x 1.75” x 1.75” / 44.5mm x 483mm x 44.5mm

• Weight: 2.5 lbs. / 1.25kg.
