American DJ UB 9H

The ADJ UB 9H is a 41.75-inch (1meter) professional grade indoor linear fixture powered by nine 6W RGBWA+UV HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant 6-color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

The UB 9H features built-in Color Macros (built-in preset colors), 6 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ RFC wireless RF remote (sold separately).

Specifications:

• 41.75-inch (1 meter) indoor Linear Bar with 9 x 6W Ultra bright RGBWA+UV HEX (6-in-1) LEDs

• Variable RGBWA+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!

• 6 DMX Channel Modes: 2, 3, 4, 6, 7 or 11 channels

• 5 operational modes: Auto (Program Run), Sound Active, RGBWA+UV Dimmer, Static Color and DMX-512 Mode

• 3-Section Pixel control

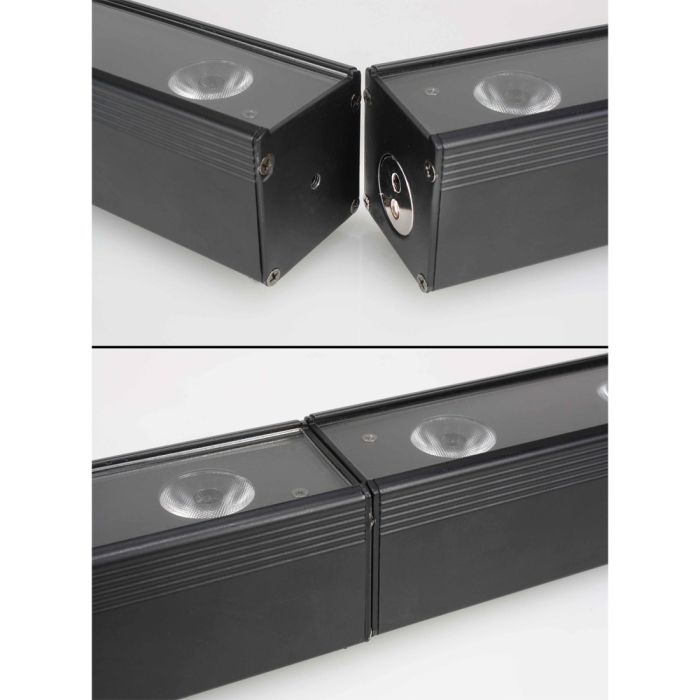

• Patent Pending Quick Align (Magnetic)

• Beam Angle: 40 degrees

• Flicker Free @ 2200Hz

• 4-Button DMX LED Display

• 35 built-in Color Macros

• LED pulse & strobe effect

• Electronic Dimming: 0-100%

• Includes mounting brackets to mount on a wall or set on the ground

• Compatible with the ADJ RFC wireless RF remote(sold separately)

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• Power Draw: 61W

• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 15 UB 9H fixtures)

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm

• Weight: 6 lbs./ 2.6 kg.
