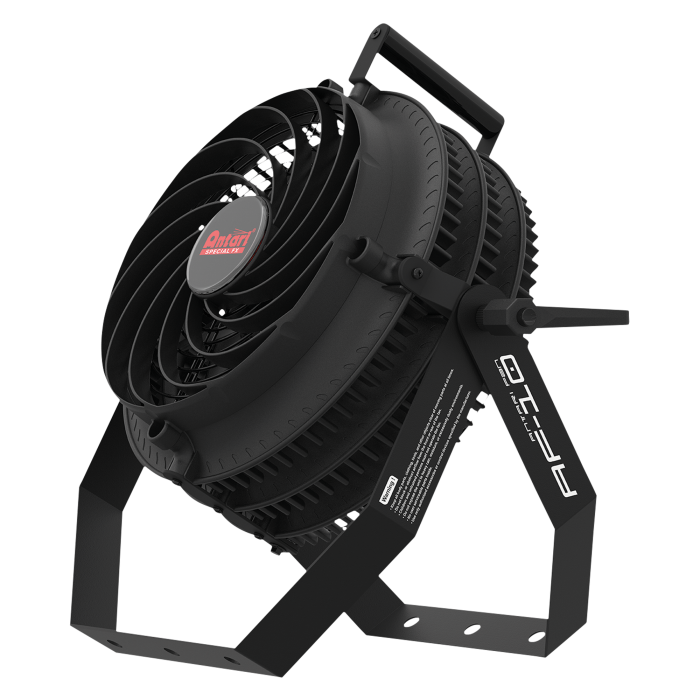

Antari AF-10 IP Effects Fan Axial IP power fan
Antari AF-10 IP Effects FanAxial IP power fan
High-velocity airflow with 1913 CFM (3250 m³/h) output
Low noise (51 dB max) with aerodynamic blade design
IP55-rated
Manual or remote DMX control via AFC-1 Fan Controller
The Antari AF-10 IP Effects Fan is a high-velocity effects fan engineered for professional use in demanding environments such as theatres, concerts, theme parks, and live events. With its silent 65 W motor and aerodynamic blade design, the AF-10 delivers focused, consistent airflow while maintaining low noise levels - ideal for fog dispersion and wind effects. Its unique swirl-shaped front cover reduces turbulence and concentrates the airflow, ensuring optimal performance with minimal sound (max. 51 dB). The IP55-rated motor and robust construction make it suitable for both indoor and (temporary) outdoor use, while the Seetronic IP power connector ensures secure and reliable operation. The AF-10 can be operated manually or paired with the included AFC-1 Fan Controller for advanced control via DMX. This allows precise adjustment of fan speed and timing, giving users full control over airflow intensity and duration.
Specifications
Electrical Specifications and Connections
Power Supply 220-240 V AC 50/60 Hz
Power Consumption 65W
Power Connector In powerCON Blue
Mechanical Specifications
Noise Level Maximum 51 dB
Housing Metal, Plastic
Color Black
Length (mm) 534 mm (21.024″)
Height (mm) 515mm (20.276″)
Width (mm) 327mm (12.874″)
Weight 6.9 kg (15,212 lb)
IP Rating IP55
Thermal Specifications
Maximum Ambient Temperature 40°C (104°F)
Included Items
Included Accessories Controller
