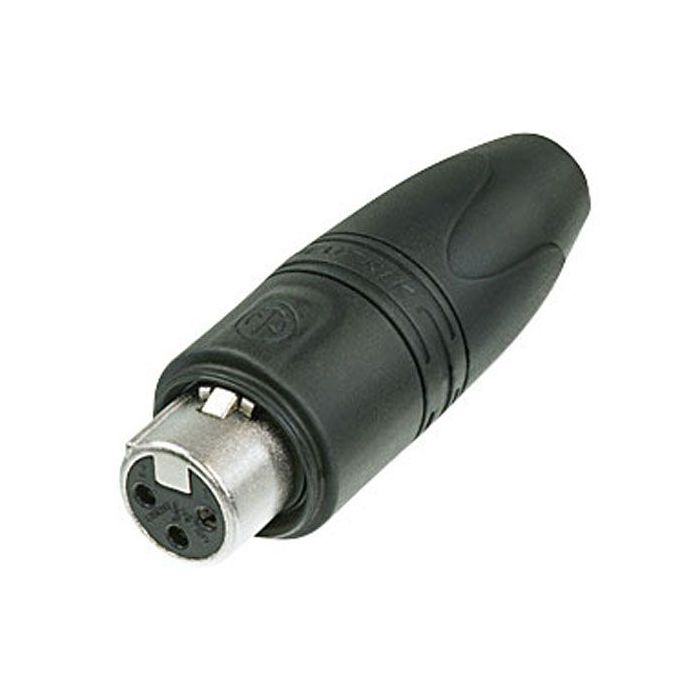

Neutrik XLR 'Heavy Duty' IP connector 3p Female Silver Housing, silver contactsNeutrik XLR 'Heavy Duty' IP connector 3p Female Silver Housing, silver contacts • "Heavy duty" cable connector for outdoor use • Rubber sealing jacket protects against water ingress and mechanical shock • Rugged zinc diecast shell, long-lasting and dependable • Internal thread on shell is well protected against any damageThe Neutrik XX-HDD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 67 by mating with related XX-HDD cable connector.Specifications Electrical: Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ (inner) Rated current per contact 16 A Rated voltage 50 V Mechanical: Cabel O.D. 3,5 – 8,0 mm Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material: Boot Polyurethan Contacts Brass Insert Polyamide Shell Zinc diecast Shell plating Nickel Strain relief Polyacetal Environmental: Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
