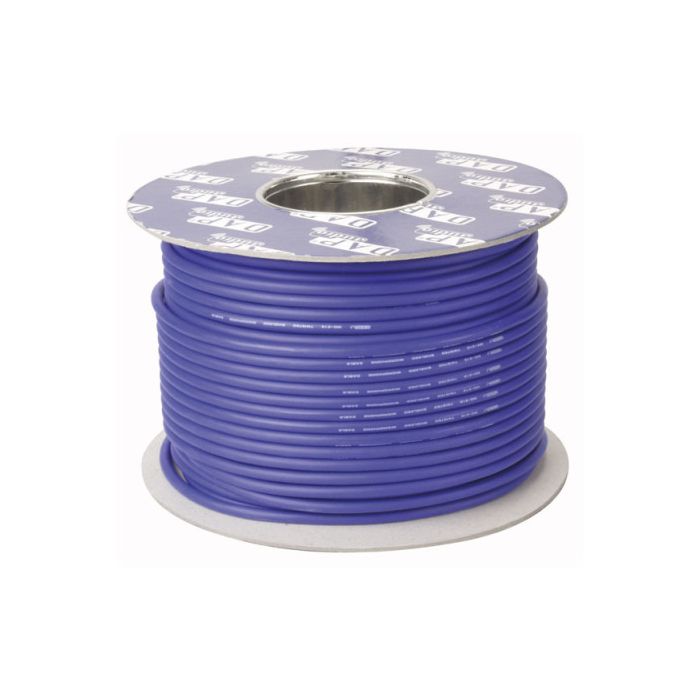

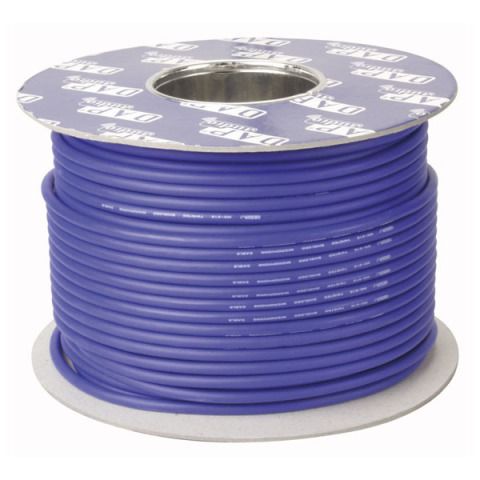

DAP DIG-110 AES-EBU Blauwe 110 Ohm digitale kabel, 100 m op rol
Technical Info
 Conductor drains  mm: OFC 18 x 0,10
 Conductor insulation: FPE red+white
 Conductor insulation  in mm: 1,9
 Filler material: paper + cotton yarn
 1st shield: OFC braided 128 x 0,12
 2nd shield: -
 Outer isolation: PVC black+blue
 Outer isolation  in mm: 6

Conductor resistance: 130 Ohm/Km
Shield resistance: 12.5 Ohm/Km
Capacity Inner conductor: 35 pF/m
Cap. Inner conduct Shield / Inner conduct.: 52 pF/m
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
