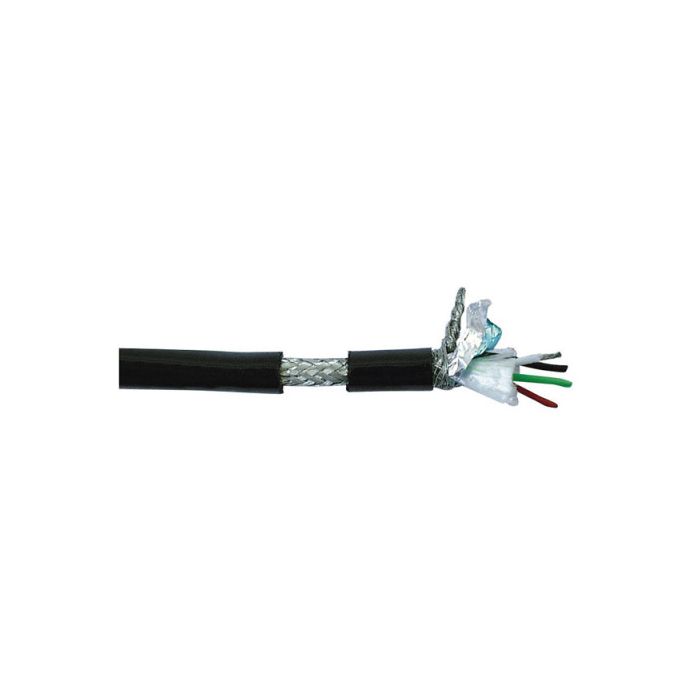

DAP Dig-Quad DMX Quad 4pole digitale kabel
Technical Info
Conductor drains  mm: OFC
Conductor insulation: LDPE white+red+yellow+black
Conductor insulation  in mm: 1,6
Filler material: paper
1st shield: braided tinned copper 7 x 14 x 0,12
2nd shield: -
Outer isolation: PVC matte black
Outer isolation  in mm: 7

Conductor resistance: 130 Ohm / km
Shield resistance: 12,5 Ohm / km
Capacity Inner conductor: 35 pF/m
Capacity Inner conductor Shield: 52 pF/m
Working temperature min./ max.: -20 ~ 60 C
Working Voltage overflash: 30V
Nom impedance: 110 Ohm
Length: 100 m
