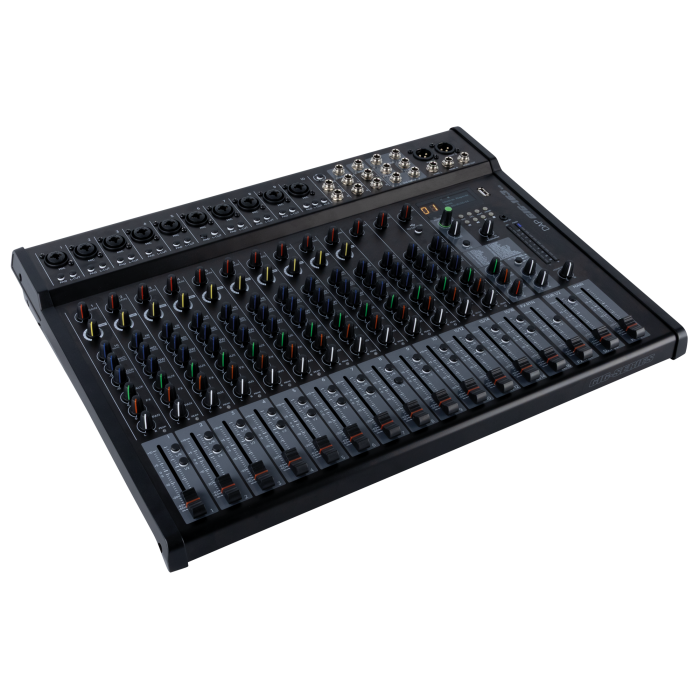

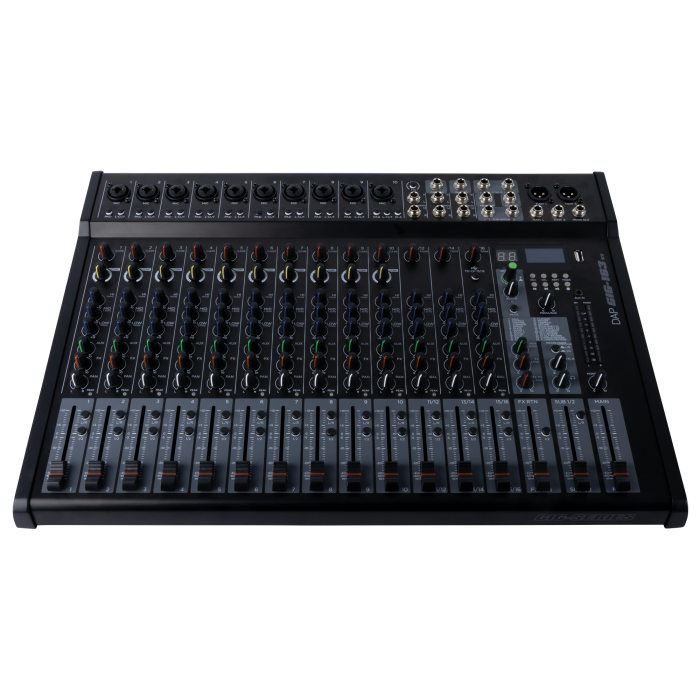

The DAP GIG-163 V2 is a compact yet capable 16-channel mixer designed for live performances, studio sessions and hybrid setups. It offers a wide range of inputs, routing options, professional features and onboard effects, making it ideal for musicians, sound engineers and content creators who demand flexibility without compromising on sound quality.
It features 10 XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 10 includes a Hi-Z switch, allowing direct connection of instruments such as electric guitars. All ten mono channels offer gain control, compressor, 3-band EQ, FX and AUX send knobs, pan control, mix level fader, and clip LED indicators. Channels 11-16 provide stereo line-level inputs via dual 6.3 mm jacks, each with gain control, 3-band EQ, FX and AUX send level, pan control and mix level fader. Additional inputs include a 3.5 mm Aux minijack, a USB media player and BT connectivity, which all share a level knob.
The internal effects engine provides a selection of 24 effects, including reverbs, delays and modulations that can be applied to all channels except the 3.5 mm minijack input, BT input and USB media player. For external processing, an FX Sends output allows routing to outboard gear, with the option to loop the processed signal back into an unused channel. This output can also serve as a monitor send bus, offering additional flexibility. A dedicated Aux bus is available for creating custom monitor mixes, while a stereo subgroup with its own fader and output enables grouped control and parallel processing. All channels except the minijack and USB media player can be routed to this subgroup. For studio use, a control room output with separate level control runs in parallel to the headphone output.
The USB-C interface allows direct connection to a computer for recording or playback, the latter is shared with channels 15 and 16. The main output is available via balanced XLR and jack connectors, and is also offered as a mono sum with separate level control. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.

Specifications

Inputs
Mono Inputs
10 Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 60 dB
Mono Input Impedance 3000 Ω
Stereo Inputs 3
Stereo Input Connector TRS balanced 6.3 mm
Stereo Input Gain Range 20 dB
Stereo Input Impedance 10000 Ω
Auxiliary Inputs 1
Auxiliary Input Connector TRS balanced 3.5 mm
Auxiliary Input Impedance10000 Ω
FX Return Inputs 1
FX Return Connector TRS balanced 6.3 mm
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR, TRS balanced 6.3 mm
Main Output Impedance 100 Ω
Auxiliary Outputs 1
Auxiliary Output Connector TRS balanced 6.3 mm
Auxiliary Output Impedance 120 Ω
Group Outputs 2
Group Output Connector TS unbalanced 6.3 mm
FX Send Outputs 1
FX Send Connector TRS balanced 6.3 mm
FX Send Impedance120 Ω
Control Room Output 1
Control Room Output Connector TRS balanced 6.3 mm
Control Room Output Impedance 120 Ω
Headphone Output 1
Headphone Output Connector TRS balanced 6.3 mm
Headphone Output Impedance 32 Ω
Digital Playback
Audio Interface Yes
Audio Interface USB Input 1
Audio Interface Input Connection USB-C
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Media Player Yes
Audio Module Supported Files MP3, WAV, WMA
Audio Module Maximum Storage Size 64 GB
Audio Module Media In/Out USB-A
Audio Module USB Type 2.0
Audio Specifications
THD Level % < 0.2 %
Signal-to-noise Ratio > 108 dB
Crosstalk -86 dBu
Frequency Response Minimum 20 Hz
Frequency Response Maximum 22000 Hz
Phantom Power 48 V
Sound Editing
Dynamics Processing
Compressor
Built-in FX Yes
FX Types Chorus, Delay, Echo, Flanger, Hall , Phaser, Plate, Reverb, Room, Tremolo

Wireless Specifications
Bluetooth Yes
Bluetooth Version 5.0
Bluetooth Range 20 m (65.617 ft)
Control and Programming
Display 7-segment

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Output voltage 15 V DC
Power Consumption 16 W
Power Connector In Low Voltage DC plug
Power Adapter
Adapter type AC-DC adapter
Input voltage 220-240 V AC, 50/60 Hz
Output voltage 15 V DC
Output current DC (mA) 1000 mA

Mechanical Specifications
Fader Length 70 mm (2.756″)
Height (mm) 75 mm (2.953″)
Width (mm) 512 mm (20.157″)
Length (mm) 367 mm (14.449″)
Housing Metal
Colour Black
Weight 5.1 kg (11.244 lb)
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators +48V, BT Pairing, Output level, Power
Handles All sides
Included Items
Included Accessories Adapter
