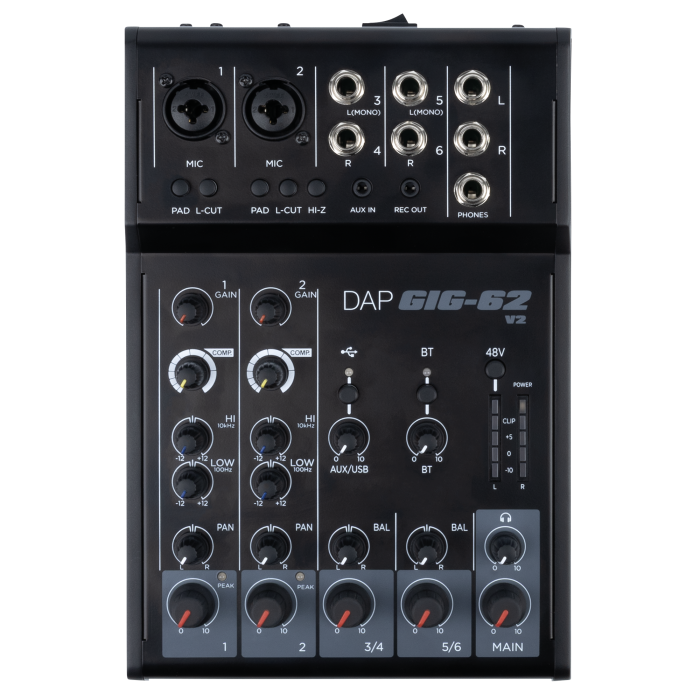

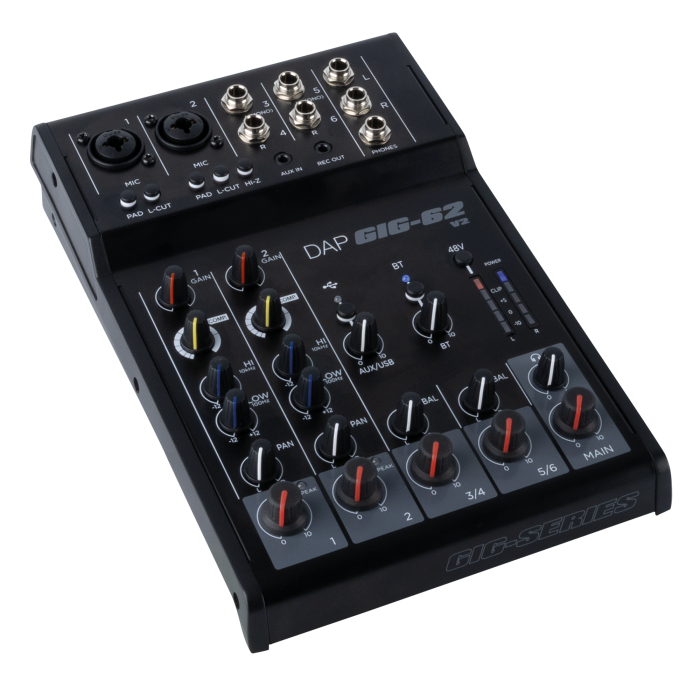

The DAP GIG-62 V2 is a versatile 6-channel analogue mixing console designed for live sound applications, small performances, presentations, and home recording setups. Despite its compact footprint, it offers a wide range of professional features that make it a reliable companion for musicians, sound engineers, and content creators.
Channels 1 and 2 feature XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 2 also includes a Hi-Z mode, allowing direct connection of instruments such as electric guitars. Both channels are equipped with gain control, compressor, high/low EQ knobs, pan control, mix level knobs, and clip LEDs for precise signal management. Channels 3/4 and 5/6 provide stereo line-level inputs via dual 6.3 mm jacks, each with pan and mix level controls. Additional inputs include a 3.5 mm Aux minijack and BT connectivity, both with dedicated mix level knobs and status LEDs.
The GIG-62 V2 also features a USB-C interface with 2-in/2-out functionality, shared with the Aux input, making it ideal for recording and playback. Outputs include a pair of balanced 6.3 mm jack main outputs with level control, a headphone output with independent volume knob, and a minijack recording output that mirrors the USB signal. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.

Specifications

Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 60 dB
Mono Input Impedance 3000 Ω
Stereo Inputs 2
Stereo Input Connector TRS balanced 6.3 mm
Stereo Input Gain Range 20 dB
Stereo Input Impedance 10000 Ω
Auxiliary Inputs 1
Auxiliary Input Connector TRS balanced 3.5 mm
Auxiliary Input Impedance 10000 Ω
Outputs
Main Outputs 2
Main Output Connector TRS balanced 6.3 mm
Main Output Maximum Level 22 dBu
Main Output Impedance 100 Ω
Headphone Output 1
Headphone Output Connector TRS balanced 6.3 mm
Headphone Output Impedance 32 Ω

Digital Playback
Audio Interface Yes
Audio Interface USB Input 2
Audio Interface Input Connection USB-C
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Media Player No

Audio Specifications
THD Level % < 0.01 %
Signal-to-noise Ratio > 103 dB
Crosstalk -86 dBu
Frequency Response Minimum 20 Hz
Frequency Response Maximum 22000 Hz
Phantom Power 48 V
Sound Editing
Dynamics Processing Compressor
Wireless Specifications
Bluetooth Yes
Bluetooth Version 5.0
Bluetooth Range 20 m (65.617 ft)

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Output voltage 15 V DC
Power Consumption 7 W
Power Connector In Low Voltage DC plug
Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz
Output voltage 15 V DC
Output current DC (mA) 1000 mA

Mechanical Specifications
Height (mm) 55 mm (2.165″)
Width (mm) 161 mm (6.339″)
Length (mm) 240 mm (9.449″)
Housing Metal
Colour Black
Weight 1.15 kg (2.535 lb)
IP Rating IP20 (indoor use only)

Product Properties
LED Indicators +48V, BT Pairing, Clip, Data connect, Output level, Power
Handles All sides

Included Items
Included Accessories Adapter
