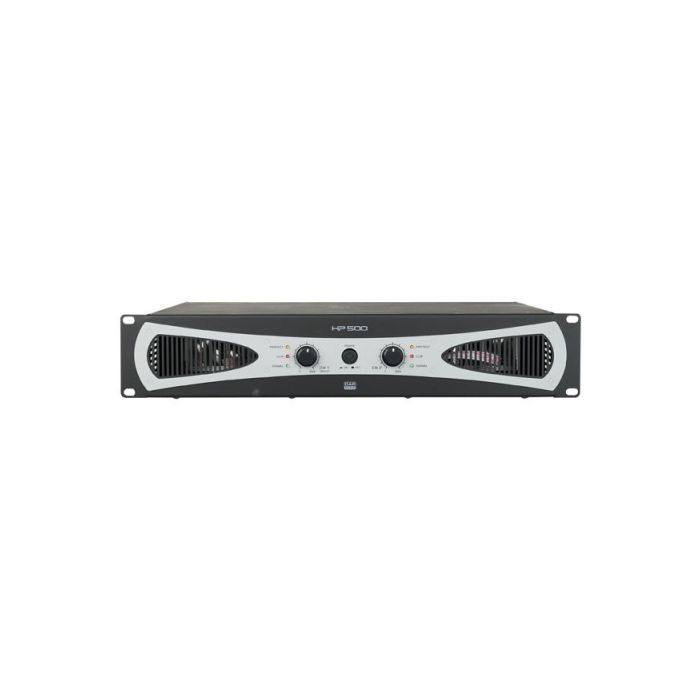

DAP HP-500 2U 2x200W Amplifier

• Full protection circuits
• Efficient forced air cooling
• Stereo & Bridge mode

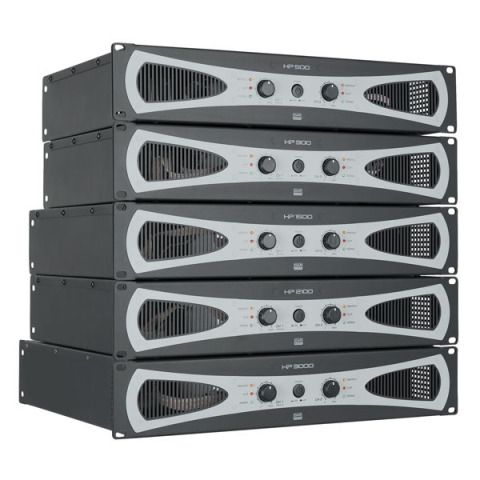

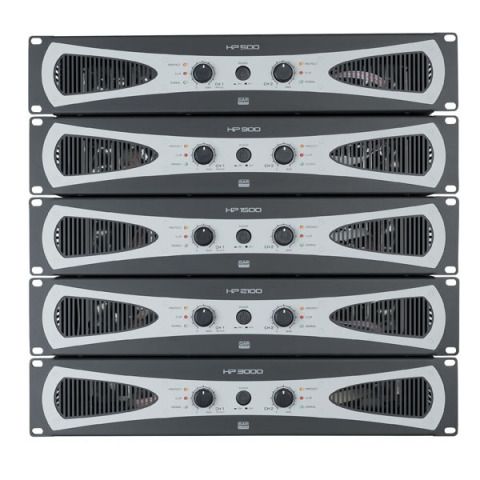

The DAP HP Series power amplifiers are the solution when true quality is needed in an affordable price range. The HP Series are 5 models representing output powers from stereo 200W until 1400W. All including the best protection circuits and built in a strong solid housing to achieve many years of reliable power. They are the best mobile choice for musicians, DJs, and entertainers but also perfect for installations in discos, pubs or any kind of public areas.

Specifications

Output Power
Stereo 2Ohm: Not Allowed
Stereo 4Ohm: 2x 200 Watt RMS
Stereo 8Ohm: 2x 150 Watt RMS
Bridge 2Ohm: Not Allowed
Bridge 4Ohm: Not Allowed
Bridge 8Ohm: 1x400 Watt RMS
Frequency Response: 10Hz – 20KHz, +/-1dB
THD: <0.5%
S/N rate: >100dB A-weighted
Crosstalk: >75dB
Damping Factor: >250   8 OHM
Gain: 32dB
Input Sensitivity: 0,775V (+/-1dBv)
Input Impedance: 20kOhm balanced, 10kOhm unbalanced
Output Mode: Stereo / Parallel / Bridge
Amp Technology: Class AB
Protection: Clip Limiter (Fixed)
Short Circuit
Overheat
Overload
DC Voltage
Cooling: Forced-air by axial fan
Airflow: Front to side

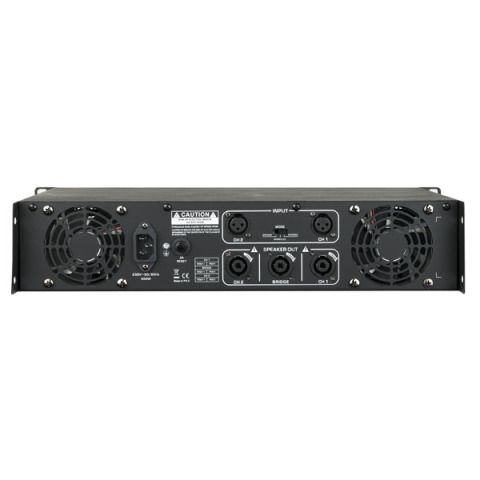

Input Connectors: 3-pin XLR
Output Connectors: Speakon
Power Connector: IEC
Input Voltage: 210~240VAC, 50/60Hz
Dimensions: 483 x 310 x 88mm
Weight: 8Kg
