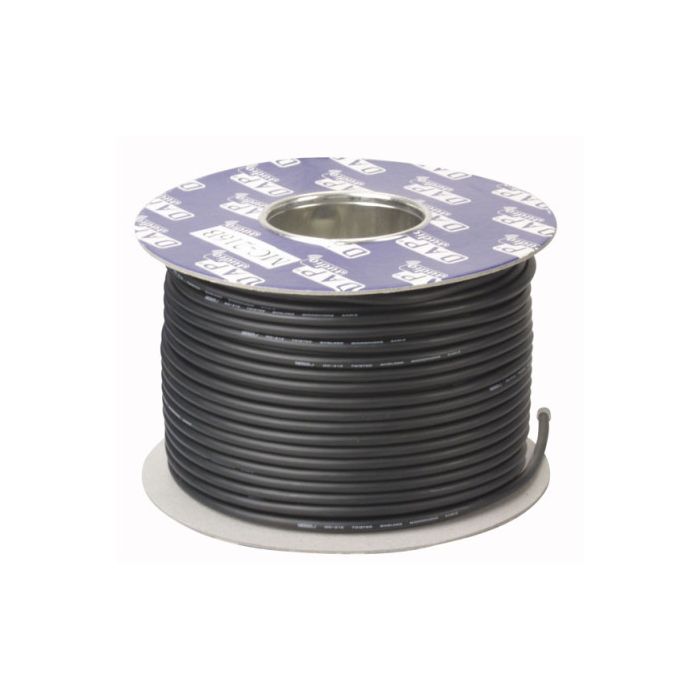

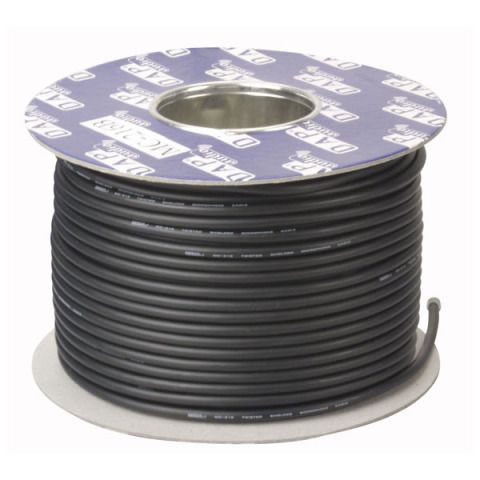

DAP LC-126 Zwarte line-kabel asymmetrisch, 100 m op een spoel
Technical Info
Conductor drains mm: OFC 7 x 0,20
Conductor insulation: PE transparent
Conductor insulation in mm: 2,4
Filler material: -
1st shield: Conductive plastic
2nd shield: OFC 50 x 0,14
Outer isolation: PVC black, red , blue
Outer isolation in mm: 6

Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: -
Cap. Inner conduct. Shield / Inner conduct.: 65 pF/m
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 50 Ohm
