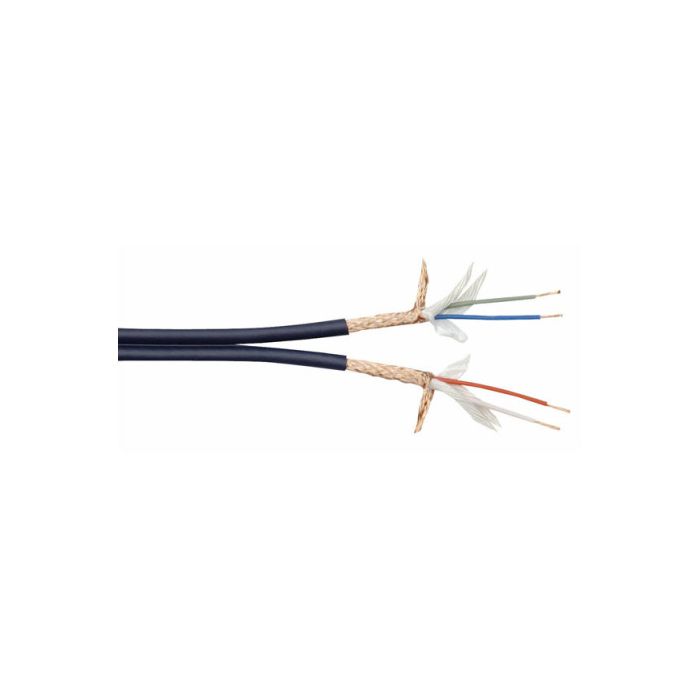

DAP MCD-224 Dual line Kabel 100 meter op rol
Technical Info
 Conductor drains  mm: OFC 20 x 0,12
 Conductor insulation: PE
 Conductor insulation  in mm: 1,4
 Filler material: -
 1st shield: OFC braided
 2nd shield: -
 Outer isolation: PVC black
 Outer isolation  in mm: 2 x 4

Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 65 pF/m
Cap. Inner conduct. Shield / Inner conduct.: 82 pF/m
Working temperature min. / max.: -20~60 C
Working Voltage overflash: 30V
Nom Impedance: 100 Ohm
