€ 407,00
€ 336,36
?
SKU
D3557

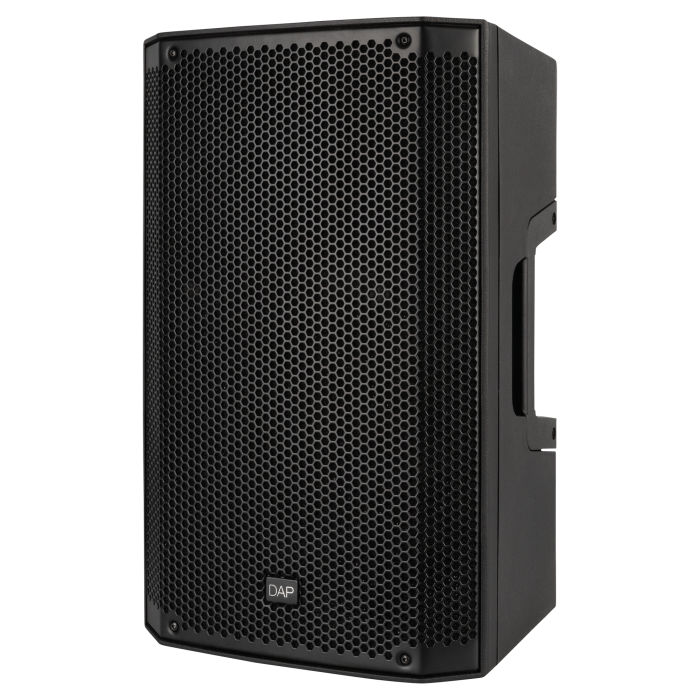

DAP NGA-10A Active 10” high-power full range speaker
DAP NGA-10AActive 10” high-power full range speaker
1000 W RMS, 2000 W peak, max SPL of 127 dB at 1 m
48 - 20,000 Hz frequency range
BT 5.3 with True Wireless Stereo (TWS)
Dedicated mic and line + Hi-Z inputs
Internal DSP with 4 modes, adjustable crossover, EQ, and limiting
The NGA-10A is a compact active loudspeaker designed for versatile audio applications. It features a 10" woofer paired with a 1.4" compression driver, delivering a frequency response of 48 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.
The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output sums both analogue inputs but excludes the Bluetooth signal.
Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.
BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app, allowing access to output gain, 3-band EQ, speaker name, speaker positioning (wall, free-standing), crossover frequency, user modes and stored presets.
Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.
The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output sums both analogue inputs but excludes the Bluetooth signal.
Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.
BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app, allowing access to output gain, 3-band EQ, speaker name, speaker positioning (wall, free-standing), crossover frequency, user modes and stored presets.
Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.
Specifications
Outputs
Low Driver Power 650W
High Driver Power 350W
Power Amplifier RMS Output 1000W
Power Amplifier Peak Output 2000W
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Audio Specifications
THD Level % < 0.15 %
Signal-to-noise Ratio > 85 dB
Amp Technology Class D
Speaker System 2 way
Speaker Sensitivity (1W/1m) 95 dB
Maximum SPL at 1m 126 dB
Frequency Response (-3 dB) Minimum 54 Hz
Frequency Response (-3 dB) Maximum 20000 Hz
Frequency Response (-10 dB) Minimum 48 Hz
Frequency Response (-10 dB) Maximum 20000 Hz
Crossover Frequency (High) 3000 Hz
Woofer Diameter 10"
Woofer Voice Coil Diameter 2.5"
Woofer Magnet Type Ferrite
Compression Driver Diameter 1"
Compression Driver Voice Coil 1.4"
Compression Driver Magnet Type Ferrite
Dispersion Angle (Horizontal) 90°
Dispersion Angle (Vertical) 60°
Control and Programming
Control Mode Bluetooth
Display TFT
DisplaySize1.9"
Electrical Specifications and Connections
Power Supply 220-240 V AC 50/60 Hz
Power Consumption 800W
Fuse 5 A
Power Connector In IEC
Mechanical Specifications
Height (mm) 528mm (20.787″)
Width (mm) 334mm (13.15″)
Depth (mm) 313mm (12.323″)
Material Polypropylene
Color Black
Weight 12.52 kg (27.602 lb)
IP Rating IP20 (indoor use only)
Product Properties
Pole Mount 35mm
Electronic Protection
Clip limiter, Overload, Thermal LED Indicators
BT Pairing
Rotatable Horn No
Useable as Monitor/Wedge Yes
Speaker Grille Material Steel
Speaker Handle Positions Left side, Right side,
Top Rigging
Rigging Options Flying
Rigging Eye Thread M10
Included Items
Included Cables IEC cable
