Duratruss DT BPS-8080 Medium Baseplate Black
Duratruss DT BPS-8080 Medium Baseplate Black

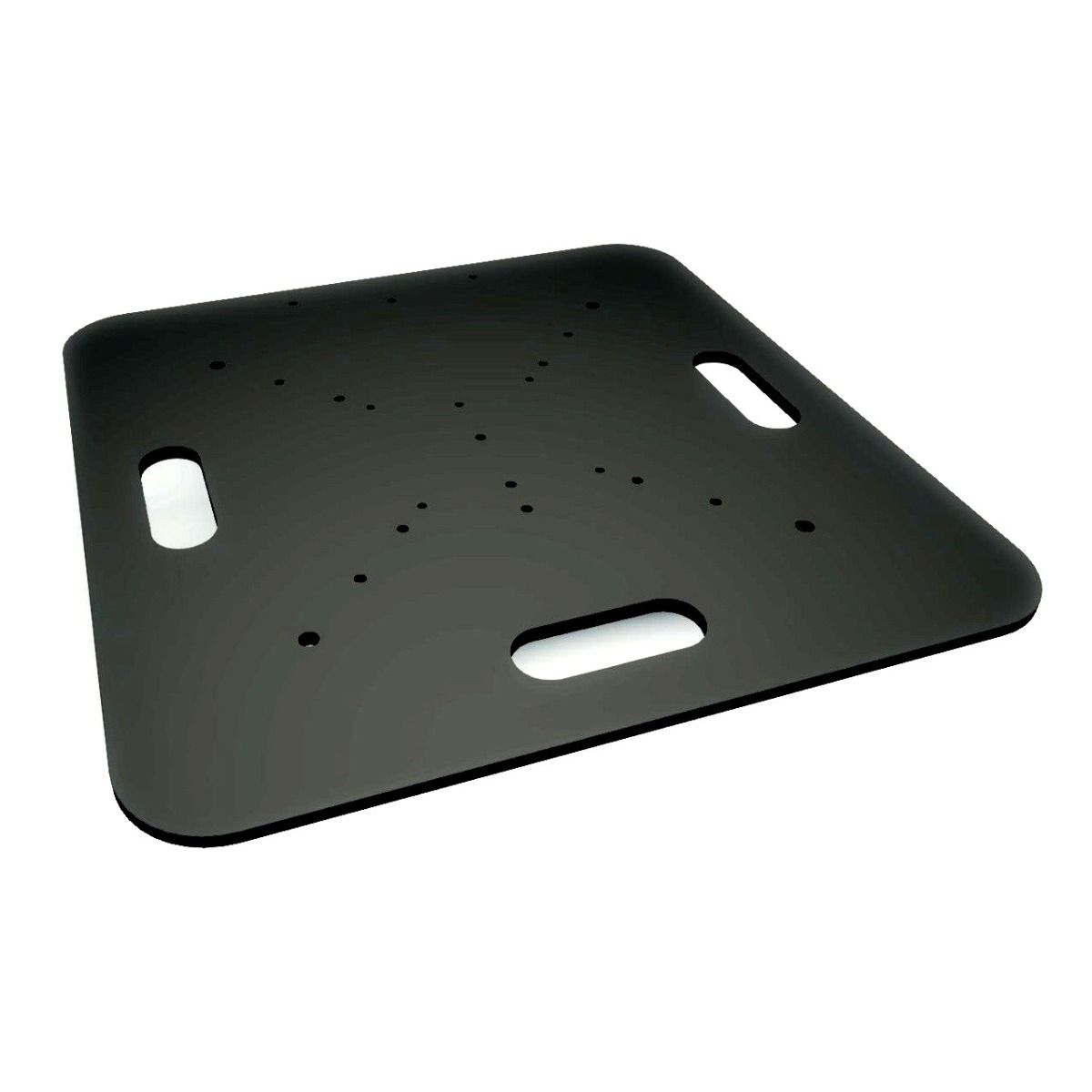

The BPS-8080 Medium Black is one solution for triangle and quad truss installation as a column. With holes for one-point, three & 4 point trusses. There are four recessed grips in the steel plate for safe transport.
Technical specs:
- Connection for:
DT23, DT24 : please order separately 1749000018 DT 20-HCC + 1733000076 DT Screw M8x16 BPL
DT33, DT34, DT43, DT44 : please order separately 1749000011 DT 30/40-HC-M10 + 1733000043 DT Screw M10x20 BPL
DT54 : please order separately 1799000002 DT 54/74-HC-M16 + 1733000102 DT Screw M16x25 BPL
- Material: steel
- Color: black powder-coating, RAL 9005
Dimensions:
- Length: 800 mm
- Width: 800 mm
- Height: 10 mm (without cones)
- Weight: 45kg
Delivery without half cones & screws. Please order separately.
