€ 349,00
€ 288,43
?
SKU
st70064834

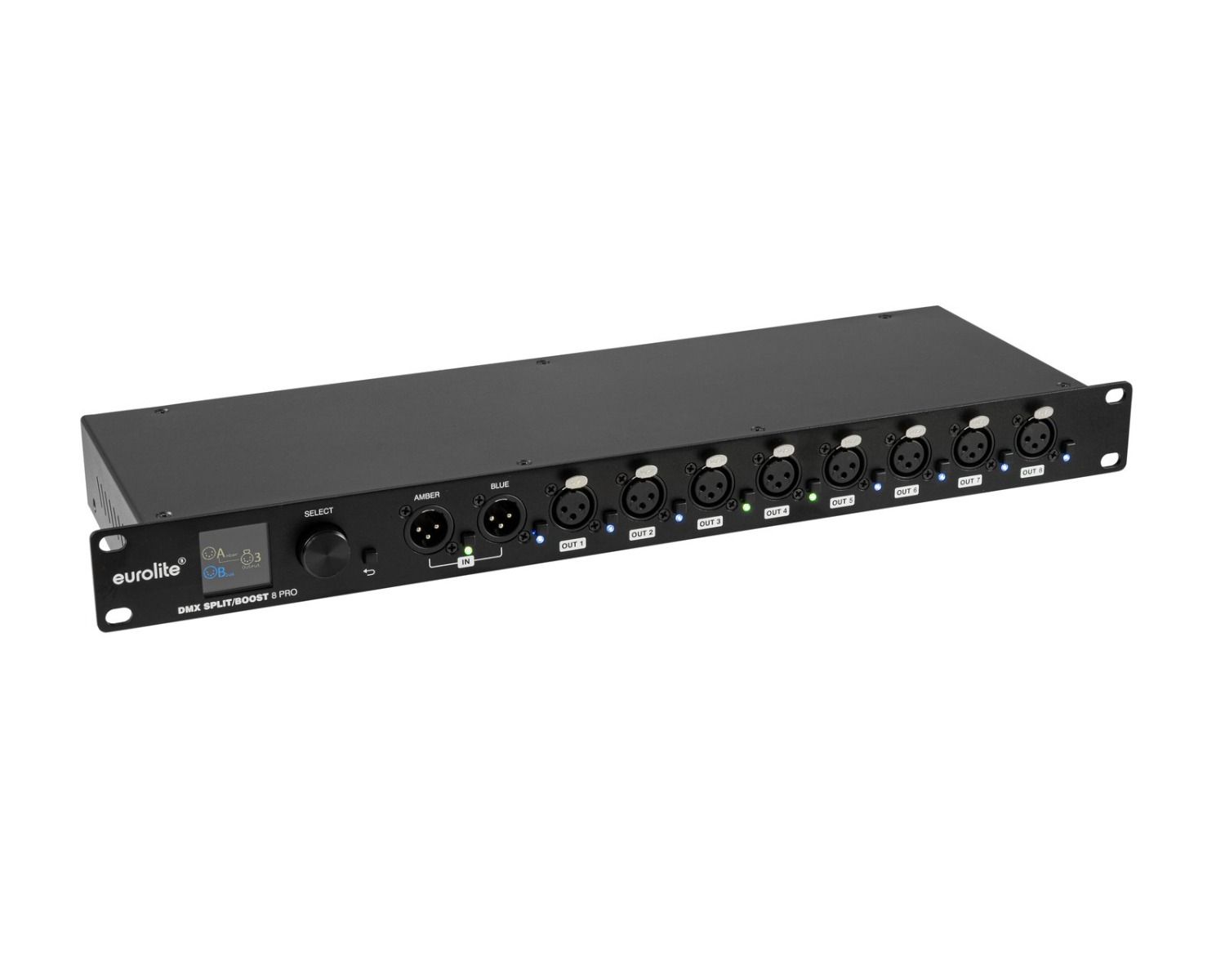

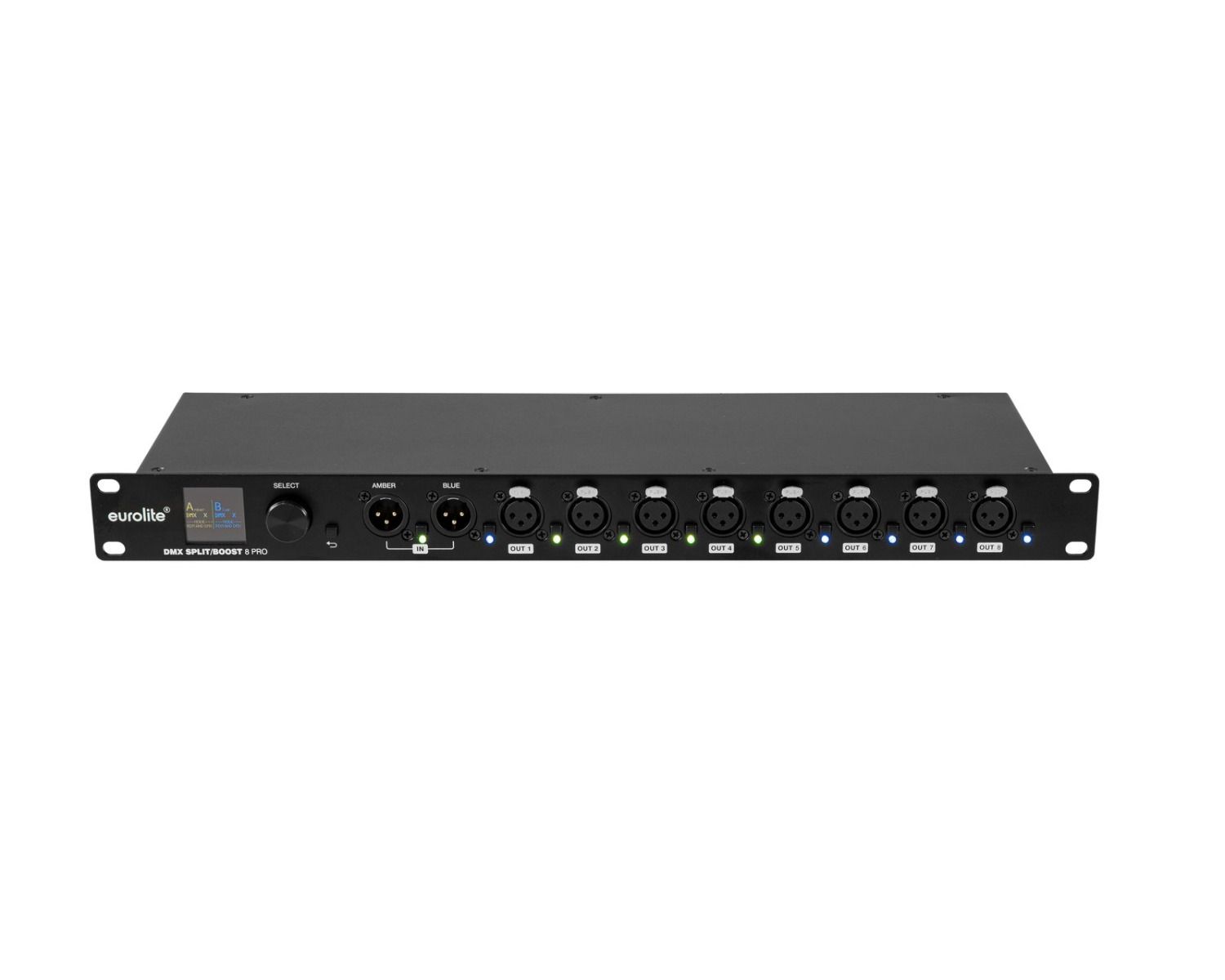

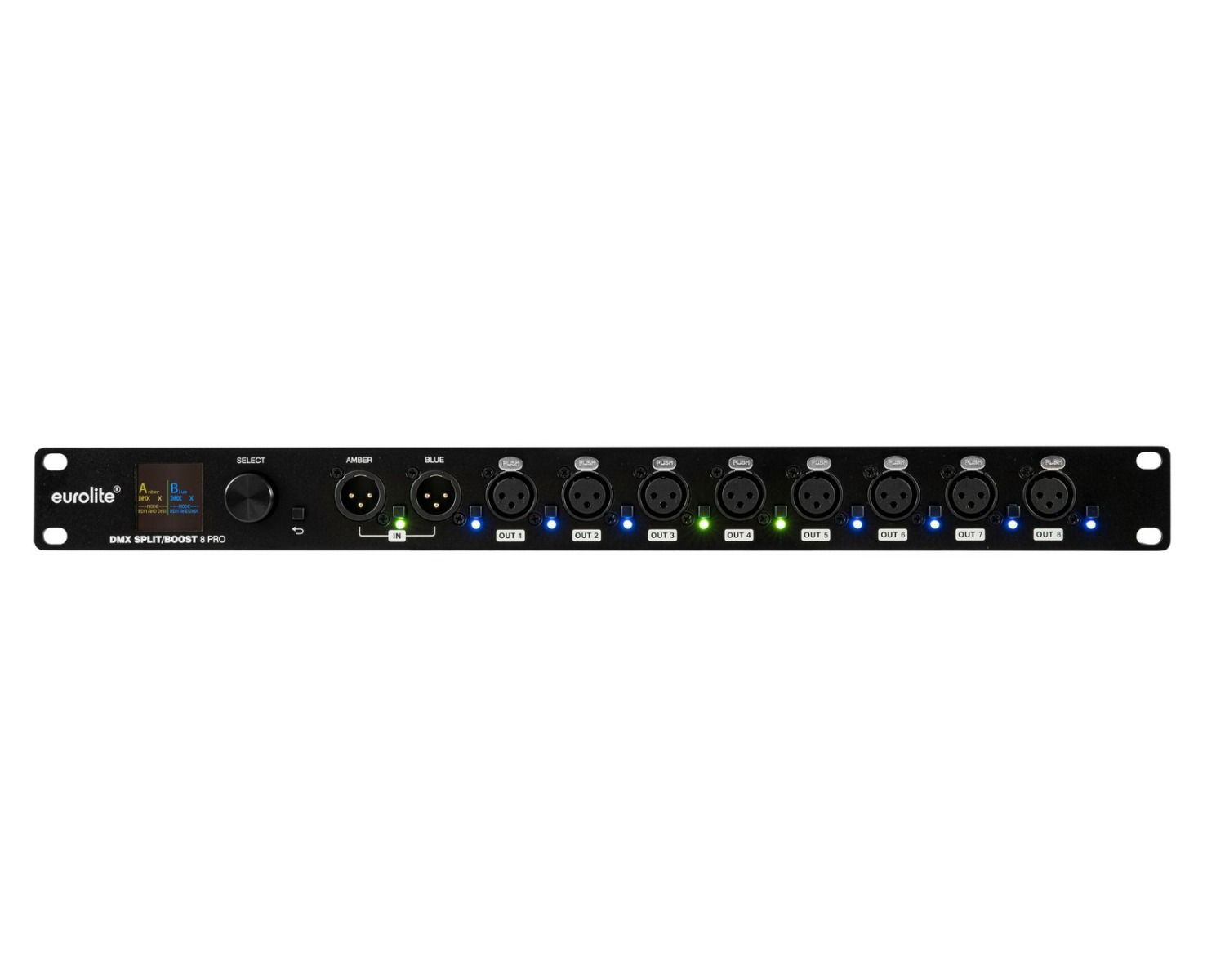

EUROLITE DMX Split/Boost 8 PRO 3-pin 2 in/8 out DMX splitter with RDM support and real-time DMX monitoring
EUROLITE DMX Split/Boost 8 PRO 3-pin 2 in/8 out DMX splitter with RDM support and real-time DMX monitoring
Features
2 in/8 out DMX splitter with RDM support and real-time DMX monitoring
- DMX modes: LTP, HTP, merge or backup
- Each DMX output with independent driver and status indicator
- Control via RDM
- Multicolor OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; Stage; theater; Rental
- Silent operation
- Application possibility: Standing
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Â
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

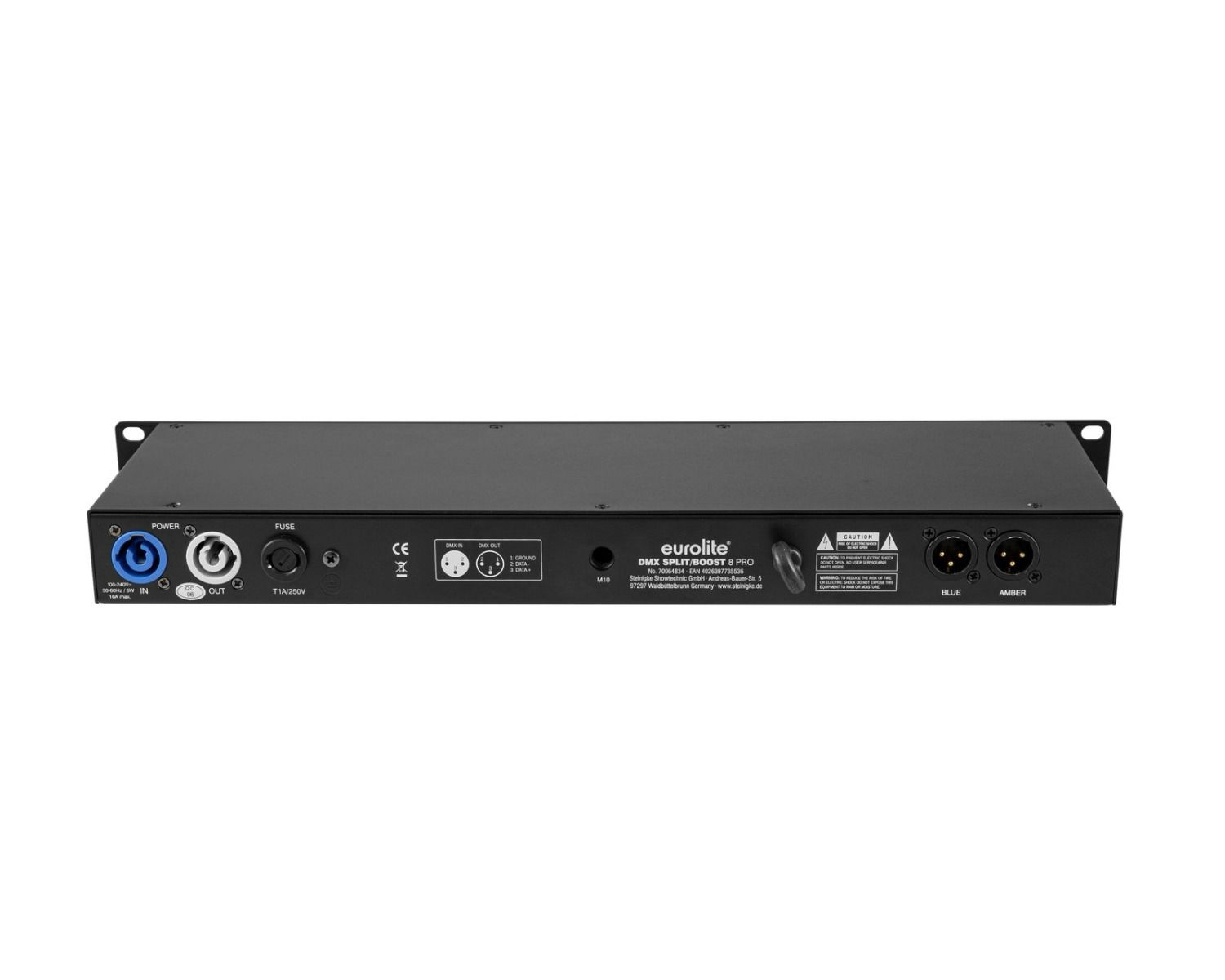

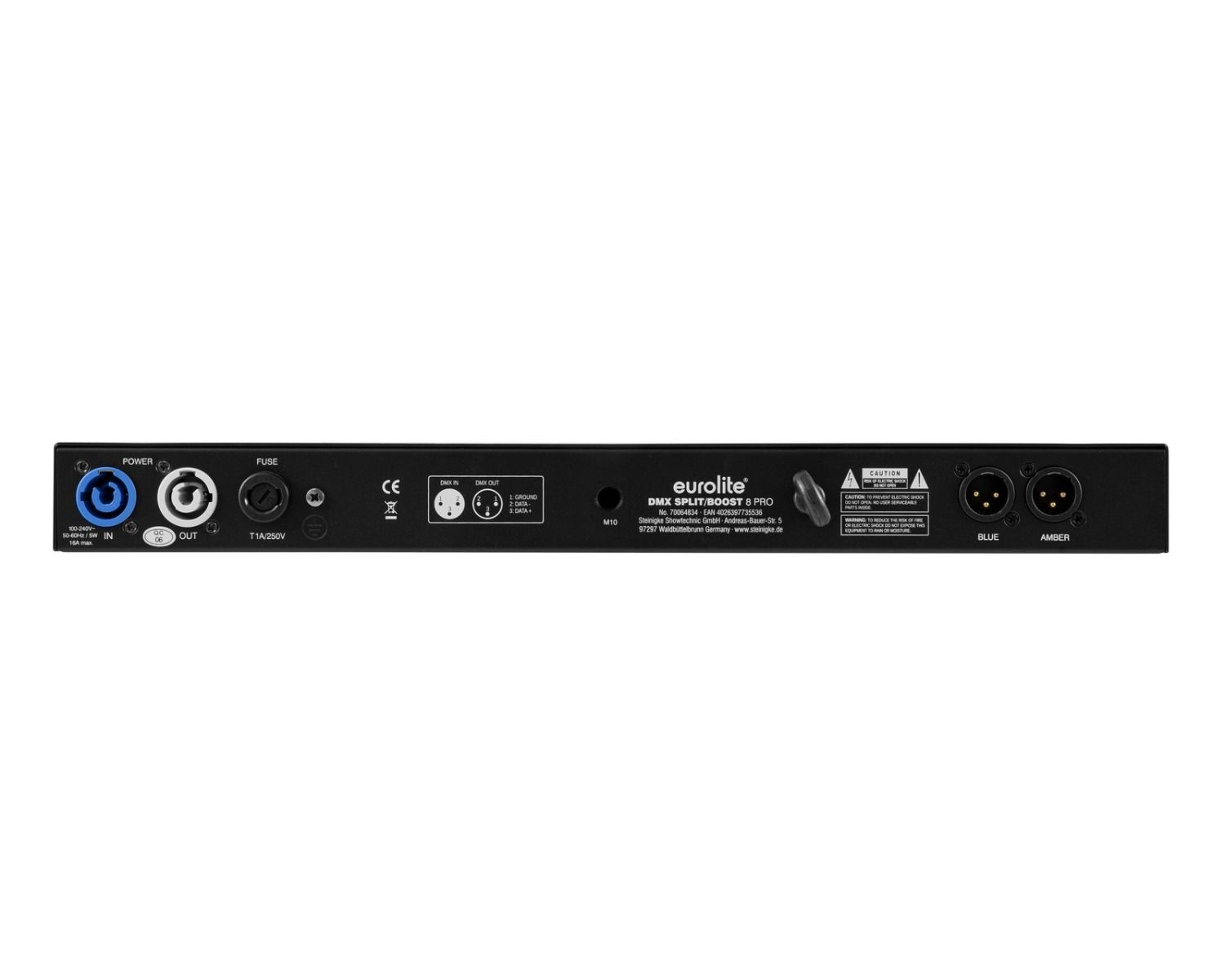

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | 1,45 m |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator |
| Control: | RDM |
| Housing color: | Black |
| Attachment system: | M10 thread |
| Display type: | Multicolor OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Mounting depth: | 23 cm |
| Dimensions: | Width: 48,3 cm Depth: 16 cm Height: 4,4 cm |
| Weight: | 2,23 kg |
| Noise classification: | Class 0 (no noise at all) |
