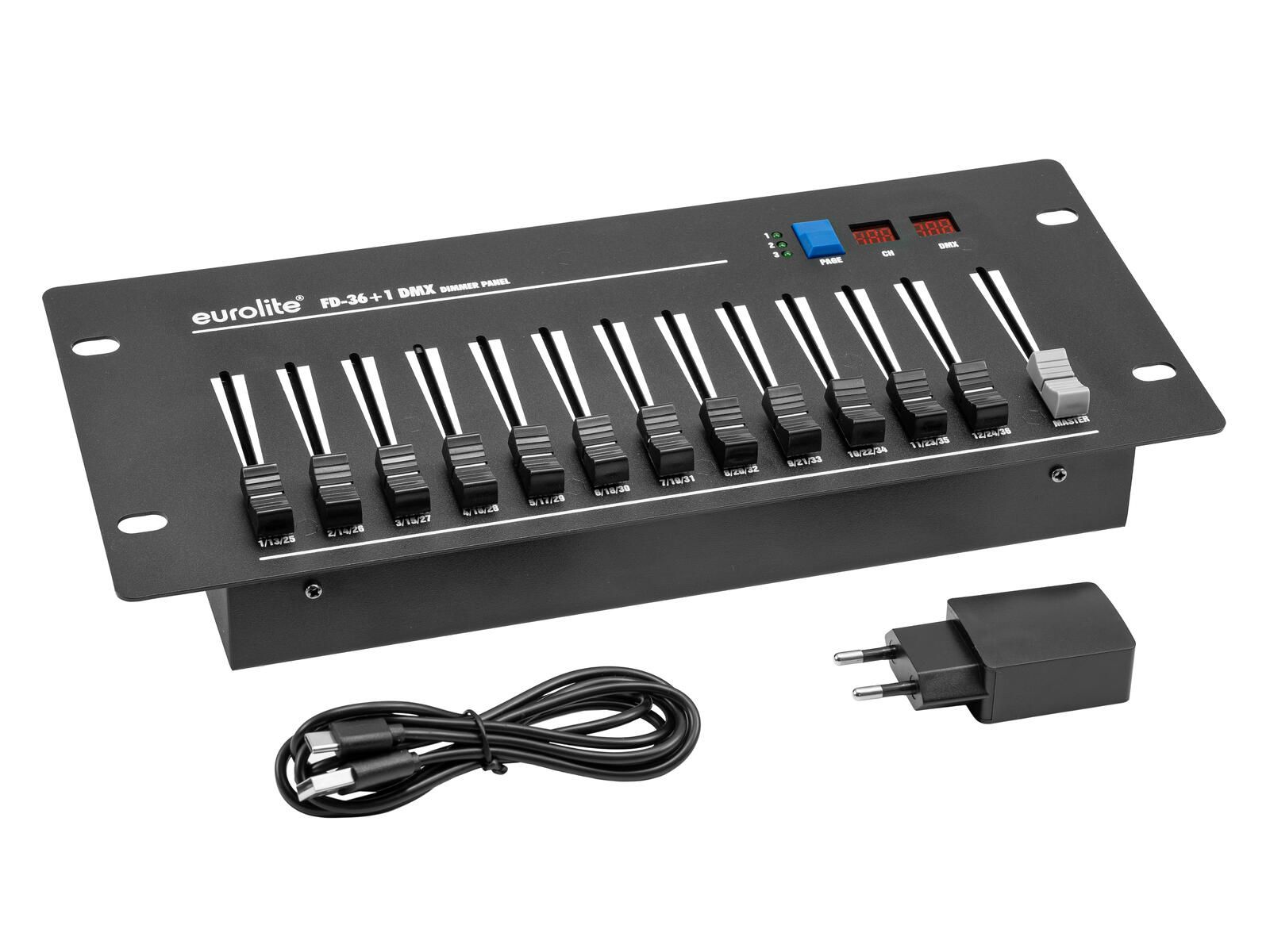

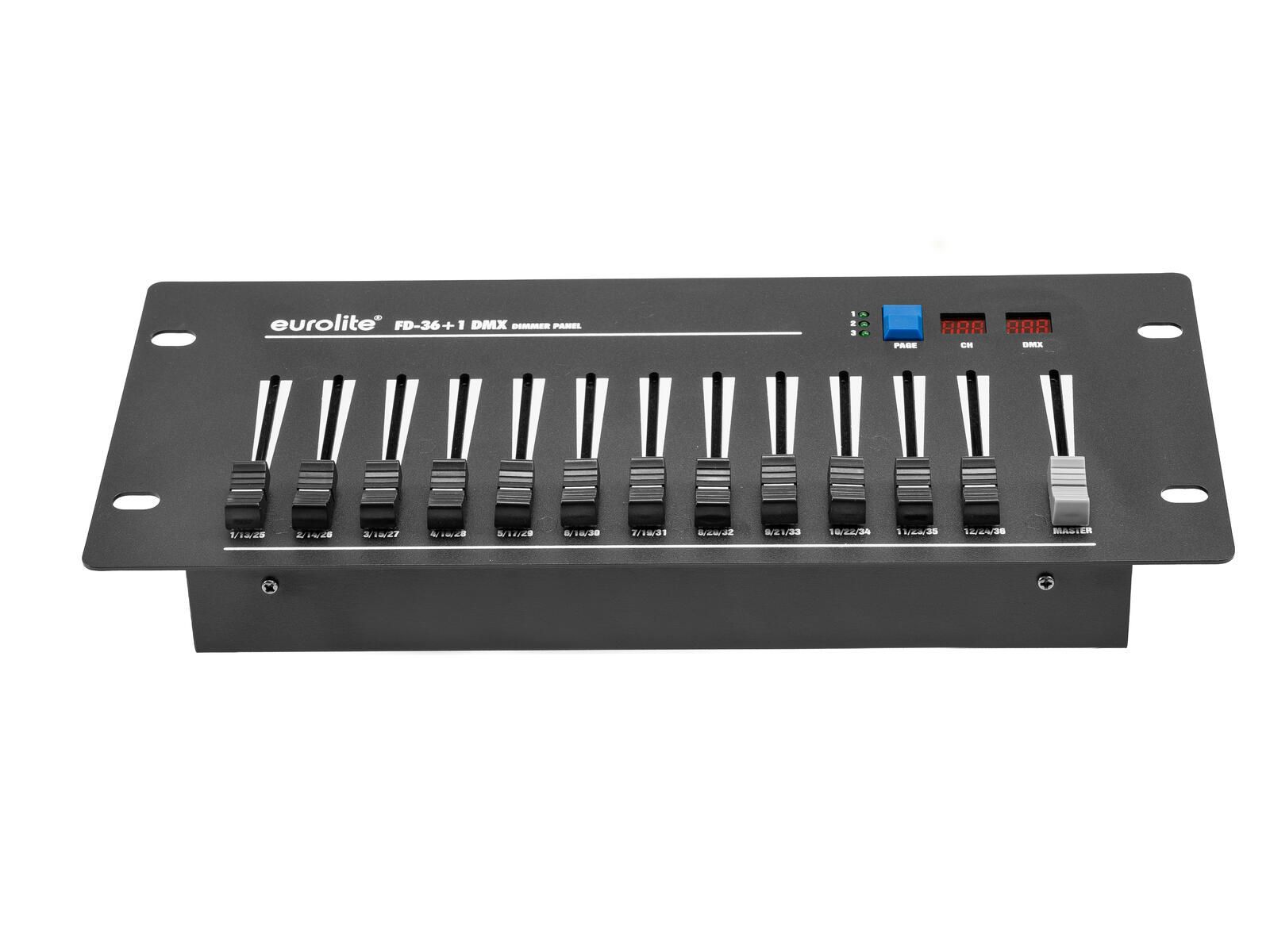

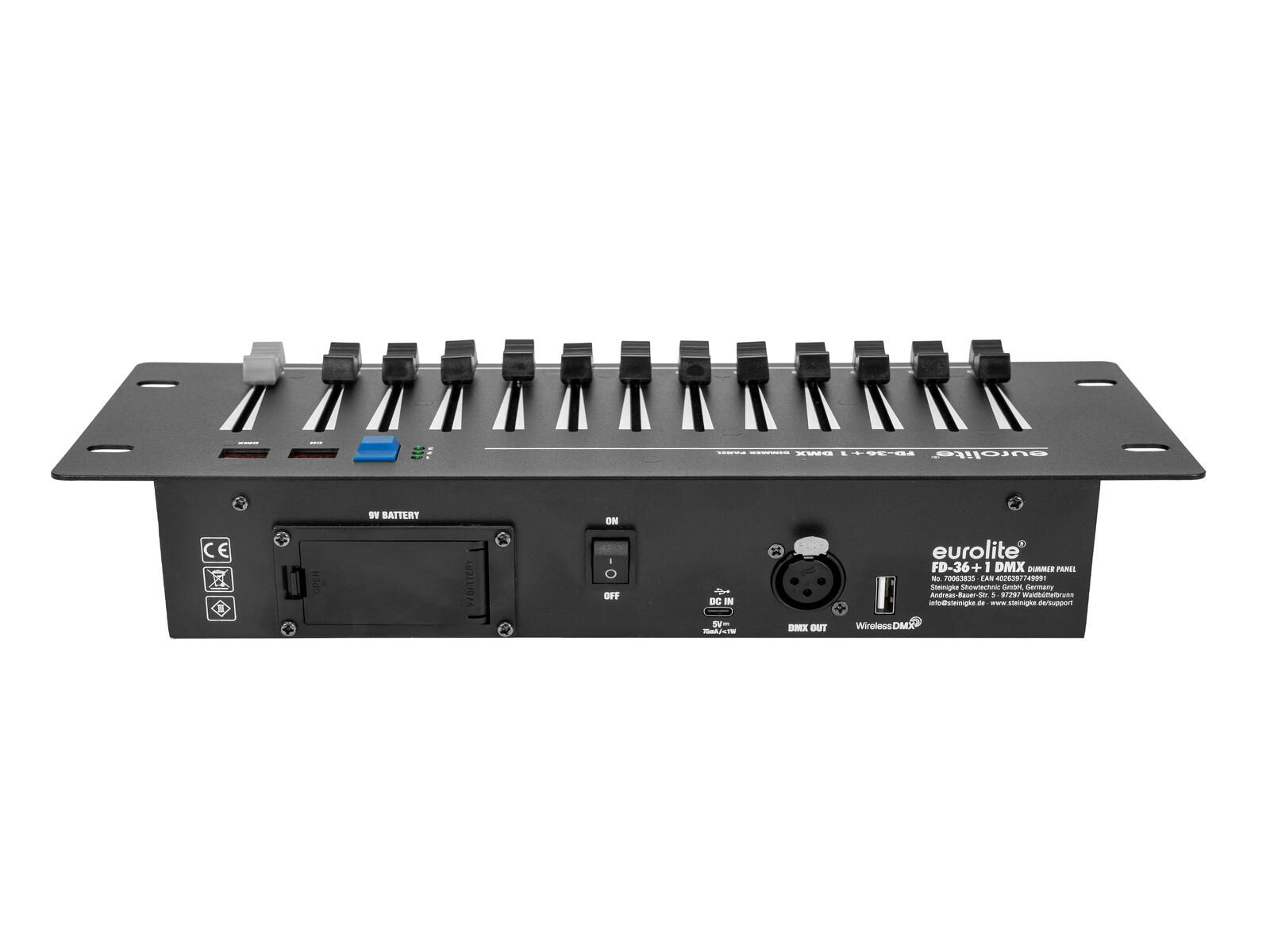

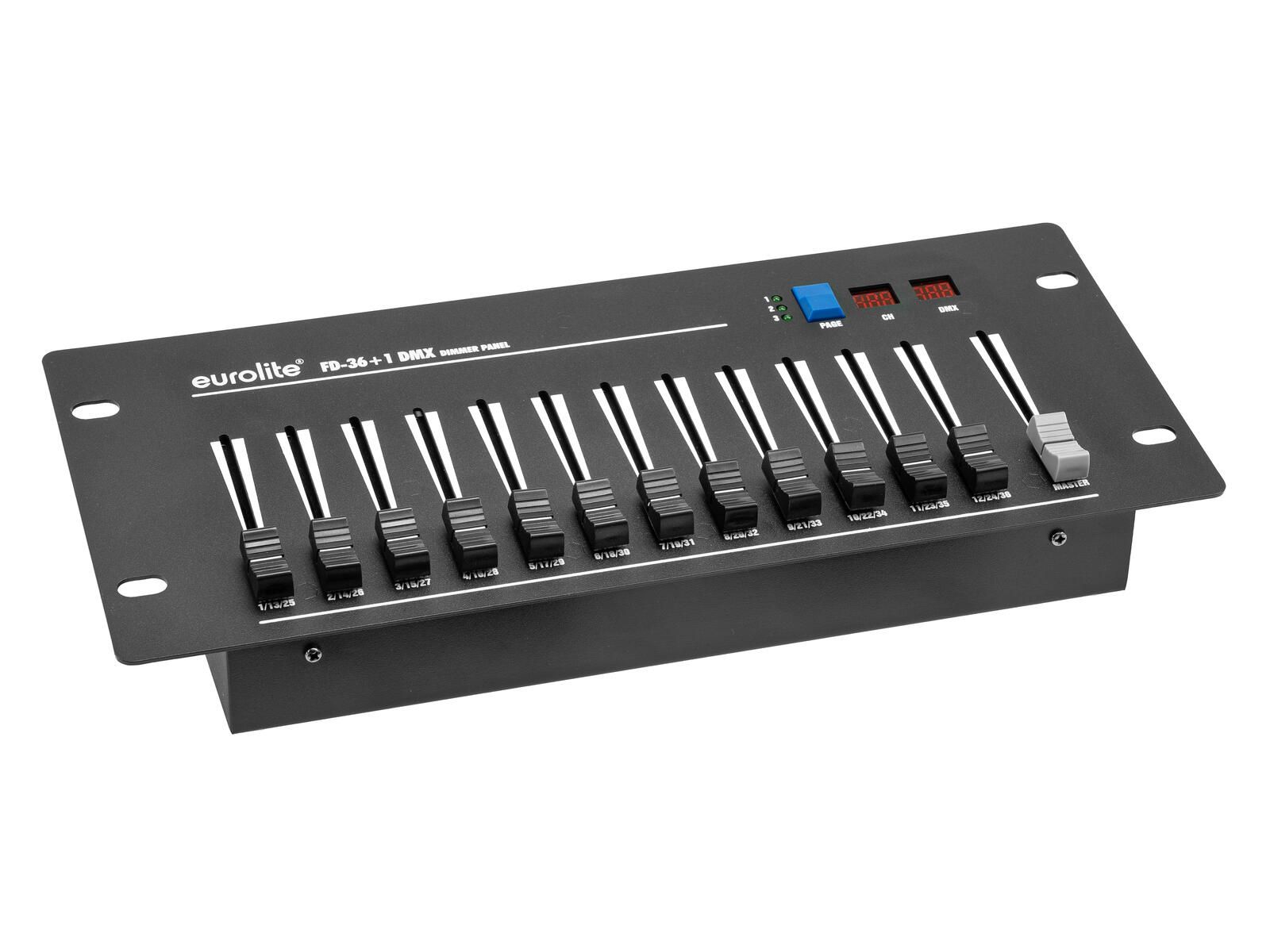

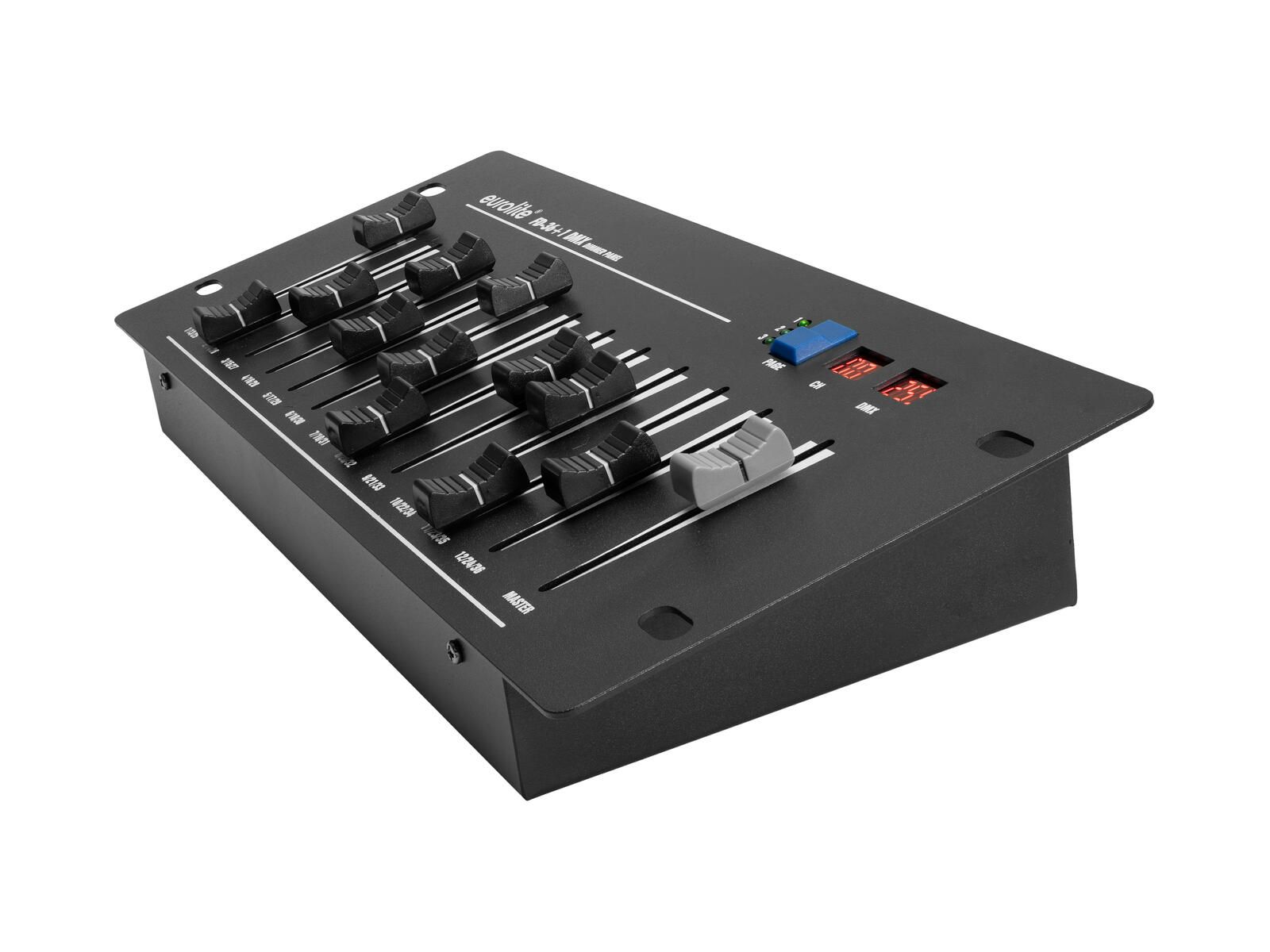

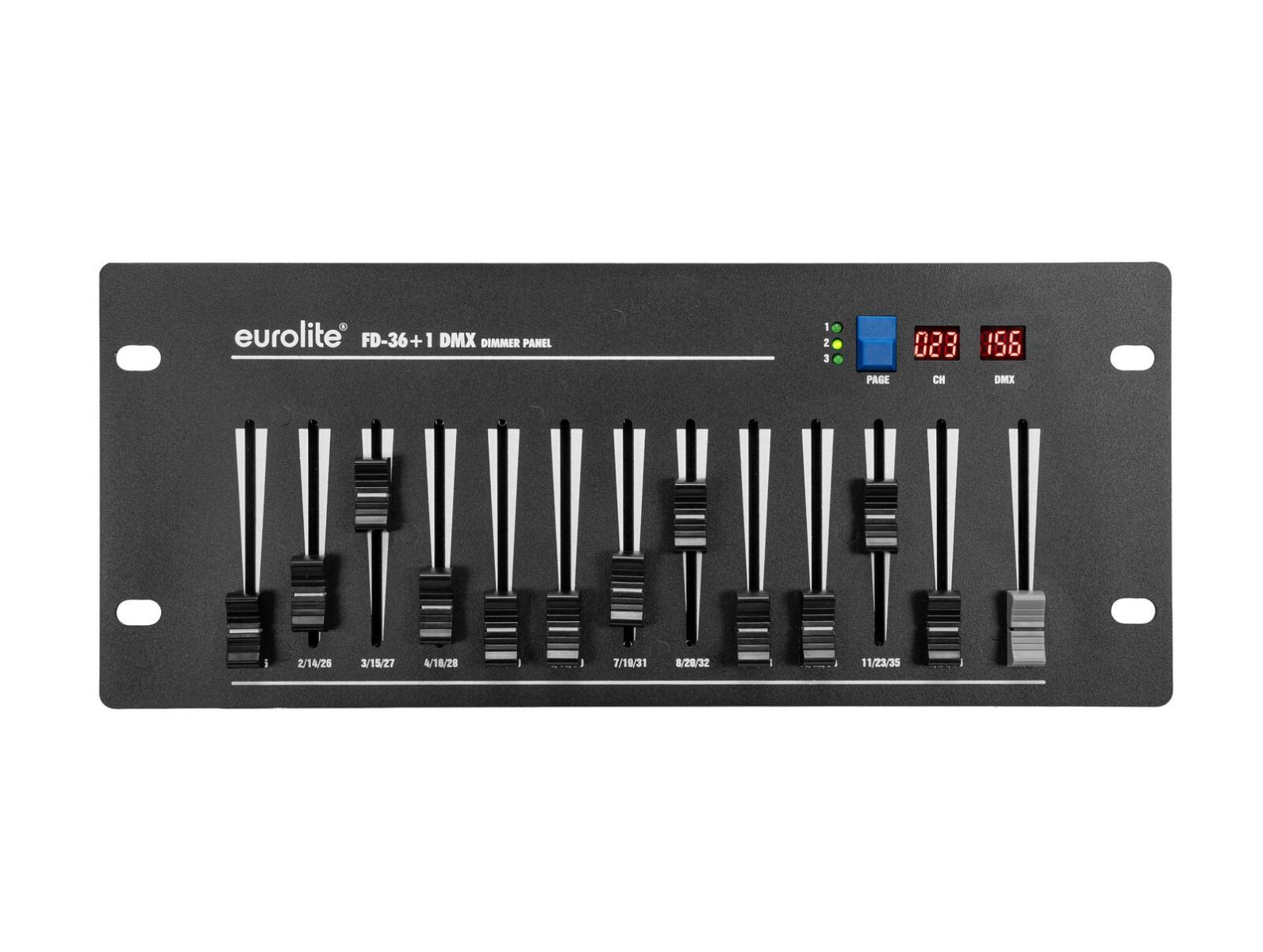

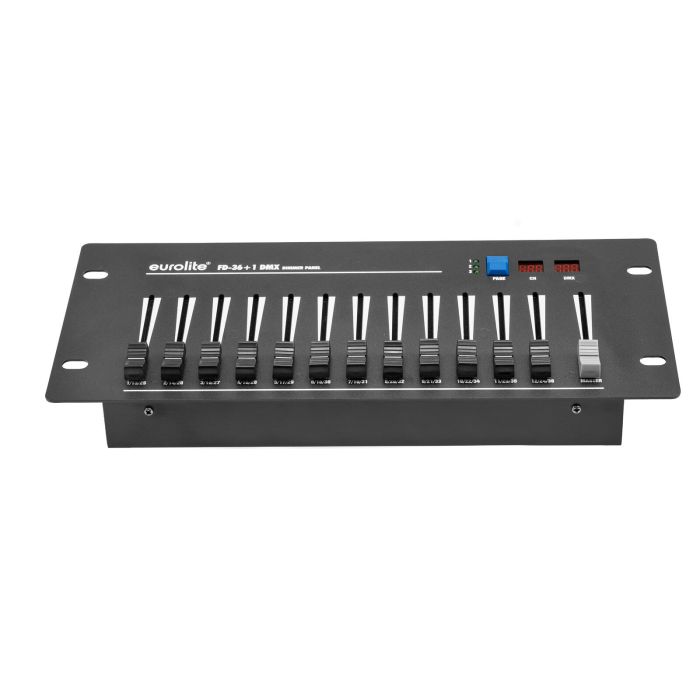

Basic DMX controller for 36 channels with master fader

• Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
• Simply connect and operate, requires no extensive programming
• 12 channel faders for adjusting the DMX values in 3 groups
• 1 master fader
• Compact design
• Can transmit up to 36 DMX channels
• Desktop console housing
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz 5V DC 75 mA Or 9V DC 75 mA
  Power consumption:	< 1 W
  IP classification:	IP20
  Power connection:	Mains input via USB C (W) mounting version power supply cord for USB A mains connection included
  Battery:	1 x 9.0 V E block 6LR61 alkaline manganese (not included)
  DMX channels:	Output 36
  DMX output:	1 x 3-pin XLR (F) mounting version
  Control:	DMX; QuickDMX
  Housing color:	Black matte
  Display type:	2 x 3 digit 7-segment LED display
  Material:	Metal, painted
  Housing design:	Desktop console housing
  Dimensions:	Length: 34 cm Width: 14 cm Height: 6 cm
  Weight:	1.55 kg
