€ 337,97
€ 279,31
?
SKU
st51860131

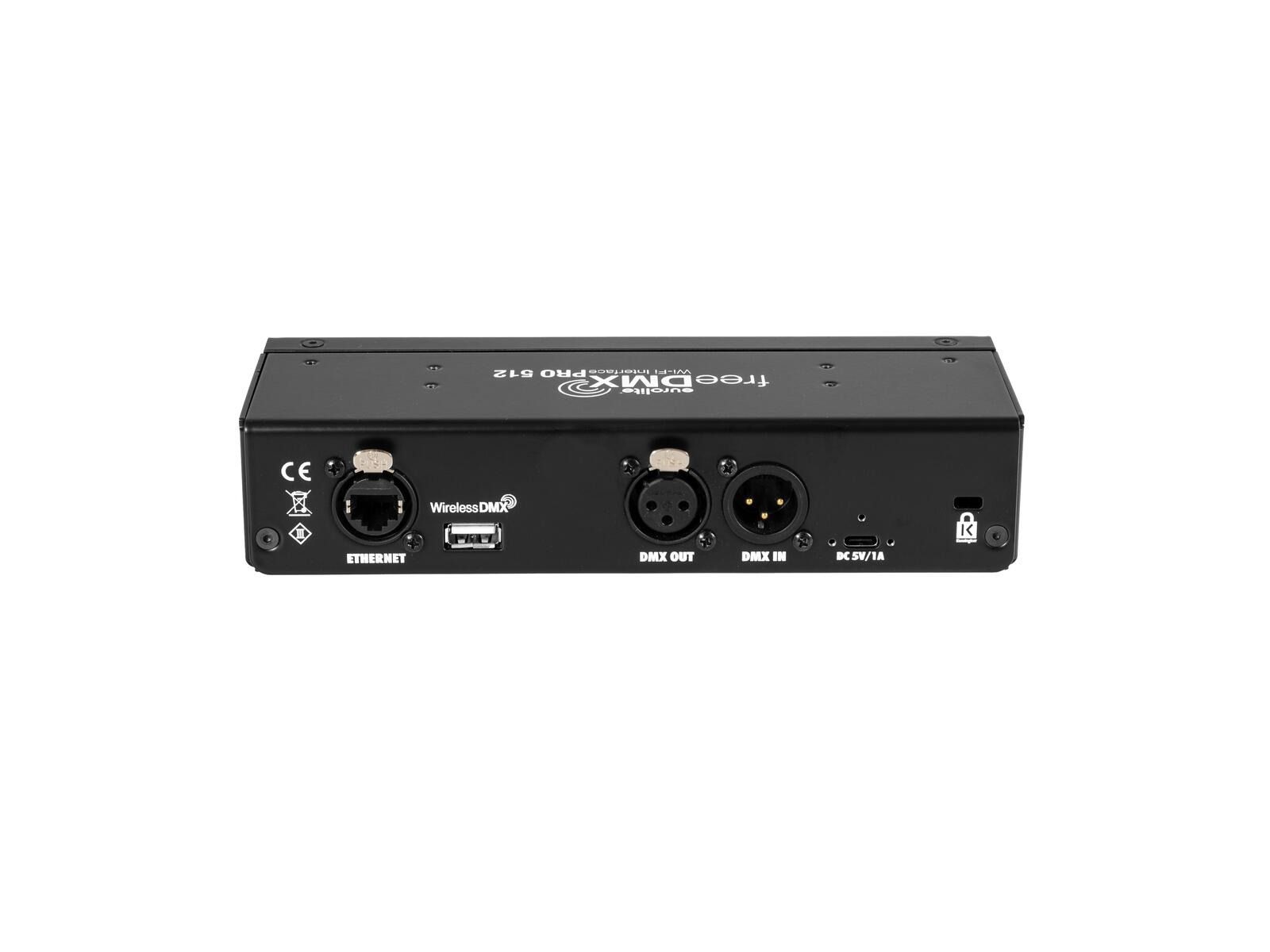

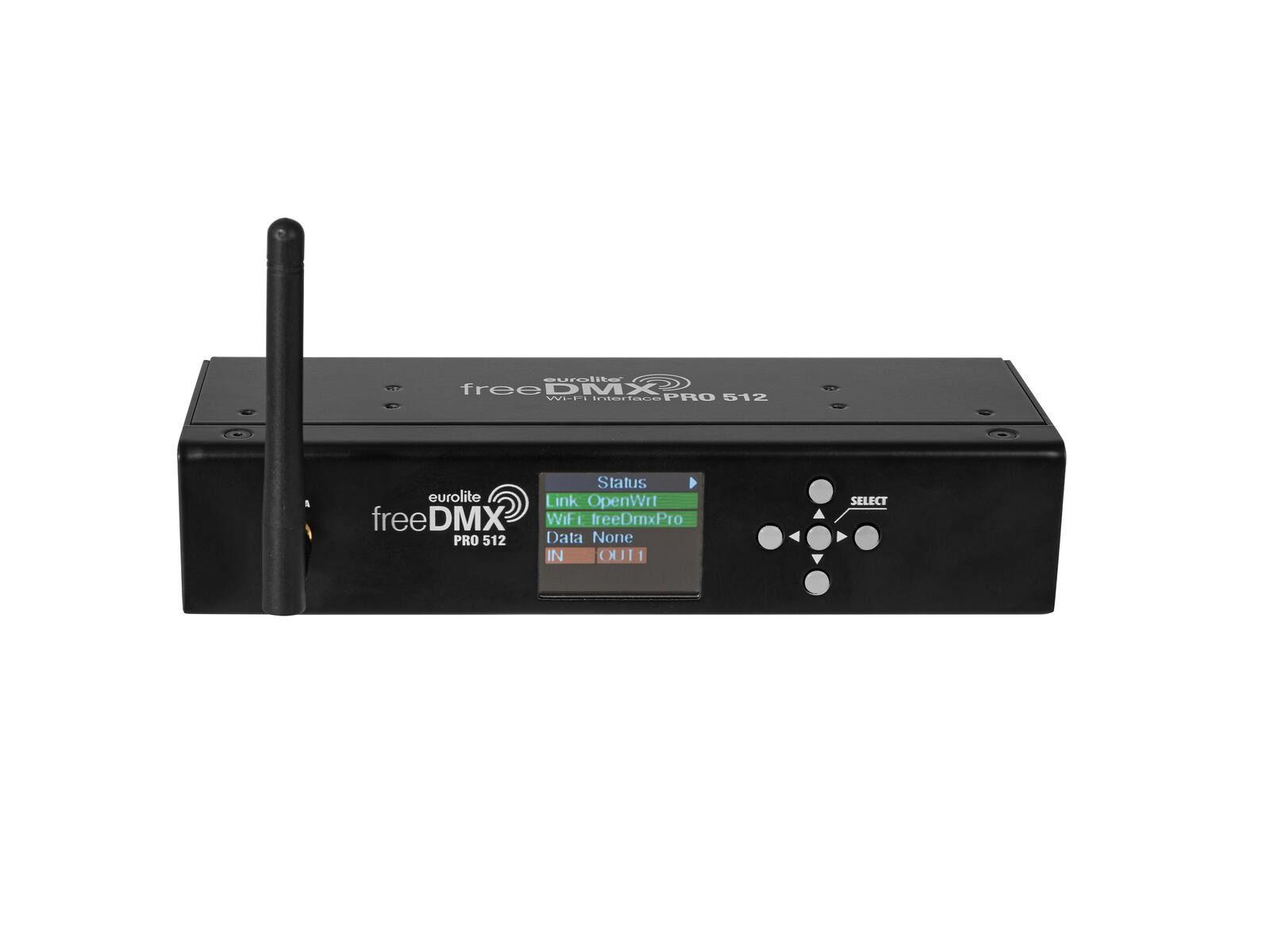

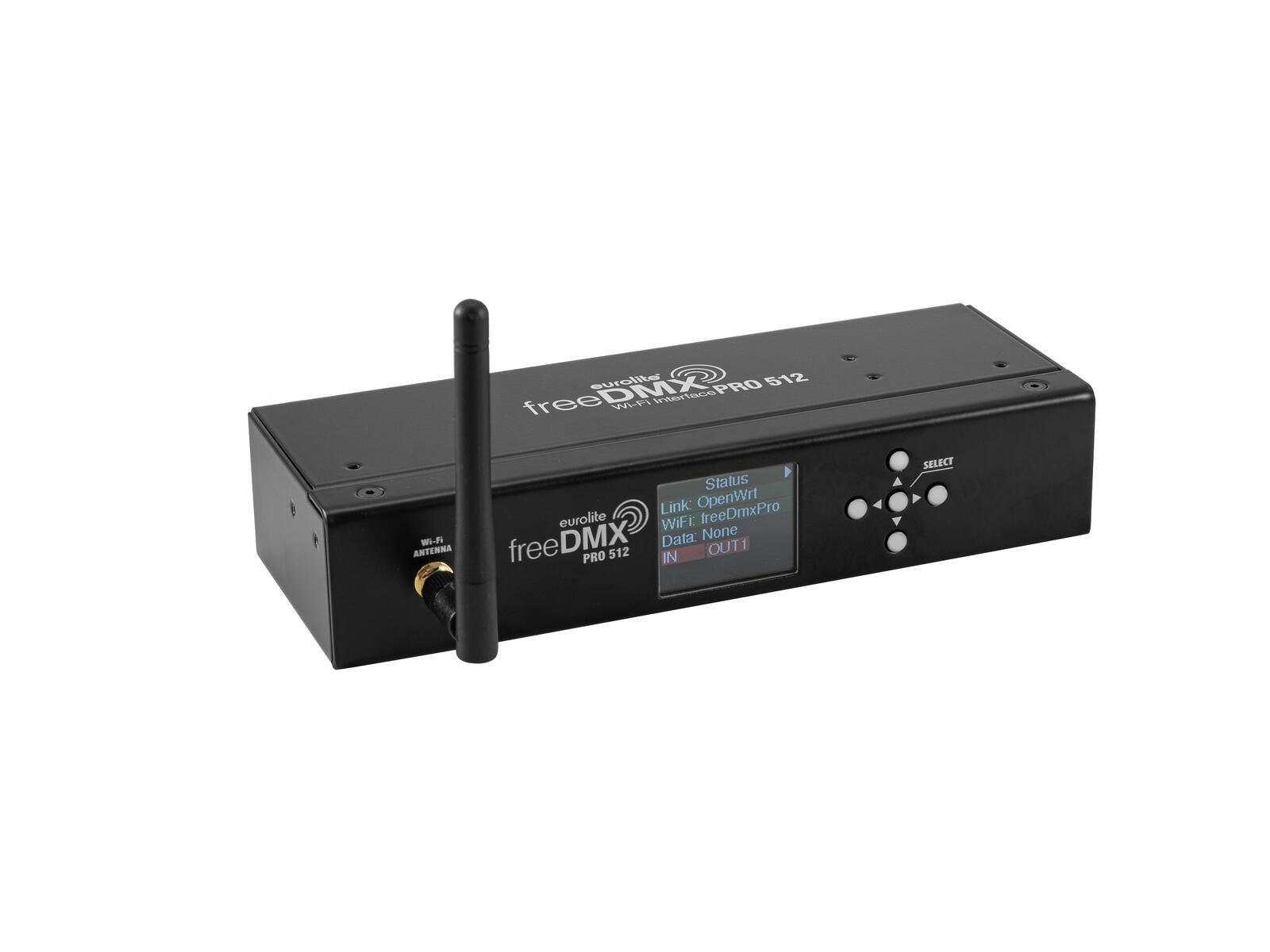

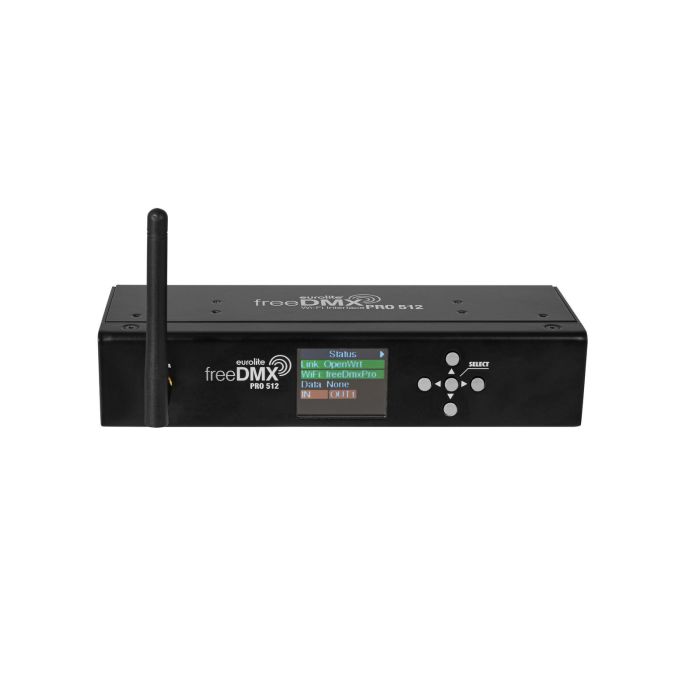

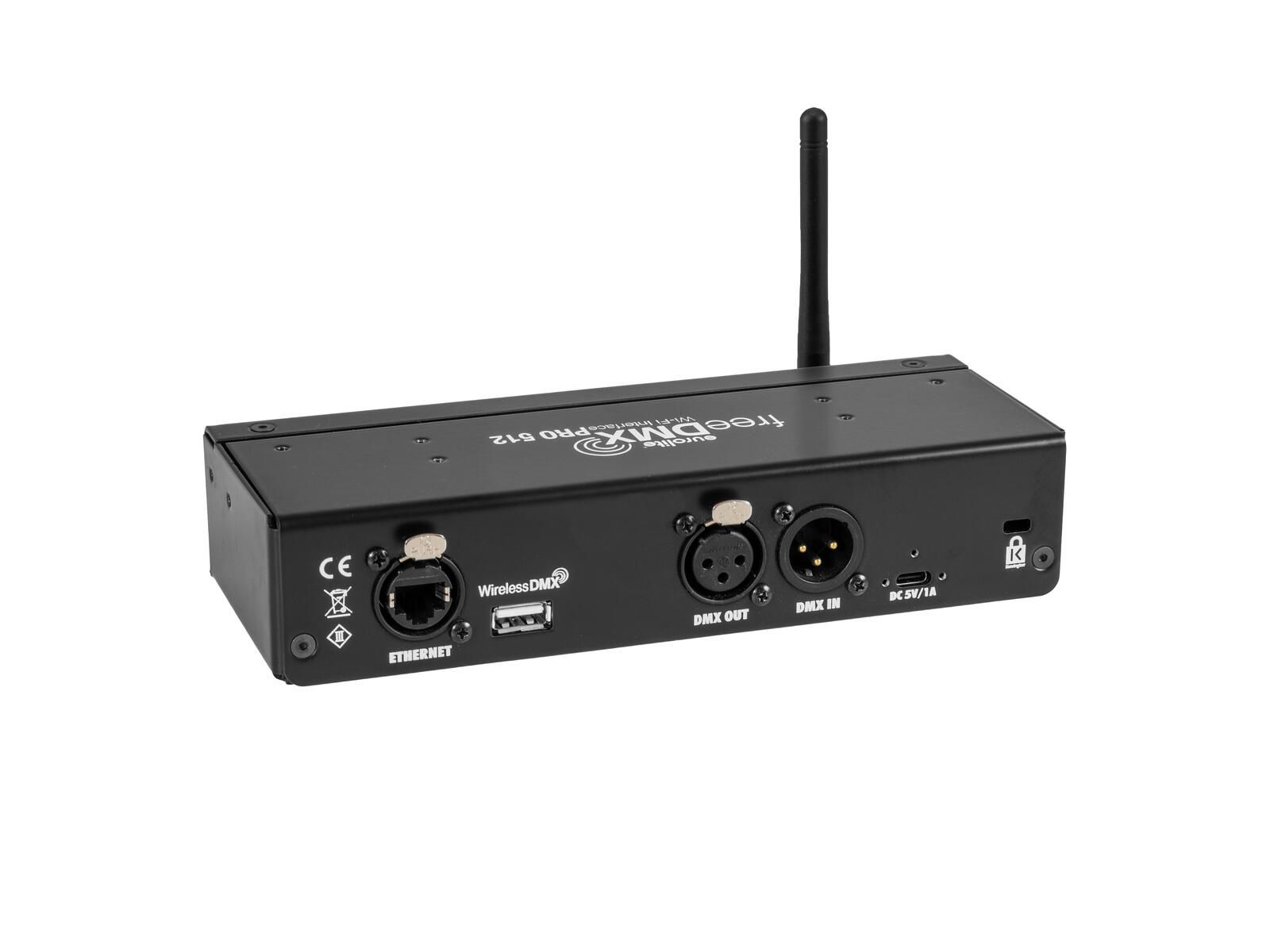

EUROLITE freeDMX PRO 512 Wi-Fi Interface
EUROLITE freeDMX PRO 512 Wi-Fi Interface
Features
Wi-Fi DMX interface for apps & programs like Light Captain
- Wi-Fi DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iOS and Android devices
- The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- Control via DMX; Light´J app; Wi-Fi; Light Captain App; QuickDMX via USB (optional)
- Configuration via integrated webserver
- Access point and infrastructure mode
- Internal memory for 1 DMX scene
- DMX feed-through and merge capability
- Can transmit up to 512 DMX channels
- Mounting kits for racks, desks and truss systems available as an option
- Operating range up to 60m in the open air
- Operating range up to 30m in buildings
- 2.4 GHz license-free worldwide
- Multicolor TFT display
- Built with NEUTRIK connector
- The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
- Silent operation
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; mobile djs / entertainer
Package contents
- 1 x device, 1 x external mains adapter, 1 x USB cable, 1 x user manual, 1 x antenna
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz 5V DC 1000 mA |
| IP classification: | IP20 |
| Wi-Fi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Art-Net 3 via RJ-45 etherCON (F) mounting version, 10 Mbit/s Standard: IEEE 802.3u |
| Control: | DMX; Light´J app; Wi-Fi; Light Captain App; QuickDMX via USB (optional) |
| Range: | Range up to 60m in the open air Range up to 30m in buildings |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Display type: | Multicolor TFT display |
| USB port: | Type C, 1 A |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version |
| Dimensions: | Width: 20 cm Depth: 8 cm Height: 4,1 cm |
| Noise classification: | Class 0 (no noise at all) |
