€ 74,33
€ 61,43
?
SKU
st5801108W

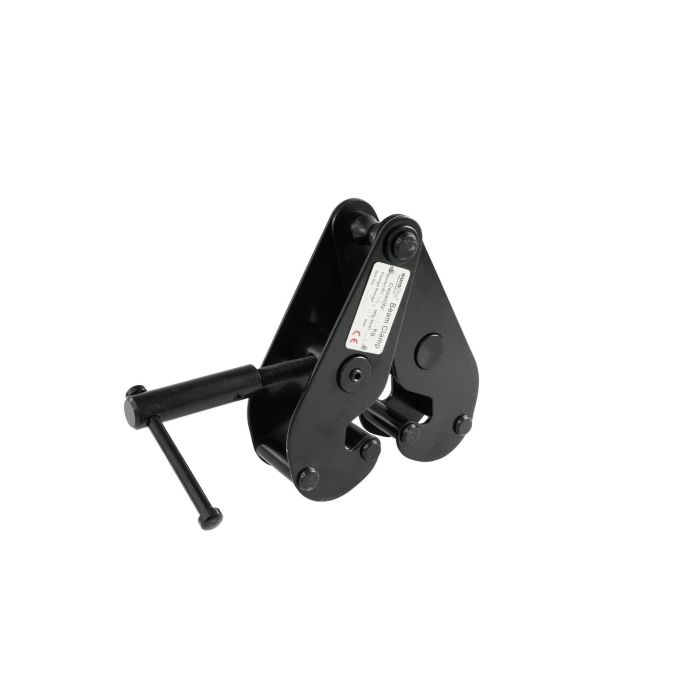

EUROLITE Girder Clamp 1000 kg black Beam clamp for steel beams, maximum load WLL 1000 kg
EUROLITE Girder Clamp 1000 kg black Beam clamp for steel beams, maximum load WLL 1000 kg
Features
- Suitable as temporary installation point for steel beams (L-beams, I-beams)
- Quick and tool free installation of rigging points for spots, projectors, speaker-systems, screens, truss elements, motors, guide pulleys, chain hoists and decoration material
- Large flange range
- High carrying capacity
- Flexible use due to wide adjustment range
- Inexpensive attachment without drilling or welding
- Regularly tested by an independent and accredited testing institute
- Safety instruction: Beam clamps are not suitable for lifting or transporting I-beams!
Technical specifications
| Maximum load BGV C1 (8-fold): | 500 kg |
| Maximum load BGV C1 (10-fold): | 400 kg |
| Maximum load BGV C1 (12-fold): | 333 kg |
| Flange range: | 75-230 mm |
| Dimensions: | 310 x 85 x 230 mm |
| Color: | Black |
| Max. load WLL (4fold): | 1000 kg |
| Spanner opening: | 75-230 mm |
| Weight: | 4,10 kg |
| Maximum load BGV C1 (8-fold): | 500 kg |
