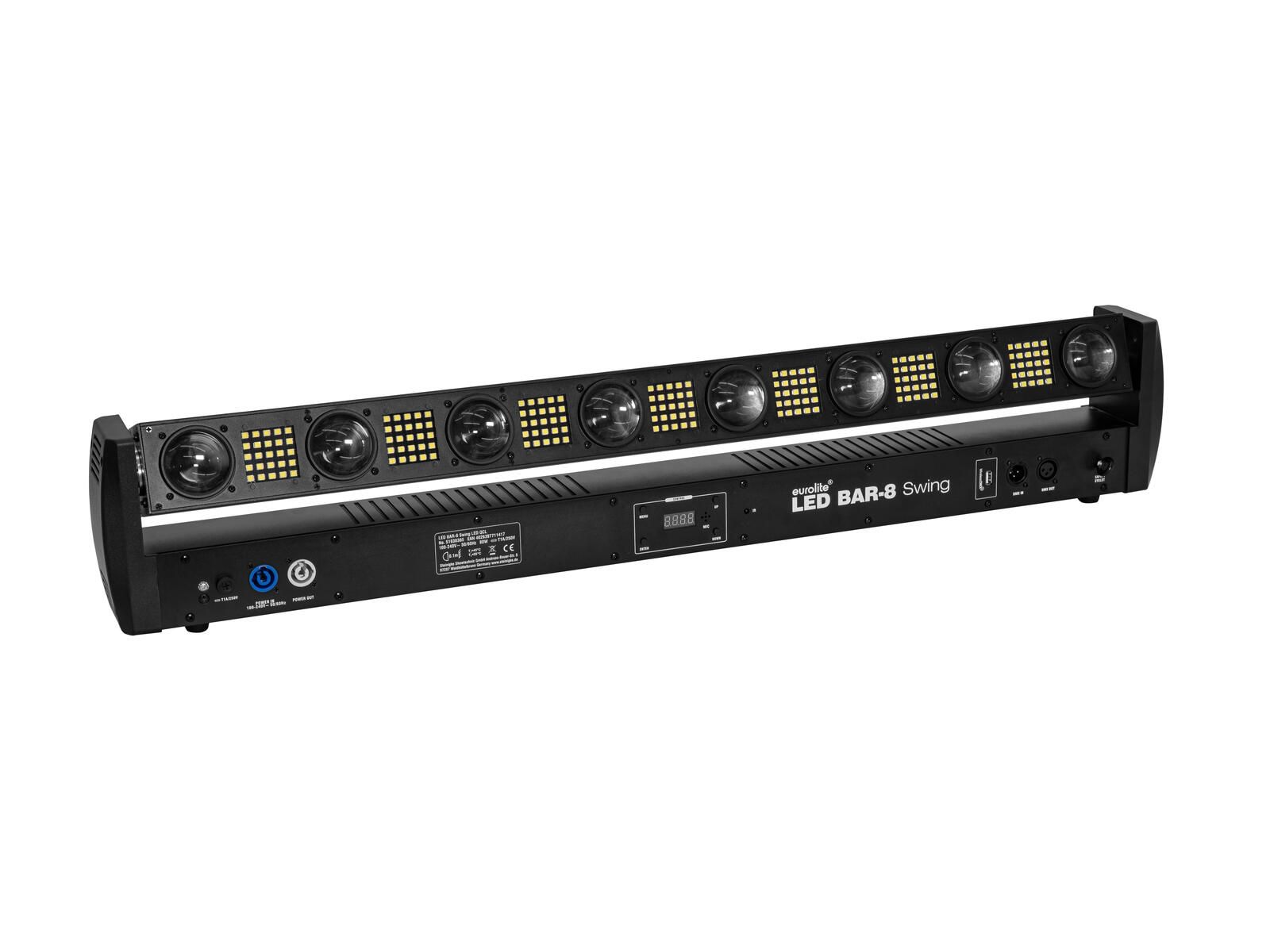

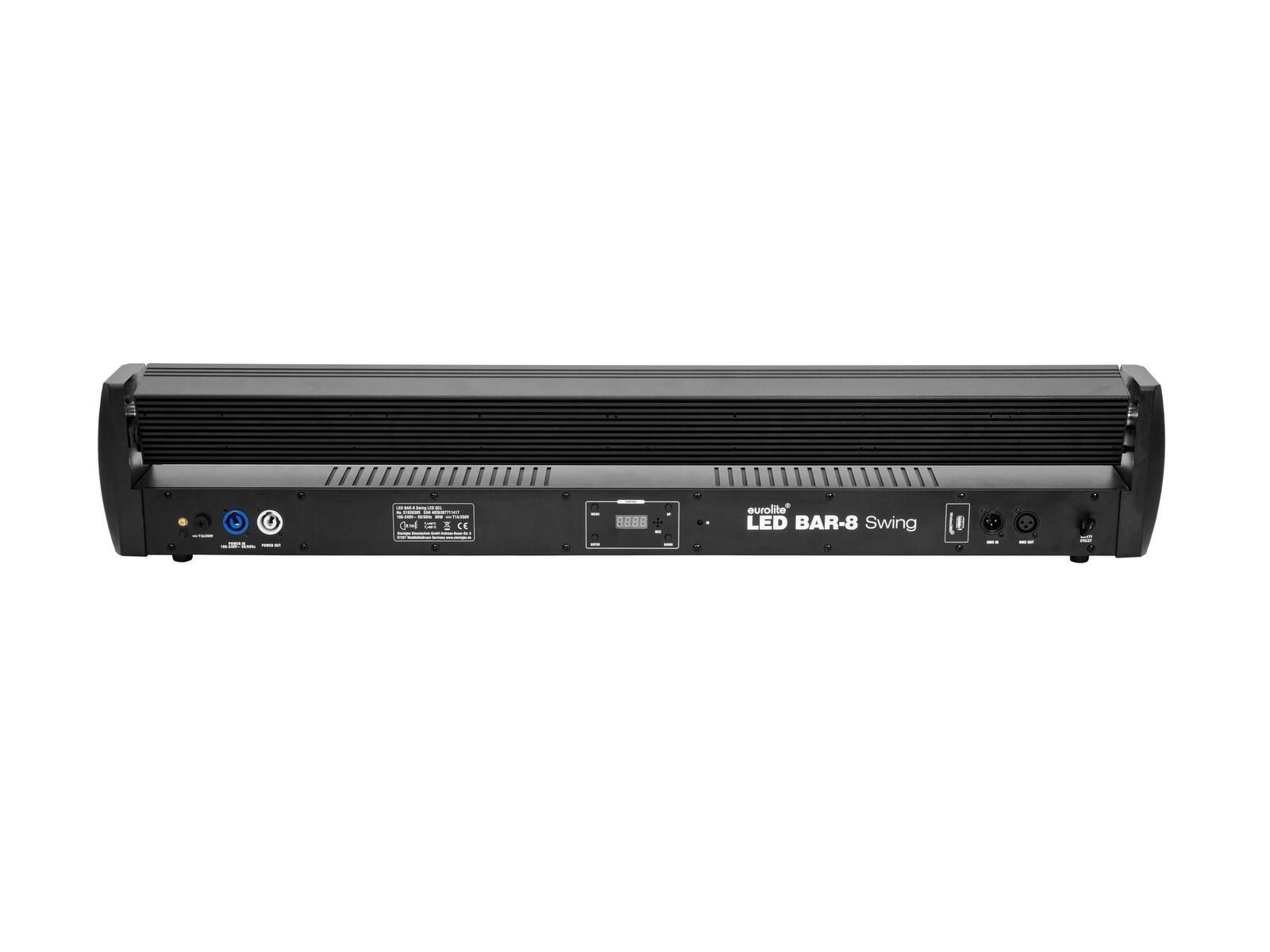

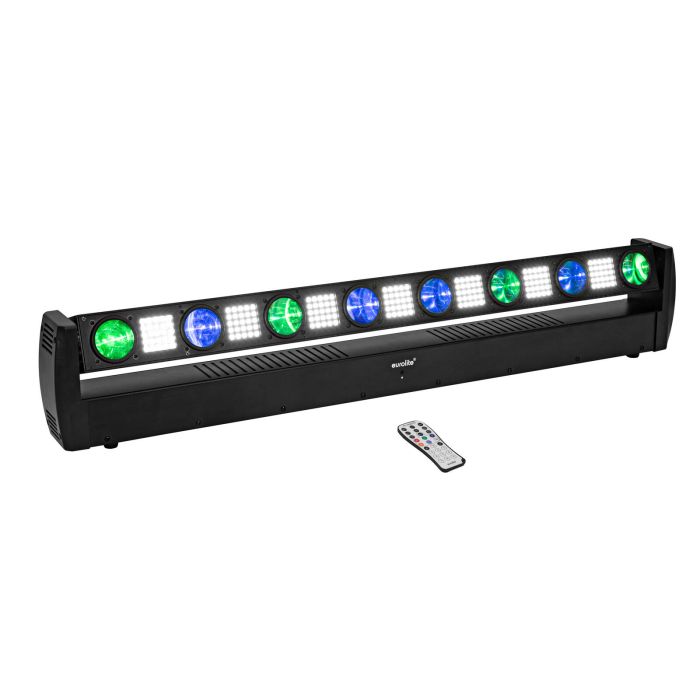

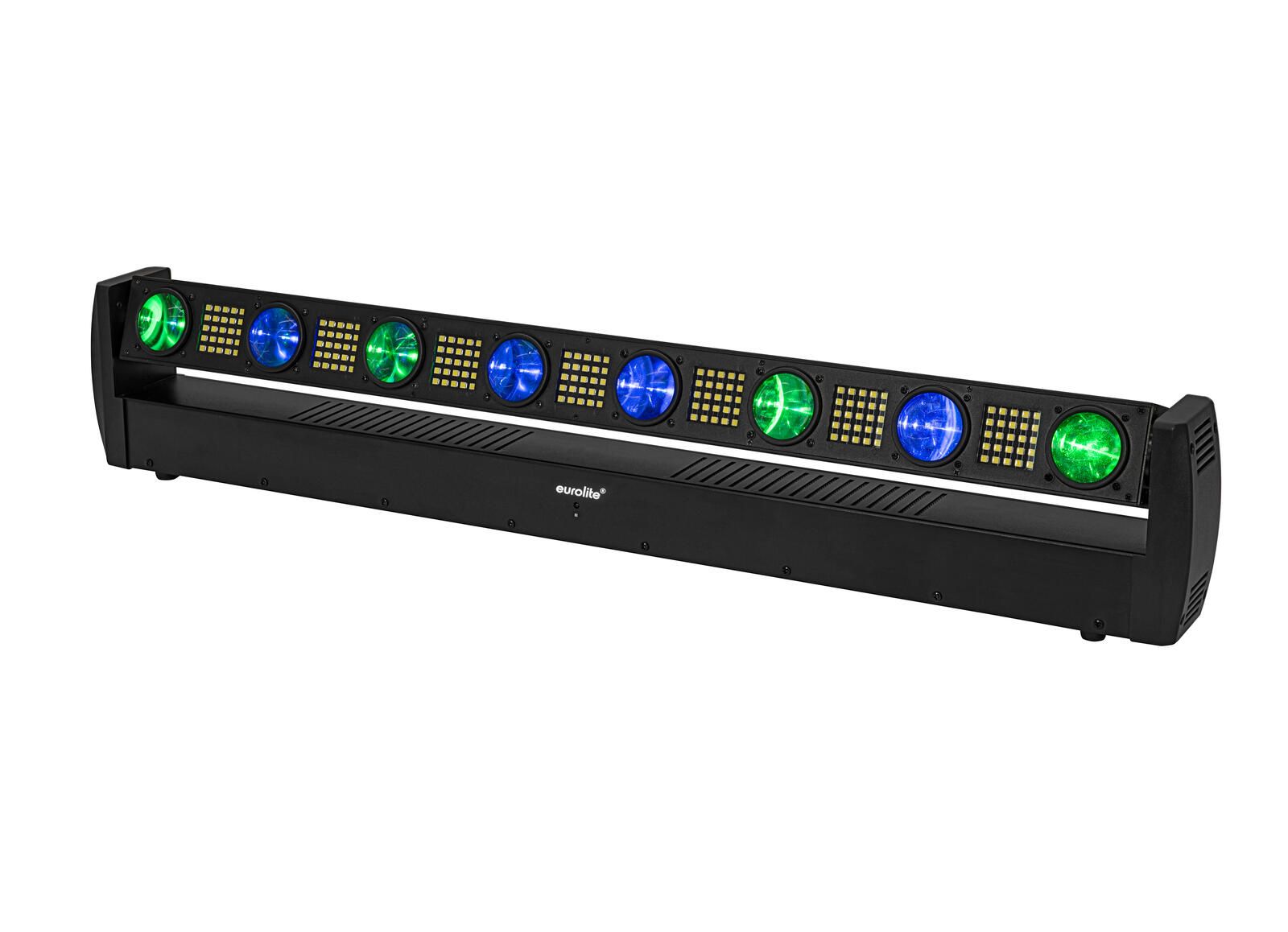

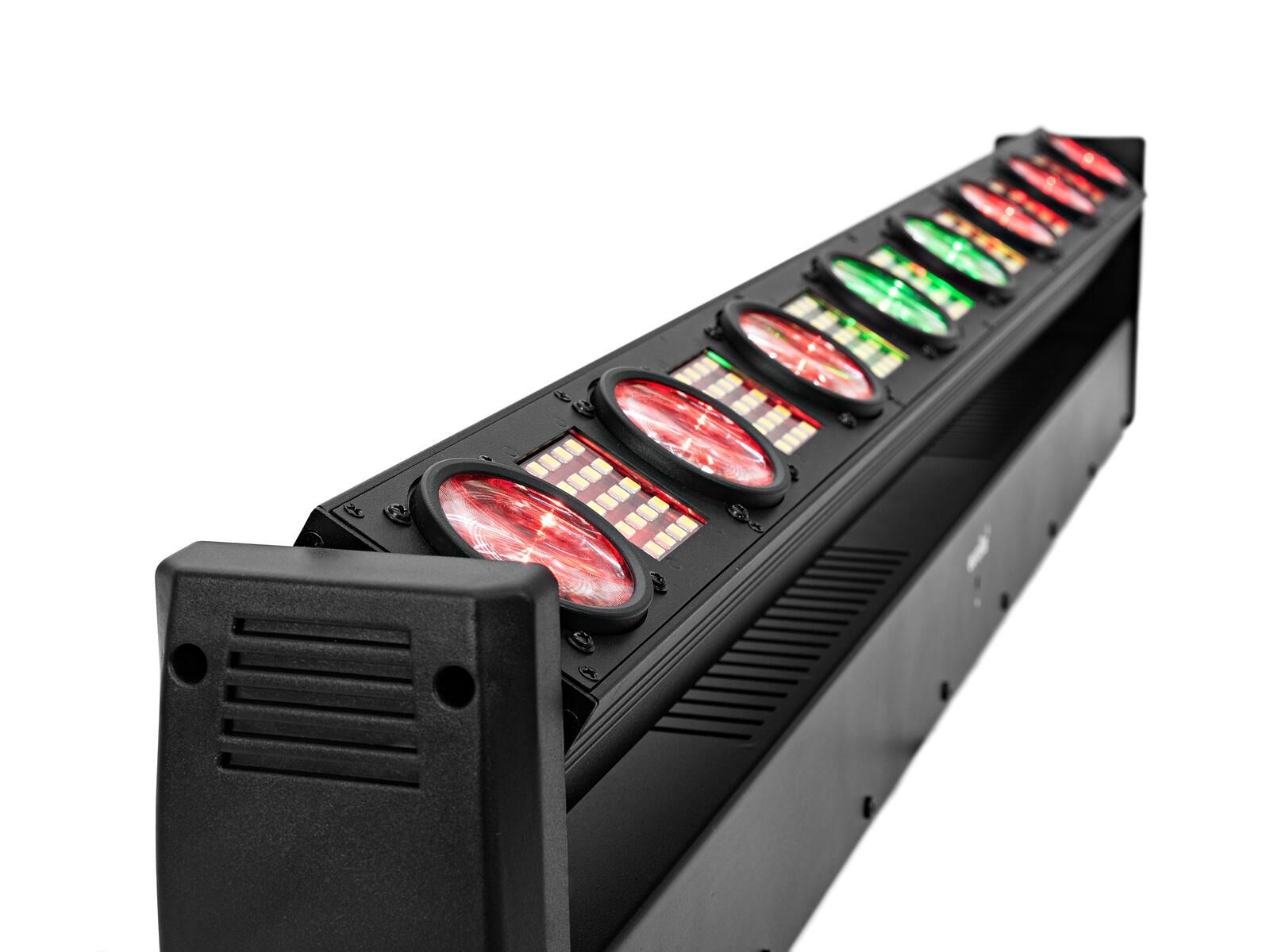

Tiltable LED light effect bar with 8 beams and strobe effect

• Vertical inclination angle adjustable
• Dimmer electronic; color fade; color change; color blend adjustable; color selection
• Strobe effect; uplight effect; multi beam effect
• 5 integrated show programs
• Direct color selection for 18 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
• Preprogrammed in Colorchief; Light Captain
• Flicker-free
• With mounting bracket
• 4 digit 7-segment LED display
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; party room; restaurants, bars and hotels
• Very quiet working noise
• Application possibility: Standing; suspended

spotlight

• 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
  8 segments controlled separately
• With a beam angle of 1°

strobes

• 175 powerful LEDs 0.2 W SMD 5050 cold white (CW)
  7 segments controlled separately
• With a beam angle of 120°
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	80 W
  IP classification:	IP20
  Protection class:	Protection class I
  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  Power output:	P-Con (gray), mounting version
  Fuse:	5 x 20 mm, T 1 A fuse replaceable
  Max. TILT movement:	215° positioning
  Flash rate:	0.35 - 20 Hz
  DMX channels:	8; 12; 23; 27; 49
  DMX input:	3-pin XLR (M) mounting version
  DMX output:	3-pin XLR (F) mounting version
  Cooling:	Passive convection cooling
  Control:	Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
  Preprogrammed in:	Colorchief; Light Captain
  Projection:	Flicker-free
  PWM frequency:	7800 Hz
  Illuminance in Lux (lx):	Cold white (CW) 1m: 8183 lx, 3m: 1527 lx, 6m: 372 lx Cold white (CW) 1m: 66 lx, 3m: 9 lx, 6m: 2 lx
  Housing color:	Black
  Attachment system:	Mounting bracket
  Display type:	4 digit 7-segment LED display
  USB port:	Type A
  Material:	Plastic; metal
  Dimensions:	Length: 100.0 cm Depth: 10.7 cm Height: 25.1 cm
  Weight:	7.30 kg
  Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
  Photobiological safety:	Risk Group 0
  Strobes
  LED type:	175 x 0.2 W SMD 5050 cold white (CW)
  Beam angle:	120°
  Beam angle (1/2 peak):	120°
  Spotlight
  LED type:	8 x 8 W high-power 4in1 QCL RGBW
  Beam angle:	1°
  Beam angle (1/2 peak):	1° multicolor

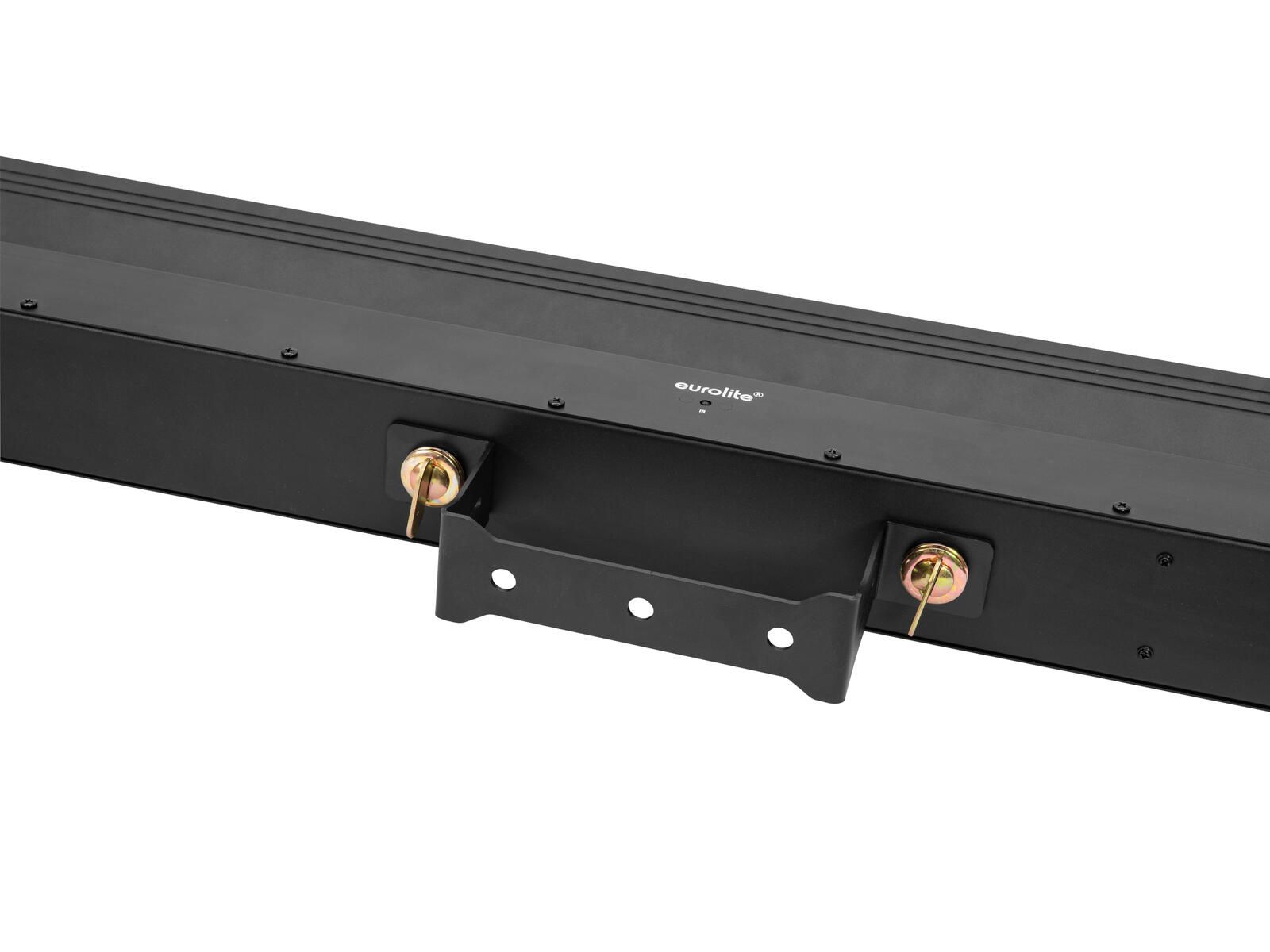

  Mounting bracket
  Diameter mounting holes:	3 x Ø11mm; 2 x Ø5mm
  Material:	Metal, 3 mm
  Color:	Black
  Dimensions:	Length: 27.5 cm Width: 5.3 cm Height: 8 cm
  Weight:	0.39 kg
  Power cord
  Cable construction:	3 x 1.0 mm² H05VV-F
  Cable length:	Approx. 1.2 m

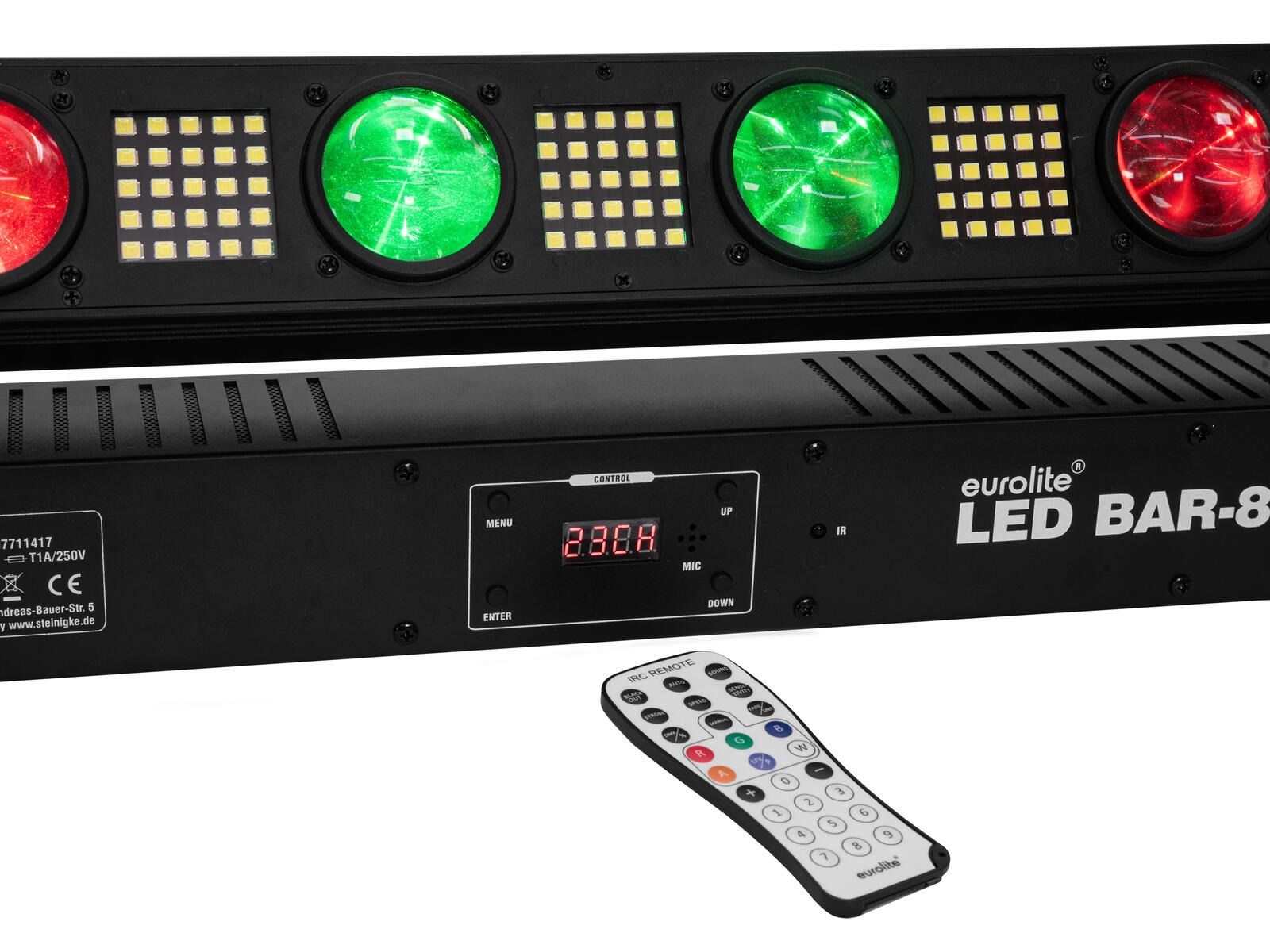

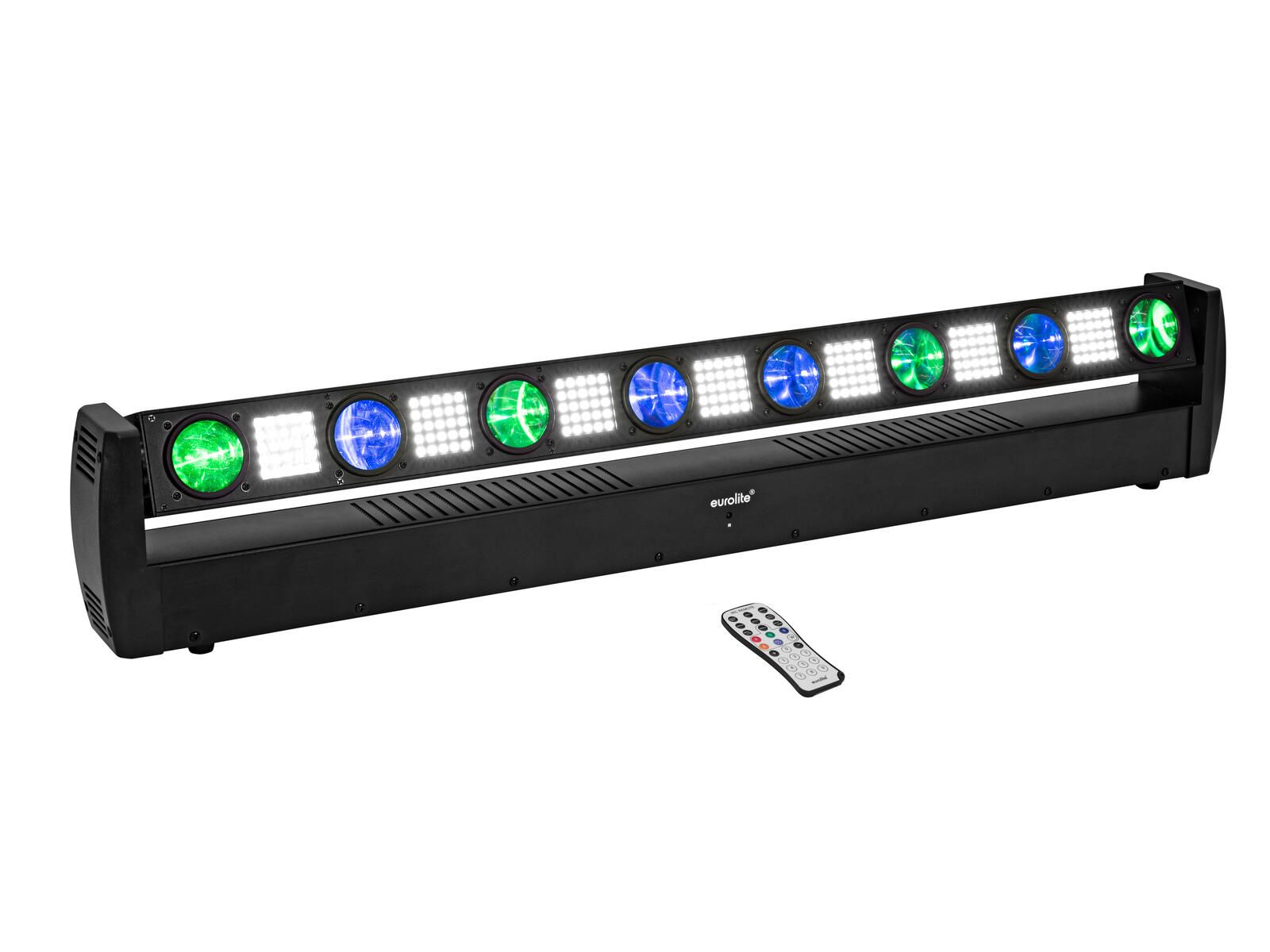

  Remote control
  Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
