Innovative projection effect with magnetically interchangeable effect wheels

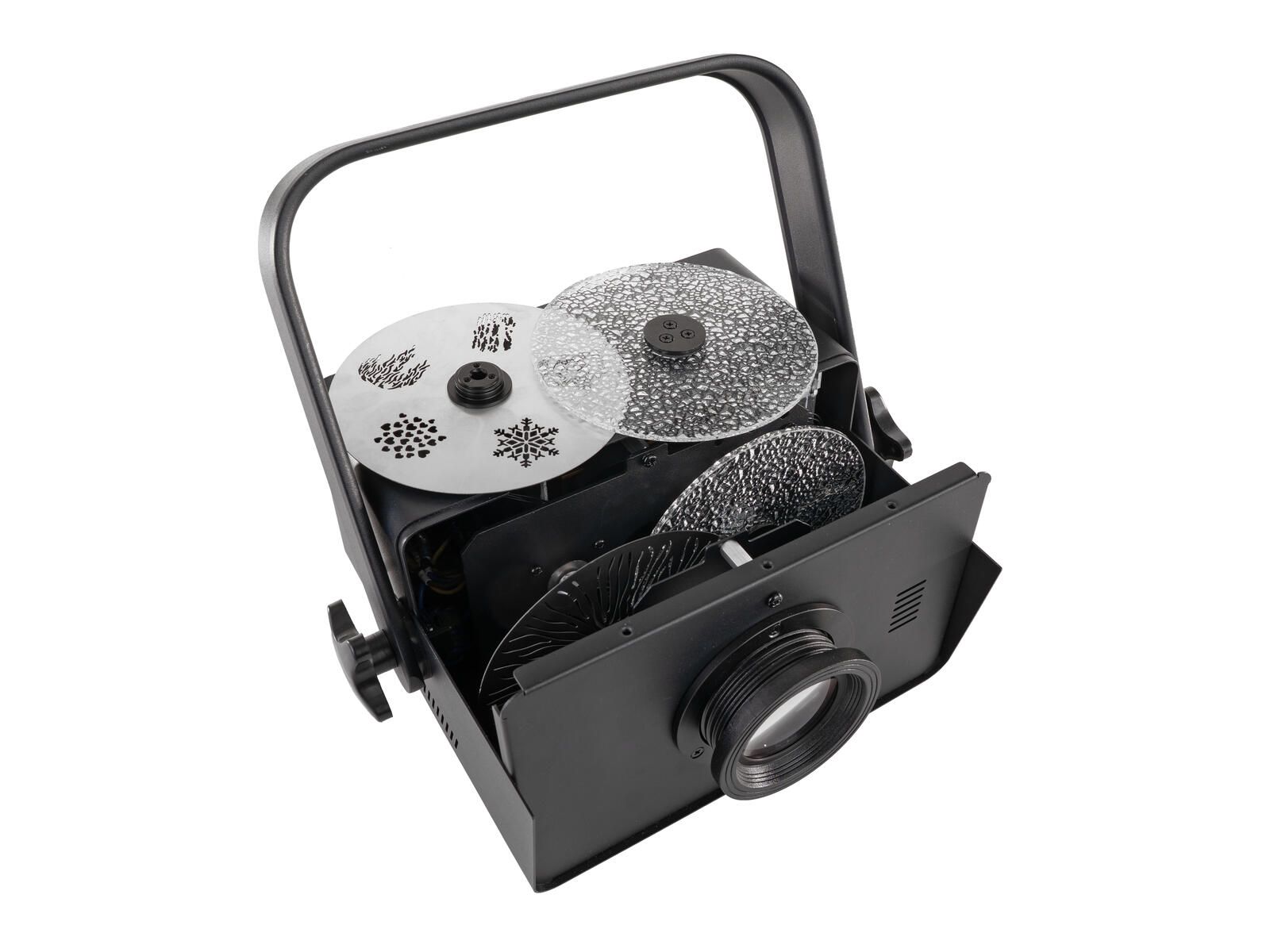

• 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery

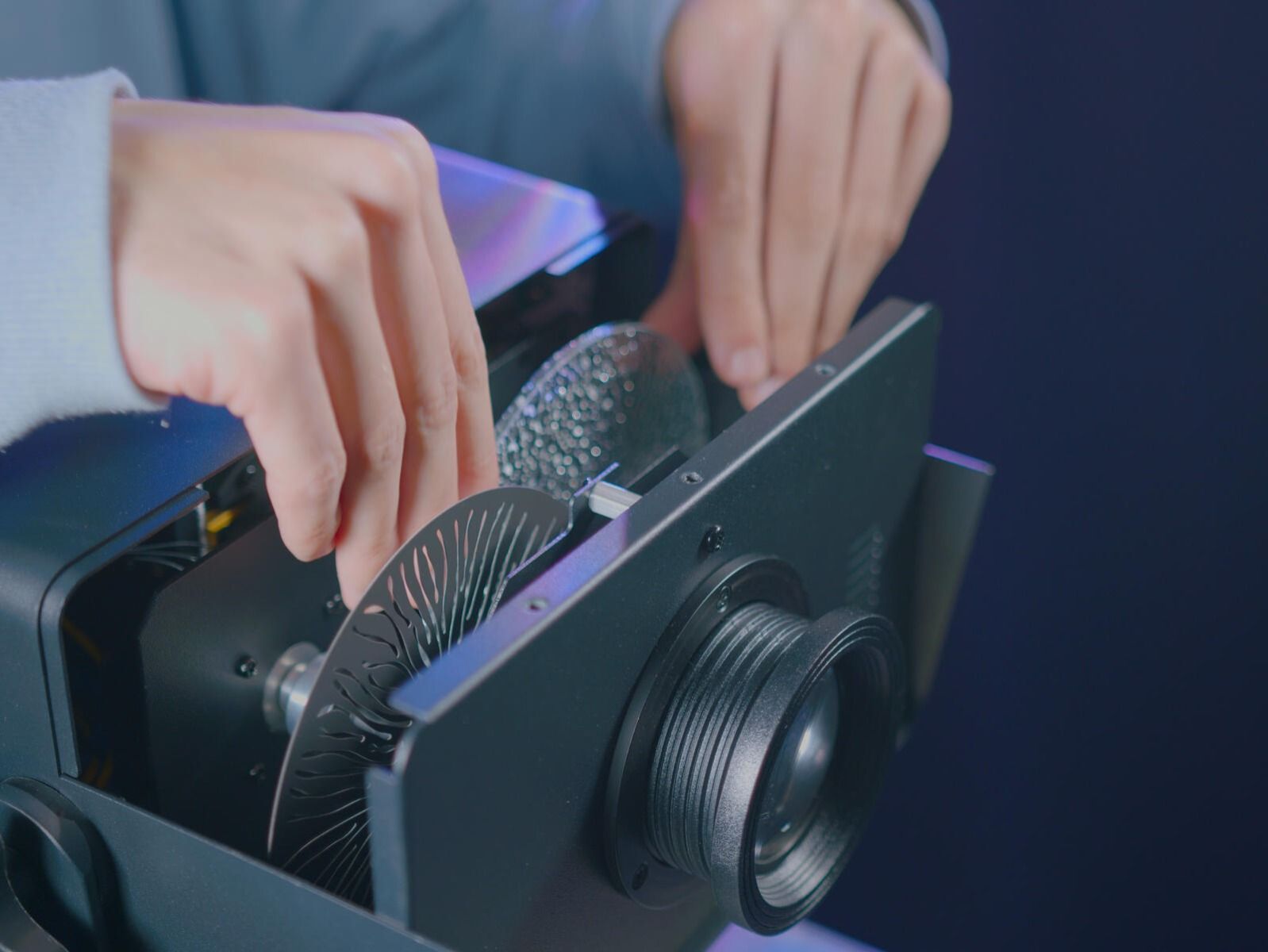

• Up to 2 wheels can be easily inserted via magnetic attachment systems
• Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
• 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW
• Exact 16 bit resolution at Dimmer, color, gobo rotation
• Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
• Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable

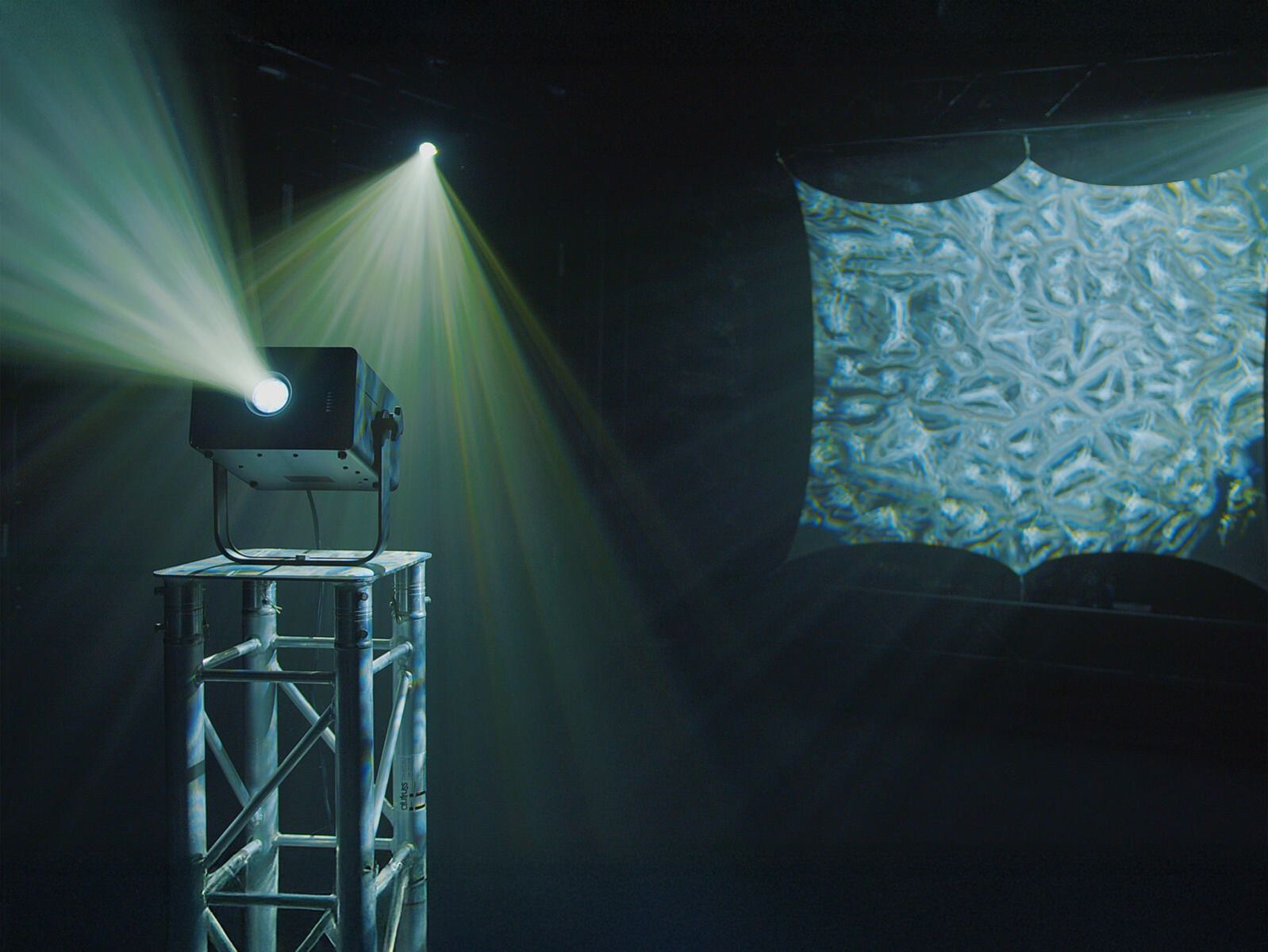

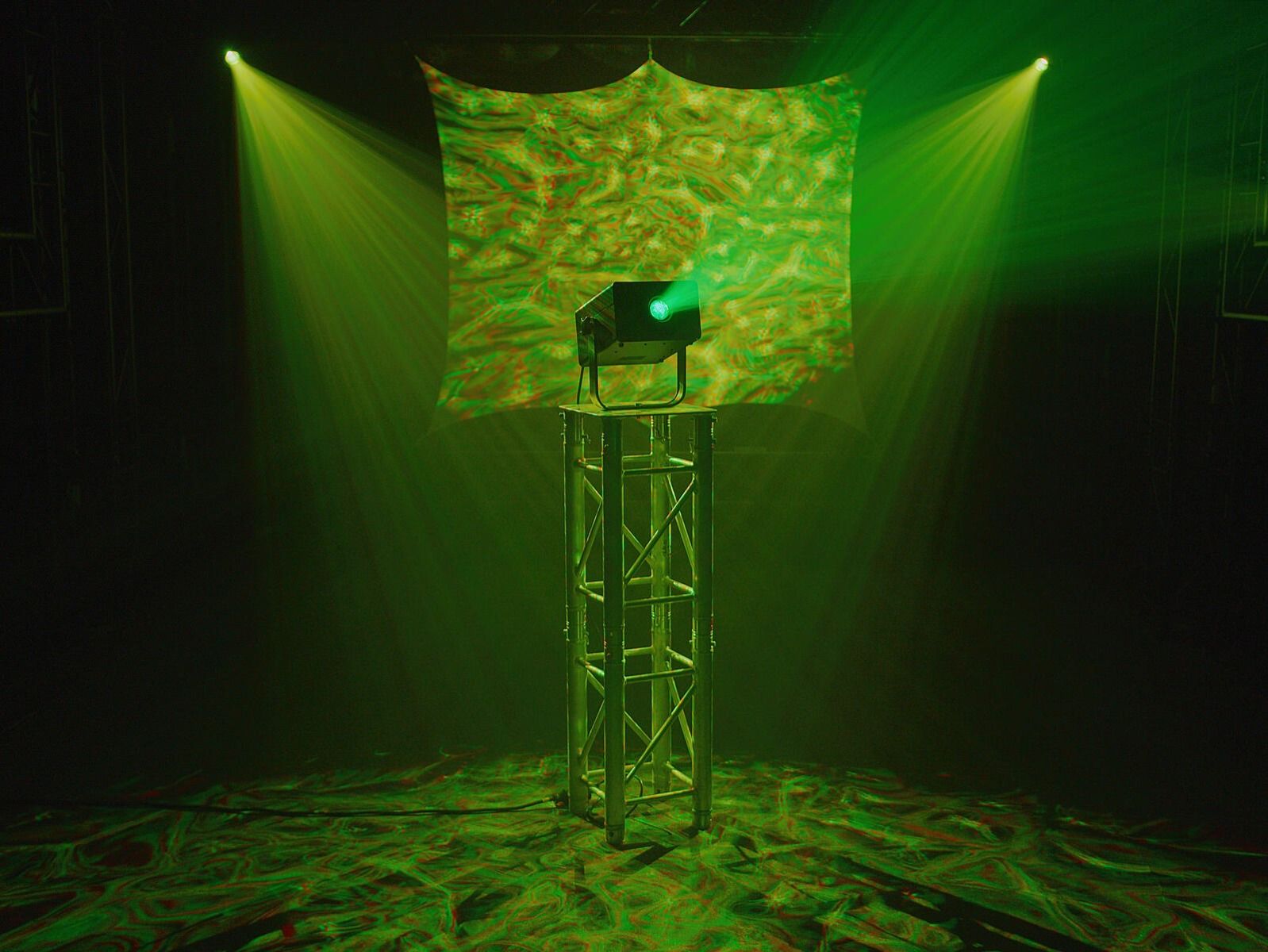

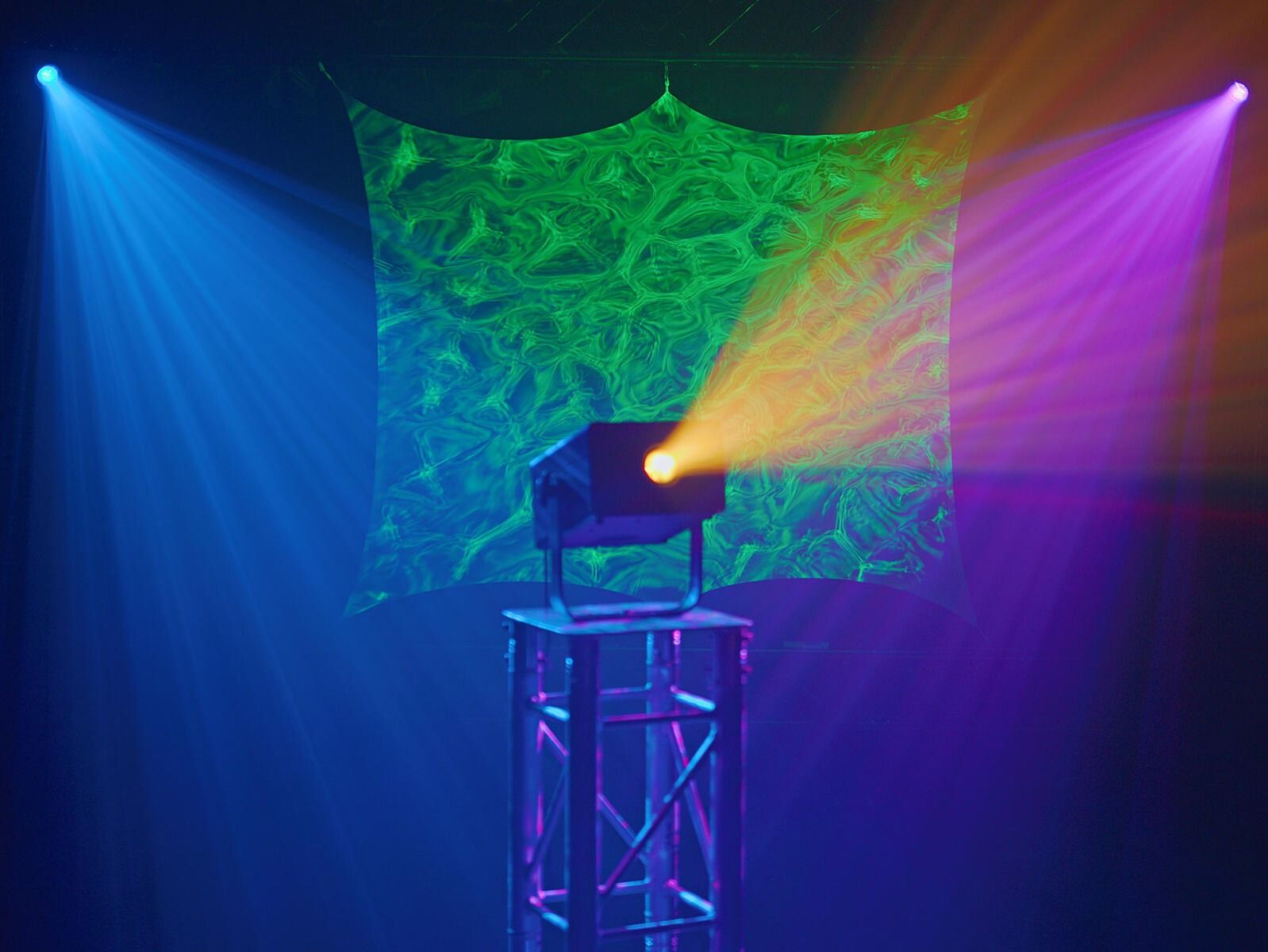

• Water effect; gobo effect; crystal effect

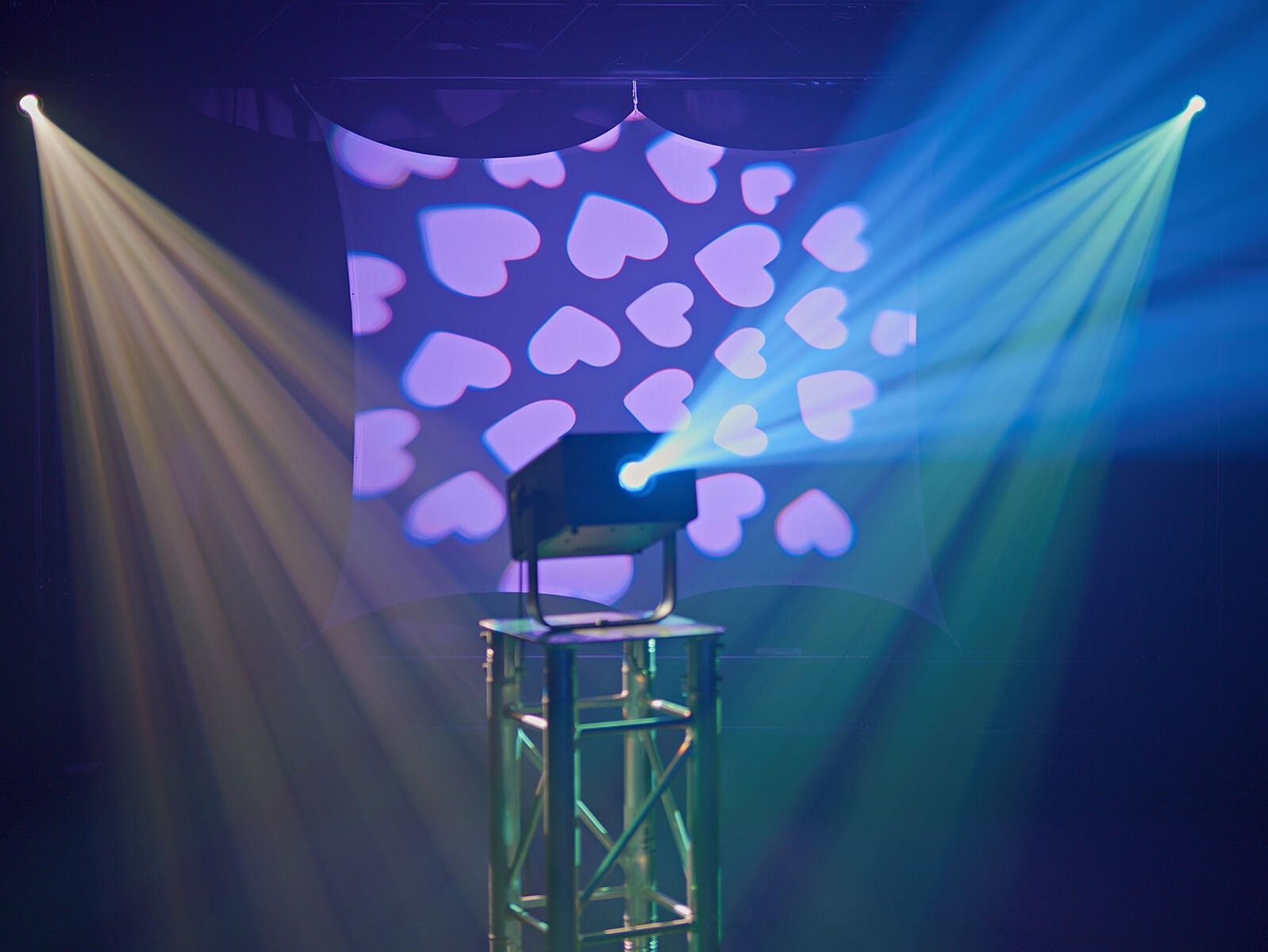

• Gobo wheel with static gobos, 5 gobos
• The device is cooled by temperature-controlled fan

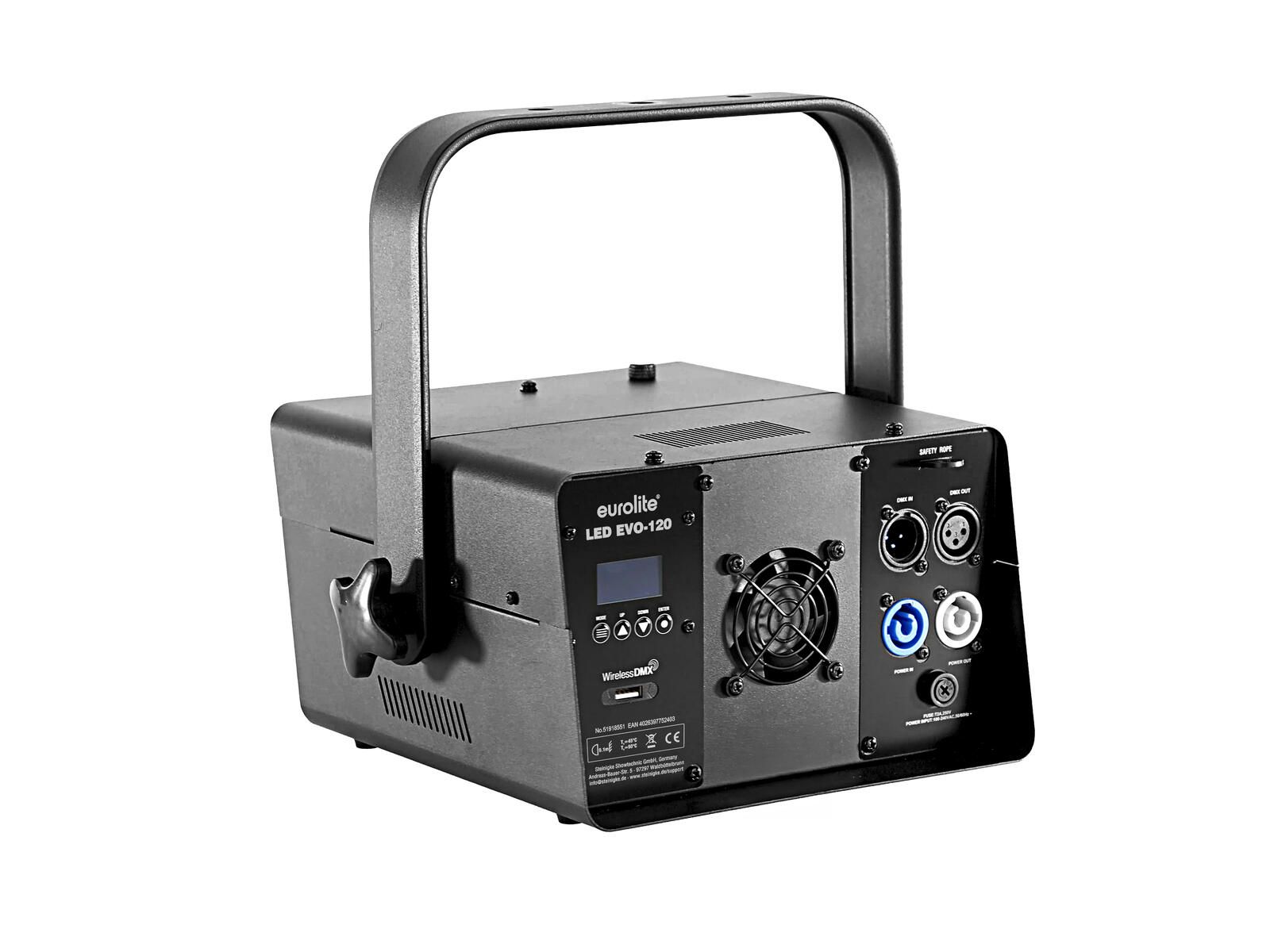

• Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
• Flicker-free
• DMX fail mode (blackout; hold)
• With a beam angle of 35°
• With mounting bracket
• Monochrome OLED display
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
• Very quiet working noise
• Application possibility: Suspended; on stand; wall mounting
• Preprogrammed in Light Captain
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	120 W
  IP classification:	IP20
  Protection class:	Protection class I
  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
  Cable construction:	3 x 1.5 mm² H05VV-F
  Power output:	P-Con (gray), mounting version
  Fuse:	5 x 20 mm, T 2 A
  Lamp type:	LED lamp
  LED type:	1 x 120 W COB (chip-on-board) 4in1 QCL RGBW
  Flash rate:	1 - 37 Hz
  Equipment:	Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
  Gobos:	Gobo wheel with static gobos, 5 gobos
  DMX channels:	6; 10; 17; 20

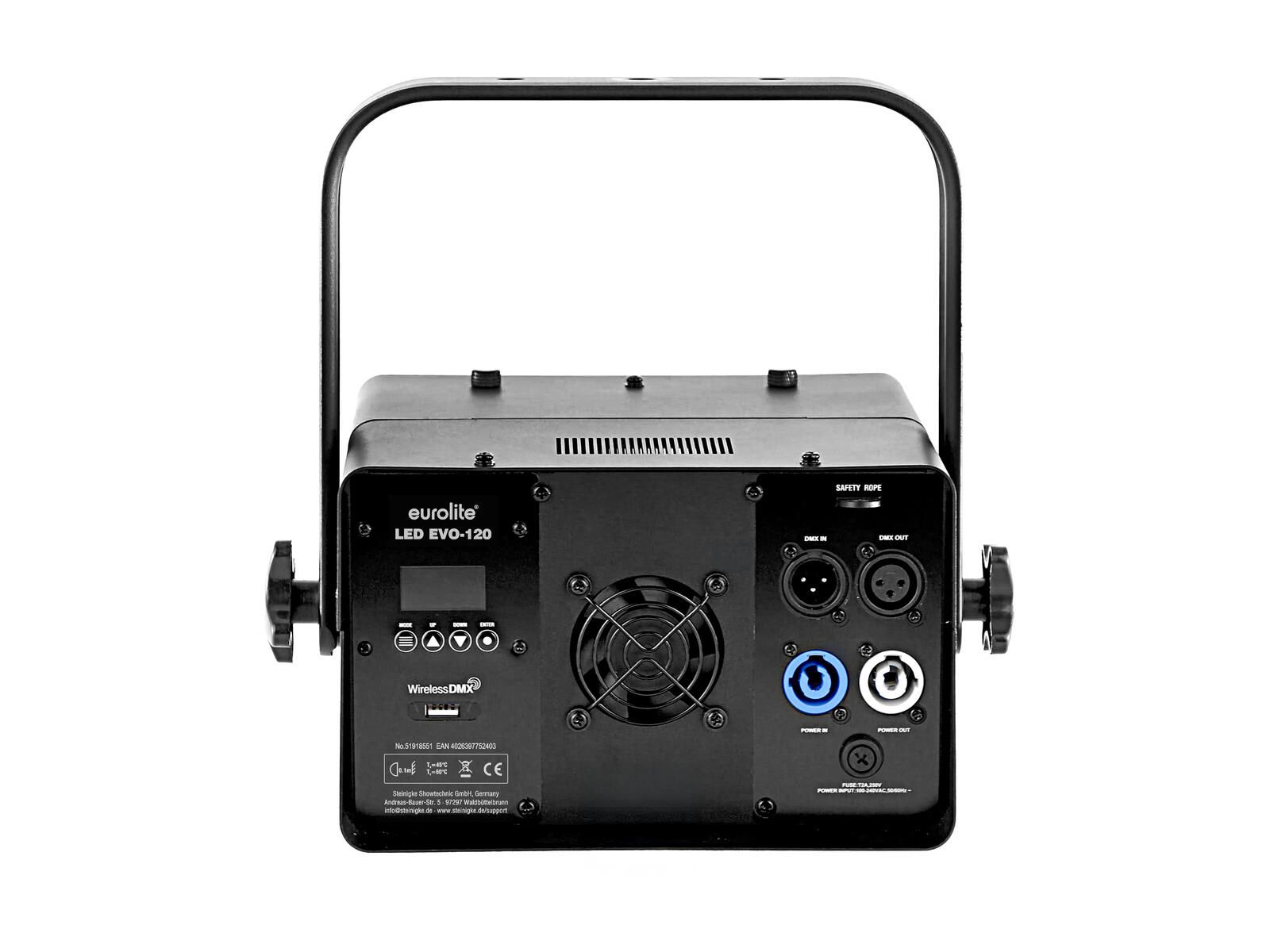

  DMX input:	3-pin XLR (M) mounting version
  DMX output:	3-pin XLR (F) mounting version
  Cooling:	1 x temperature-controlled fan
  Control:	DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
  Preprogrammed in:	Light Captain
  Projection:	Flicker-free
  DMX fail mode:	Blackout; hold
  Beam angle:	35°
  Beam angle (1/2 peak):	35°
  Beam angle (1/10 peak):	35°
  Housing color:	Black
  Attachment system:	Mounting bracket
  Display type:	Monochrome OLED display
  USB port:	1 x type A
  Diameter mounting holes:	3 x Ø10mm
  Use of brands:	Built with SEETRONIC connector
  Material:	Steel
  Dimensions:	Length: 25.2 cm Width: 30.0 cm Height: 27.3 cm
  Weight:	4.90 kg
  Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
