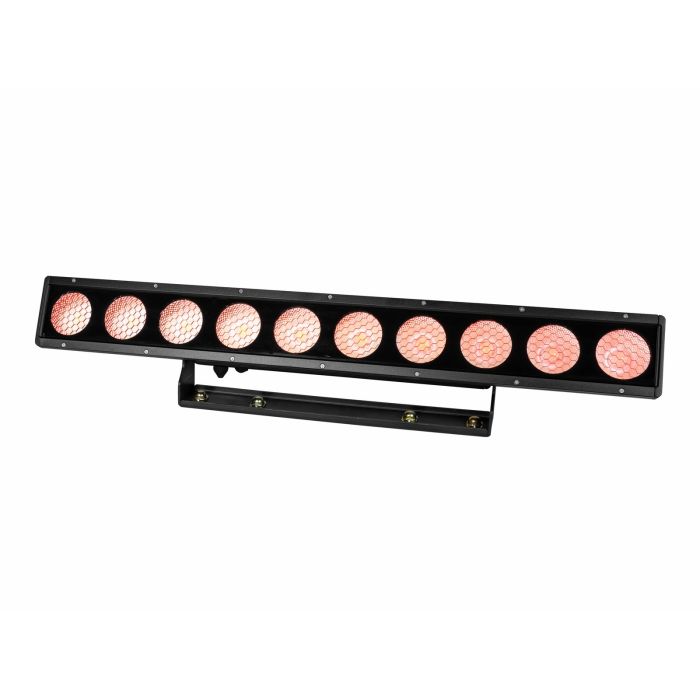

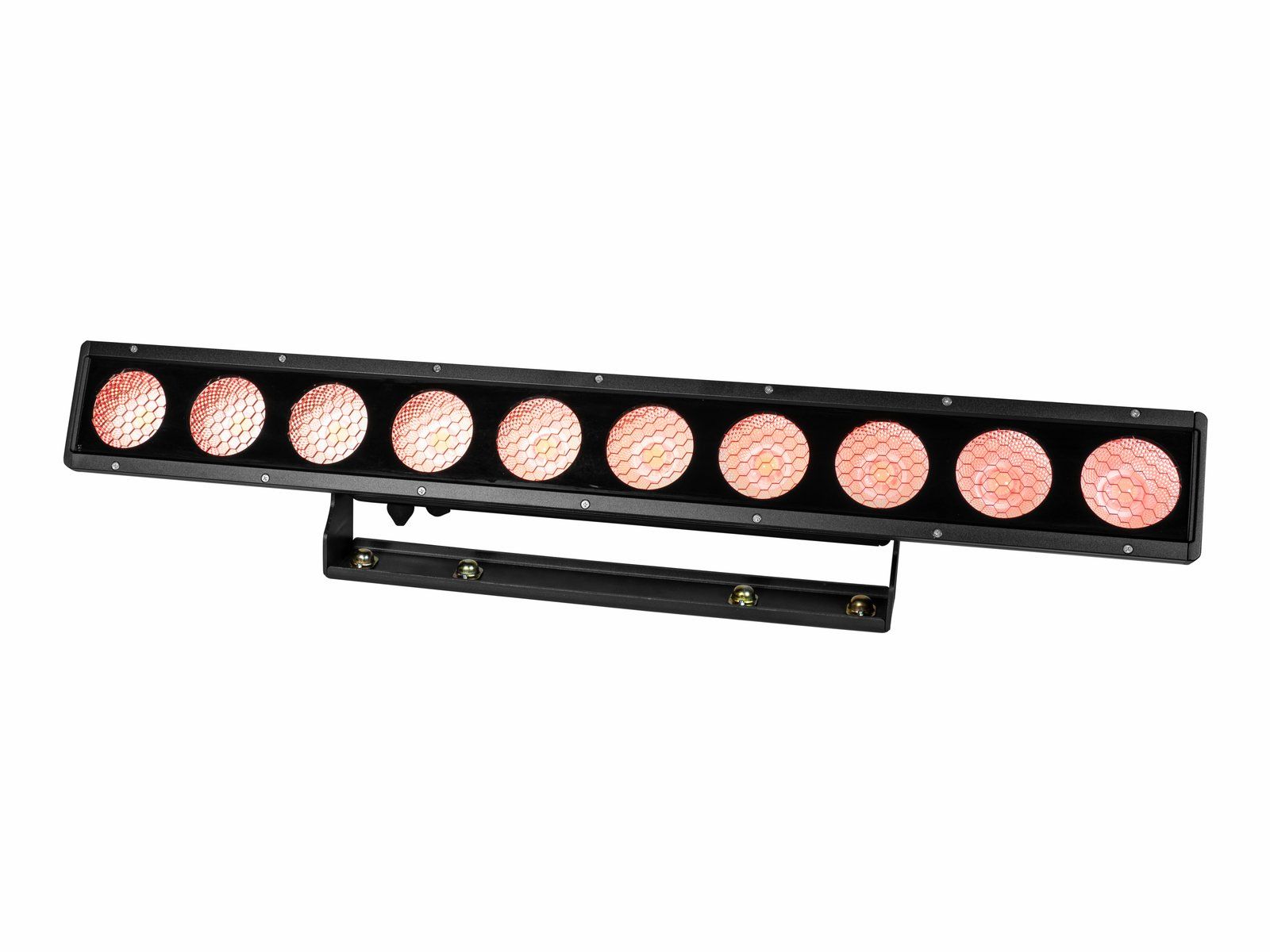

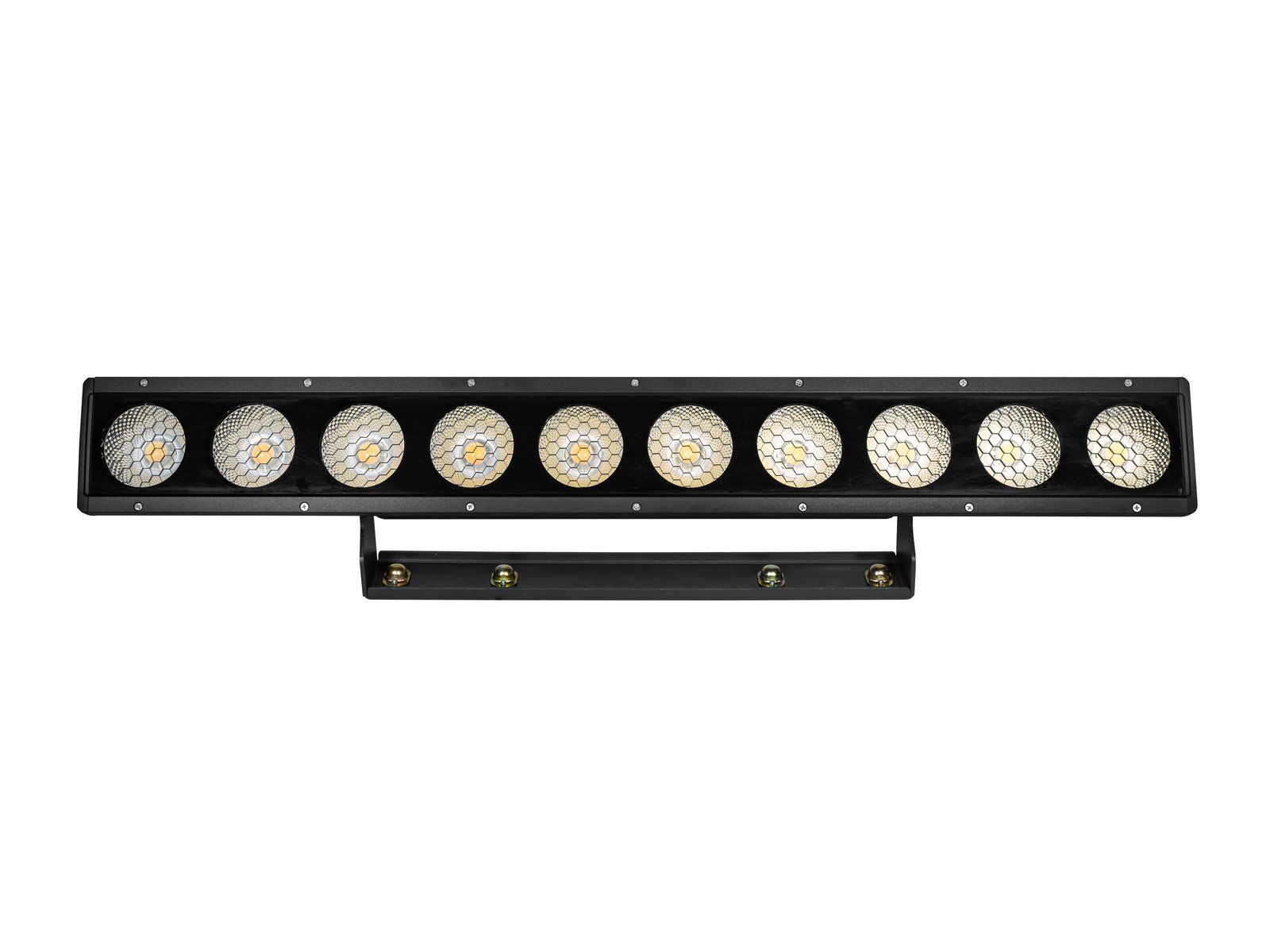

EUROLITE LED IP Atmo Bar 10
Features
Weather-proof blinder bar with pixel control and colored atmospheric light in the reflector

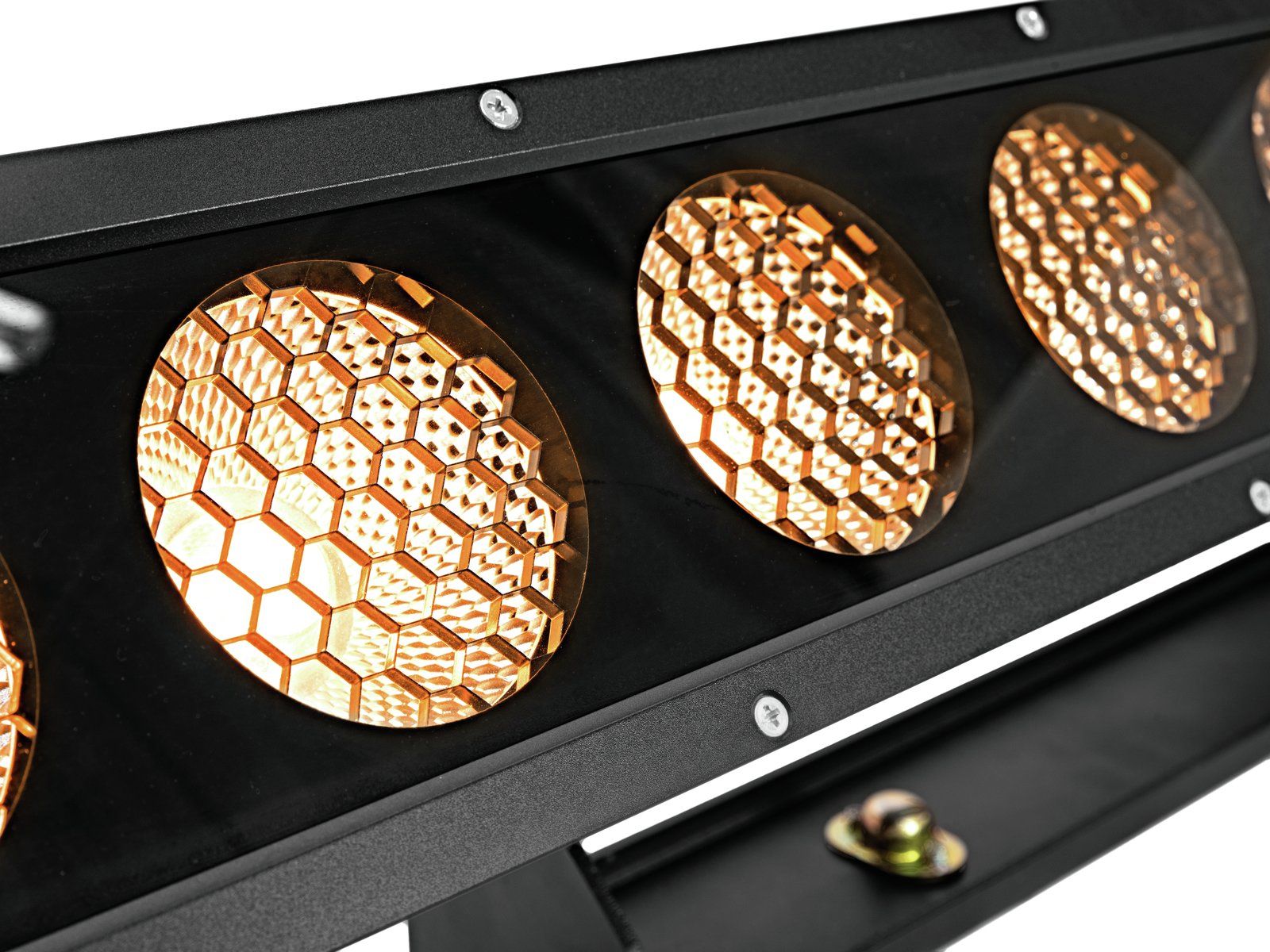

- 10 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
LEDs controlled separately - 200 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
10 segments controlled separately - Variable color temperature 1800 K - 6000 K
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
- Strobe effect
- 10 integrated show programs
- The device is cooled by low-noise cooling fan
- Control via stand-alone; master/slave function; DMX; Art-Net; RDM
- Preprogrammed in Light Captain; LED PC-Control 512
- Flicker-free
- With a beam angle of 28°

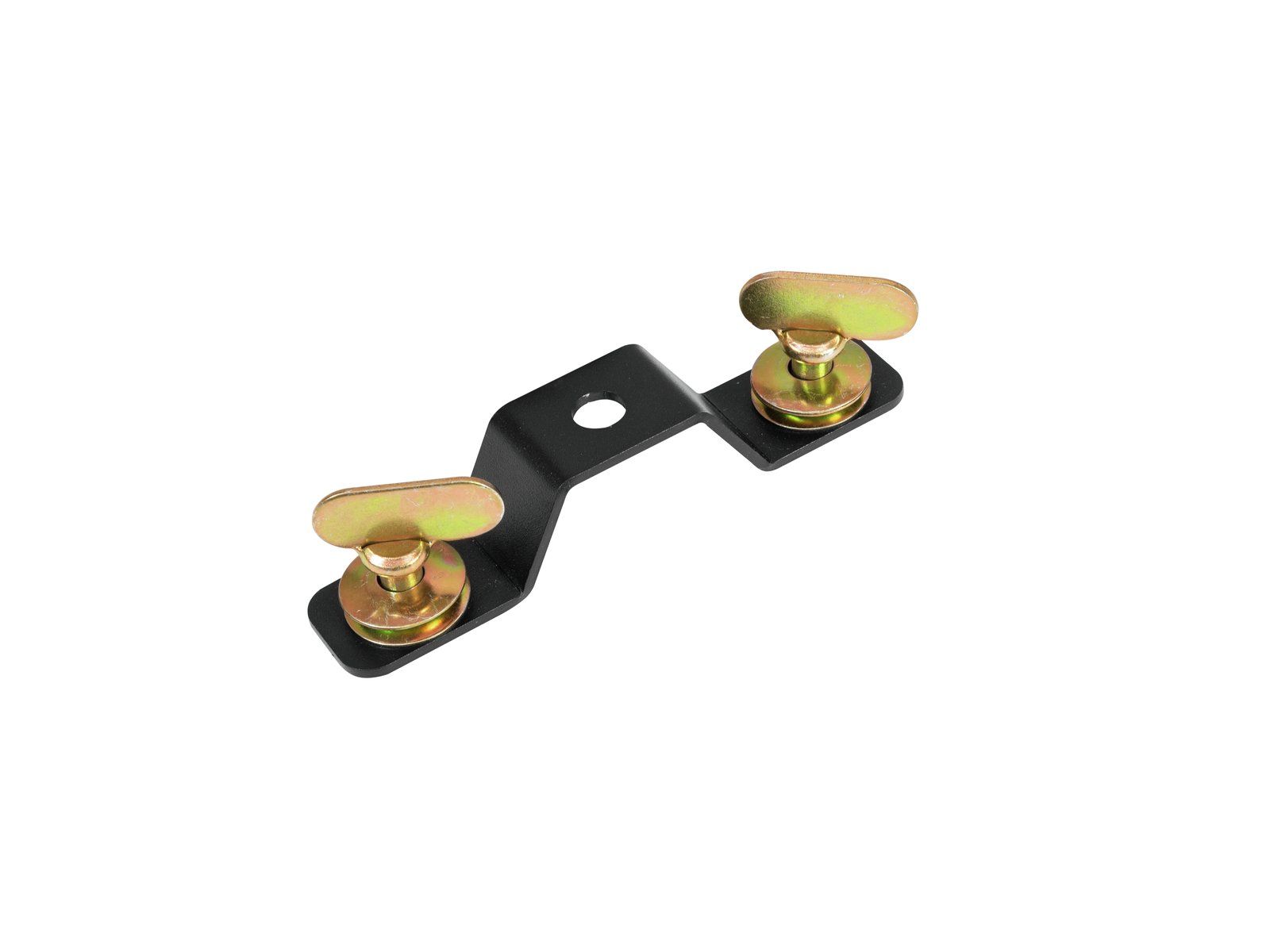

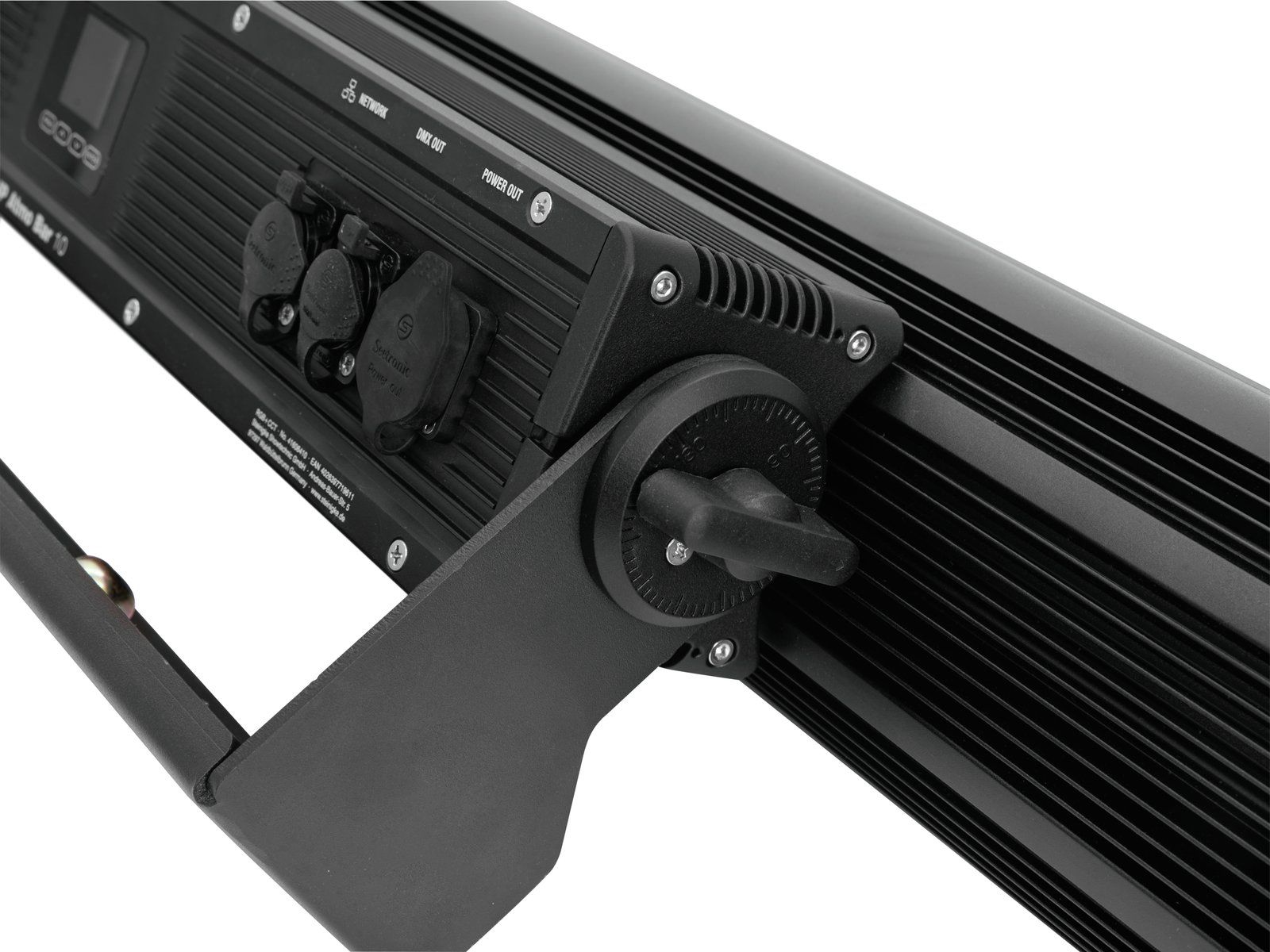

- With mounting bracket; with omega bracket
- OLED display
- Mains input and output for power linking up to 4 units
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Clubs/dancing school; stage; rental
- Very quiet working noise
- Application possibility: Suspended
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 315 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 10 x 24 W COB (chip-on-board) CW/WW (homogenous color mix) 200 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) |
| DMX channels: | 10; 14; 20; 50; 59 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Low-noise cooling fan |
| Control: | Stand-alone; master/slave function; DMX; Art-Net; RDM |
| Preprogrammed in: | Light Captain; LED PC-Control 512 |
| Projection: | Flicker-free |
| Beam angle: | 28° |
| Beam angle (1/2 peak): | 28° |
| Beam angle (1/10 peak): | 63 |
| Color temperature: | 1800K - 6000K adjustable |
| Housing color: | Black |
| Attachment system: | Mounting bracket 2x omega bracket |

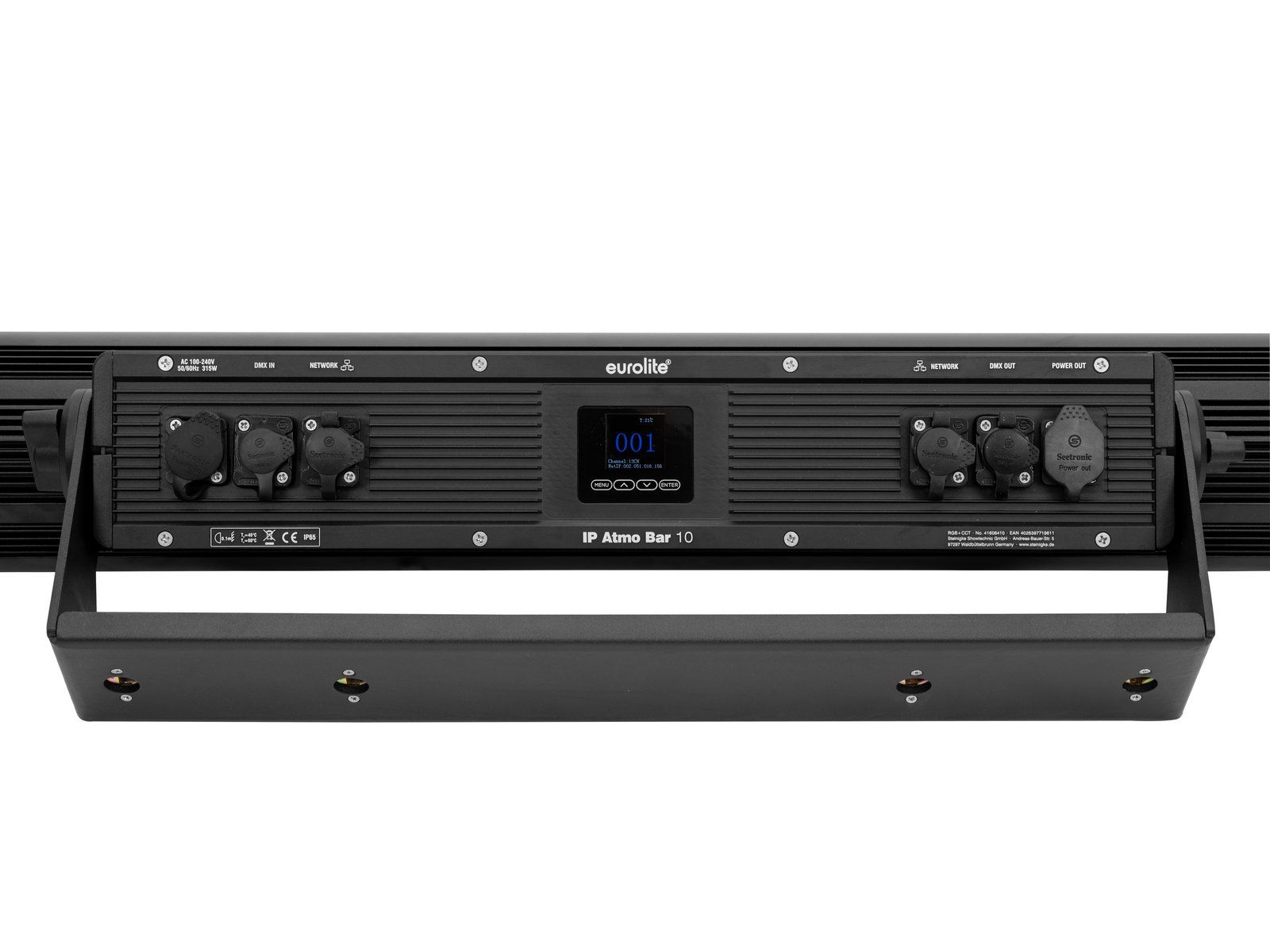

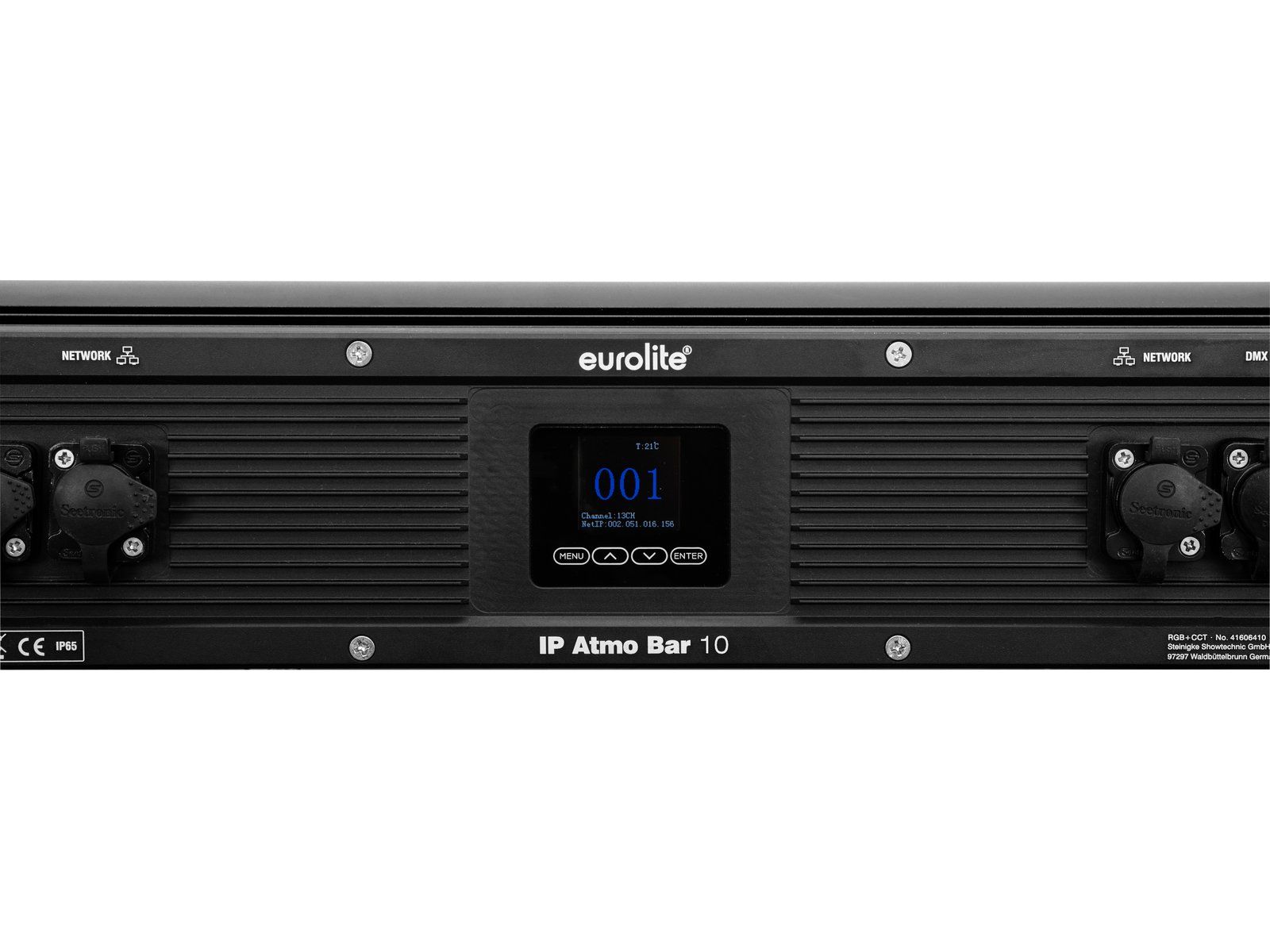

| Display type: | OLED display |
| Connections: | 2 x RJ-45 E-Con (F) mounting version |
| Dimensions: | Length: 101,0 cm Depth: 12,5 cm Height: 24 cm |
| Weight: | 10,50 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
