€ 577,70
?
SKU
st51914131

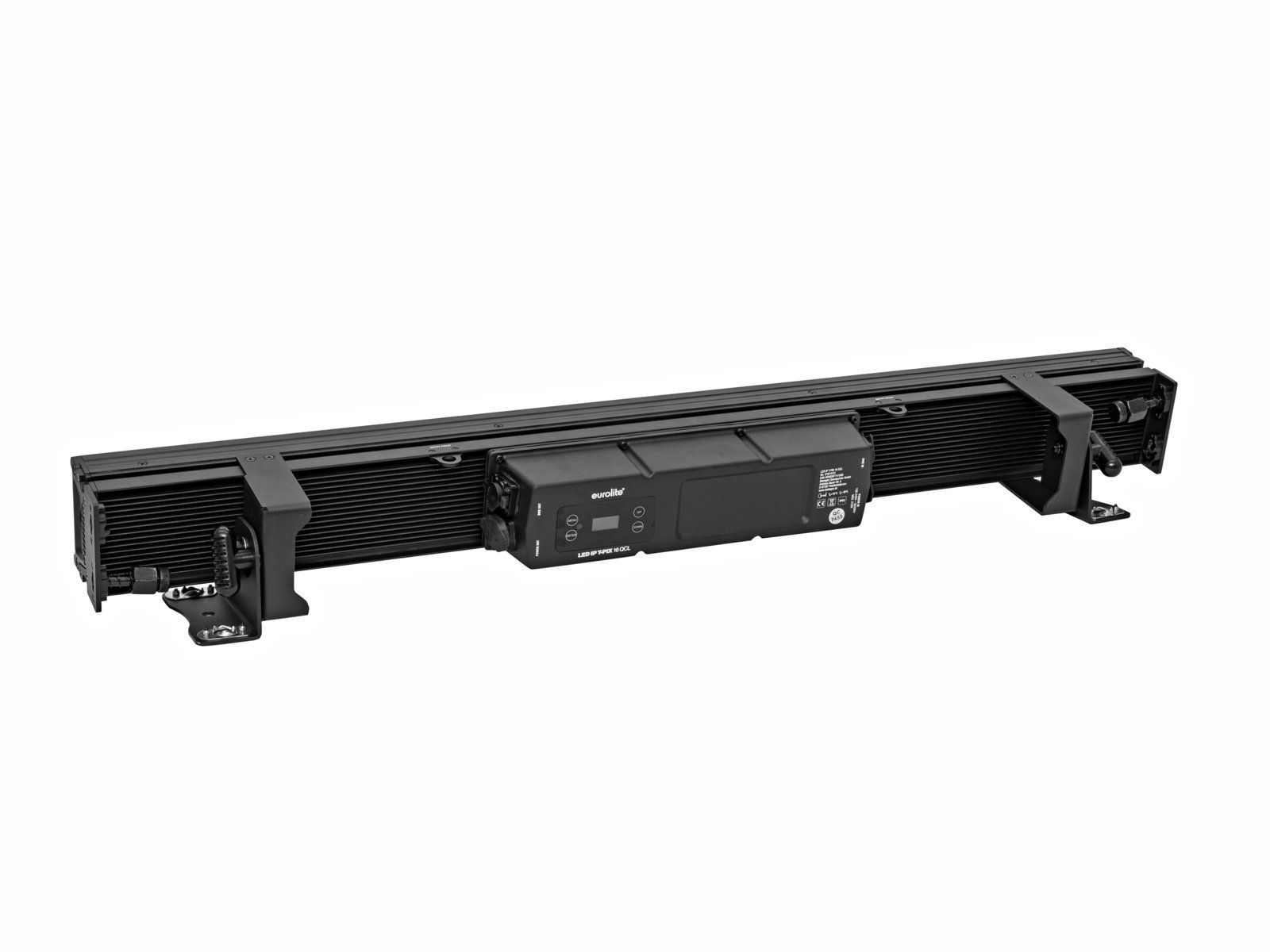

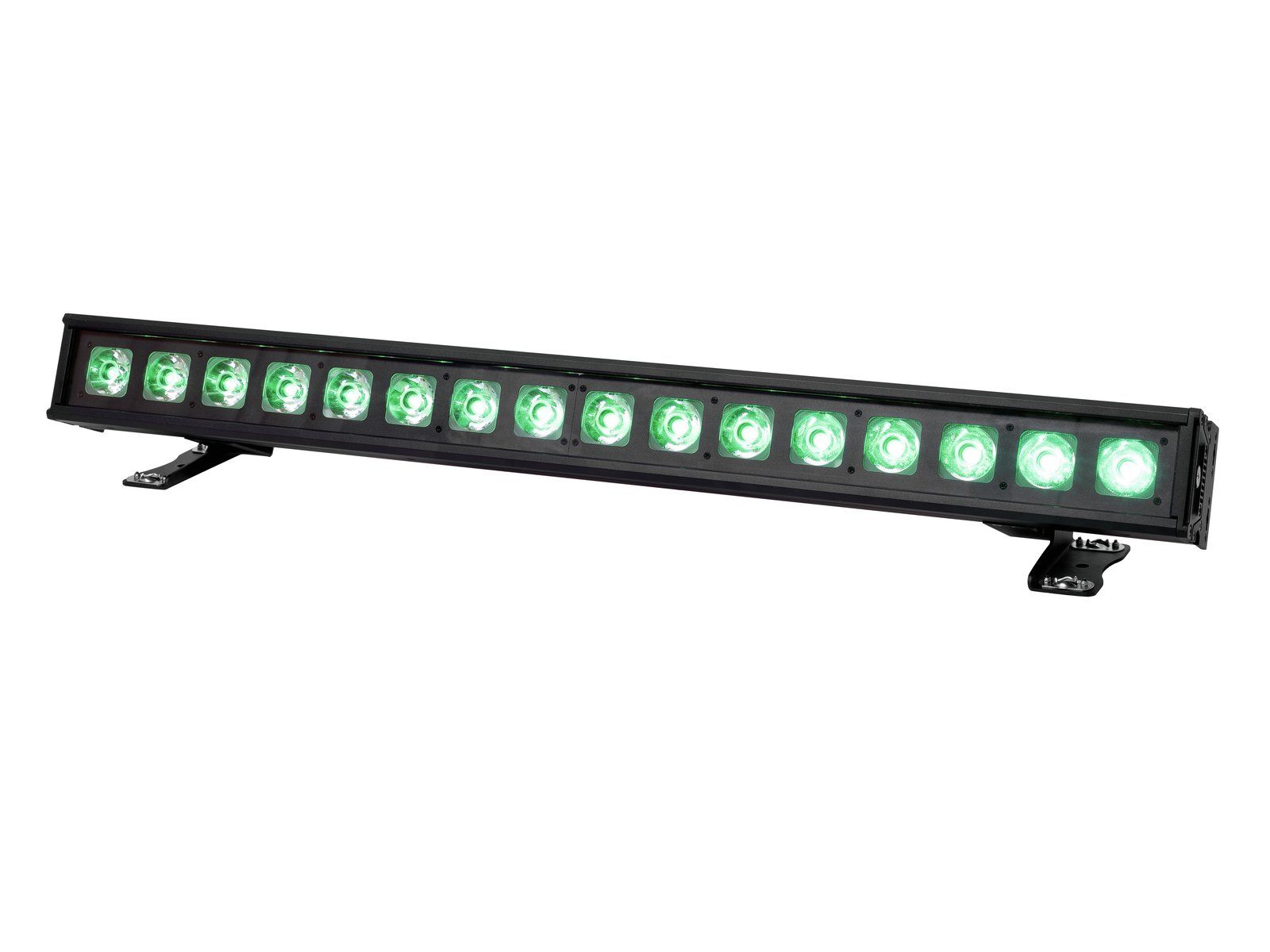

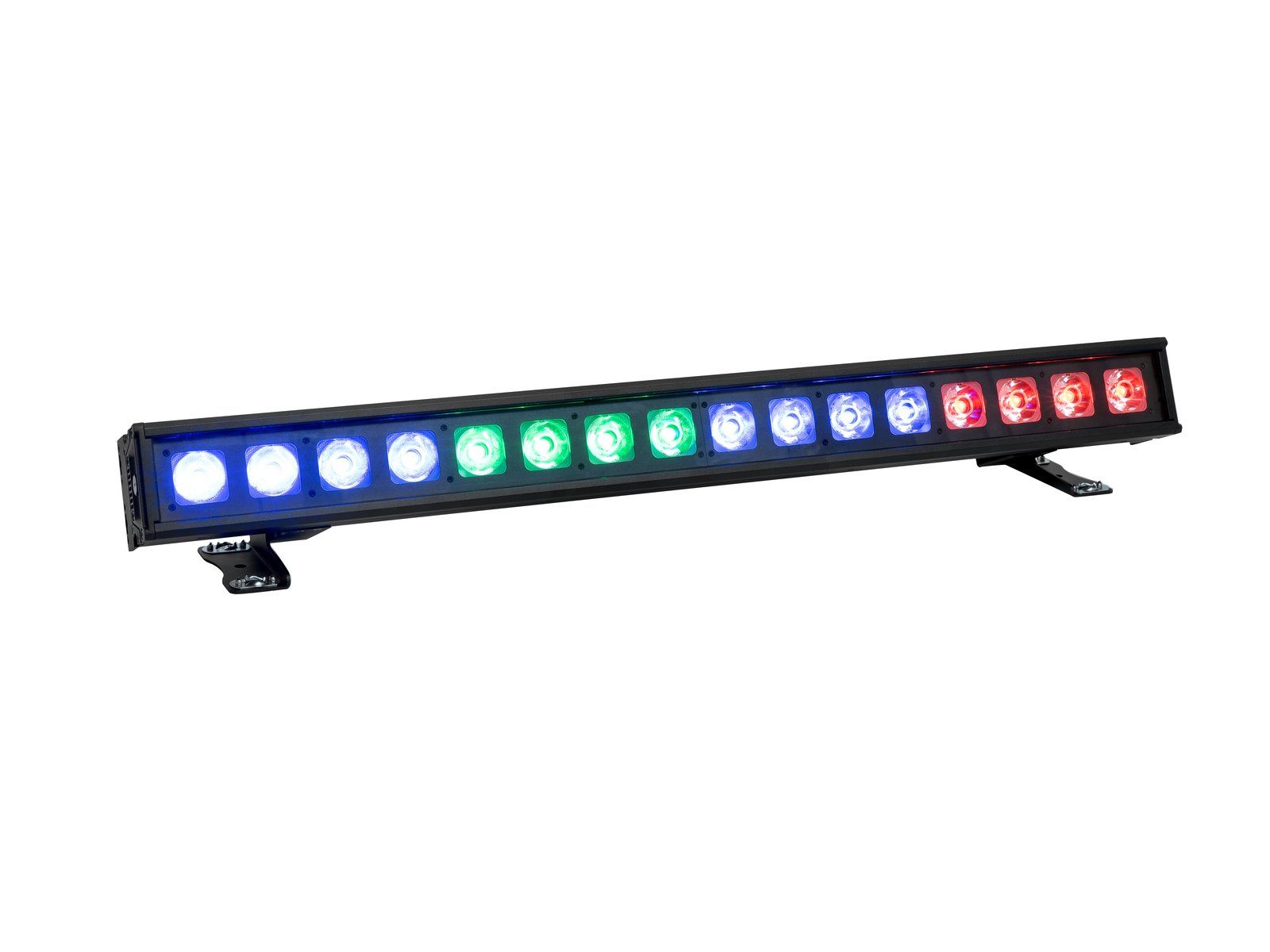

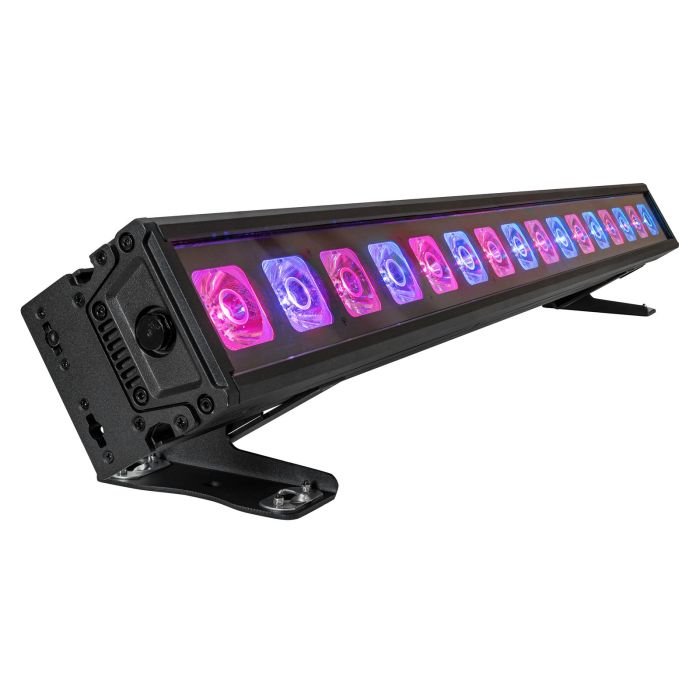

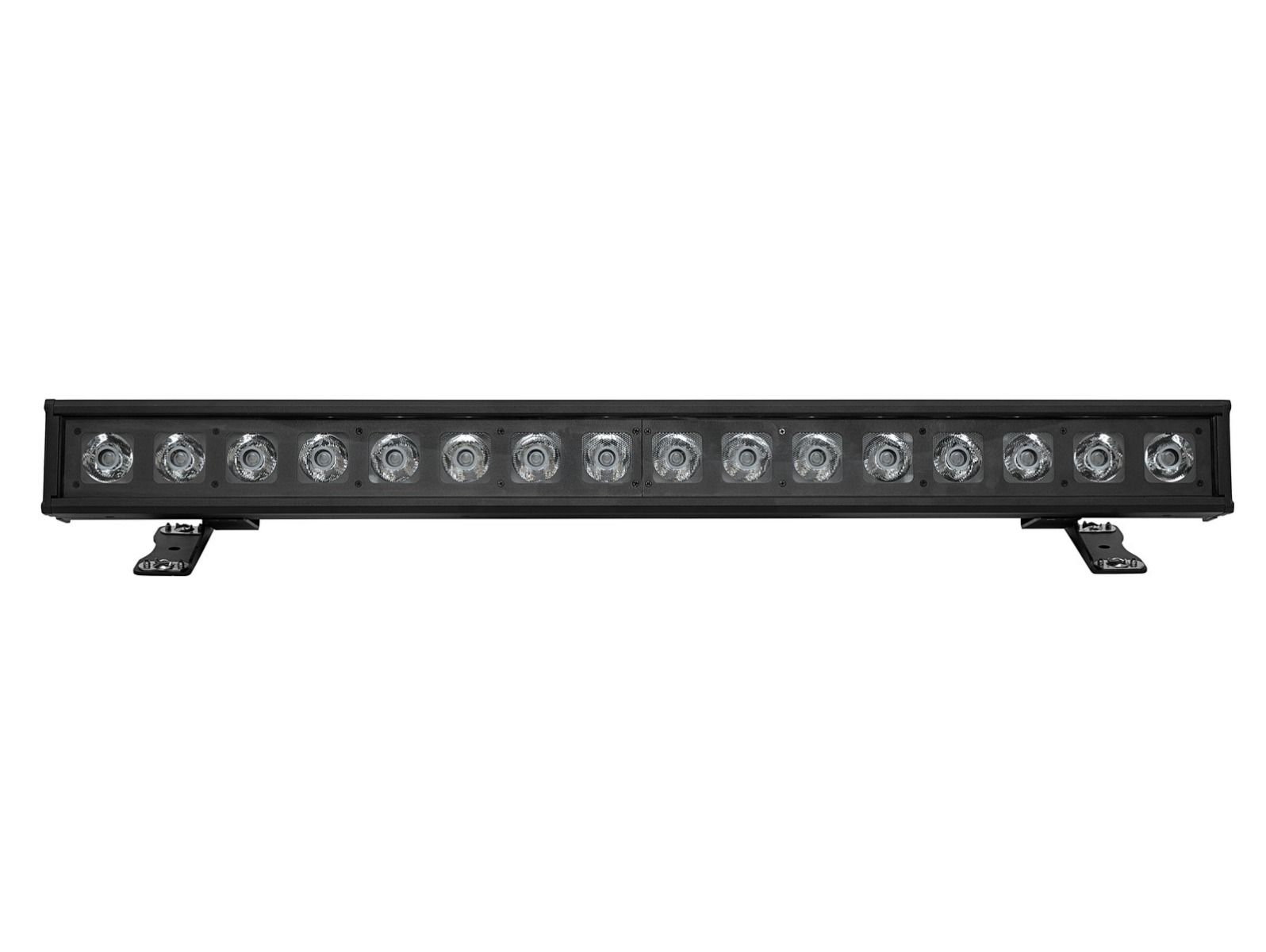

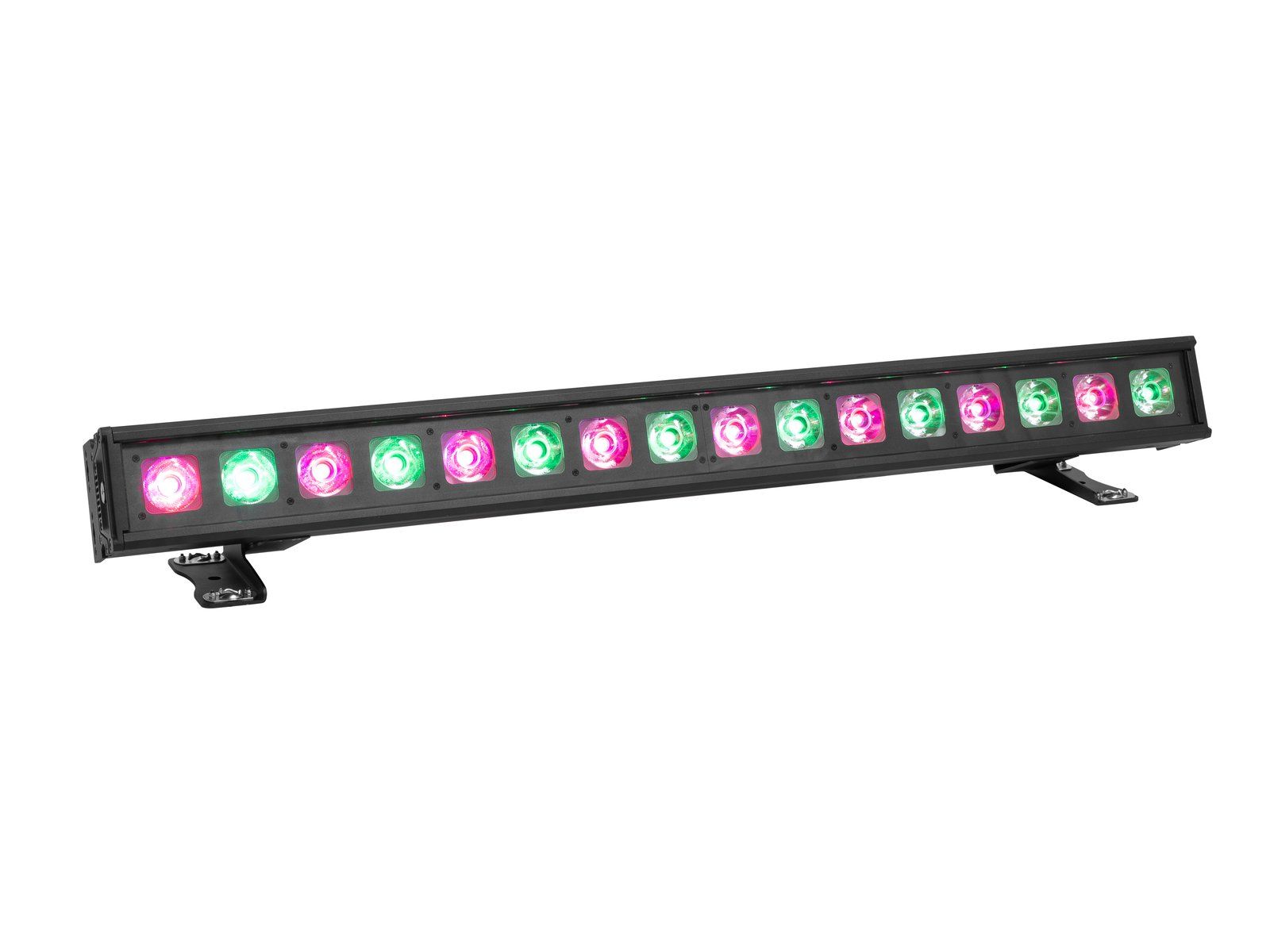

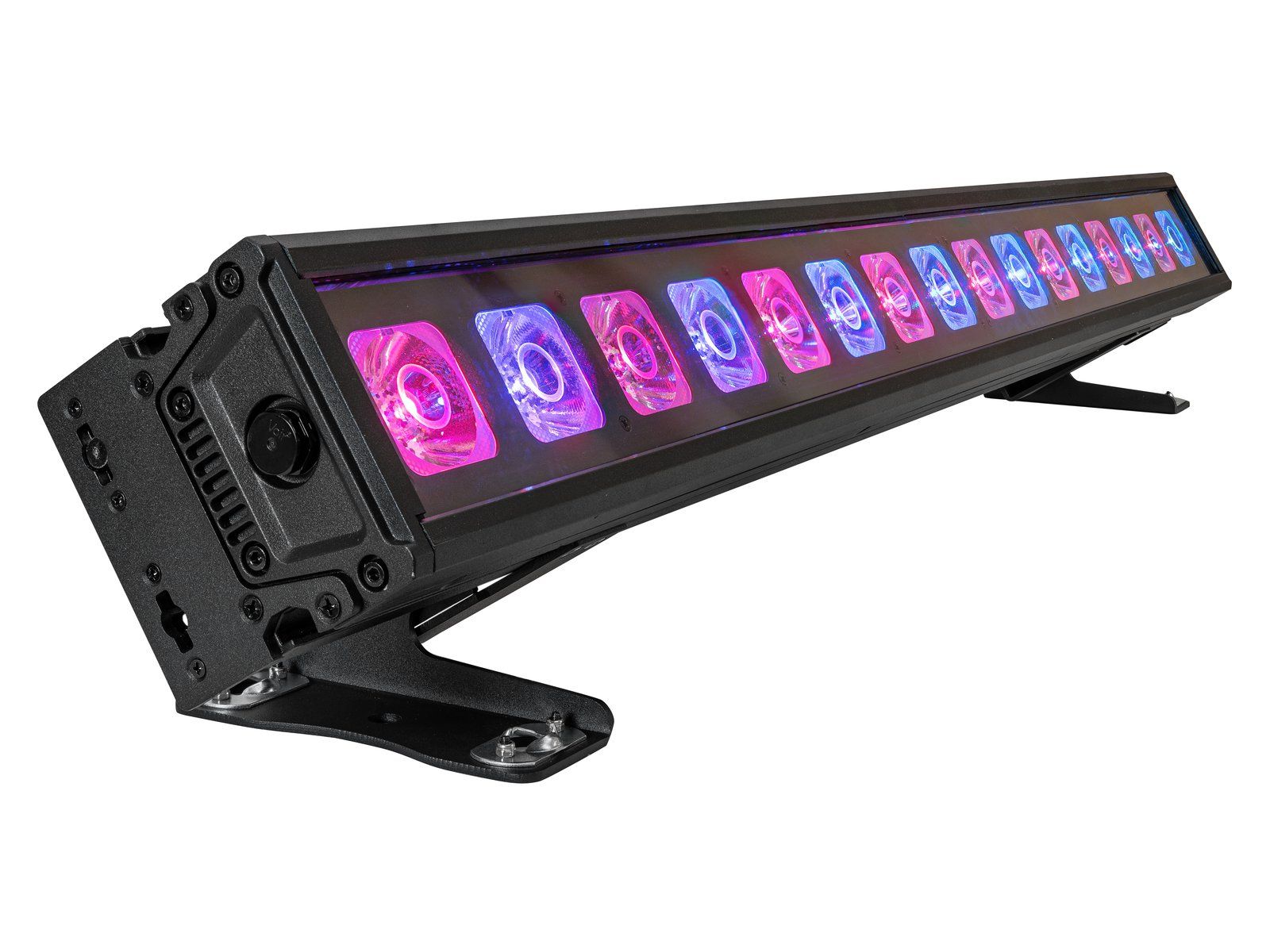

EUROLITE LED IP T-PIX 16 QCL Beam Bar
EUROLITE LED IP T-PIX 16 QCL Beam Bar
Features

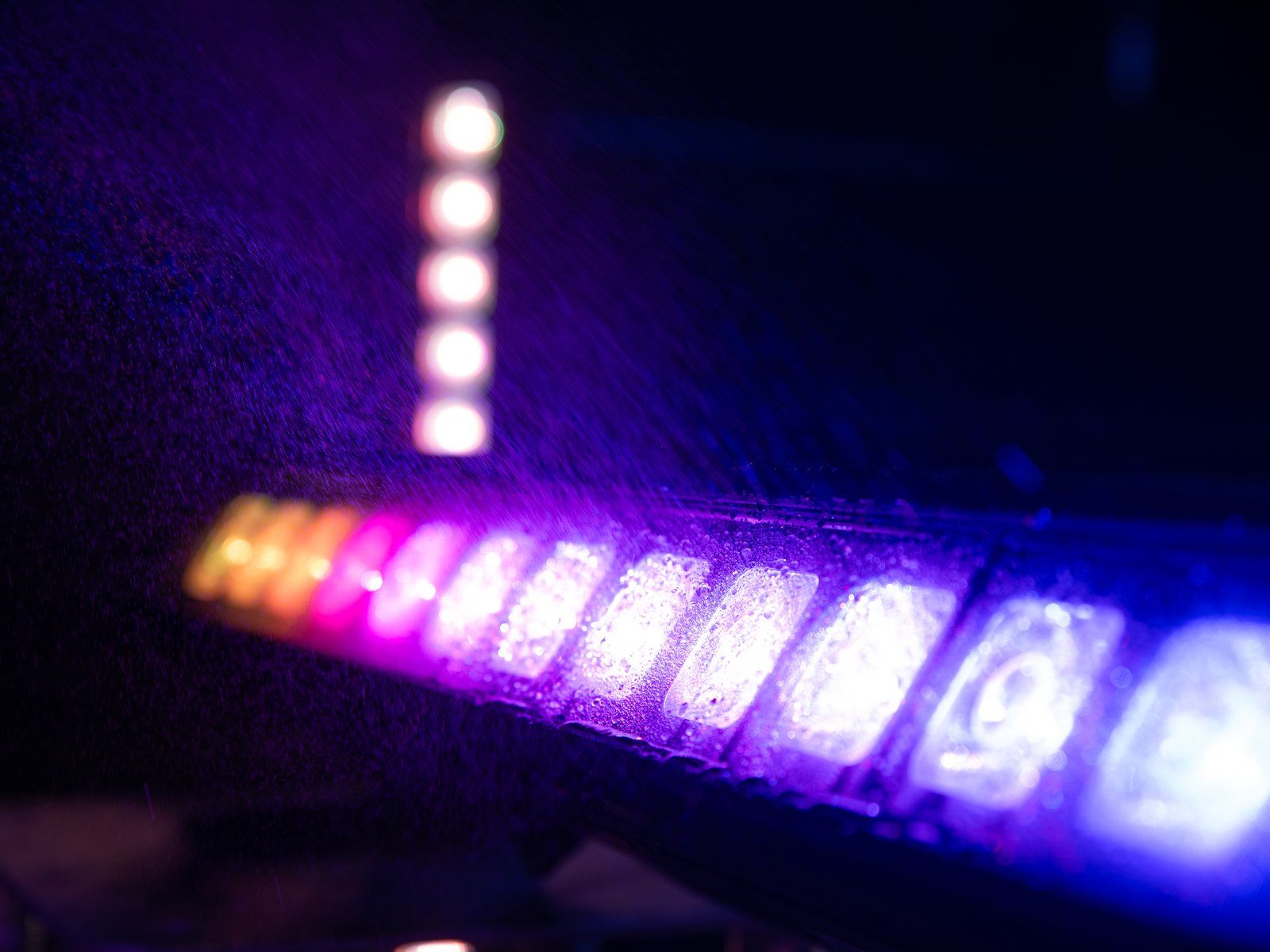

Weatherproof (IP65) beam bar with RGBL color mixing and pixel control
- 16 powerful LEDs 20 W COB (chip-on-board) 4in1 QCL RGBL
LEDs controlled separately - Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves; color selection preset; program selection adjustable; running light adjustable; program speed adjustable; color macros preset; pulse-width modulation adjustable
- Beam effect
- 33 integrated show programs
- Direct color selection for 16 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; master/slave function; DMX; RDM
- Flicker-free
- RDM For bidirectional communication over the DMX line
- DMX fail mode (hold; blackout; static; auto)
- With a beam angle of 3°
- Variable color temperature 2700 K - 6500 K

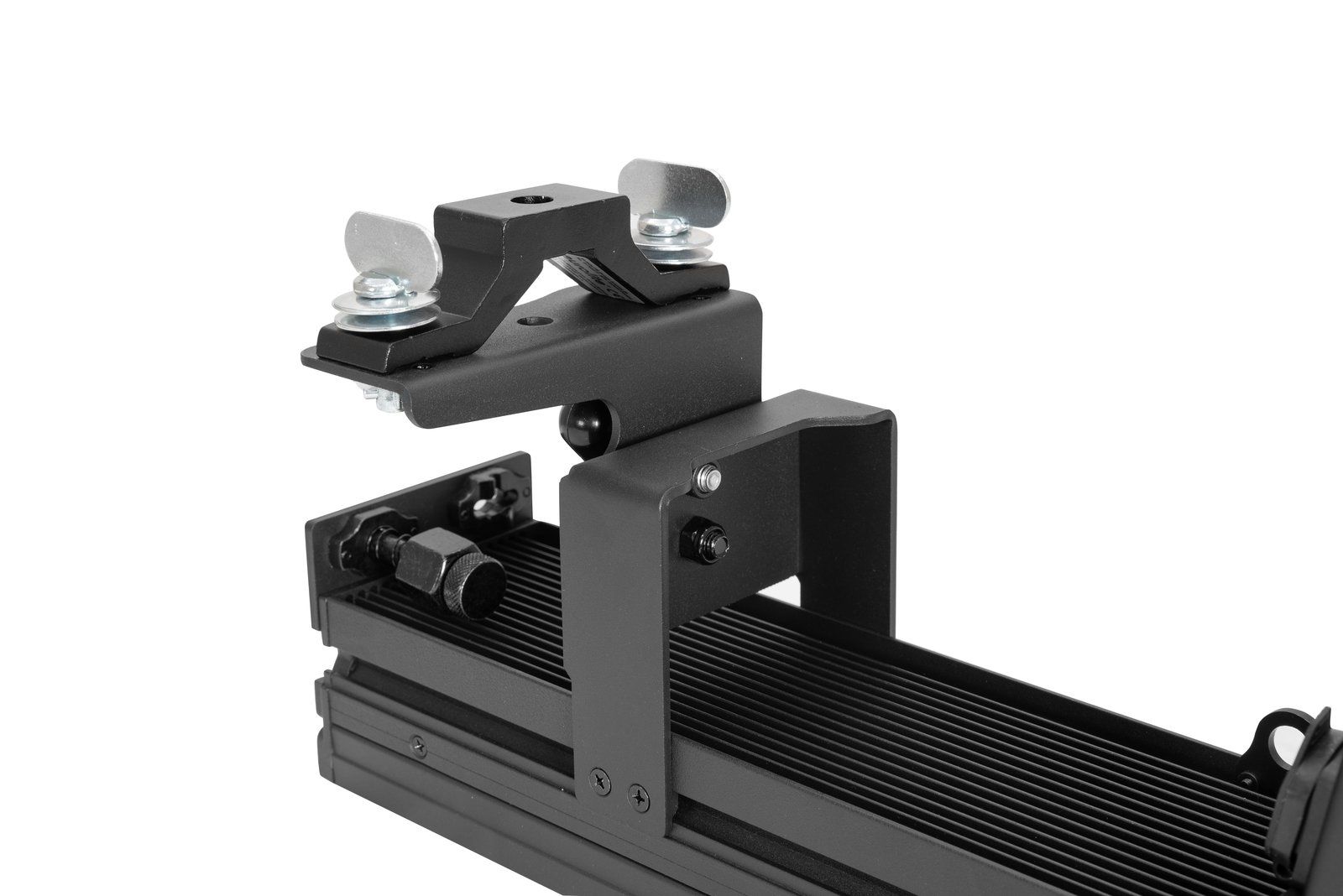

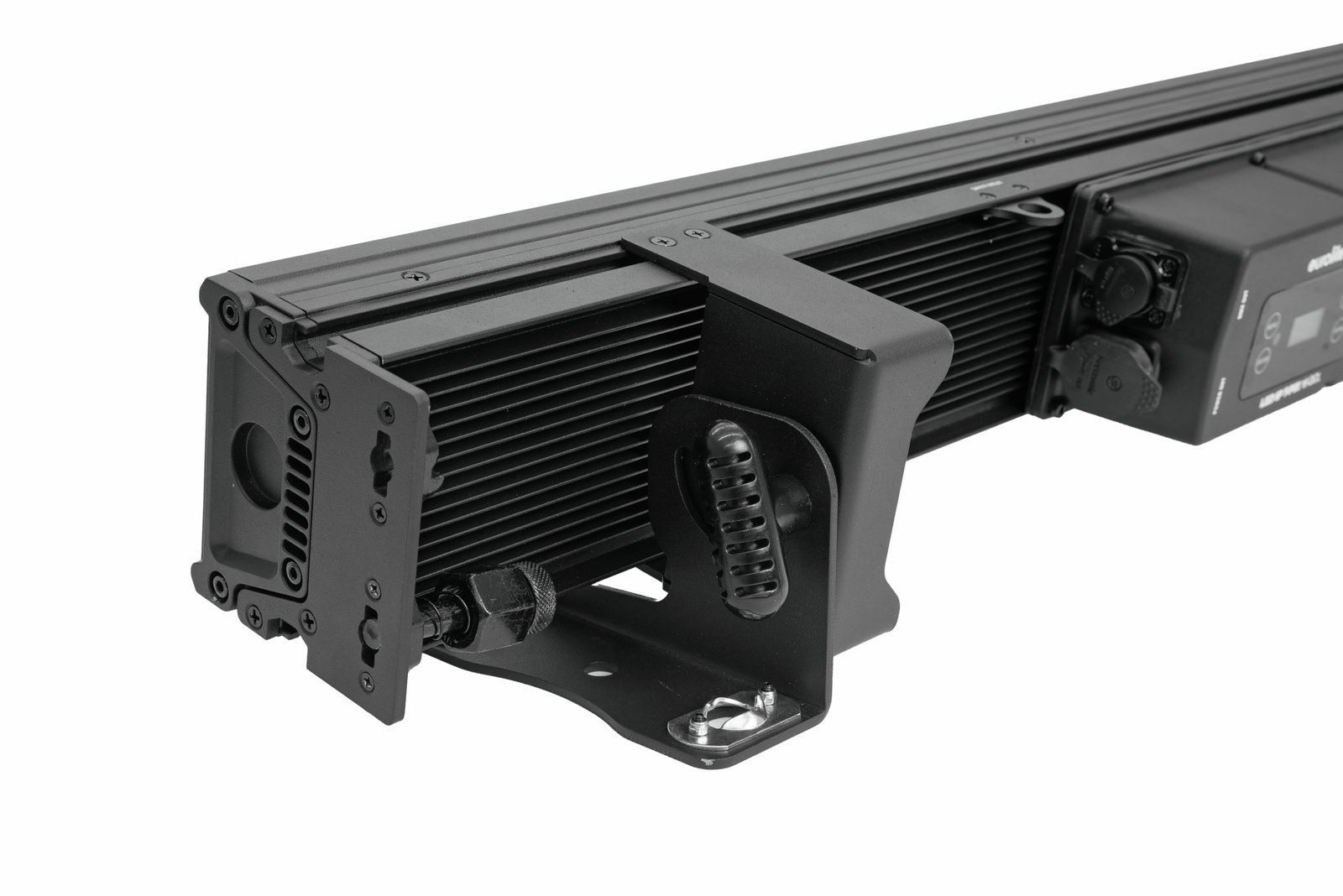

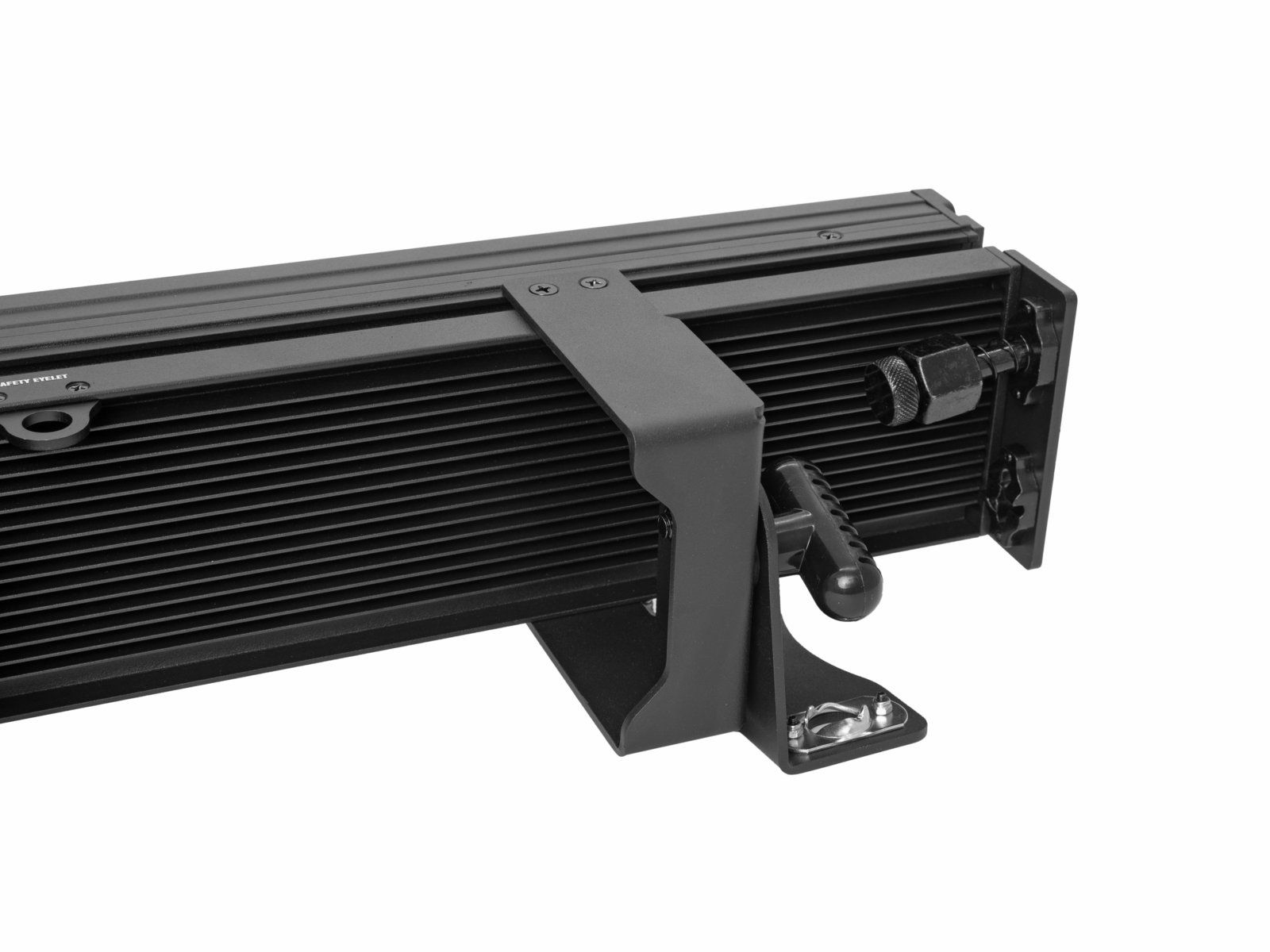

- With mounting bracket; with omega bracket

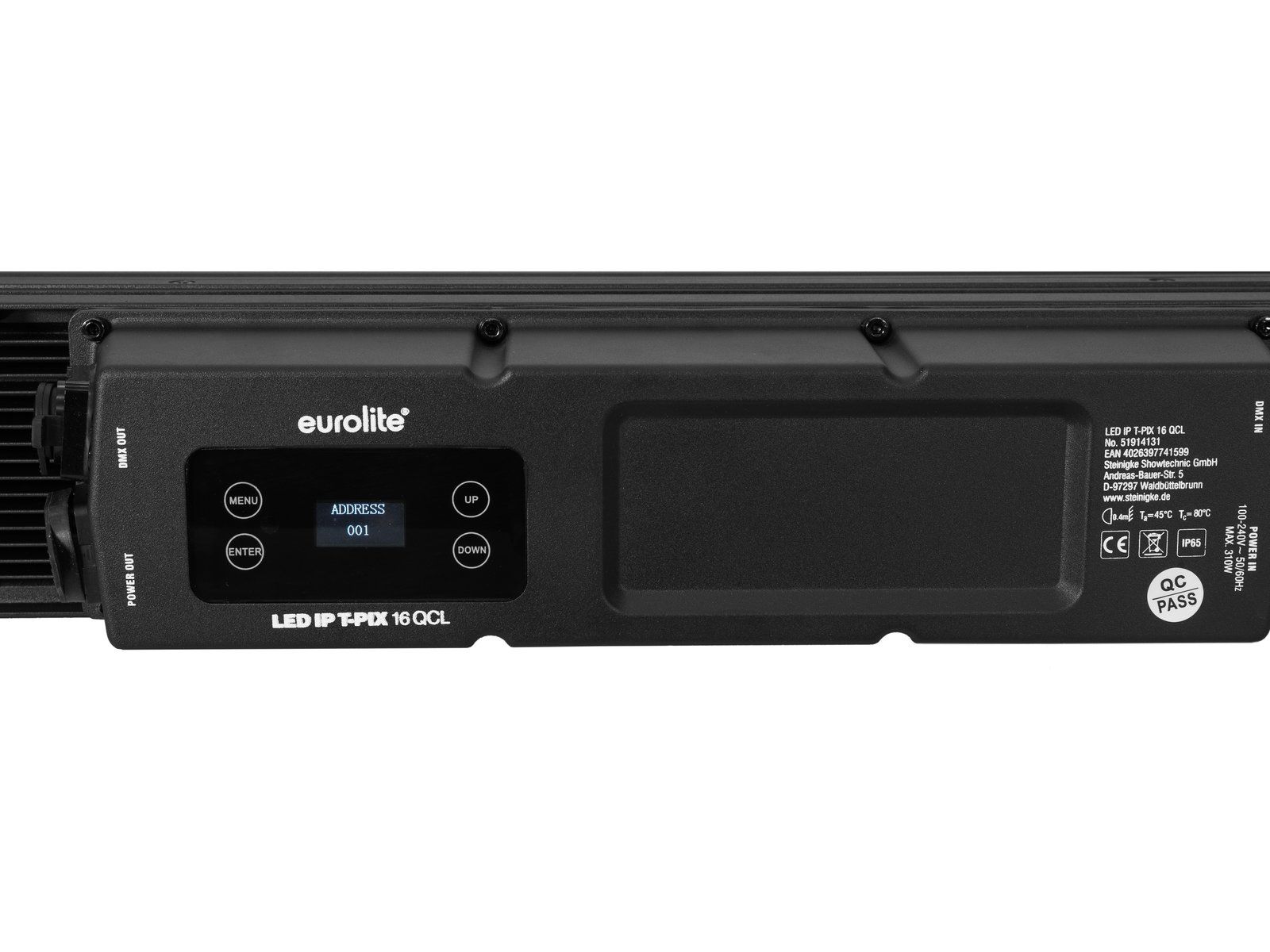

- Monochrome OLED display
- Mains input and output for power linking up to 8 units
- Suitable for outdoor use IP65
- With pressure compensation membrane

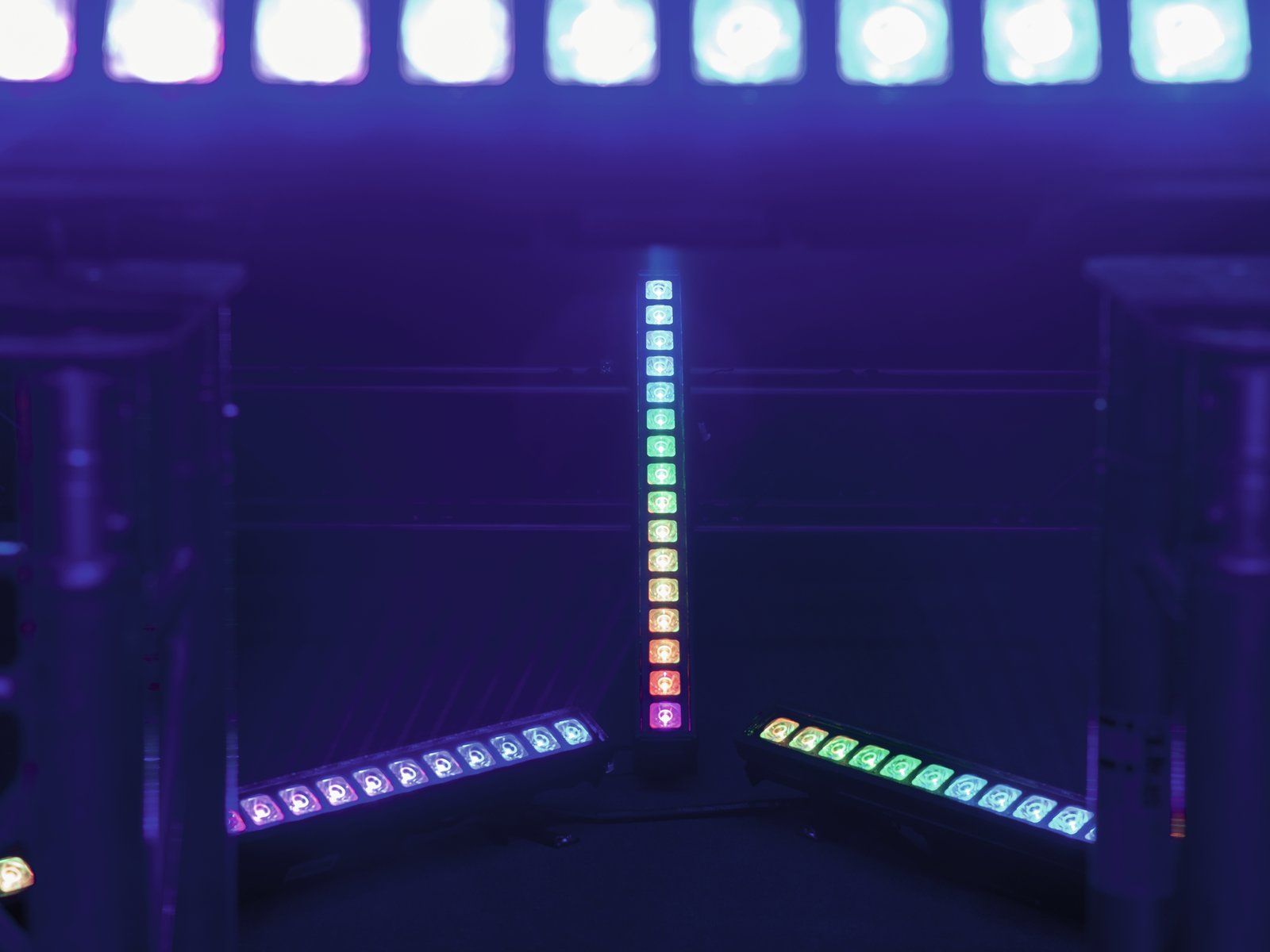

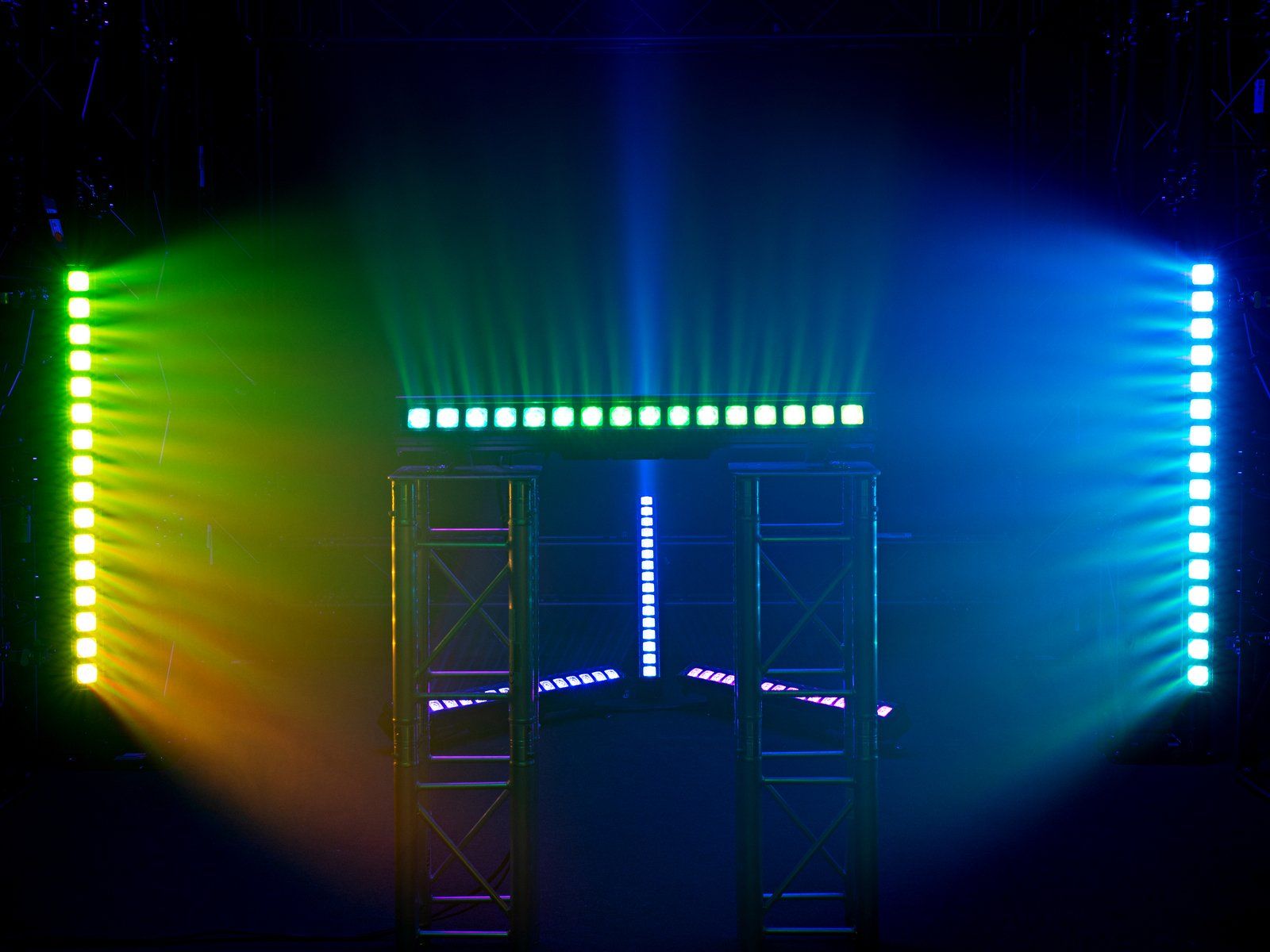

- For application areas such as: Wedding/gala/events; installation; stage; restaurants, bars and hotels
- Silent operation
- Application possibility: Standing; suspended
- Preprogrammed in Light Captain; Colorchief
- Built with SEETRONIC connector
Package contents

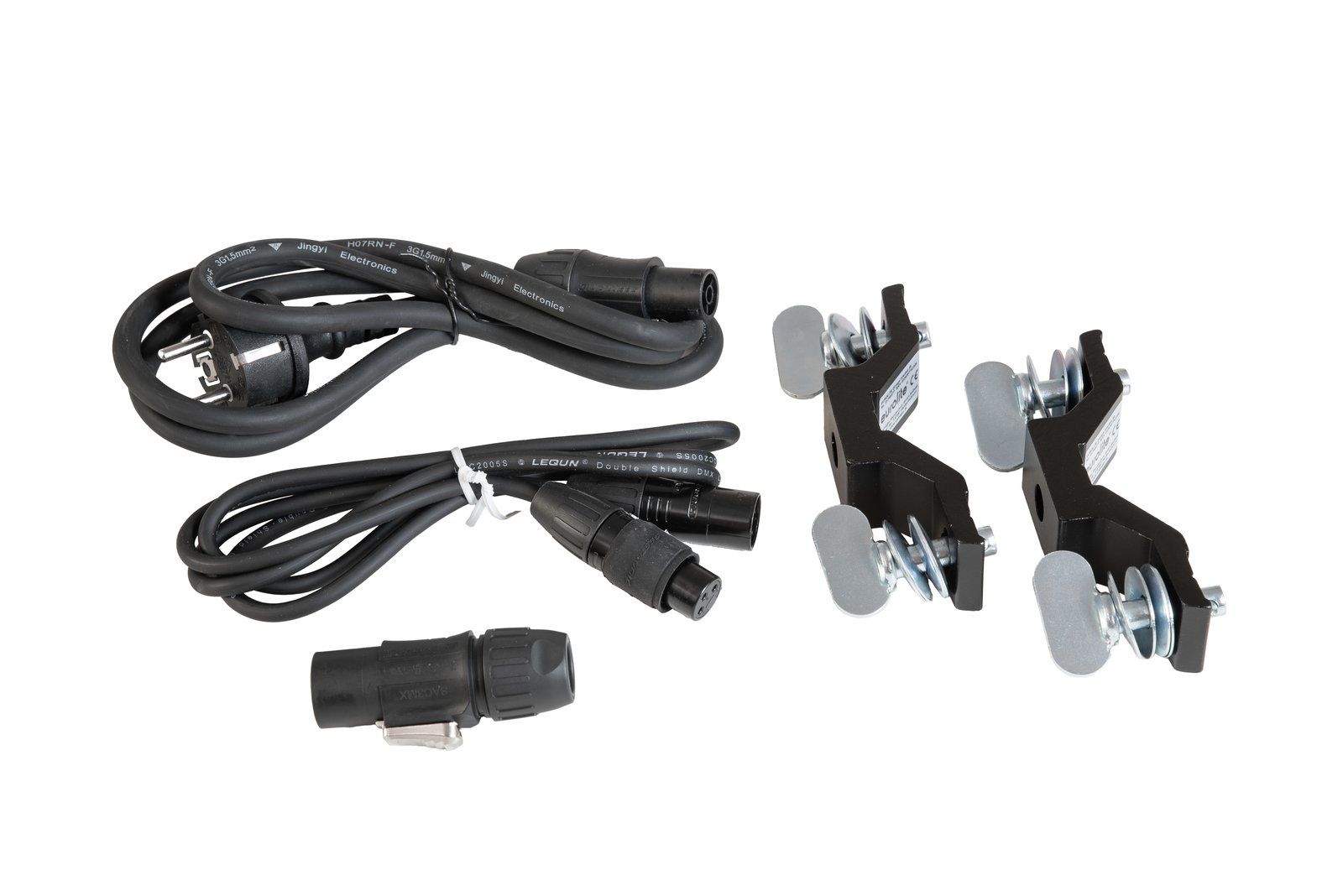

- 1 x spotlight, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x mounting bracket, 1 x plug (male)
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 310 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1,5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 16 x 20 W COB (chip-on-board) 4in1 QCL RGBL |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 3; 4; 5; 10; 14; 22; 38; 48; 64; 70 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; master/slave function; DMX; RDM |
| Preprogrammed in: | Light Captain; Colorchief |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout; static; auto |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 6° |
| Color temperature: | 2700K - 6500K adjustable |
| Housing color: | Black matte |
| Attachment system: | 2x mounting bracket 2x omega bracket |
| Display type: | 1 x monochrome OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Metal, painted |
| Dimensions: | Length: 100 cm Width: 9,7 cm Height: 16,6 cm |
| Weight: | 10,75 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
