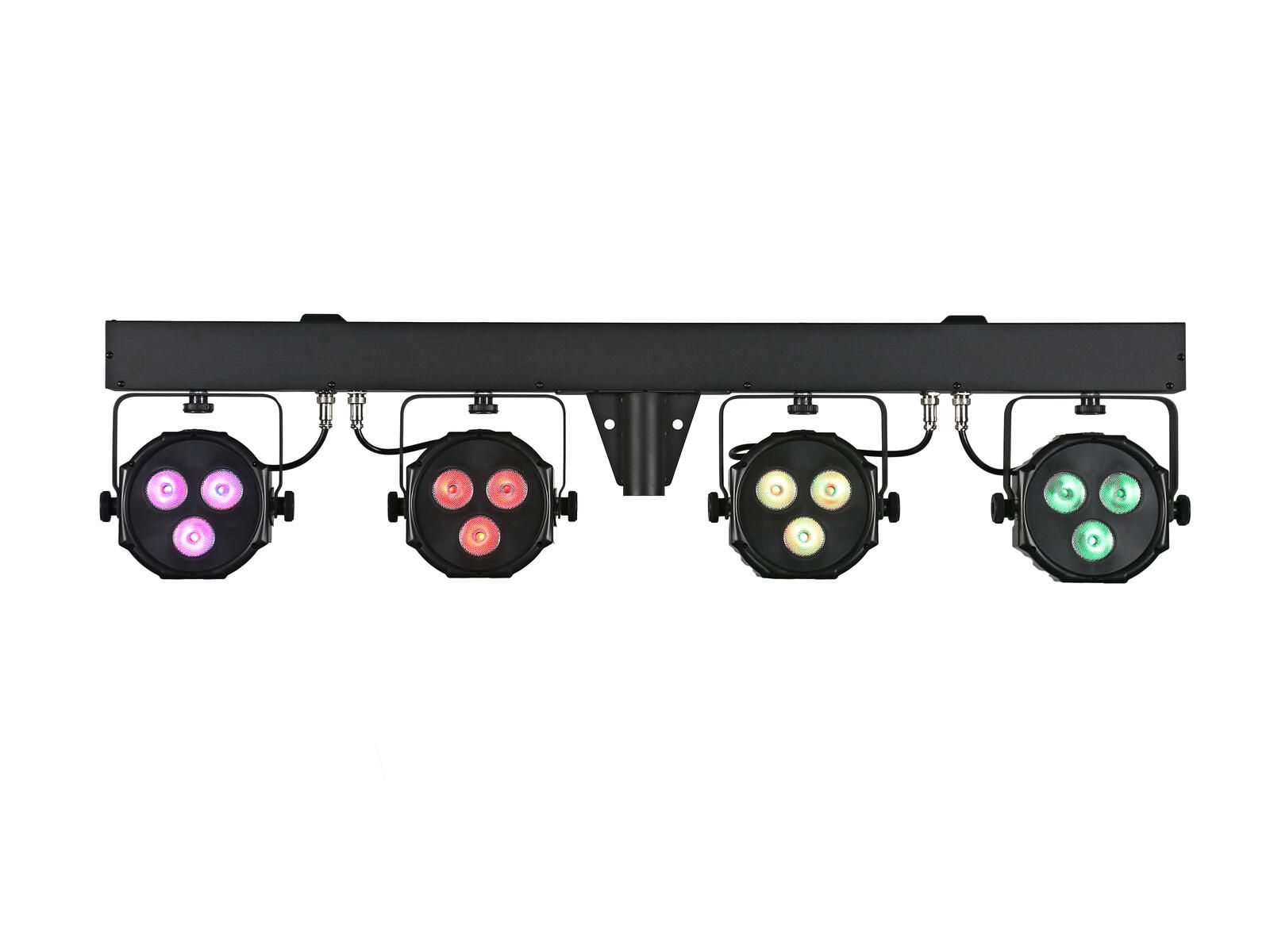

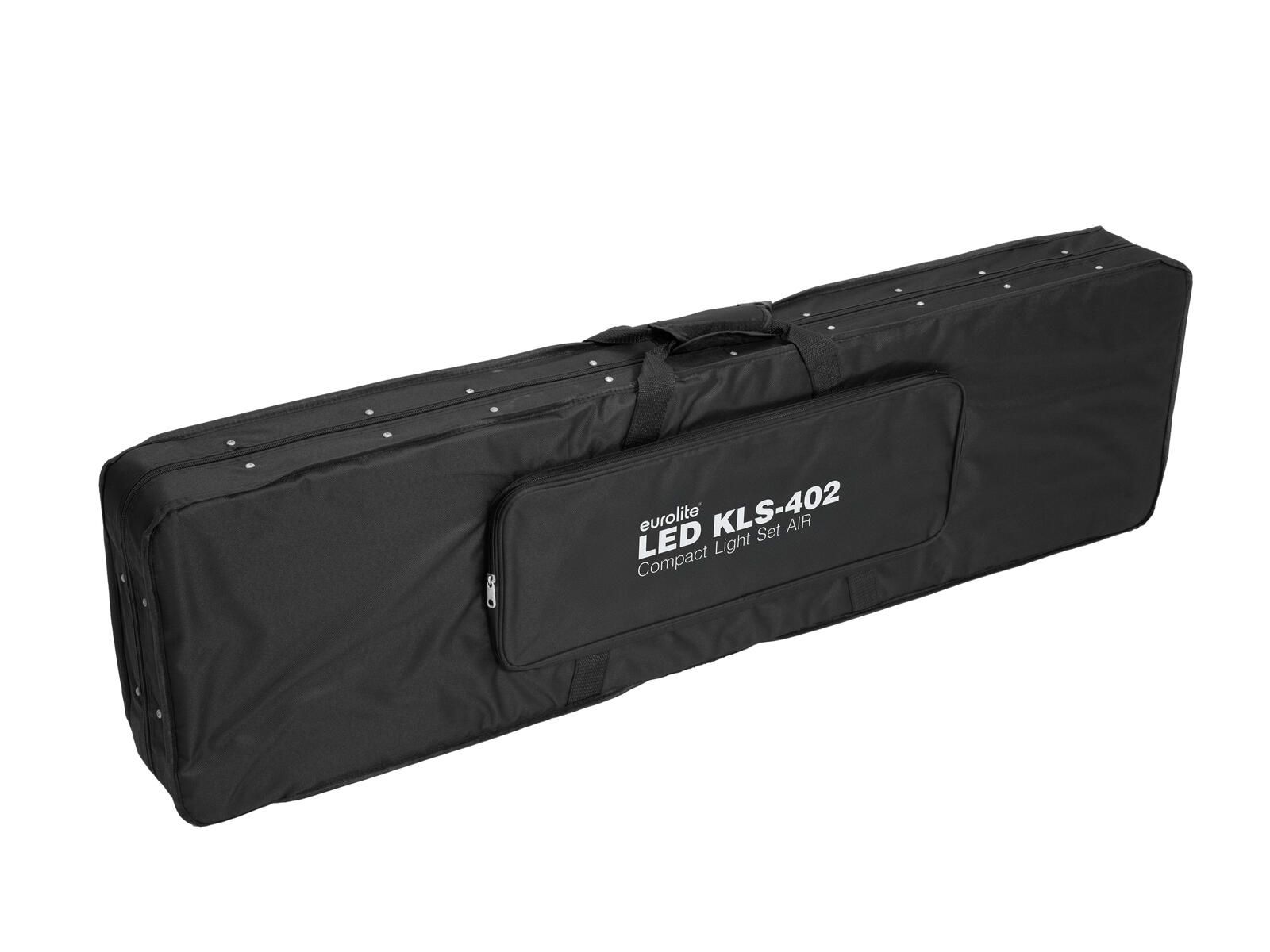

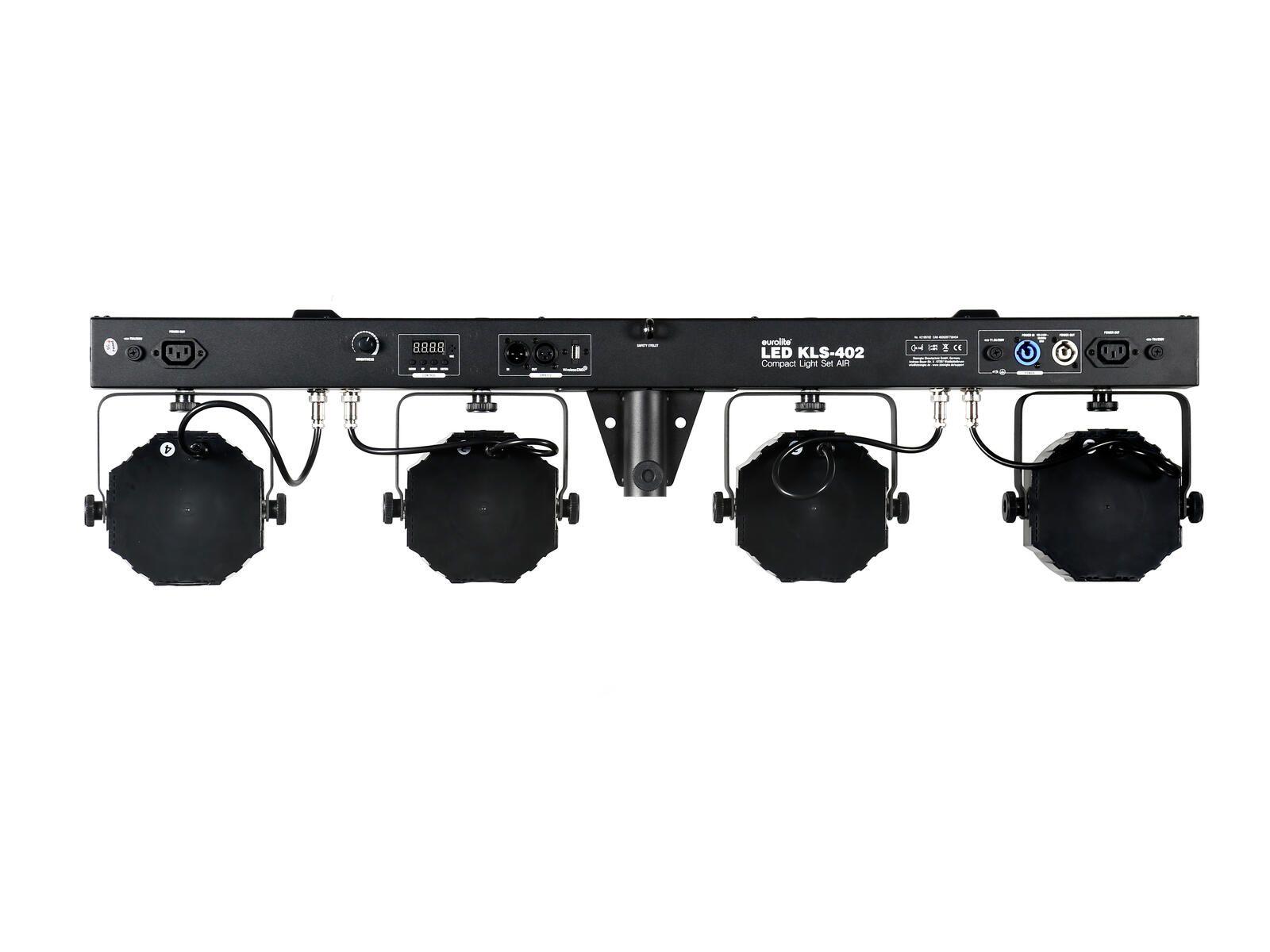

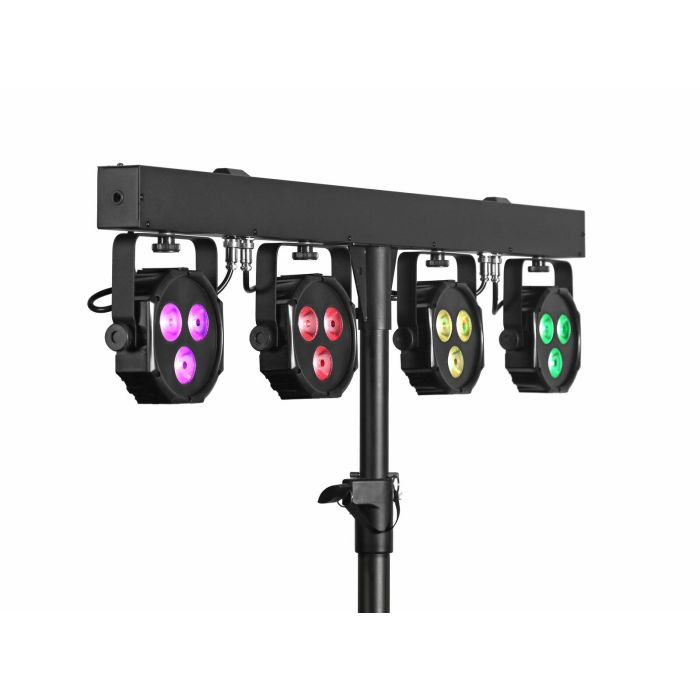

Bar with 4 powerful 4in1 QCL RGB/WW spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag

• Crossbar with integrated DMX control unit and stand sleeve
• Integrated AirW radio transceiver for wireless master/slave operation
• AirW: operating range up to 70m with line-of-sight
• Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
• 12 powerful LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
  4 spots controlled separately
• With a beam angle of 12°
• Spot effect; strobe effect
• Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
• Direct color selection for 20 preset colors
• 20 integrated show programs
• Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
• 3 buttons on the remote control for saving your own settings
• DMX fail mode (blackout; hold; full on; auto)
• Good color rendering index (CRI)
• Flicker-free
• Monochrome 4 digit 7-segment LED display

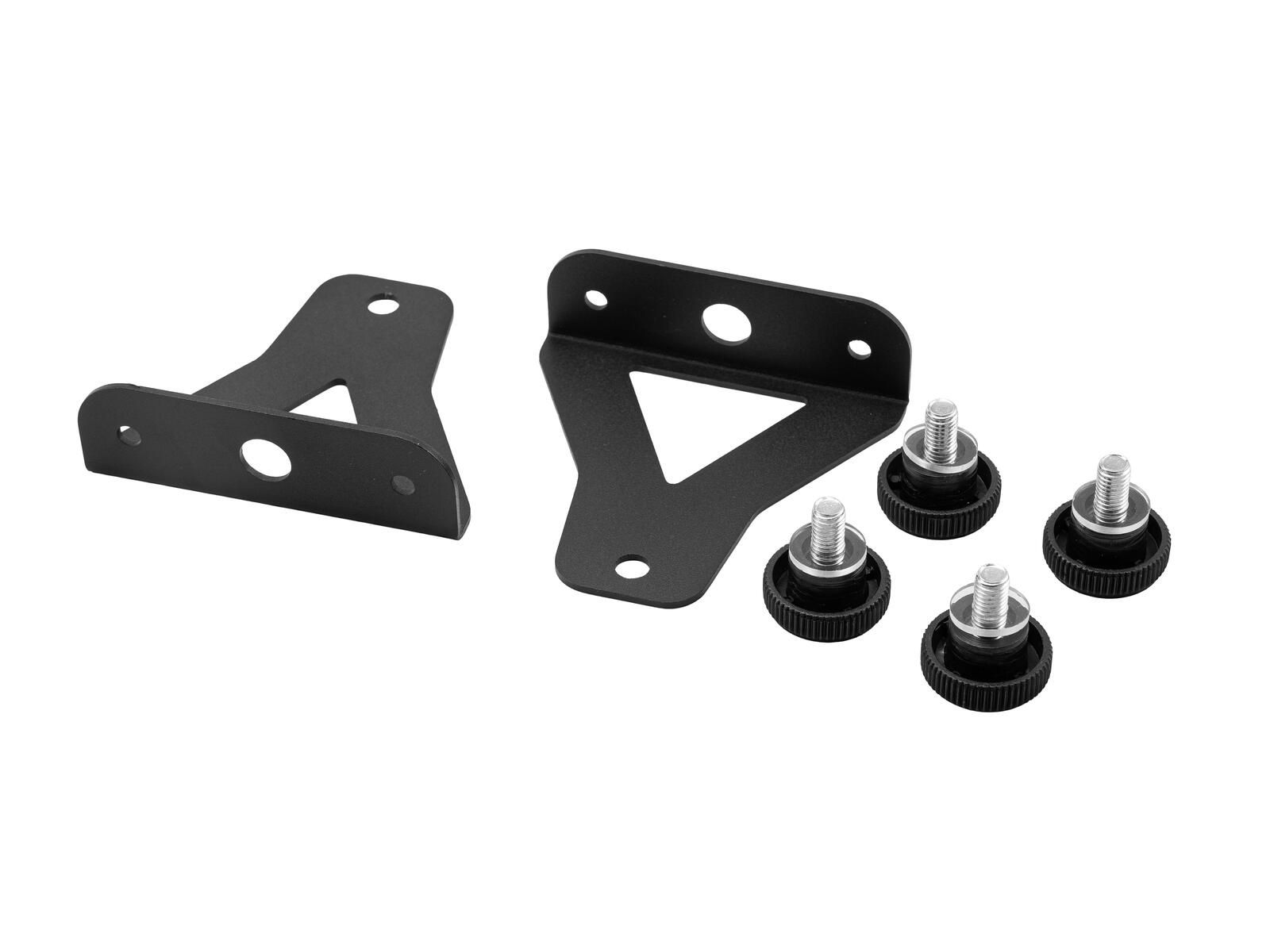

• With mounting bracket
• Silent operation
• The device is cooled by passive convection cooling
• For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels

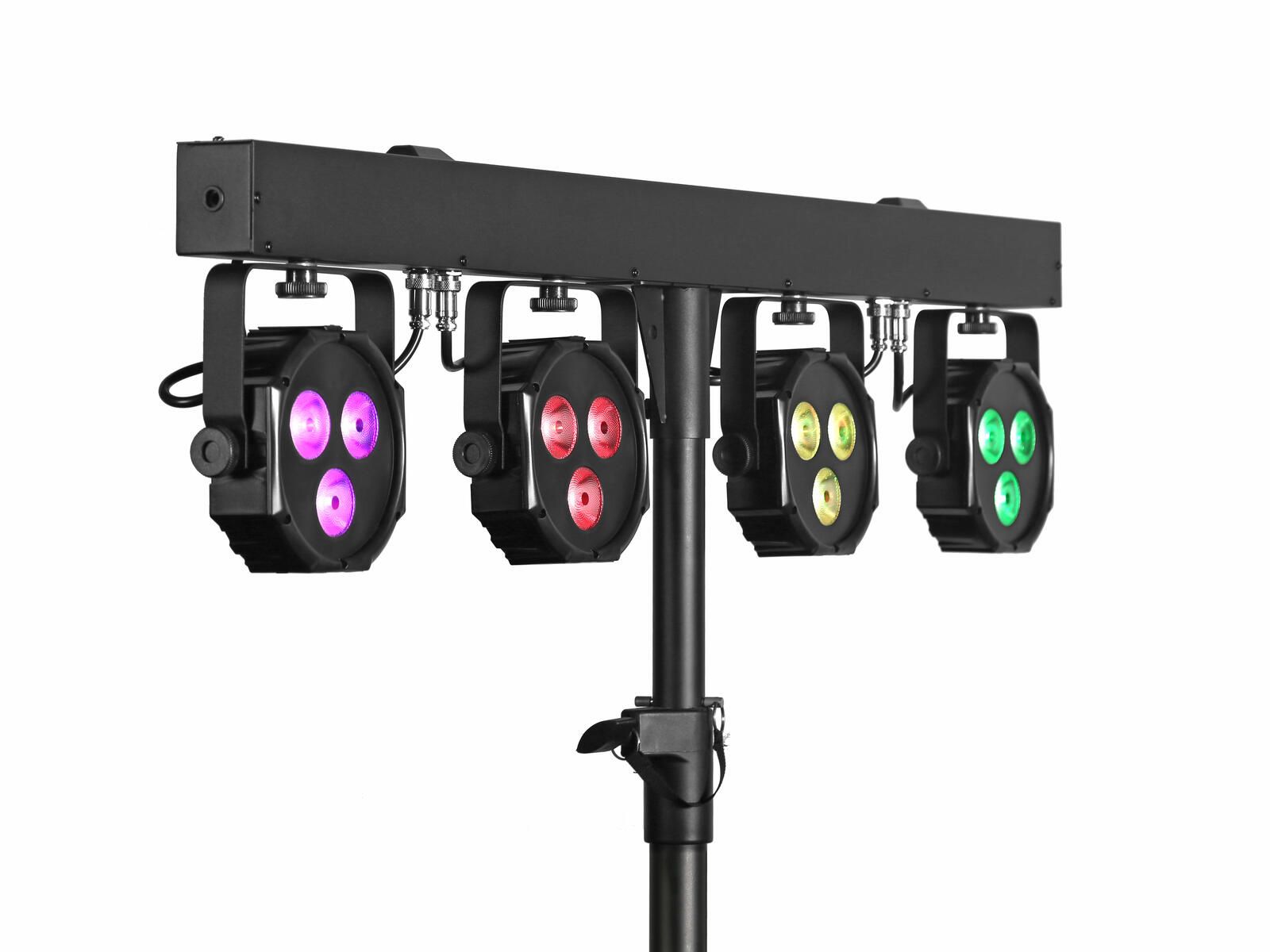

• Application possibility: Suspended; on stand
• Mains input and output for power linking up to 8 units

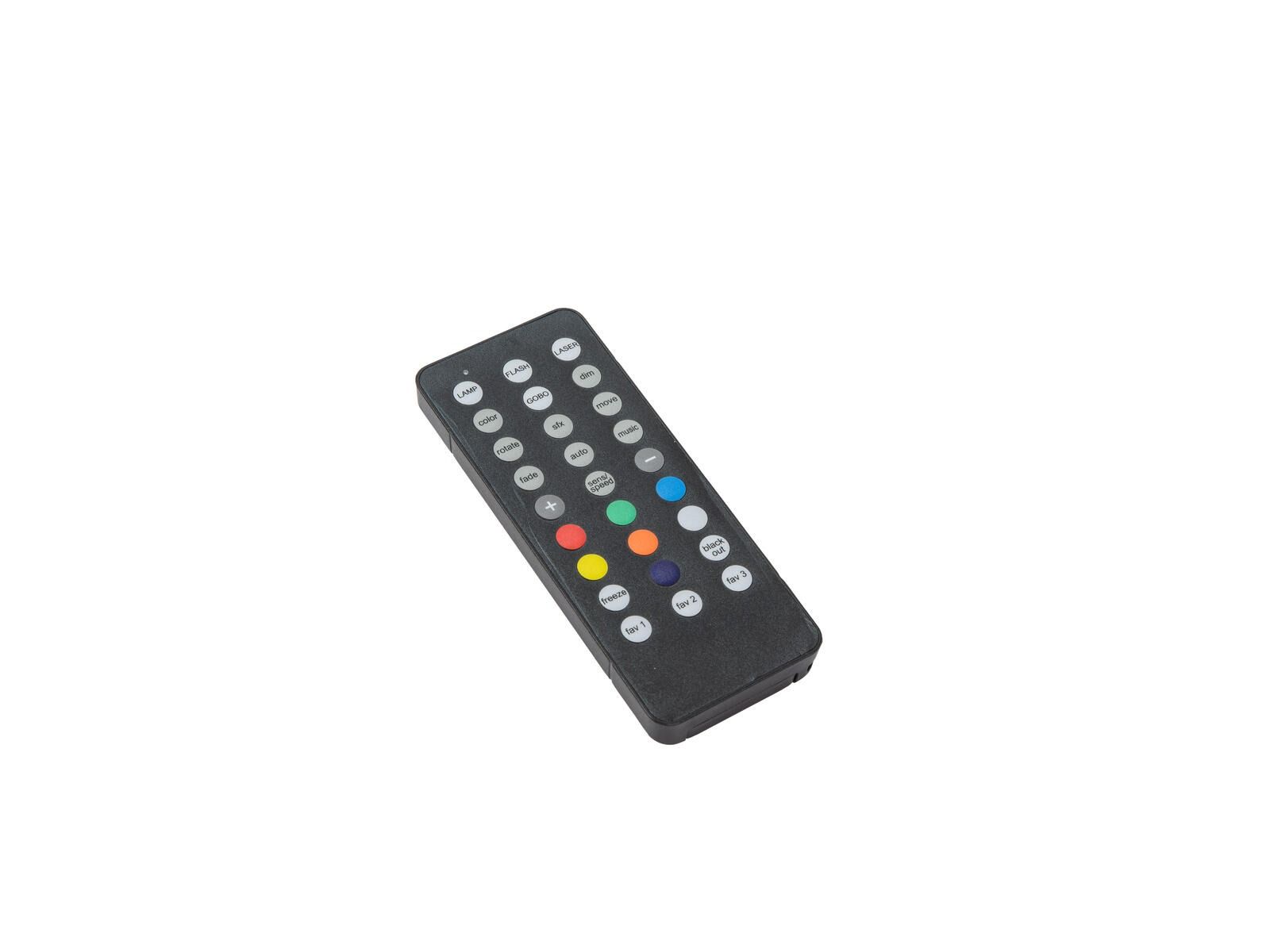

remote control

• Wireless remote control: operating range up to 30m with line-of-sight
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	50 W
  IP classification:	IP20
  Protection class:	Protection class I
  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  Power output:	1 x P-Con (gray), mounting version Bypass 2 x IEC connector (F) mounting version fused / 5A
  Device fuse:	5 x 20 mm, T 1.6 A fuse replaceable
  Power output fuse per channel:	5 x 20 mm, T 5 A fuse replaceable
  Lamp type:	LED lamp
  LED type:	12 x 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
  Flash rate:	0.3 - 20 Hz
  DMX channels:	3; 4; 6; 8; 16; 18; 20
  DMX input:	1 x 3-pin XLR (M) mounting version
  DMX output:	1 x 3-pin XLR (F) mounting version Bypass
  Cooling:	Passive convection cooling
  Control:	Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
  Projection:	Flicker-free
  Range:	AirW: range up to 70m with line-of-sight
  Carrier frequency:	2.4 GHz
  Modulation:	GFSK
  DMX fail mode:	Blackout; hold; full on; auto
  Beam angle:	12°
  Beam angle (1/2 peak):	Spot 12°
  Beam angle (1/10 peak):	Spot 25°
  Color temperature:	2880K
  Color rendering index (CRI):	83 Ra
  Housing color:	Black matte
  Attachment system:	Tube: 1x Ø 35mm 2x mounting bracket
  Display type:	1 x monochrome 4 digit 7-segment LED display
  USB port:	1 x type A
  Diameter mounting holes:	2 x Ø8mm
  Dimensions:	Length: 104 cm Width: 5.5 cm Height: 24.9 cm
  Weight:	7.40 kg
  Noise classification:	Class 0 (no noise at all)
  Power cord
  Cable construction:	3 x 1.0 mm² H05VV-F
  Cable length:	Approx. 3 m
  Remote control
  Battery:	1 x 12 V 23AE alkaline manganese included
  Range:	Wireless remote control: range up to 30m with line-of-sight
  Carrier frequency:	433.92 MHz
  Bar
  Material:	Metal, painted
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
