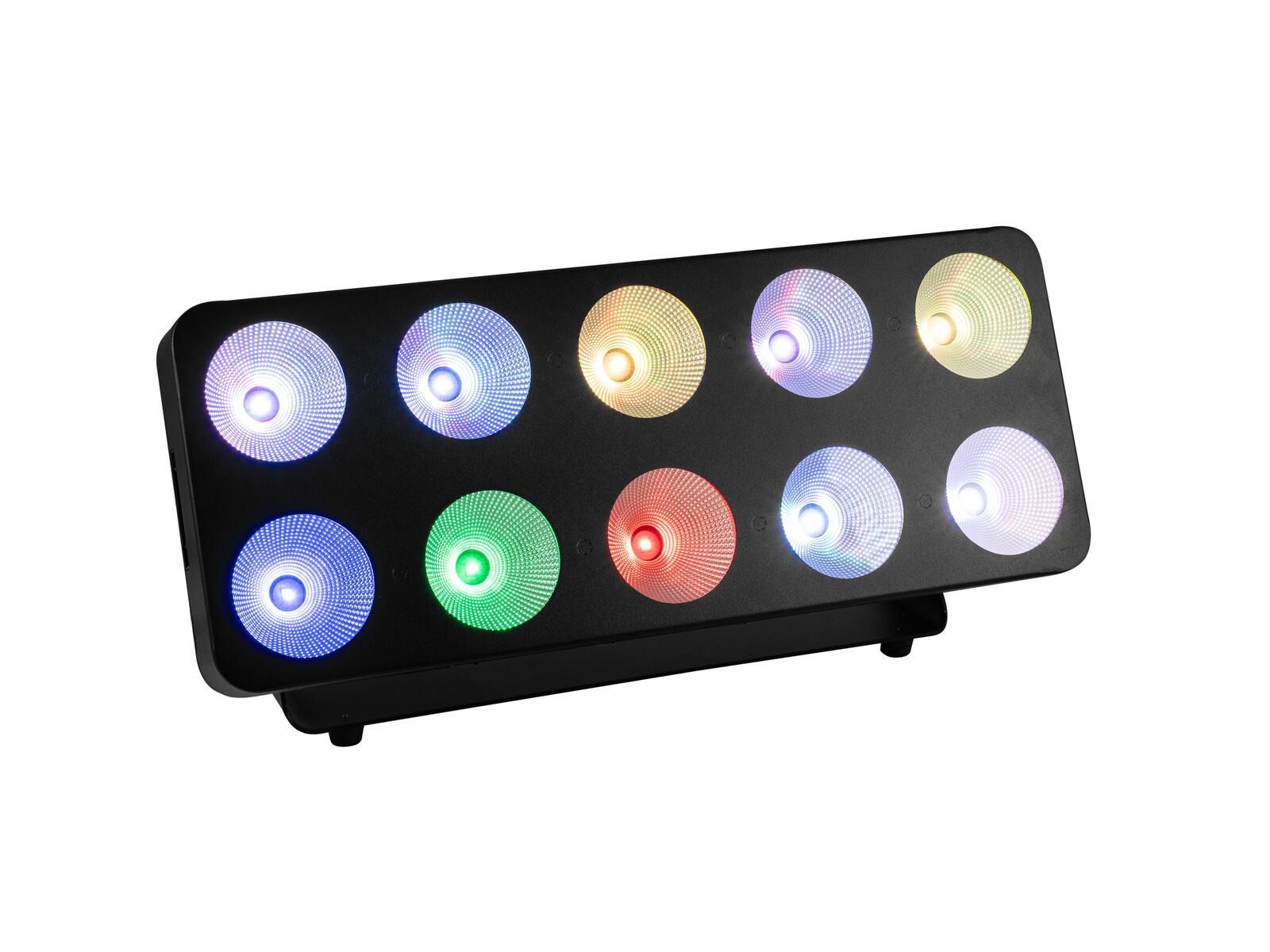

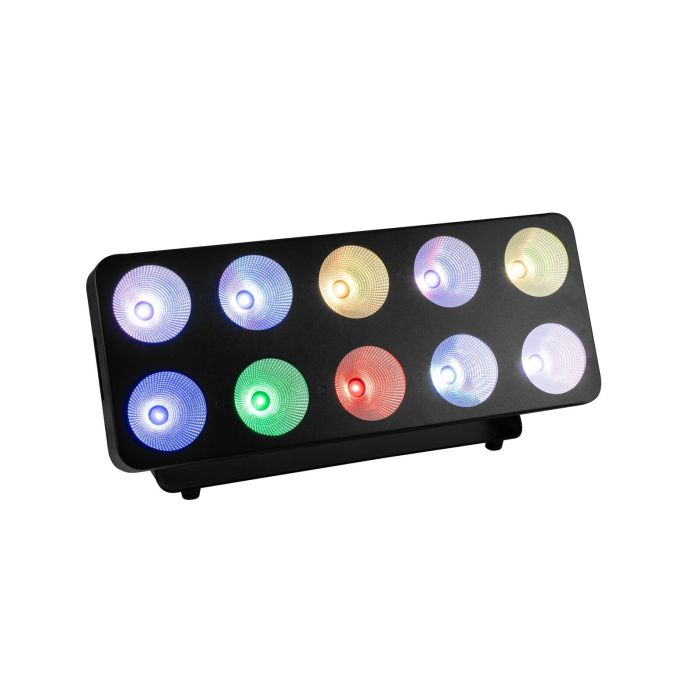

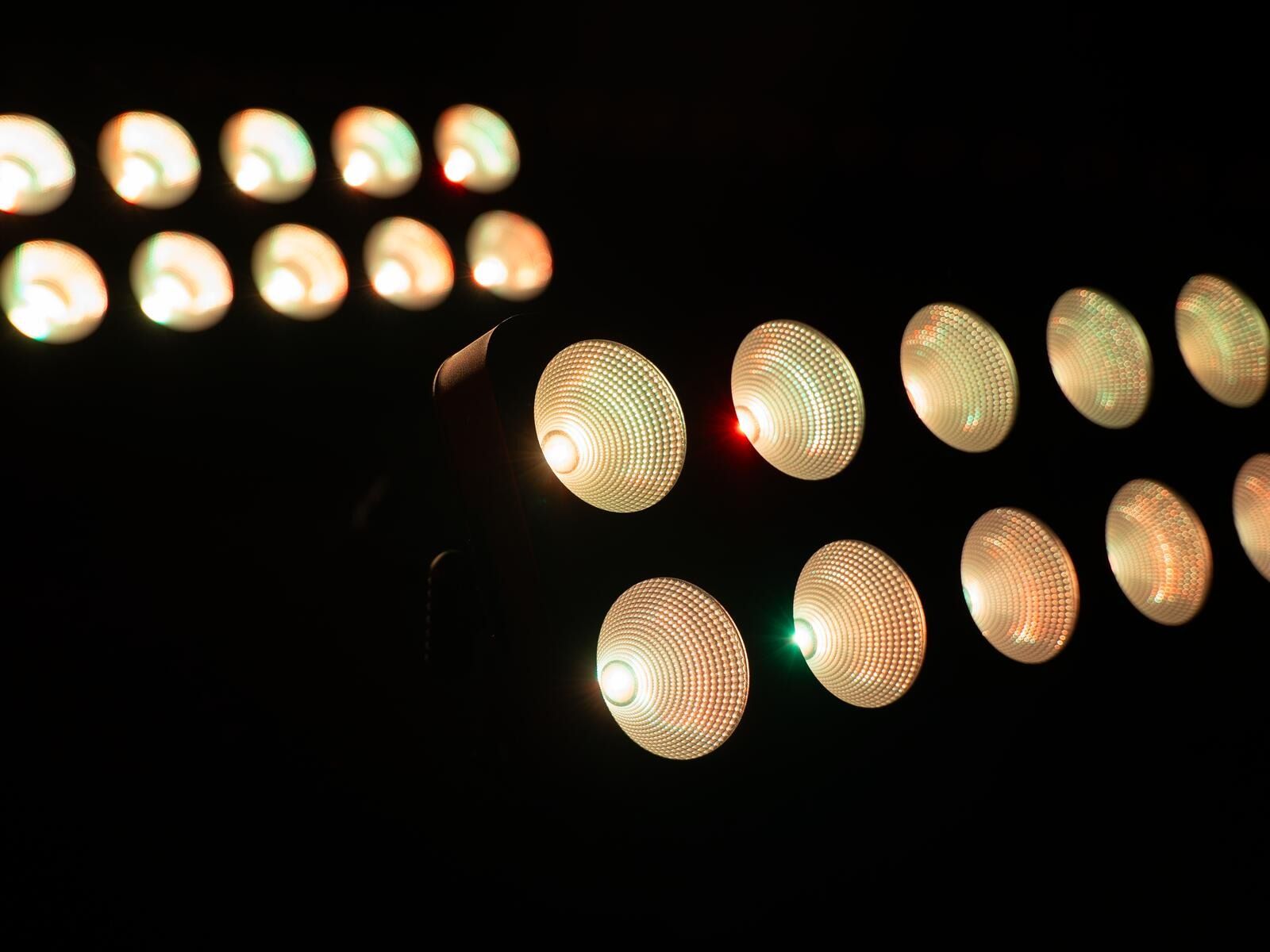

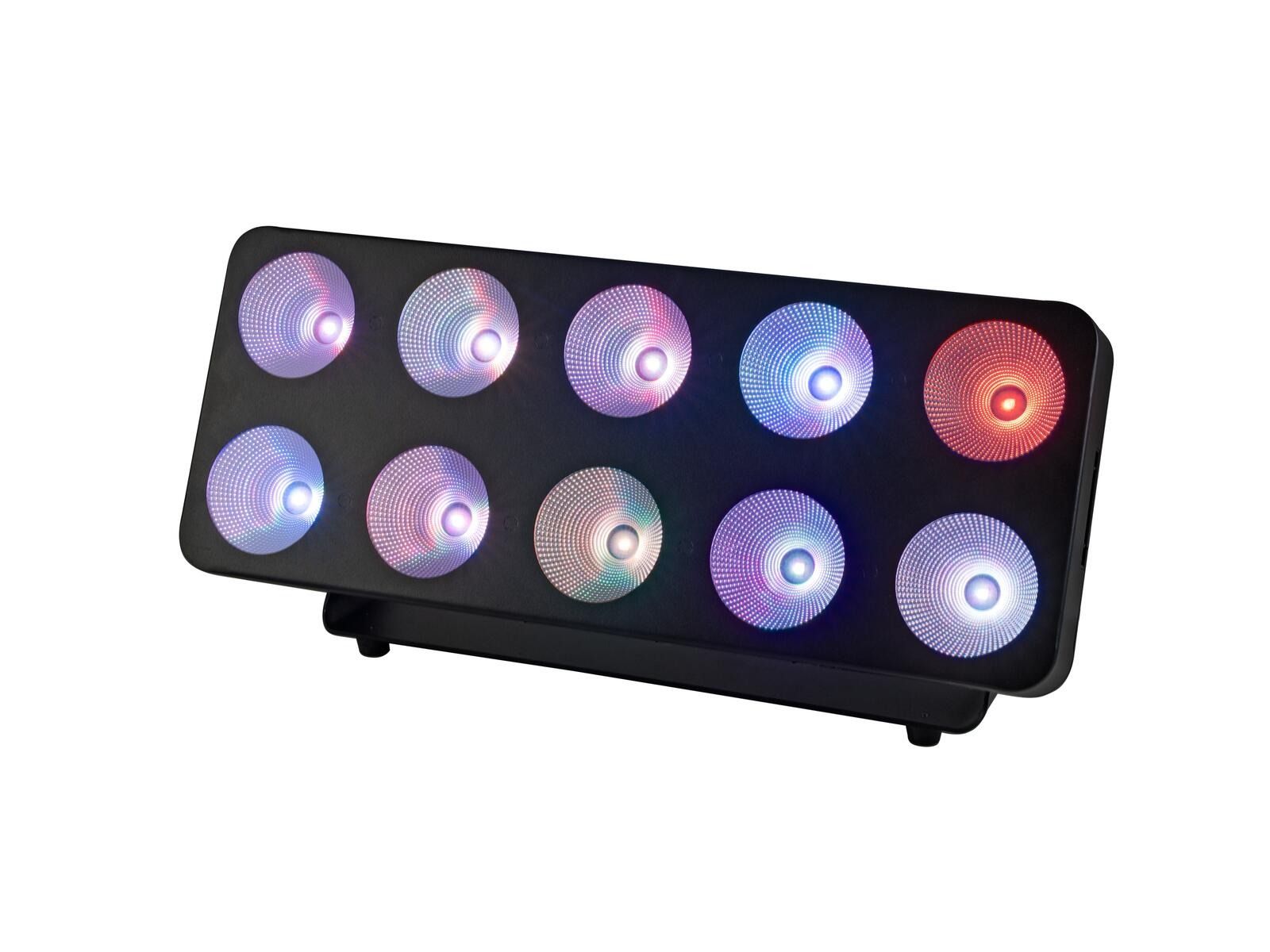

EUROLITE LED Pixel Matrix Panel 2x5 RGB/WW
EUROLITE LED Pixel Matrix Panel 2x5 RGB/WW
Features
Matrix spotlight with RGB/WW LEDs, pixel control & macros for sequences
- 10 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
LEDs controlled separately - Dimmer electronic; color change; color fade; foreground color adjustable; background color adjustable; color macros adjustable

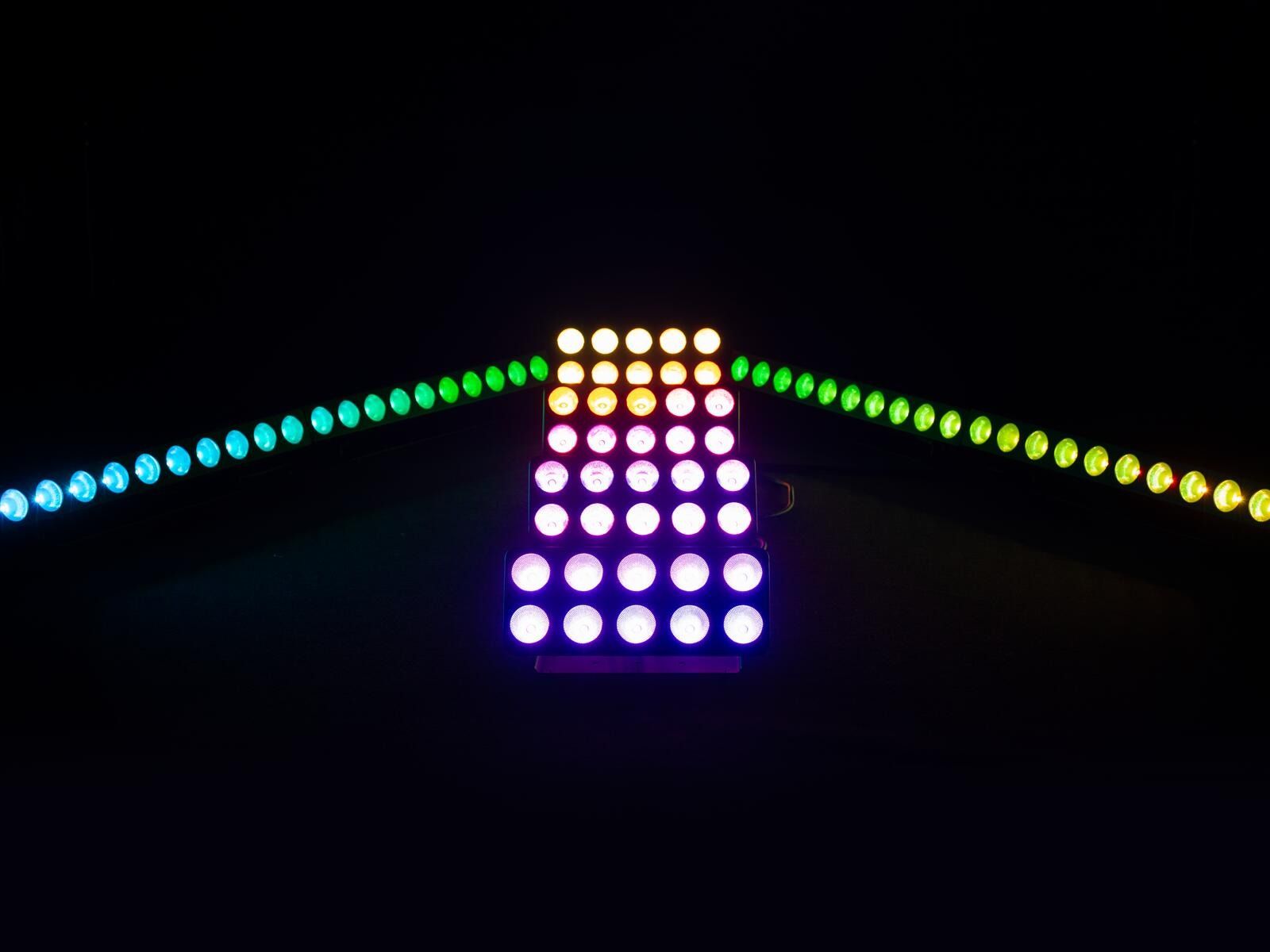

- Create sensational light effect surfaces by connecting several devices
- Blinder effect; matrix effect; strobe effect
- 9 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 45°

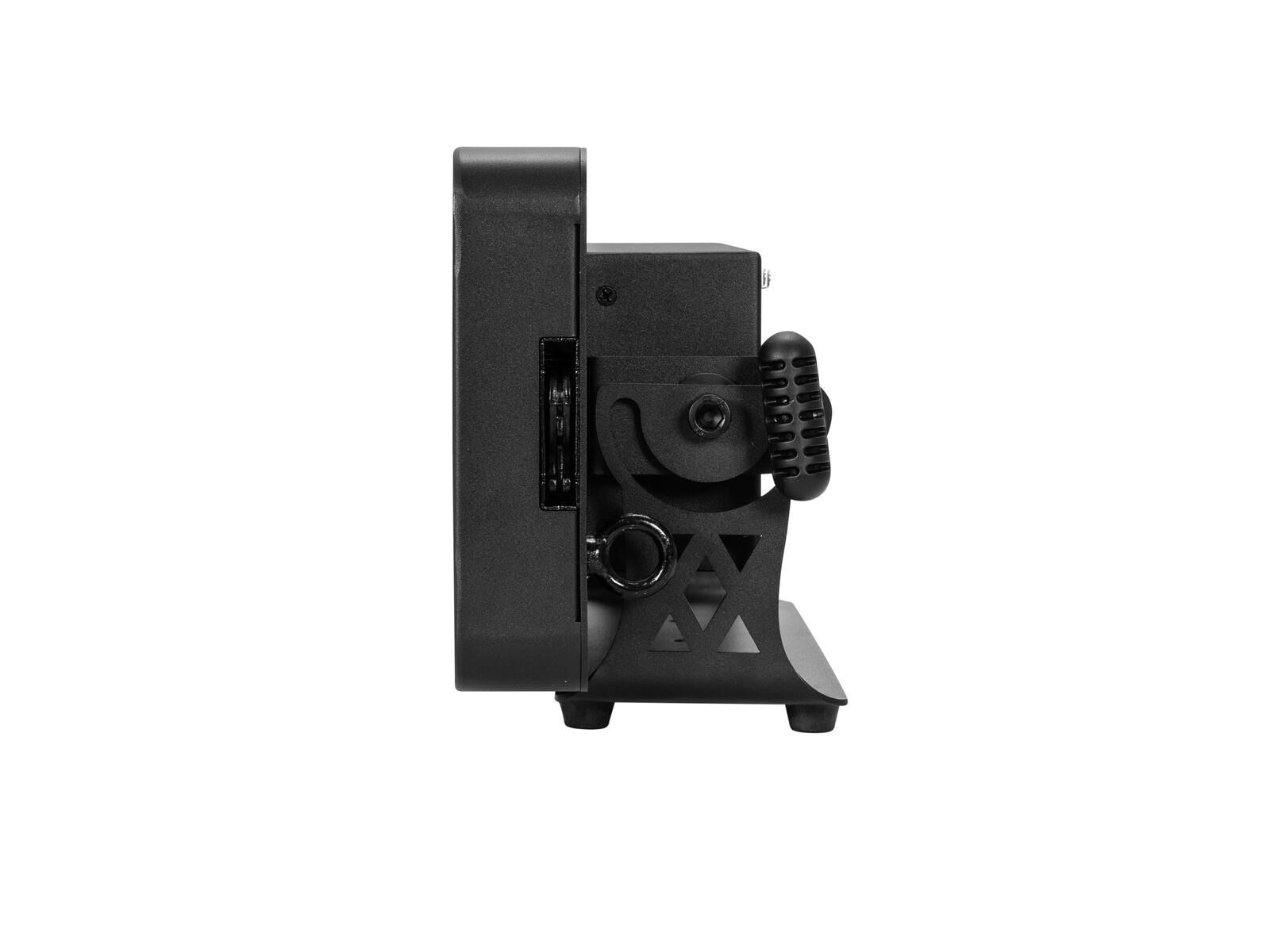

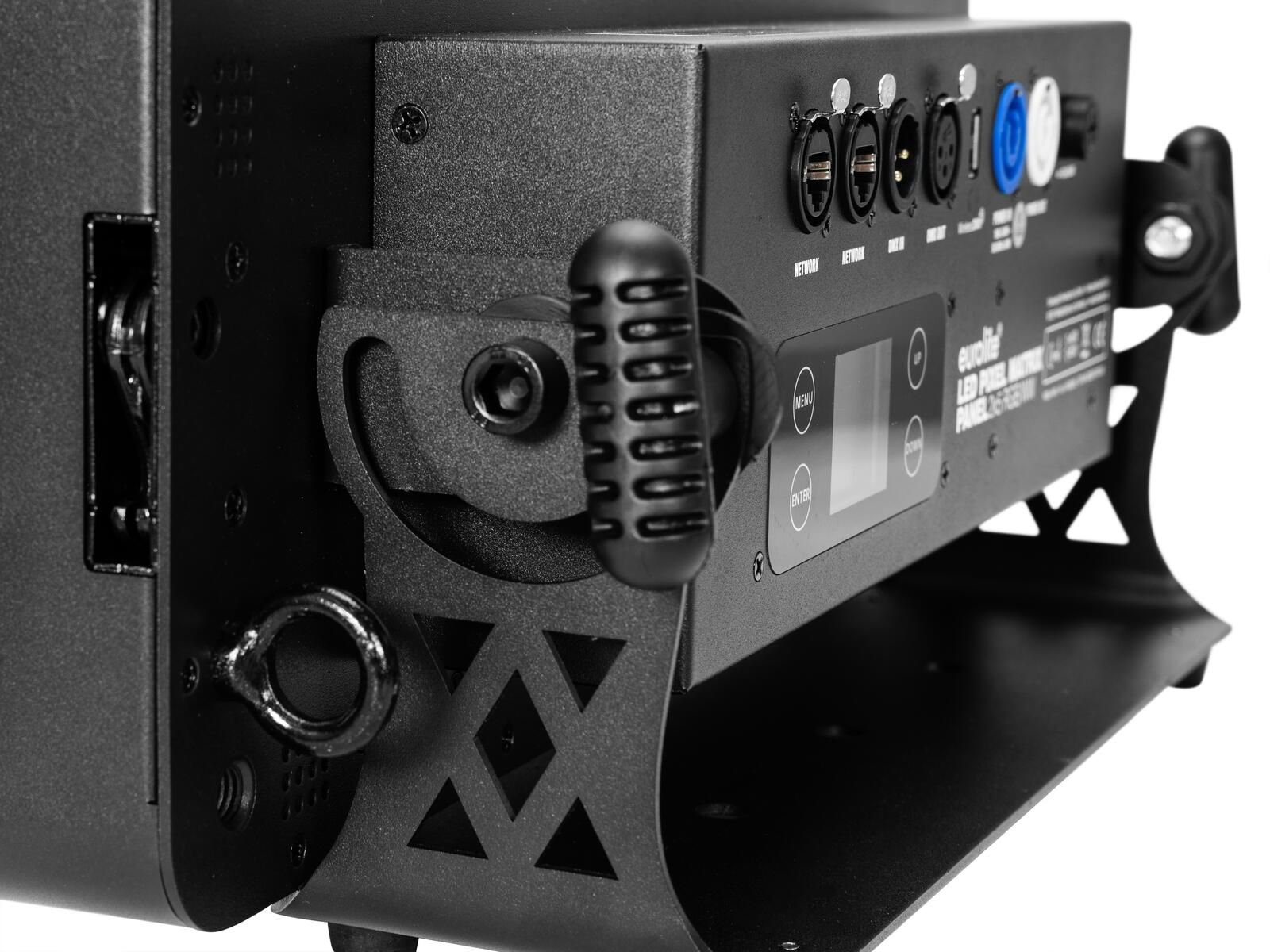

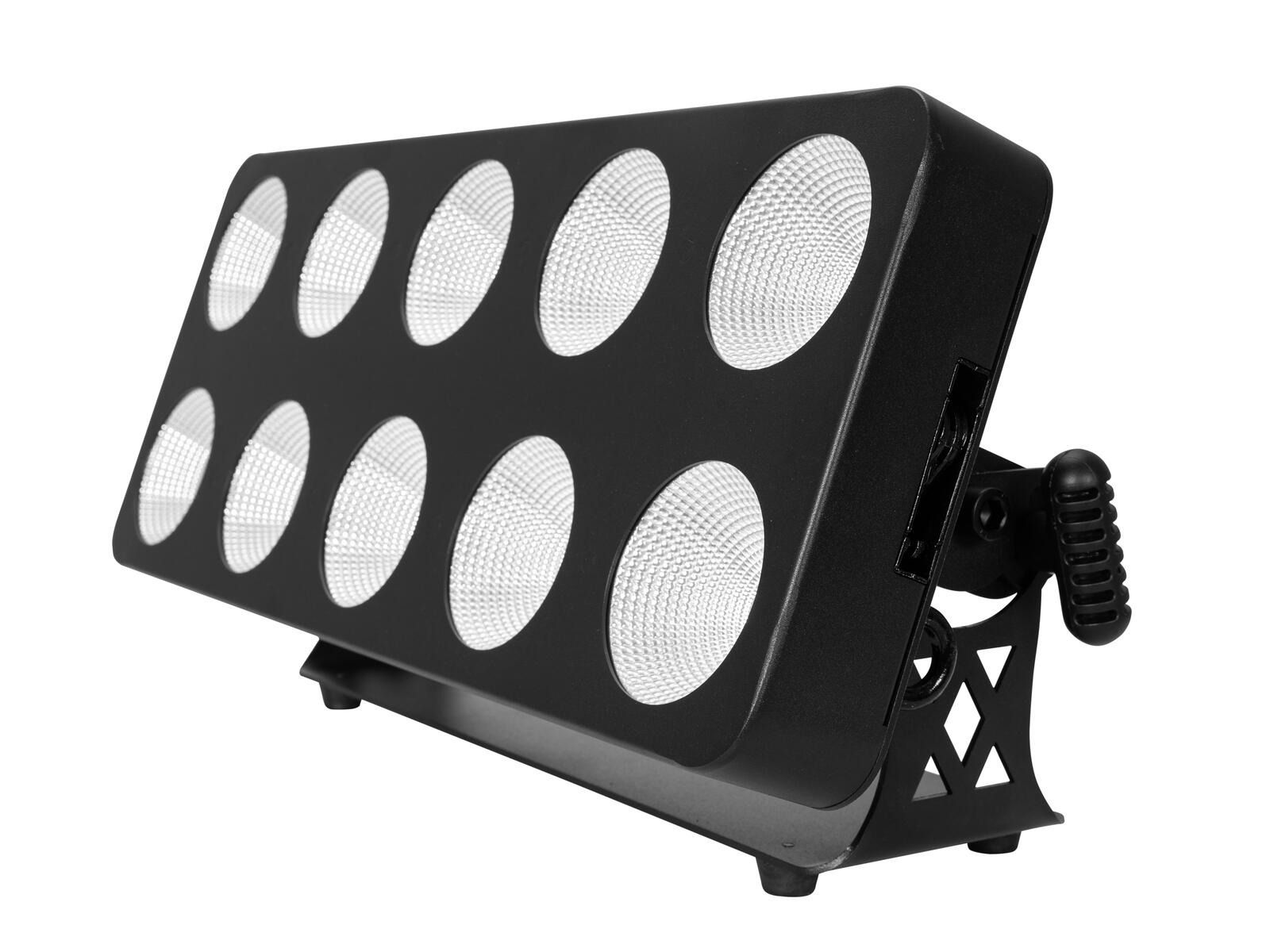

- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with bracket for floor use
- Multicolor LCD display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
- Very quiet working noise
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 10 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: | 0,4 - 11 Hz |
| DMX channels: | 4; 10; 15; 40; 42 |

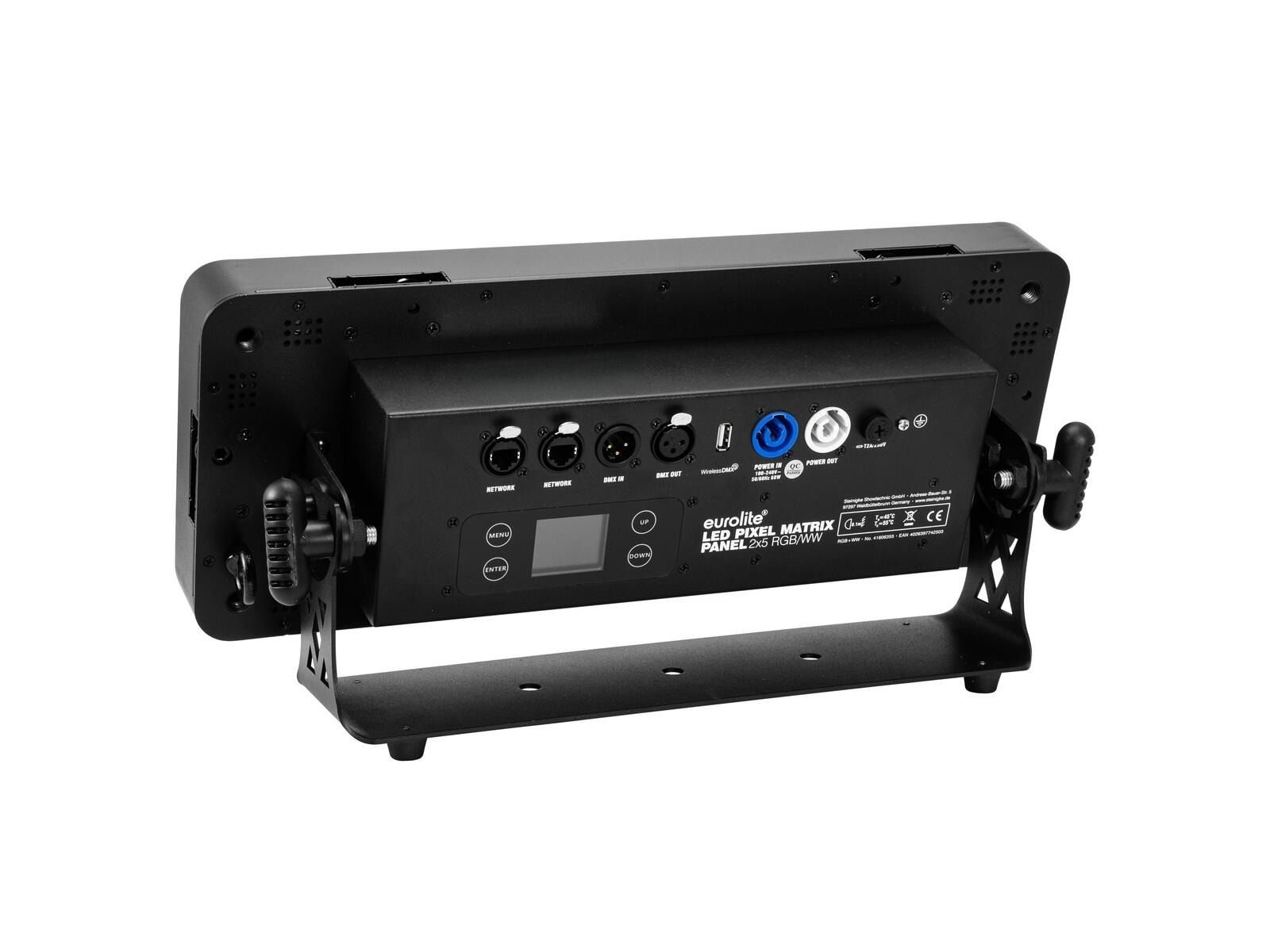

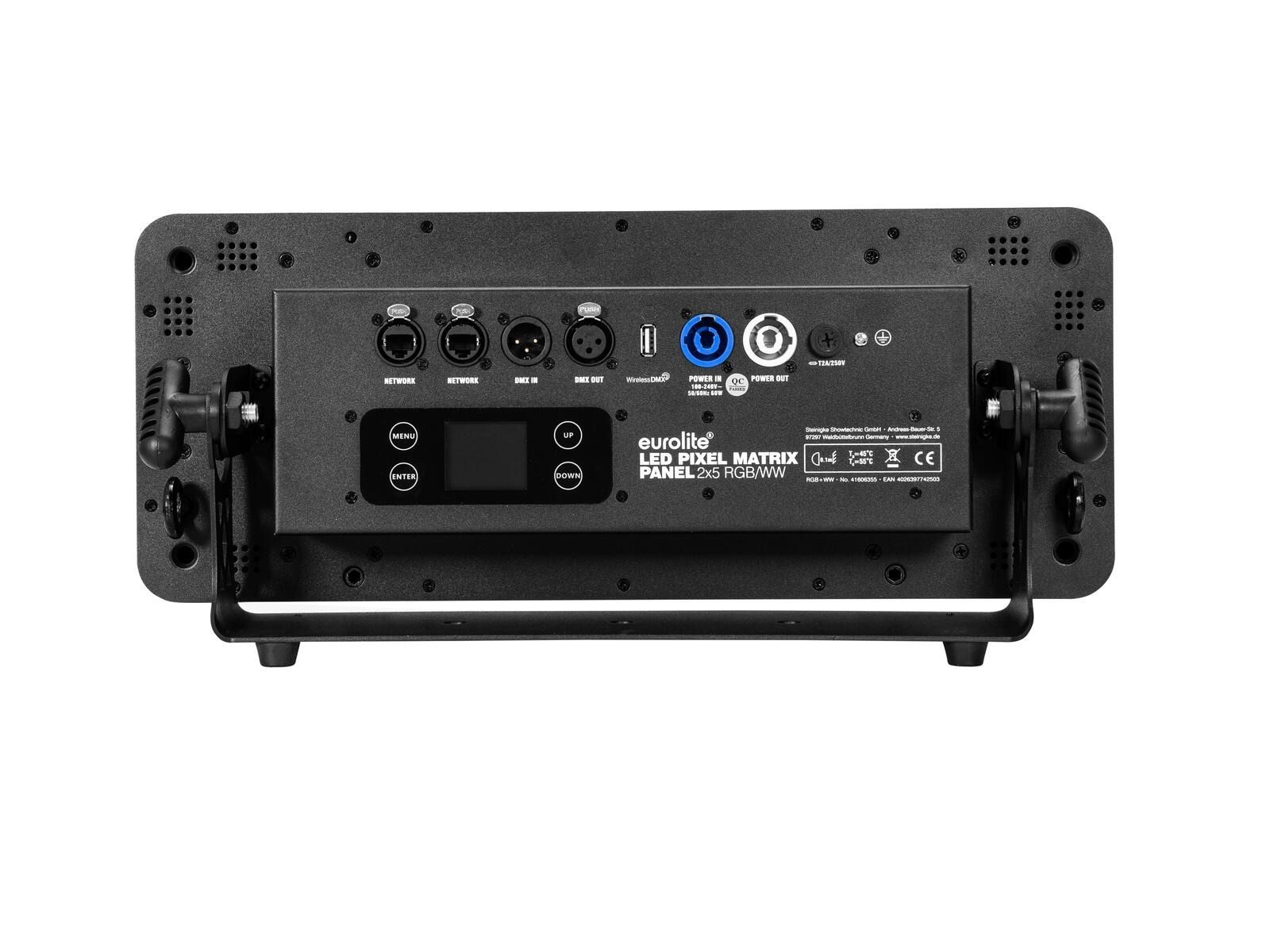

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function |
| Projection: | Flicker-free |
| PWM frequency: | 2900 Hz |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 45° |
| Beam angle (1/2 peak): | 45° |
| Beam angle (1/10 peak): | 82° |
| Housing color: | Black |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Bracket for floor use |
| Display type: | Multicolor LCD display |
| USB port: | Type A |
| Diameter mounting holes: | 3 x Ø10mm |
| Material: | Metal |
| Dimensions: | Width: 45,0 cm Depth: 13,5 cm Height: 20,3 cm |
| Weight: | 5,00 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
