€ 499,22
€ 412,58
?
SKU
st41606350

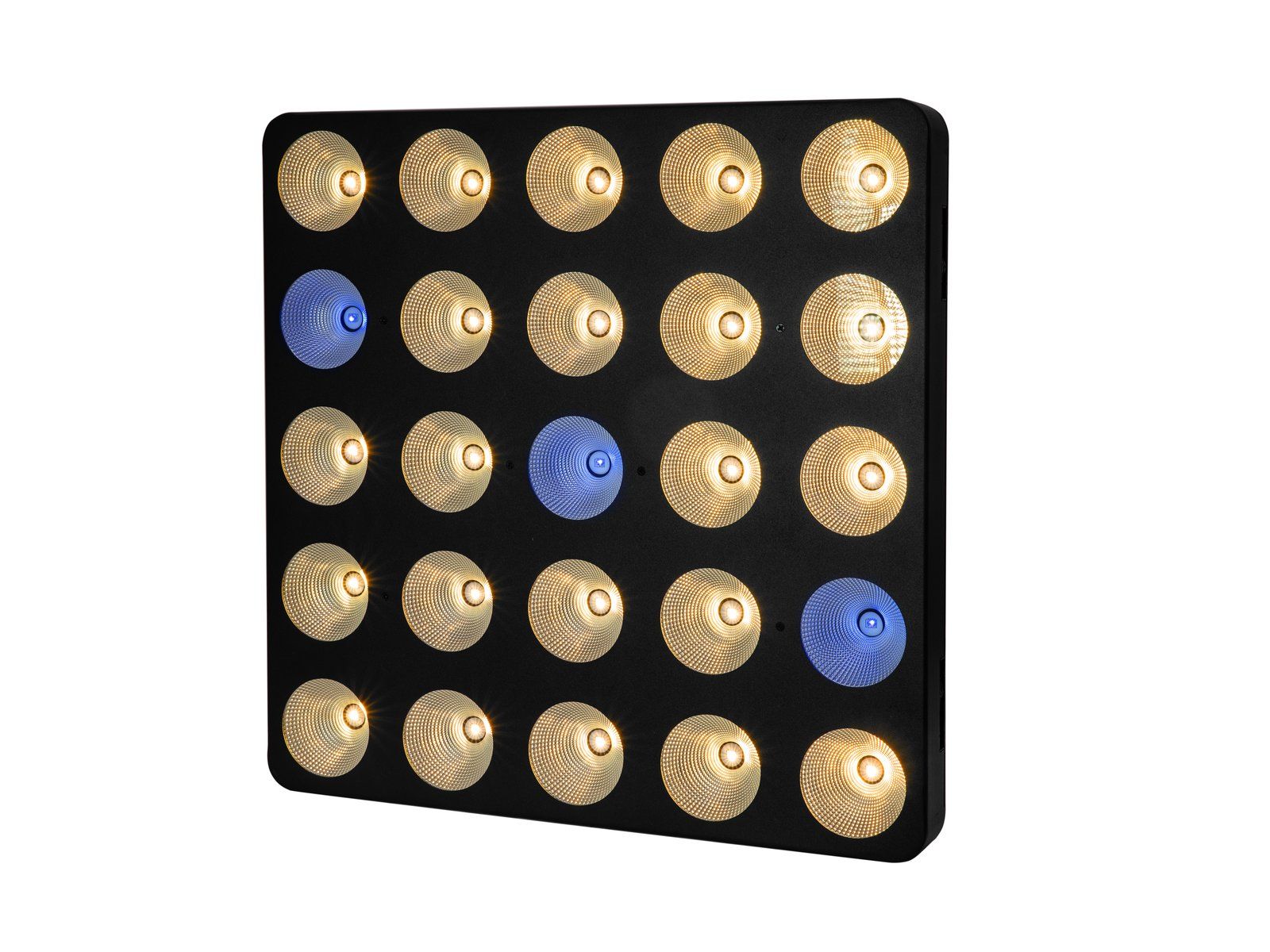

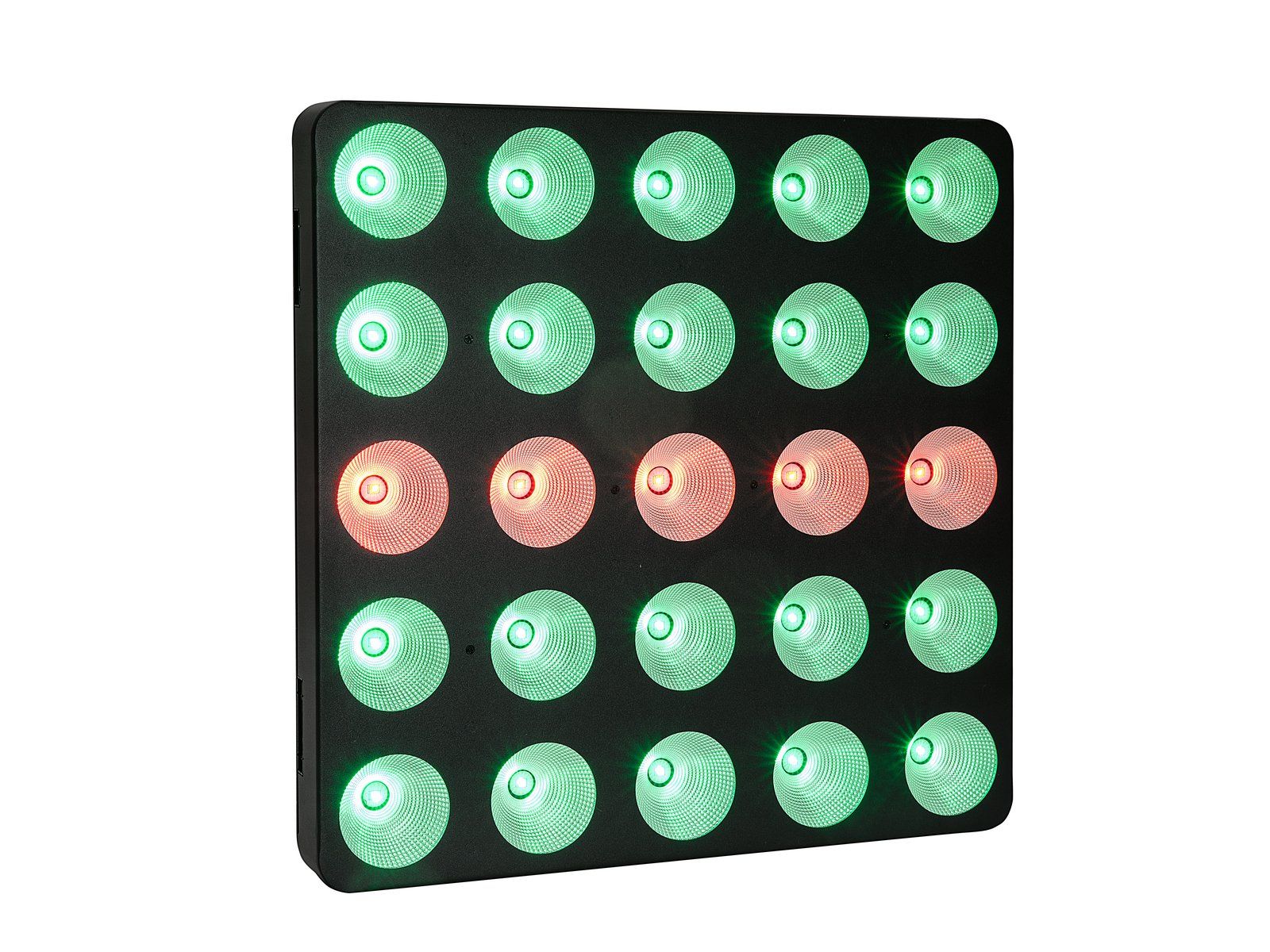

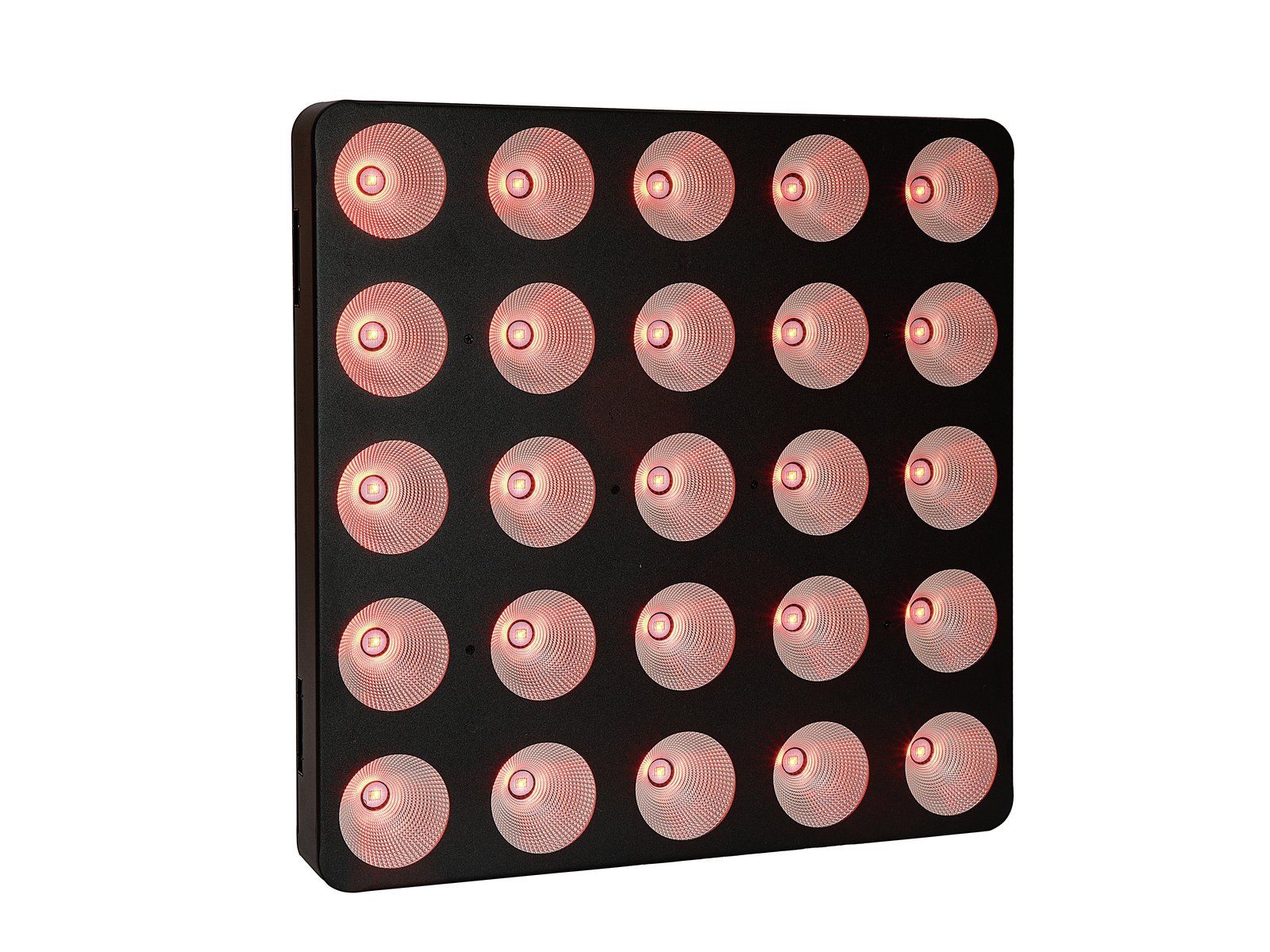

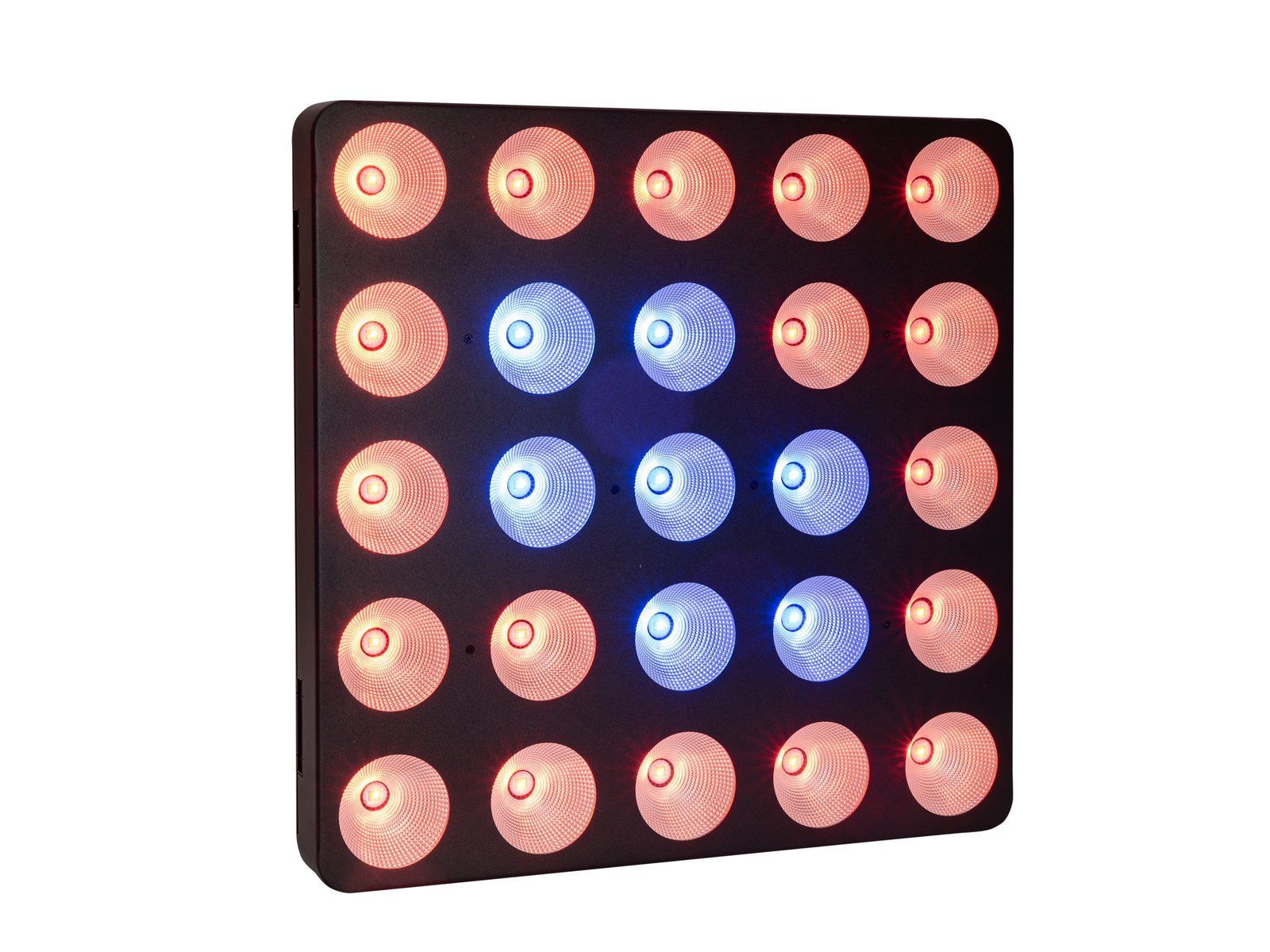

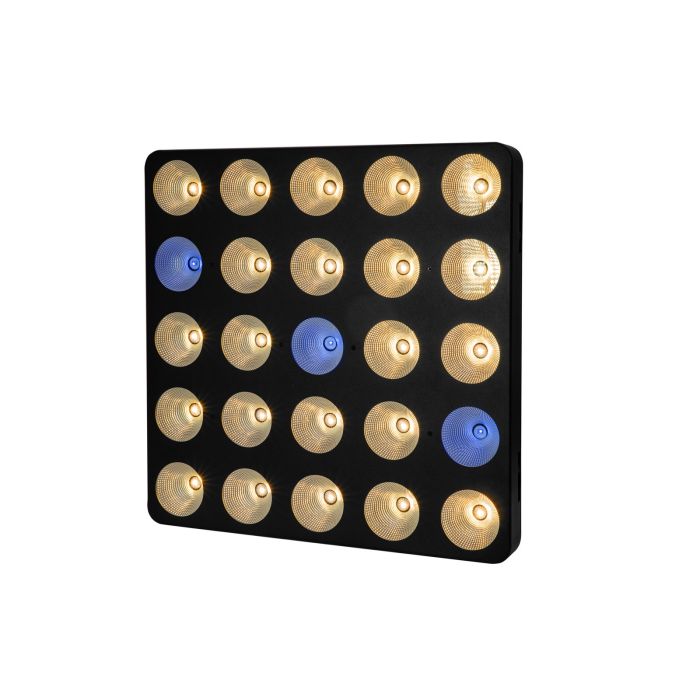

EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW
EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW
Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers
Features
Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers

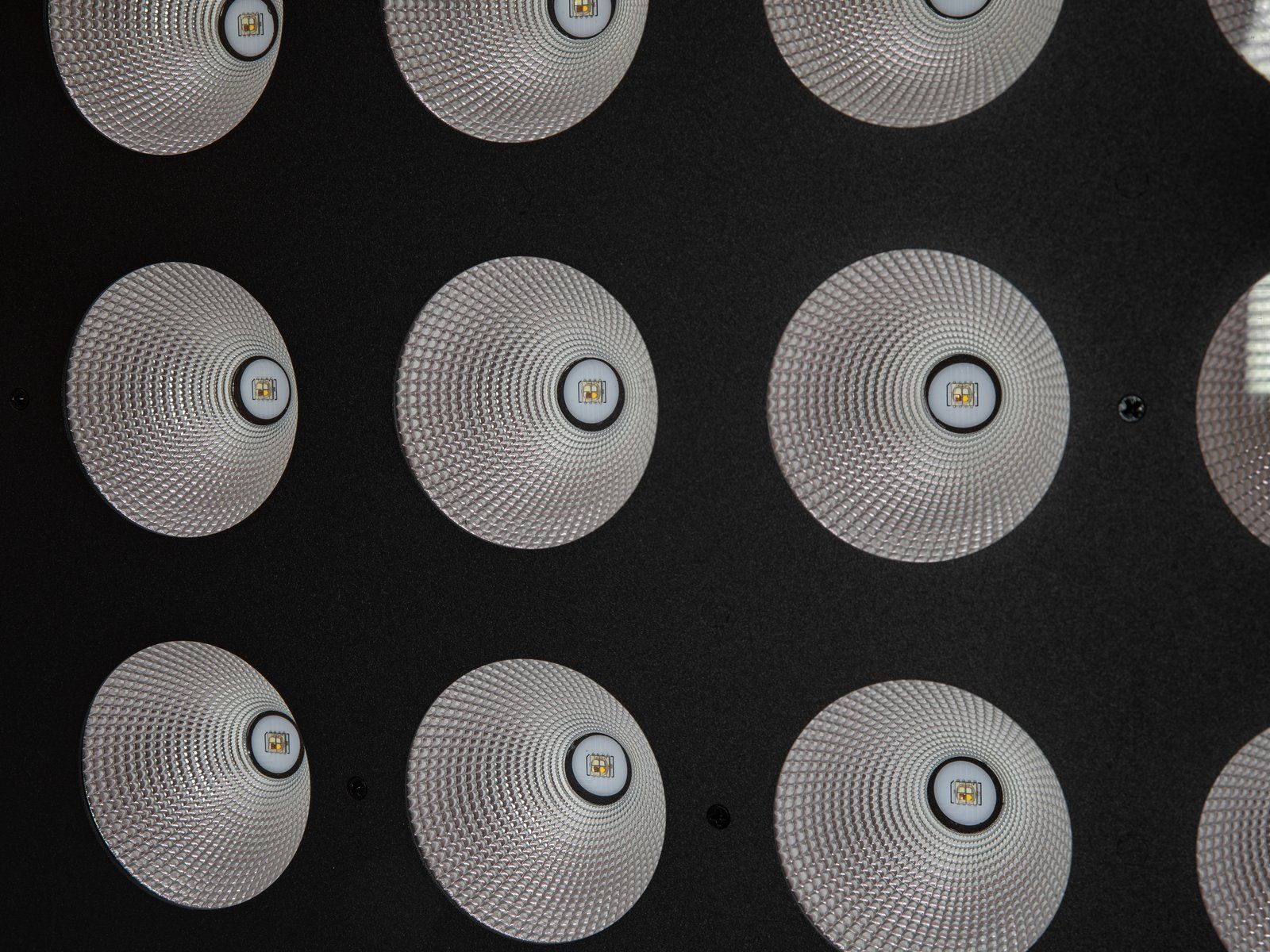

- 25 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)

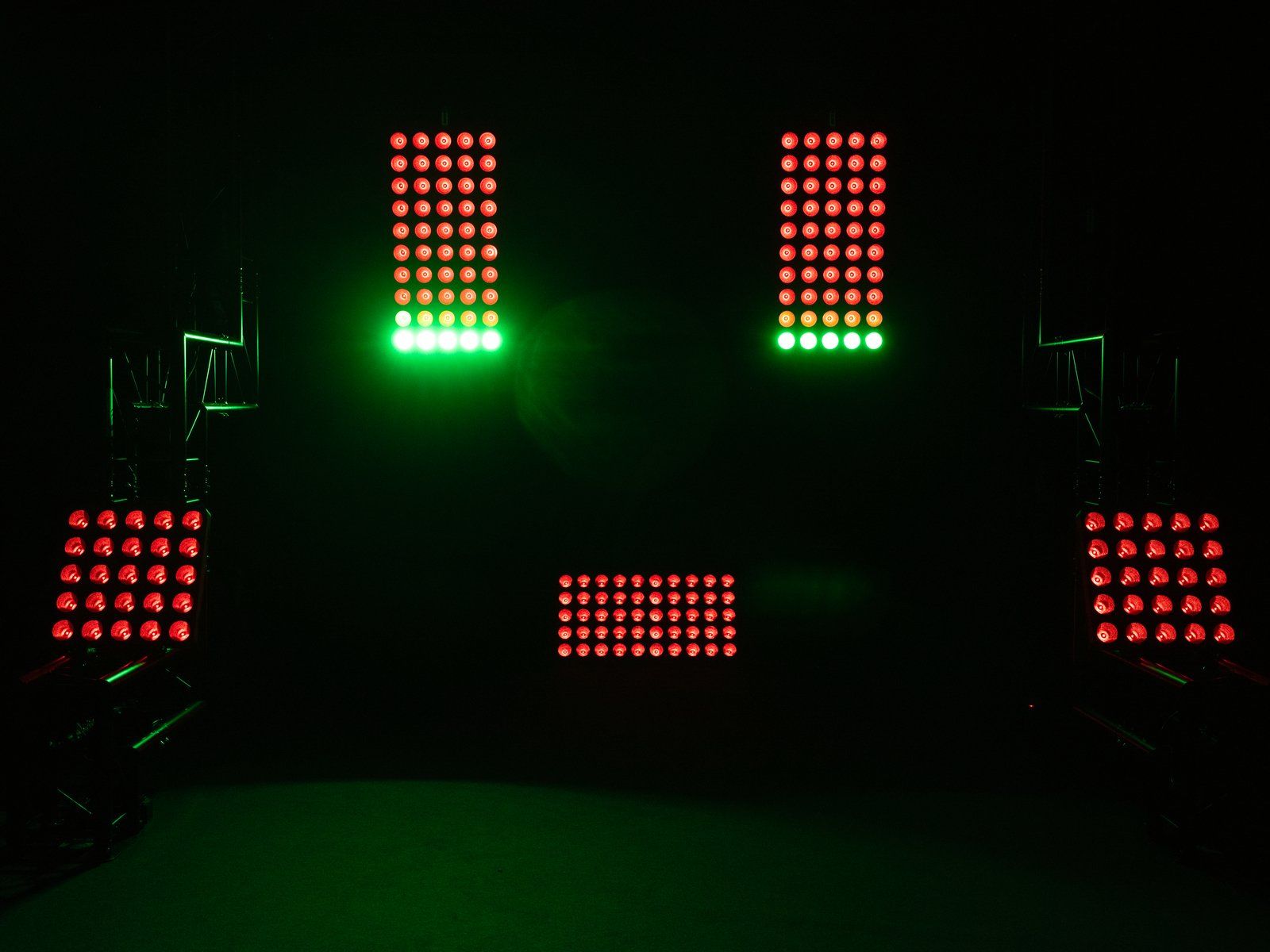

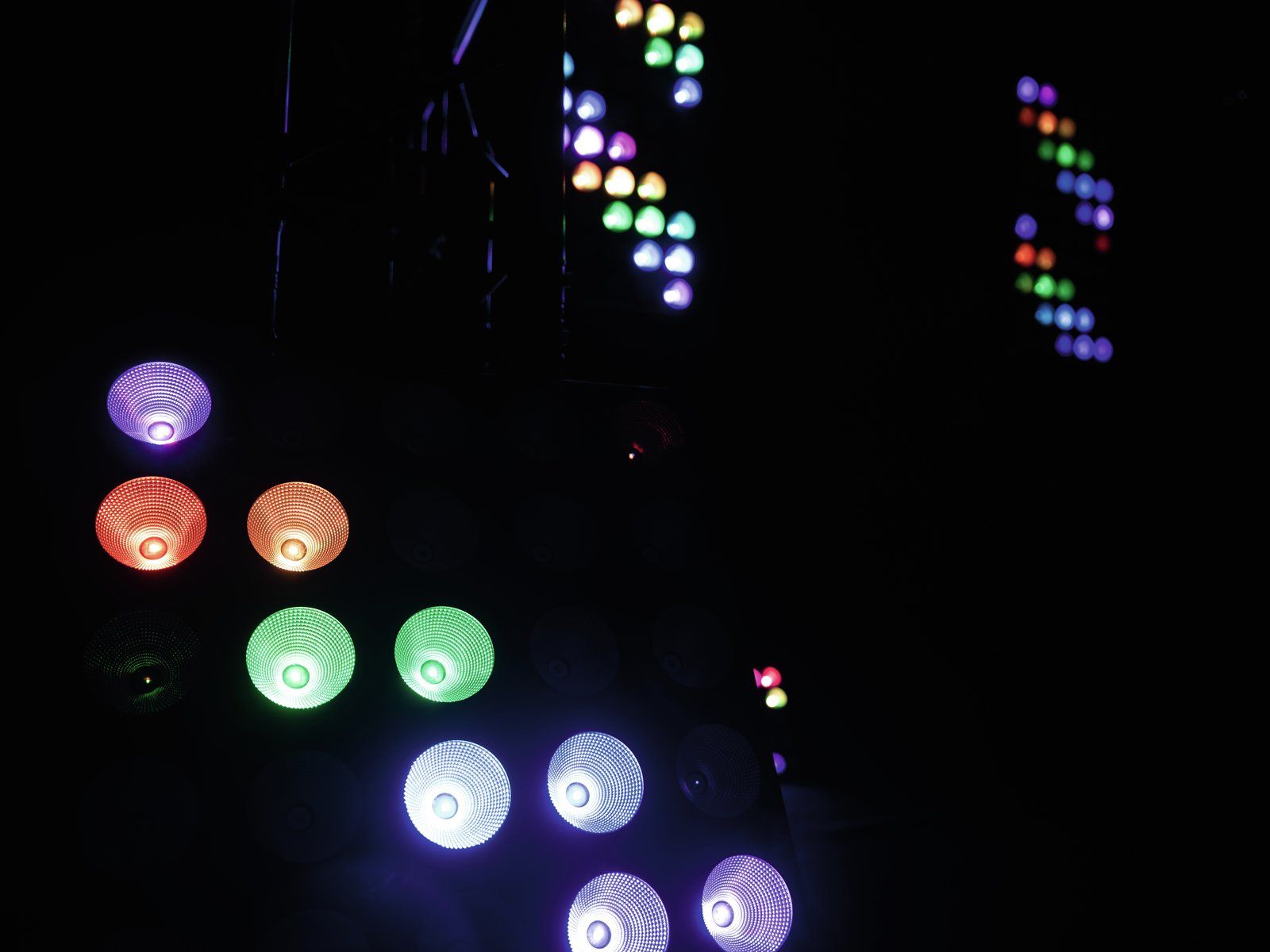

LEDs controlled separately - Create sensational light effect surfaces by connecting several devices
- Color change; color fade; foreground color adjustable; background color adjustable; color macros adjustable; Dimmer electronic
- Blinder effect; matrix effect; strobe effect
- 9 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 45°

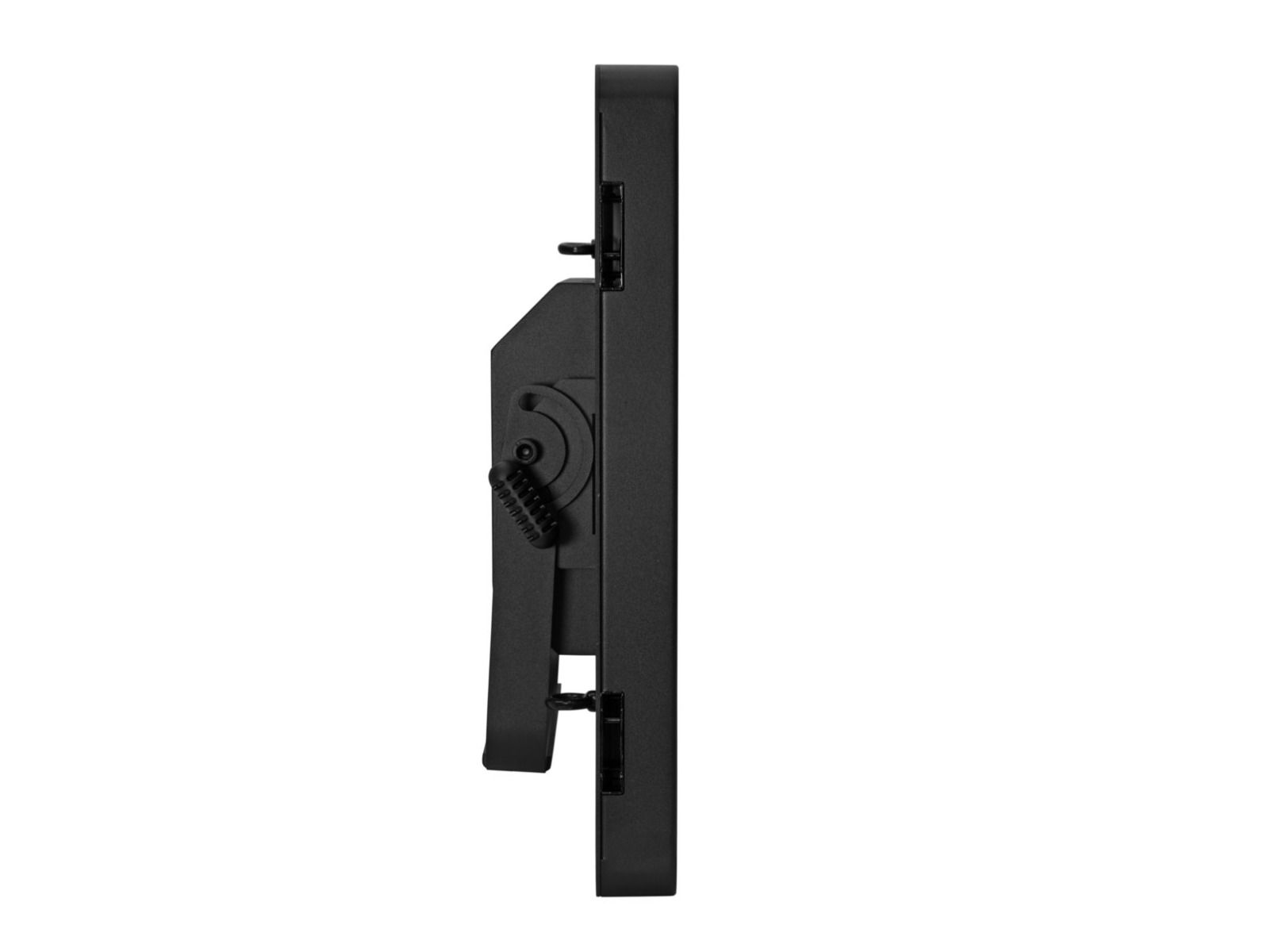

- With mounting bracket
- Multicolor LCD display
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; mobile use; stage; rental
- Very quiet working noise
- Application possibility: Standing; suspended; on stand
- Preprogrammed in Light Captain
Package contents

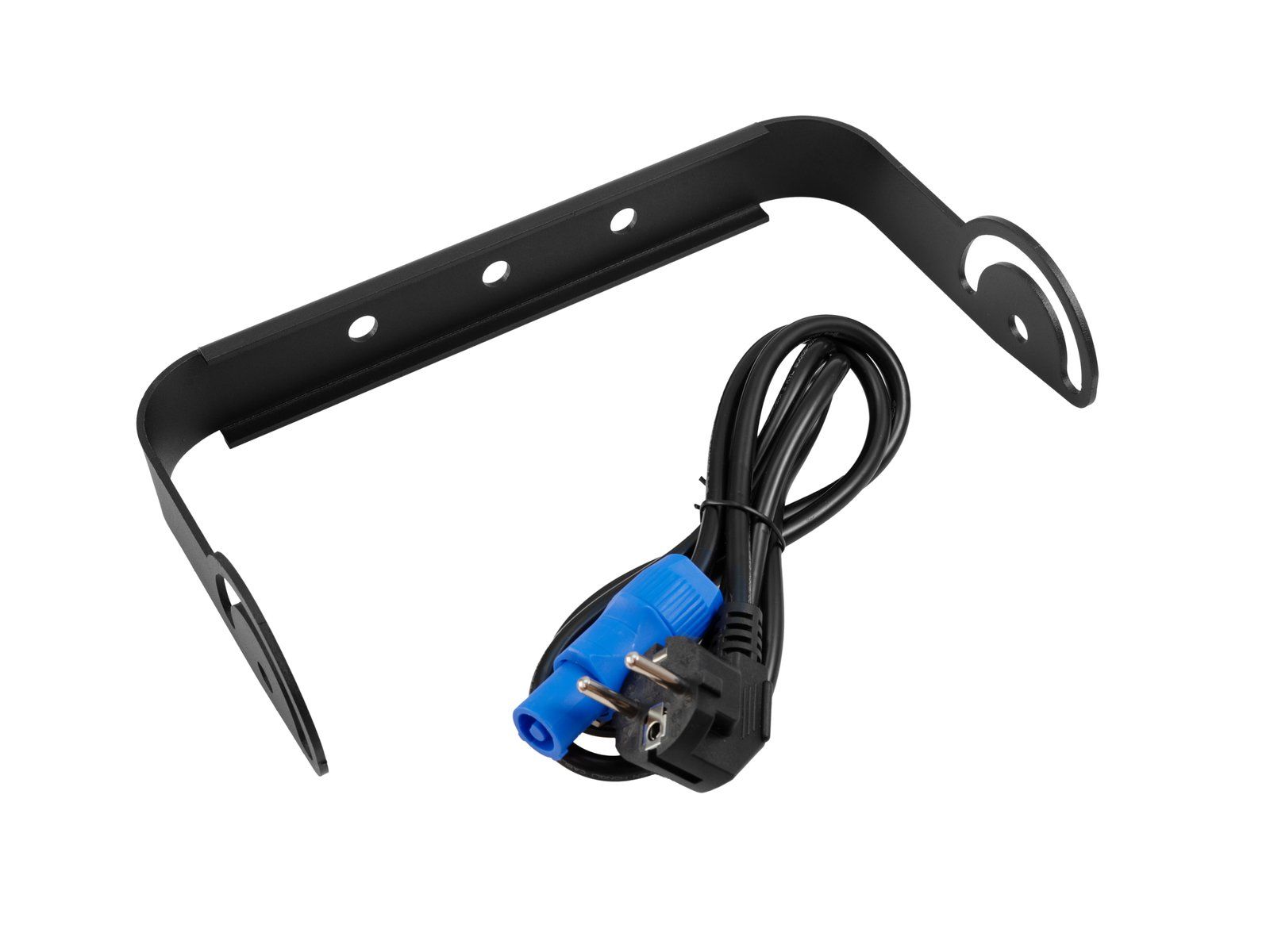

- 1 x device, 1 x user manual, 1 x power cord, 2 x safety eyelet
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 115 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

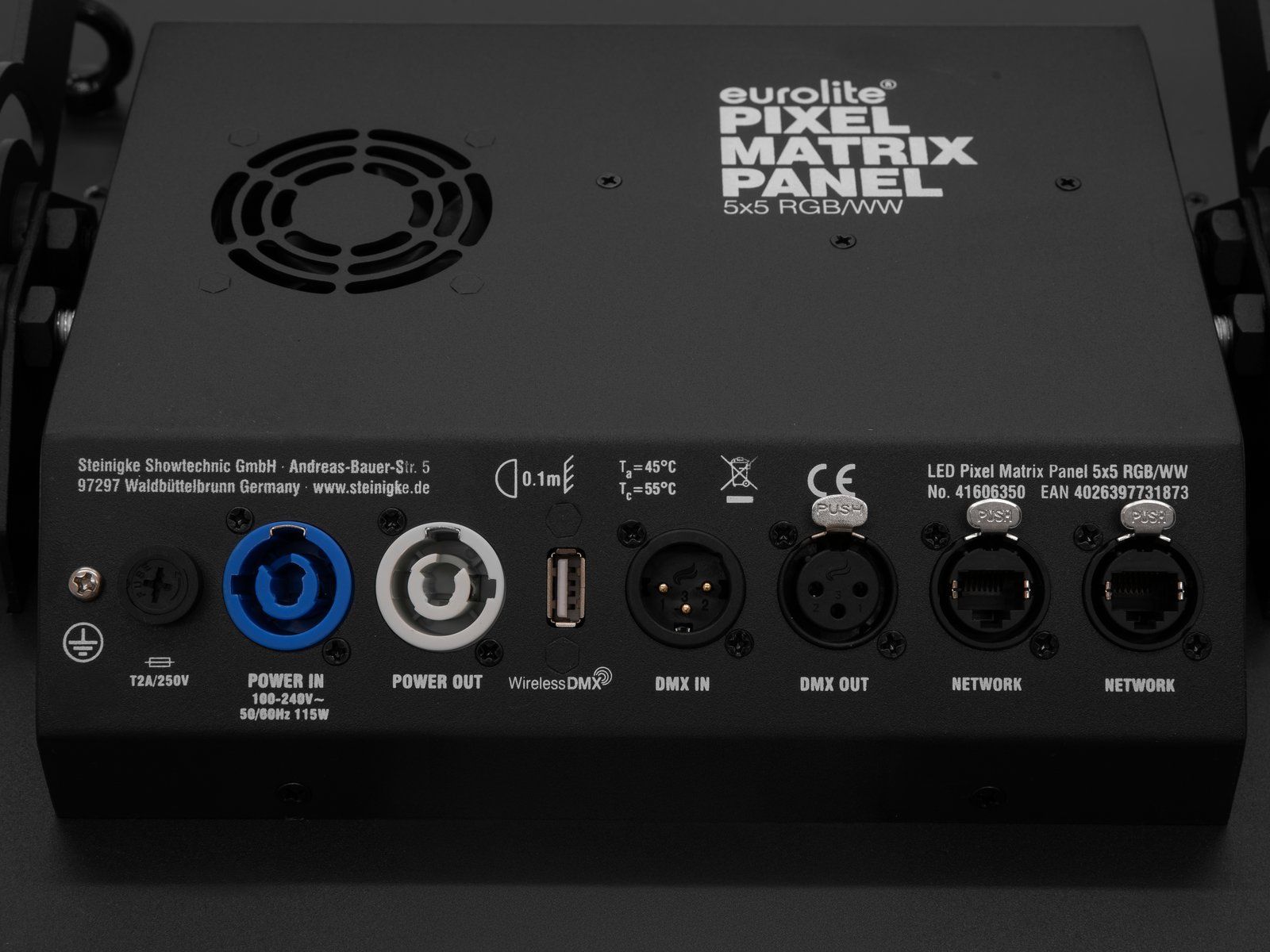

| Power connection: | Mains input via P-Con (blue), mounting version |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | 1,45 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 25 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| DMX channels: | 4; 10; 15; 100; 102 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 45° |
| Beam angle (1/2 peak): | 45° |
| Beam angle (1/10 peak): | 82° |
| Housing color: | Black |

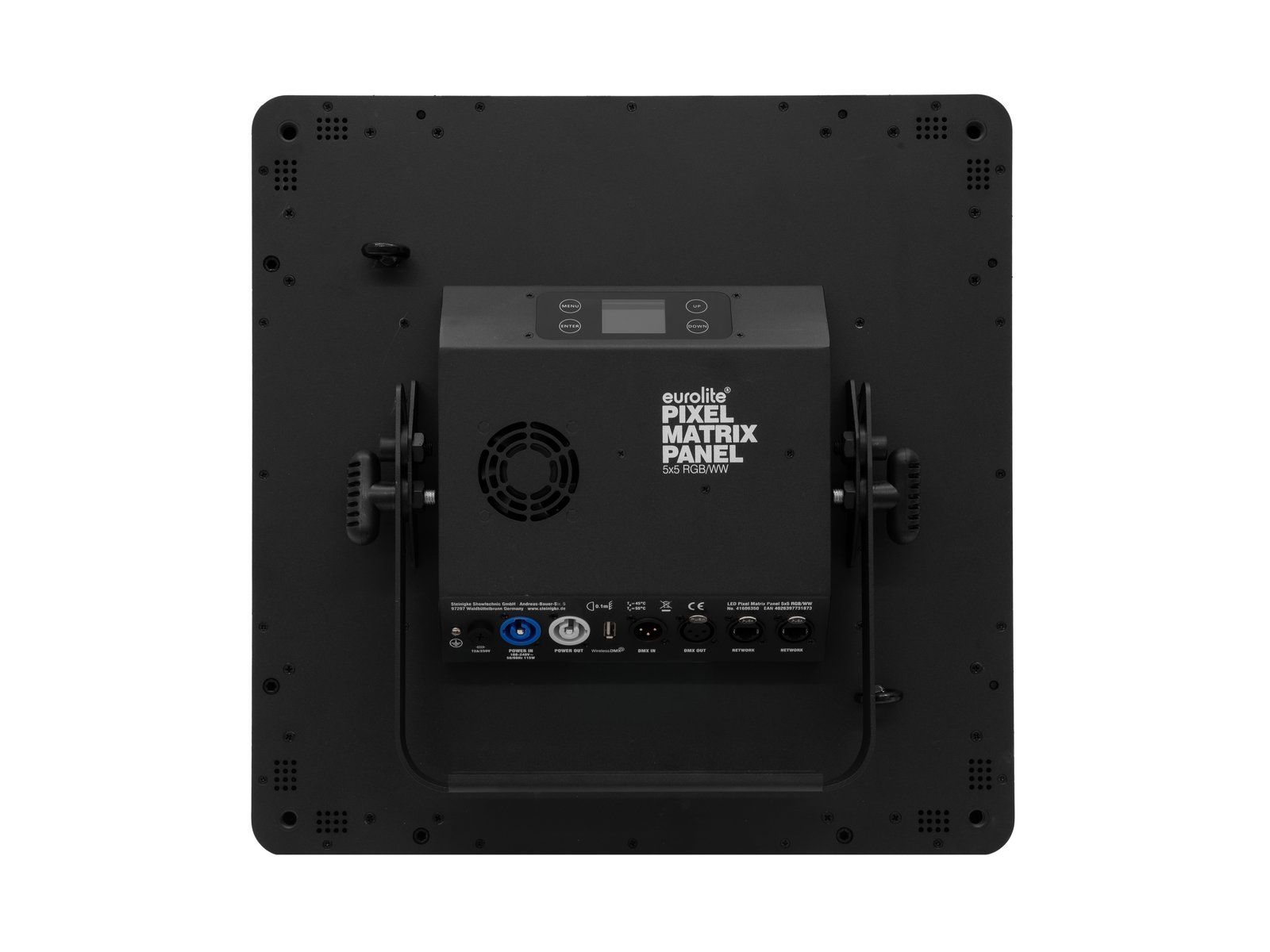

| Attachment system: | Mounting bracket |

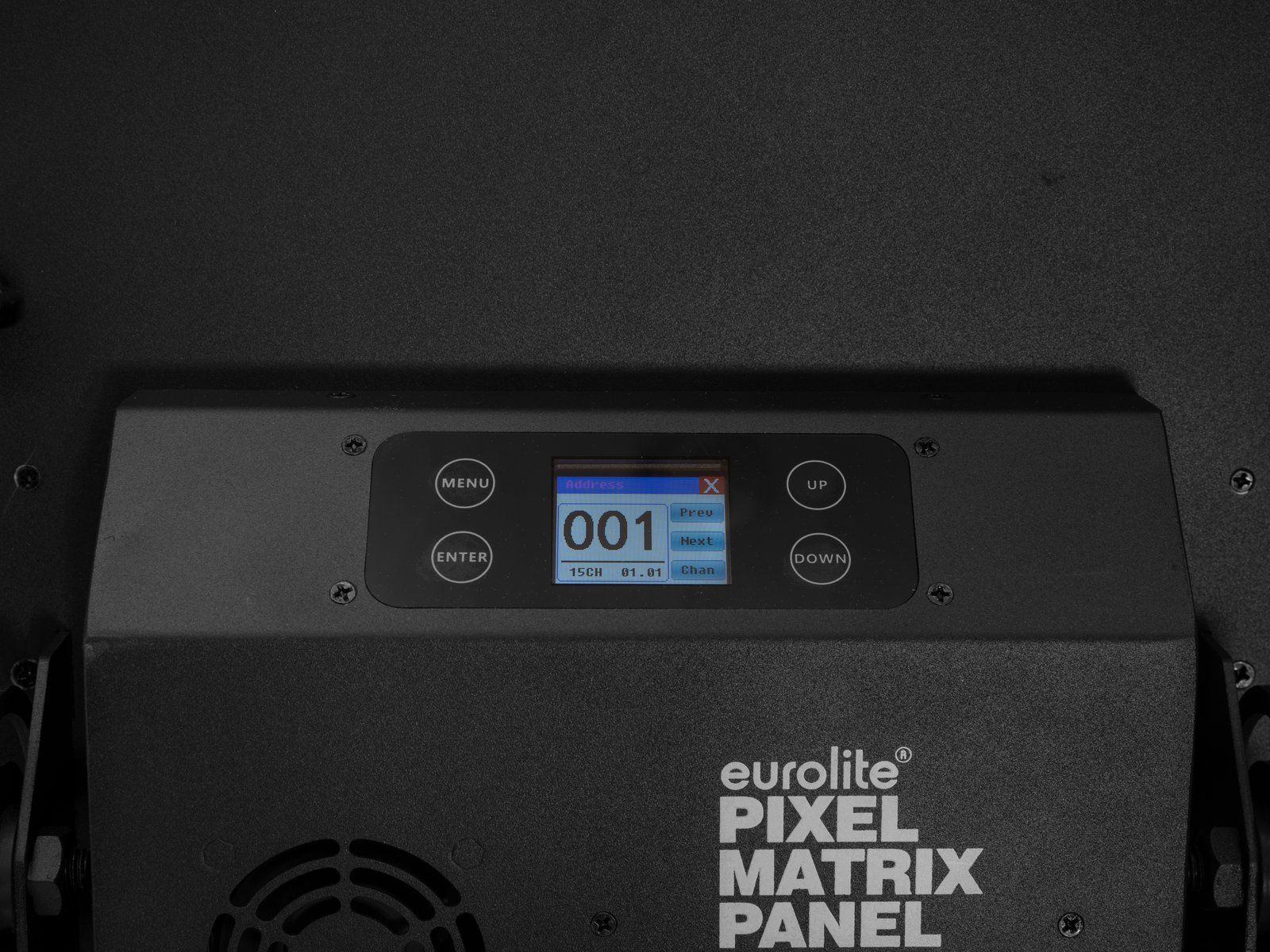

| Display type: | Multicolor LCD display |
| USB port: | Type A |
| Diameter mounting holes: | 3 x Ø10mm |
| Material: | Metal |
| Dimensions: | Width: 45,0 cm Depth: 10,6 cm Height: 45,0 cm |
| Weight: | 9,00 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
