€ 608,69
?
SKU
st51786081
- Buy 2 for € 578,26 each and save 5%
- Buy 4 for € 566,09 each and save 7%
- Buy 8 for € 547,83 each and save 10%

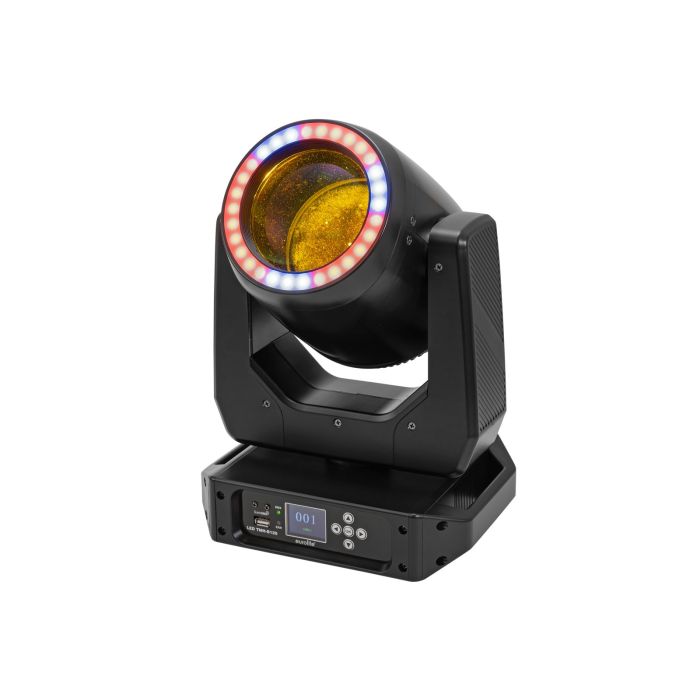

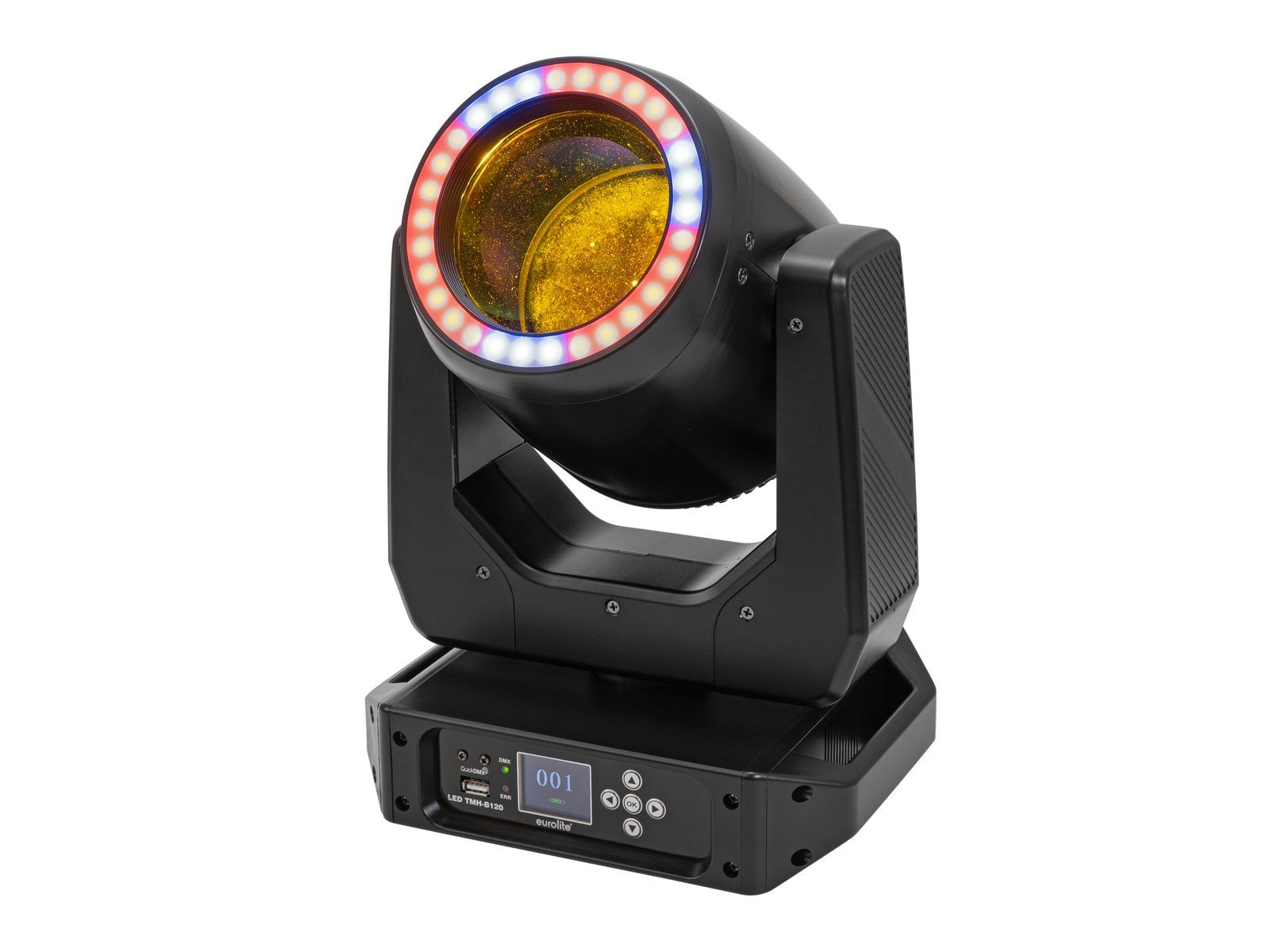

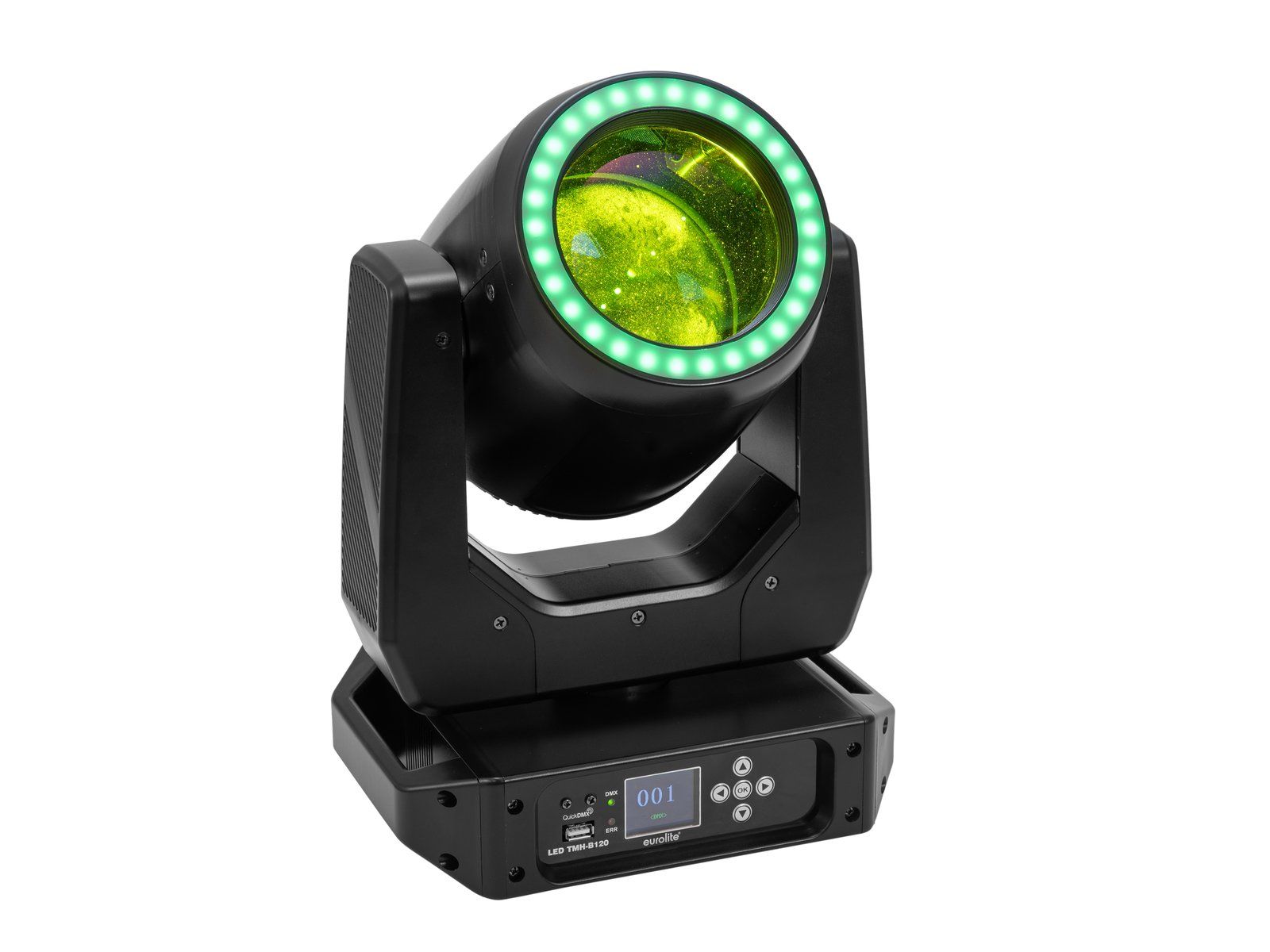

EUROLITE LED TMH-B120 Hypno Moving Head Beam
EUROLITE LED TMH-B120 Hypno Moving Head Beam
EUROLITE LED TMH-B120
The TMH-B120 Moving Spot-Beam is a true standout with its powerful 120-watt white LED and ultra-narrow beam angle of just 2°. This compact all-rounder is perfect for stages, clubs, and mobile DJs.
Versatile Beam with Hypno Effect

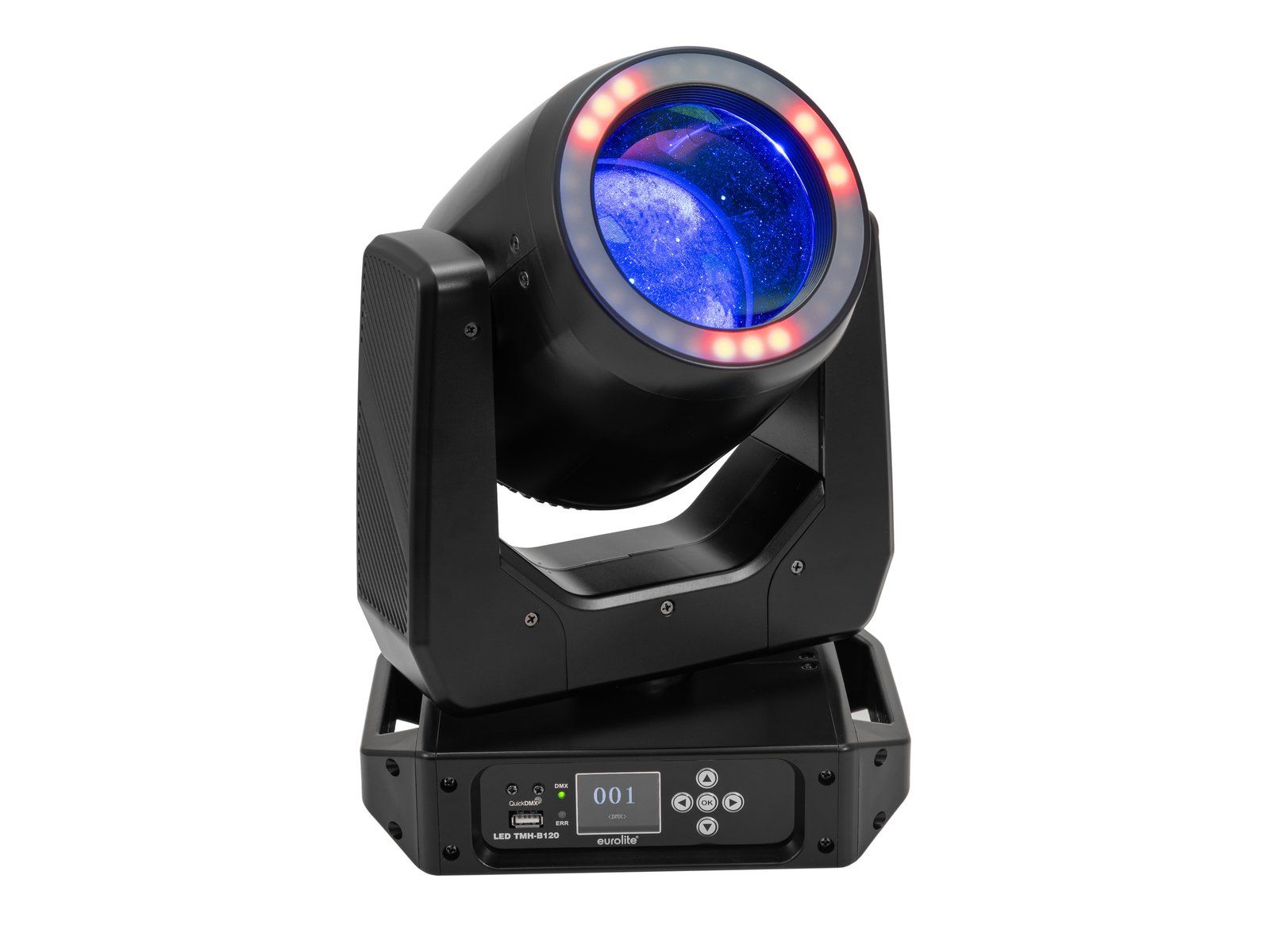

With 13 static gobos and a rotating 8-facet prism, the B120 creates impressive light shows. The motorized focus ensures sharp projections, while the frost filter softens the beam into a gentle wash effect. Thanks to the color wheel with seven dichroic colors and the ability to create half- or bi-color effects, there are no limits to creativity. The rainbow effect with variable speed adds extra flair. Another highlight is the LED ring with 30 SMD LEDs in red, green, and blue. Whether static colors or dynamic chase effects, the Hypno Ring perfectly combines beam and effect lighting.
Equipment
With precise 16-bit resolution, the B120 offers accurate control. It comes with four pre-installed show programs and can be operated via stand-alone mode, sound activation, DMX, or optionally with QuickDMX, CRMX by LumenRadio, and W-DMX. Multiple units can be easily synchronized using the master/slave function.
Thanks to efficient cooling, the B120 remains reliable even during long operating times. The multi-color LCD display, sturdy carrying handles, and rubber feet ensure easy handling. With the Omega bracket, it can be mounted either standing or hanging.
The B120 is flicker-free and provides various options in case of DMX signal loss, such as hold or blackout. Pre-programmed settings for control via Light Captain further simplify its use.
Thanks to efficient cooling, the B120 remains reliable even during long operating times. The multi-color LCD display, sturdy carrying handles, and rubber feet ensure easy handling. With the Omega bracket, it can be mounted either standing or hanging.
The B120 is flicker-free and provides various options in case of DMX signal loss, such as hold or blackout. Pre-programmed settings for control via Light Captain further simplify its use.
Flexible Application
Whether in clubs, dance schools, with mobile DJs, rental companies, or on stage, the B120 impresses with its versatile features and powerful effects. It’s an ideal choice to bring every event into the spotlight.
Features
LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus
- 1 powerful LED 120 W COB (chip-on-board) cold white (CW)
- 30 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 240° TILT
- Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
- Dimmer
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - 4 integrated show programs
- The device is cooled by cooling fan at the base; cooling fan at the Head
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 2°

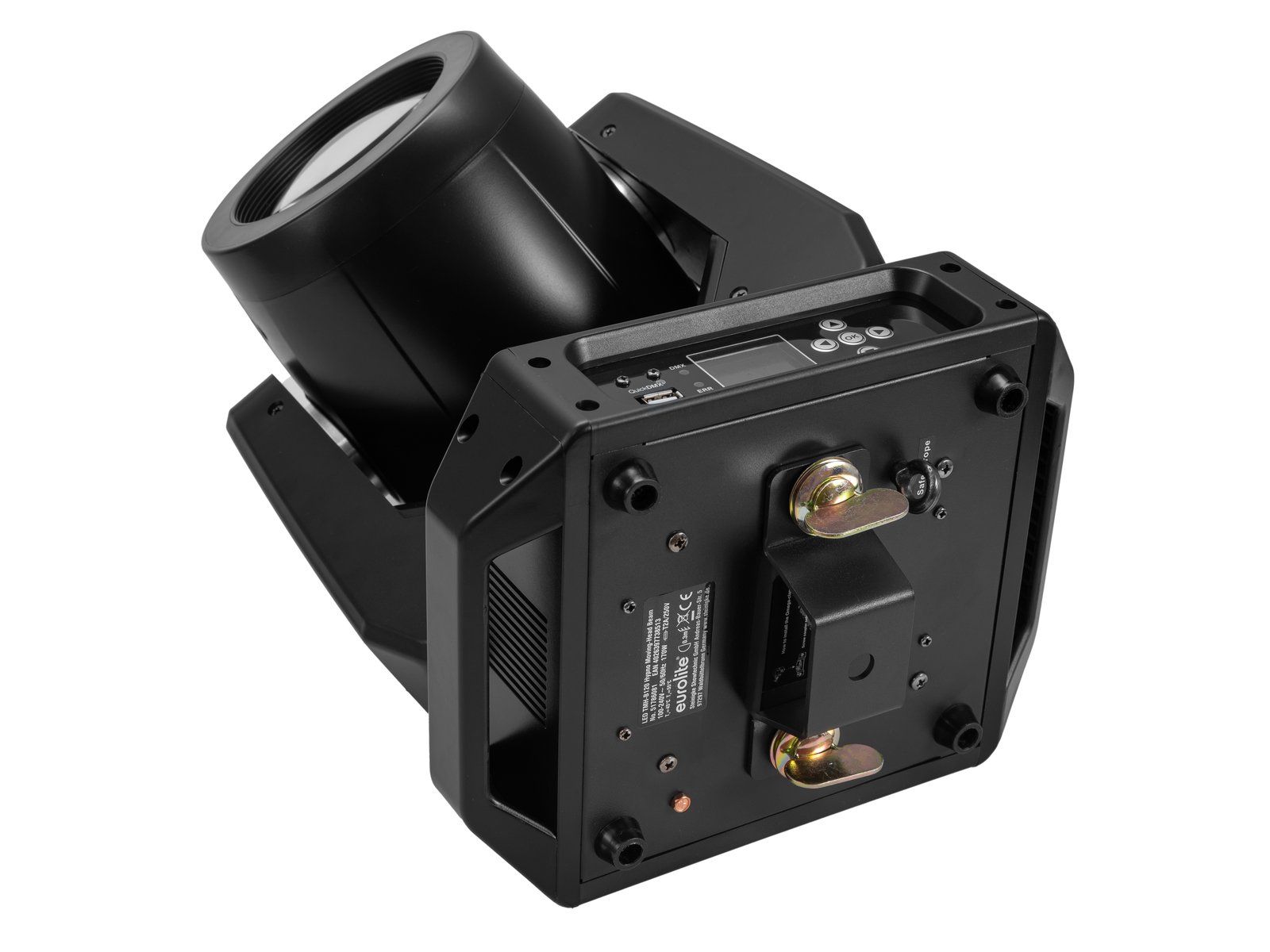

- With omega bracket

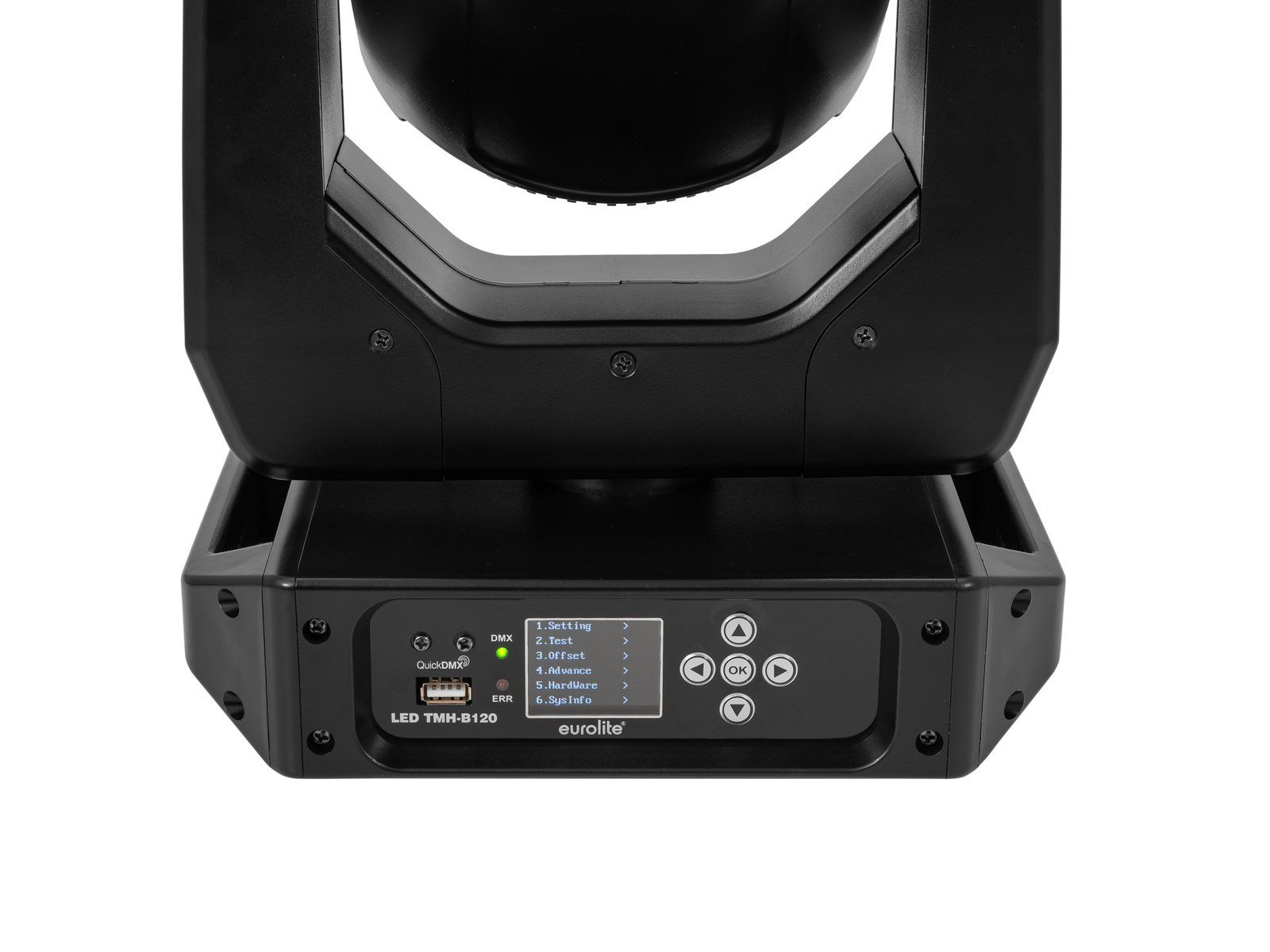

- Multicolor LCD display
- 2 Rugged carrying handles
- 4 rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Preprogrammed in Light Captain
Package contents
- 1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 170 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | 1,1 m |

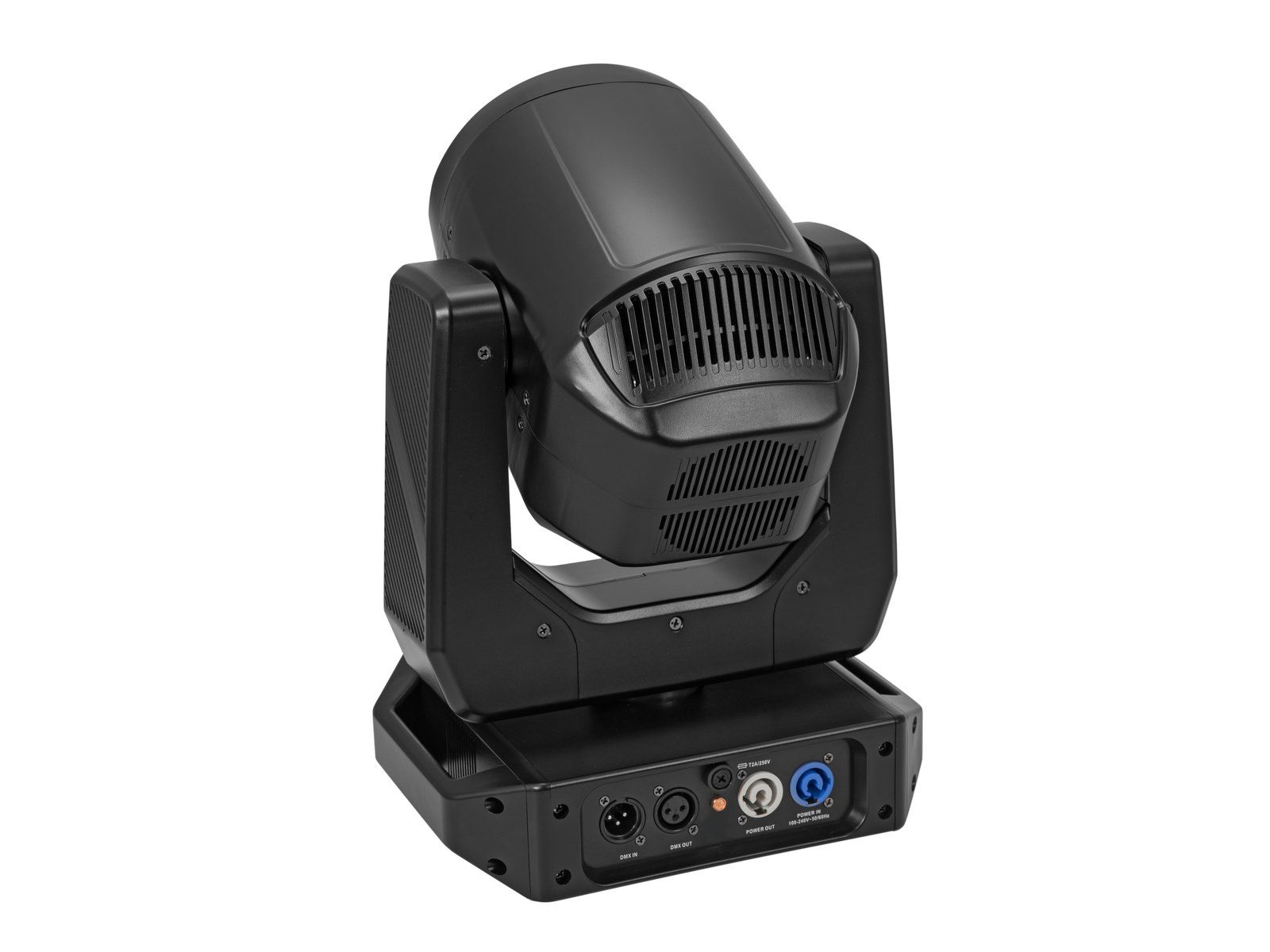

| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) cold white (CW) 30 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: | 240° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 20 Hz |
| Equipment: | Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 21 |

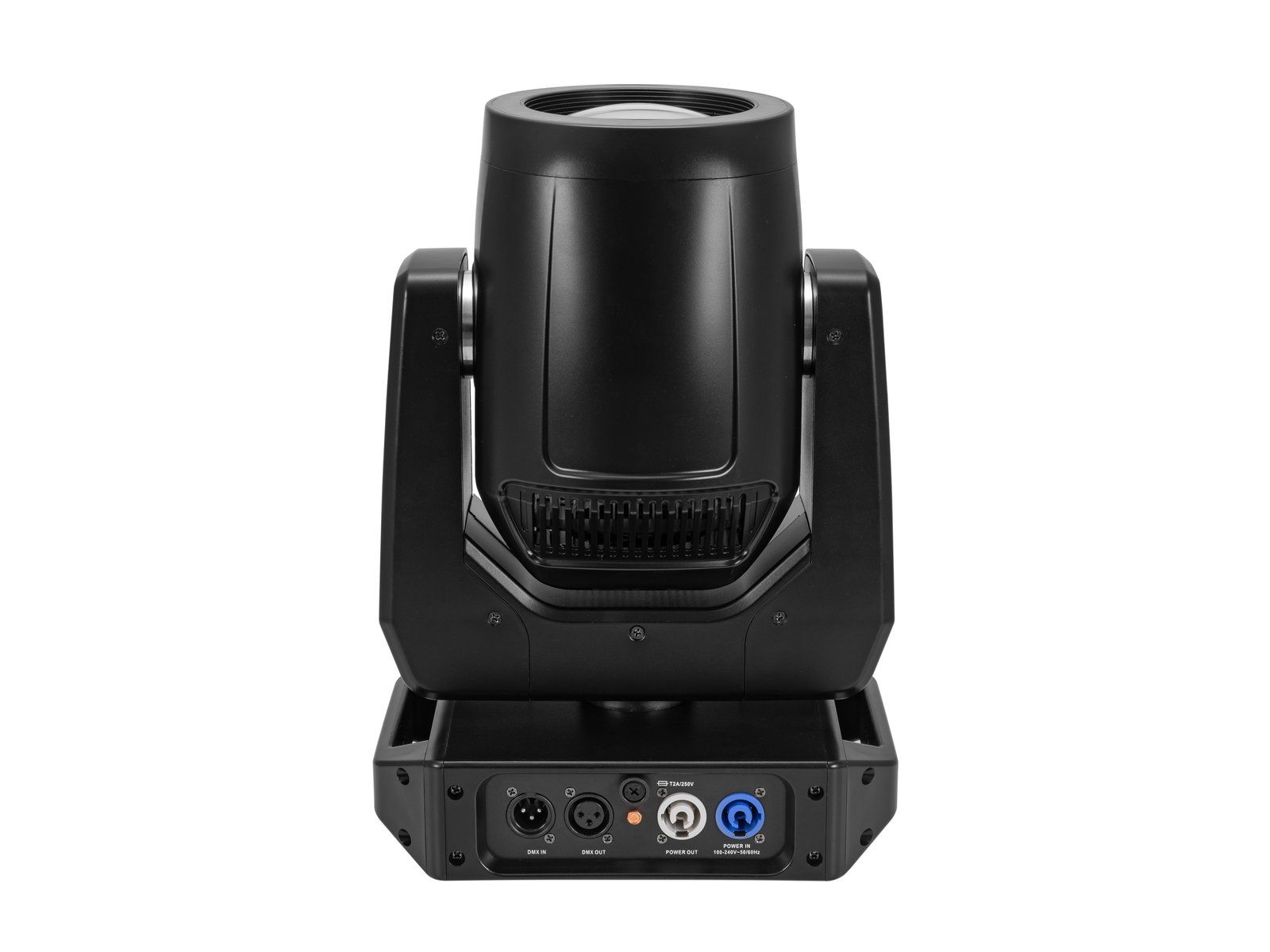

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan at the base 1 x cooling fan at the Head |
| Control: | Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | Beam 2° Ring 120° |
| Beam angle (1/10 peak): | Beam 2° Ring 120° |
| Color temperature: | 8500K |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Multicolor LCD display |
| Status LED: | DMX, fault |
| USB port: | Type A |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Material: | Plastic |
| Dimensions: | Width: 26,0 cm Depth: 23,5 cm Height: 37,5 cm |
| Weight: | 6,95 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
