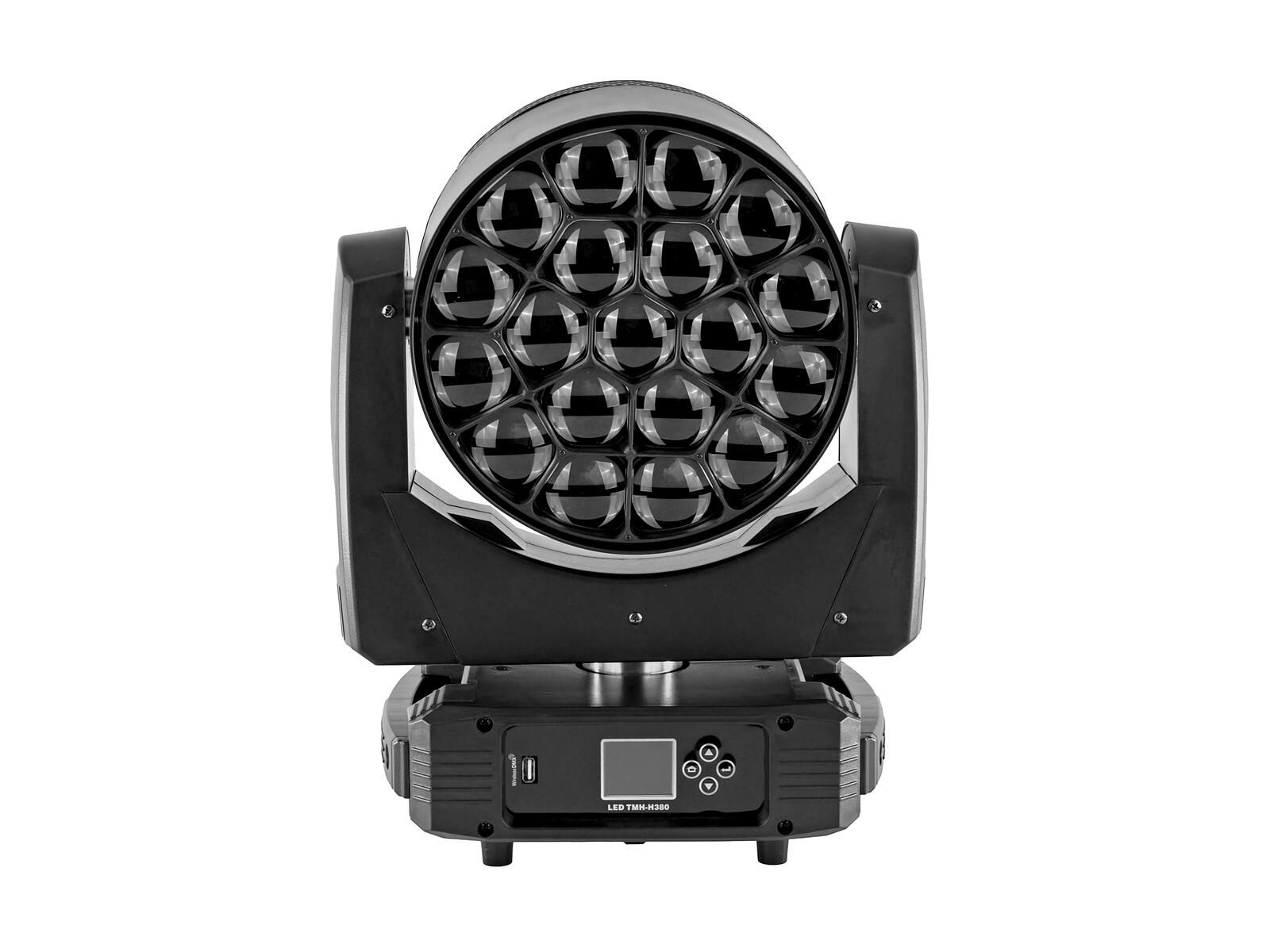

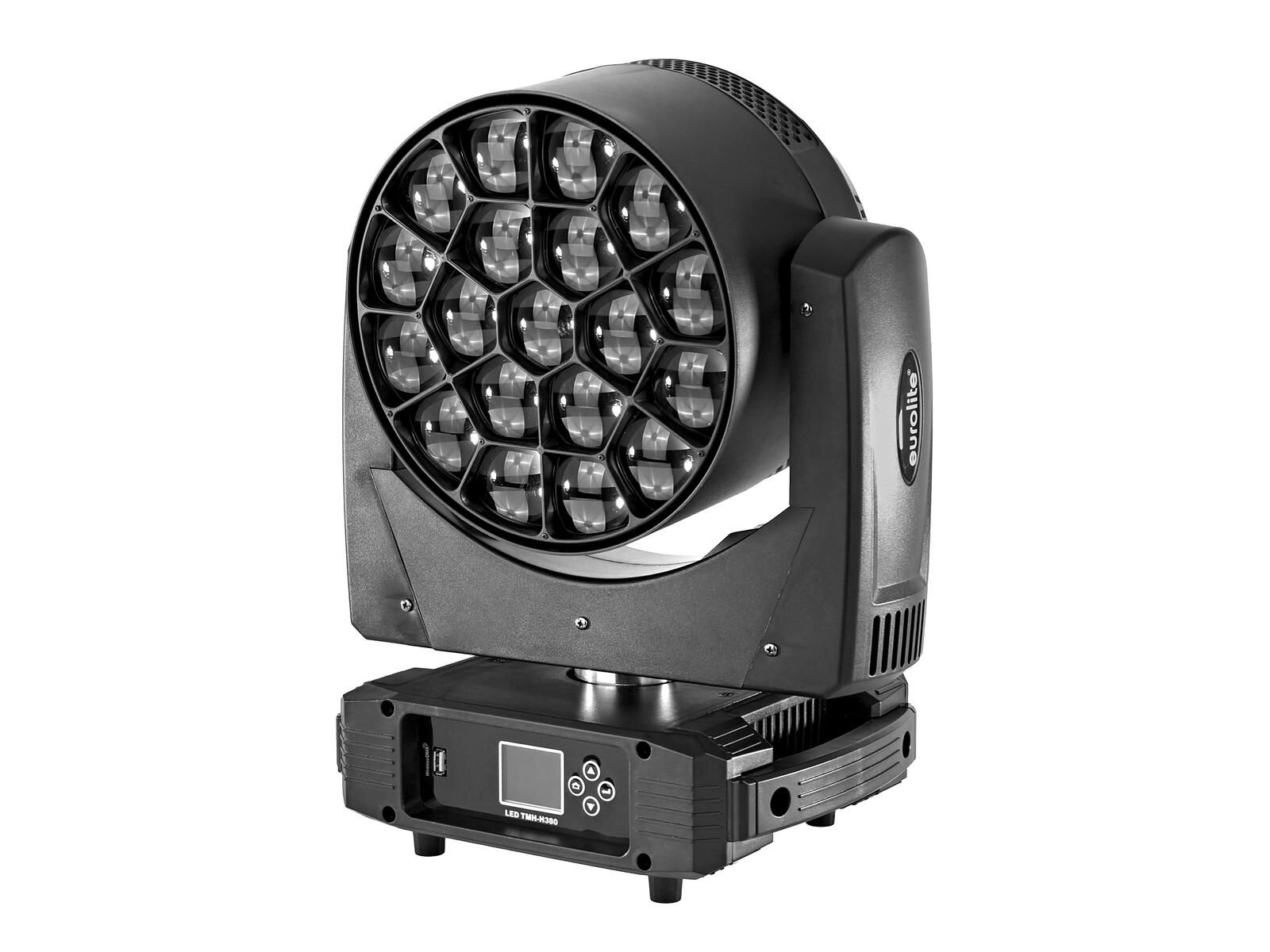

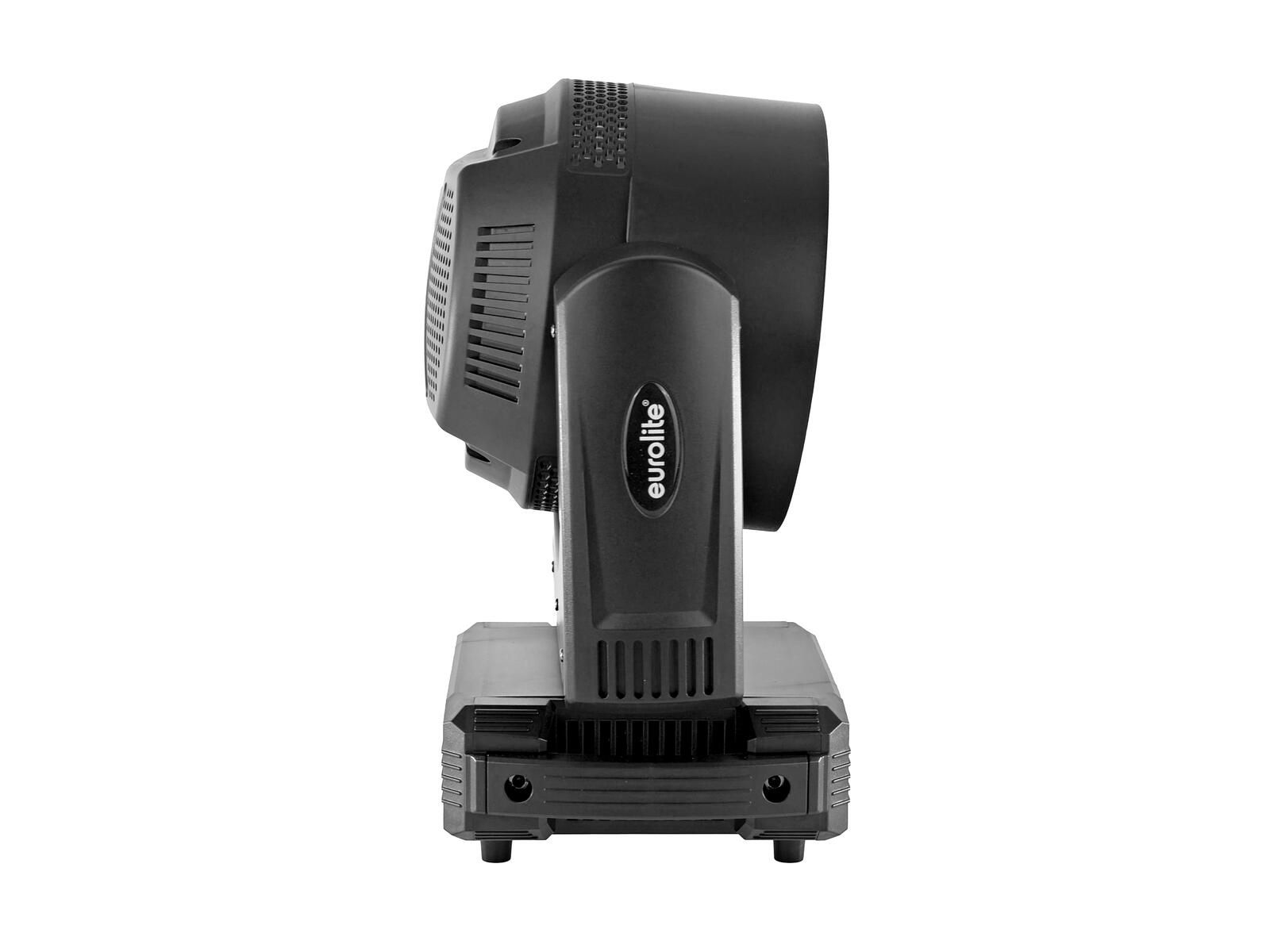

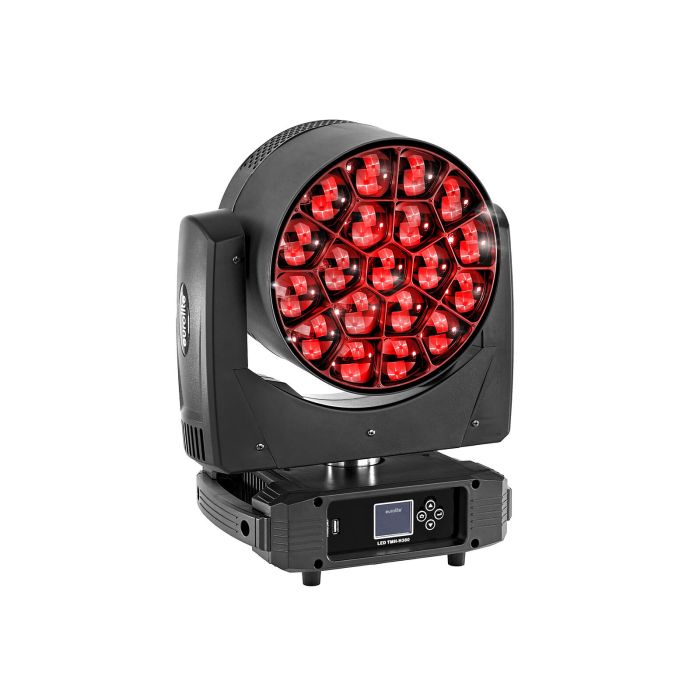

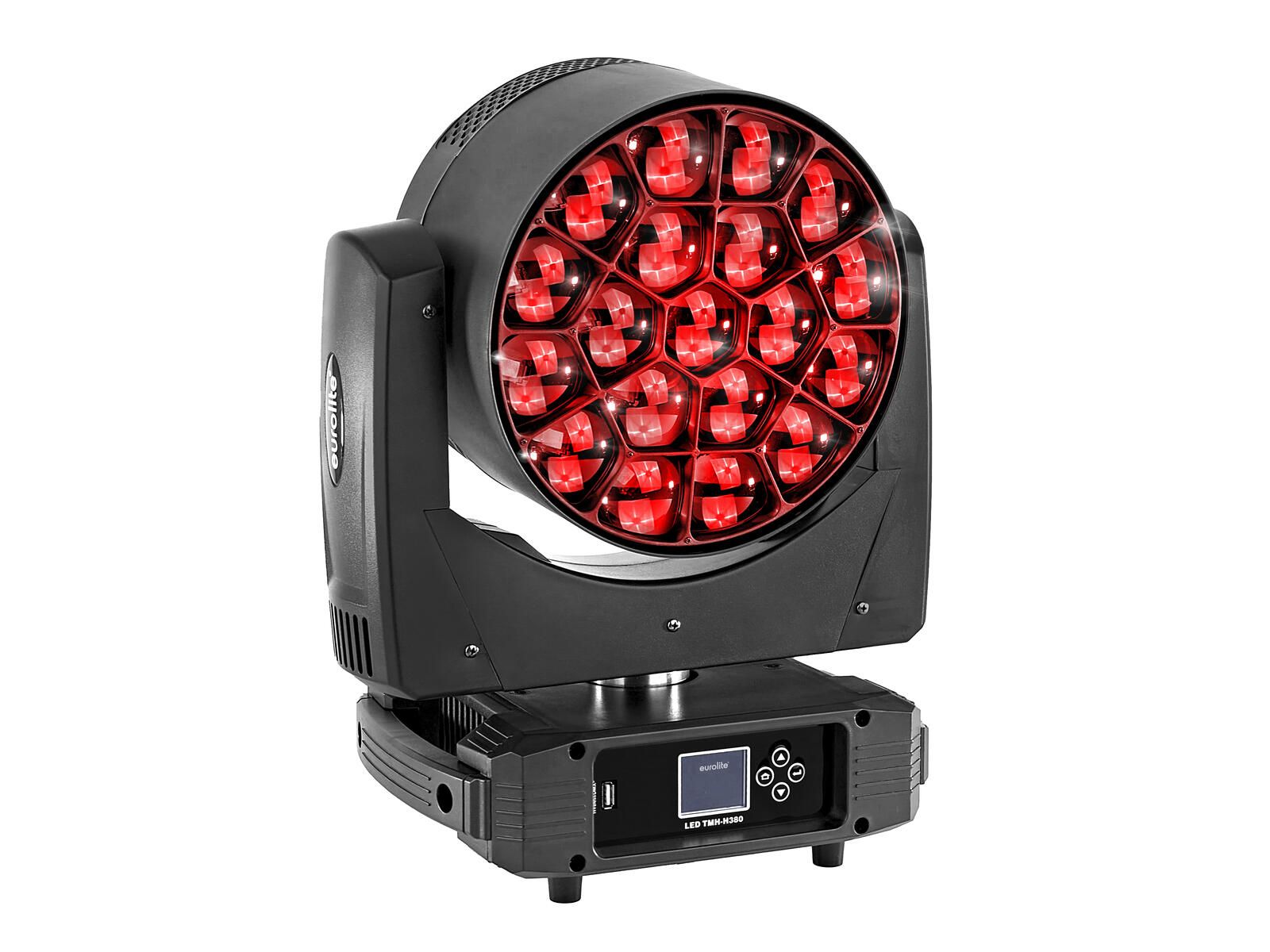

Moving washlight with 19 x 20W RGBL LEDs, rotating flower effect and pixel control

• 19 powerful LEDs 20 W 4in1 QCL RGBL (homogenous color mix)
  LEDs controlled separately
• Positioning within 540° PAN, 215° TILT
• Auto position correction (feedback)
• Exact positioning (16 bit resolution)
• Zoom motor driven; lens rotation
• Pulse-width modulation adjustable; Dimmer; color blend stepless; colors preset

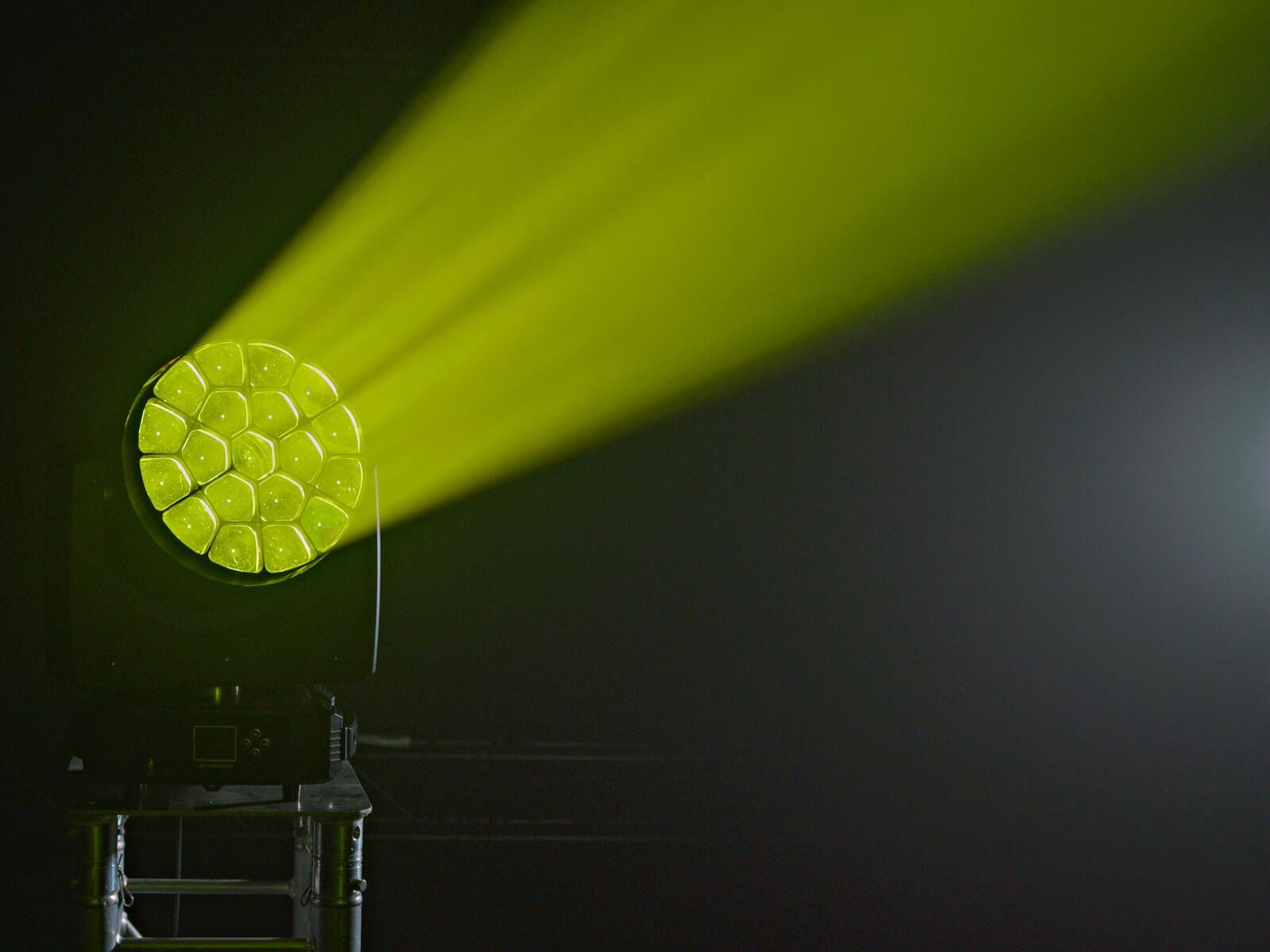

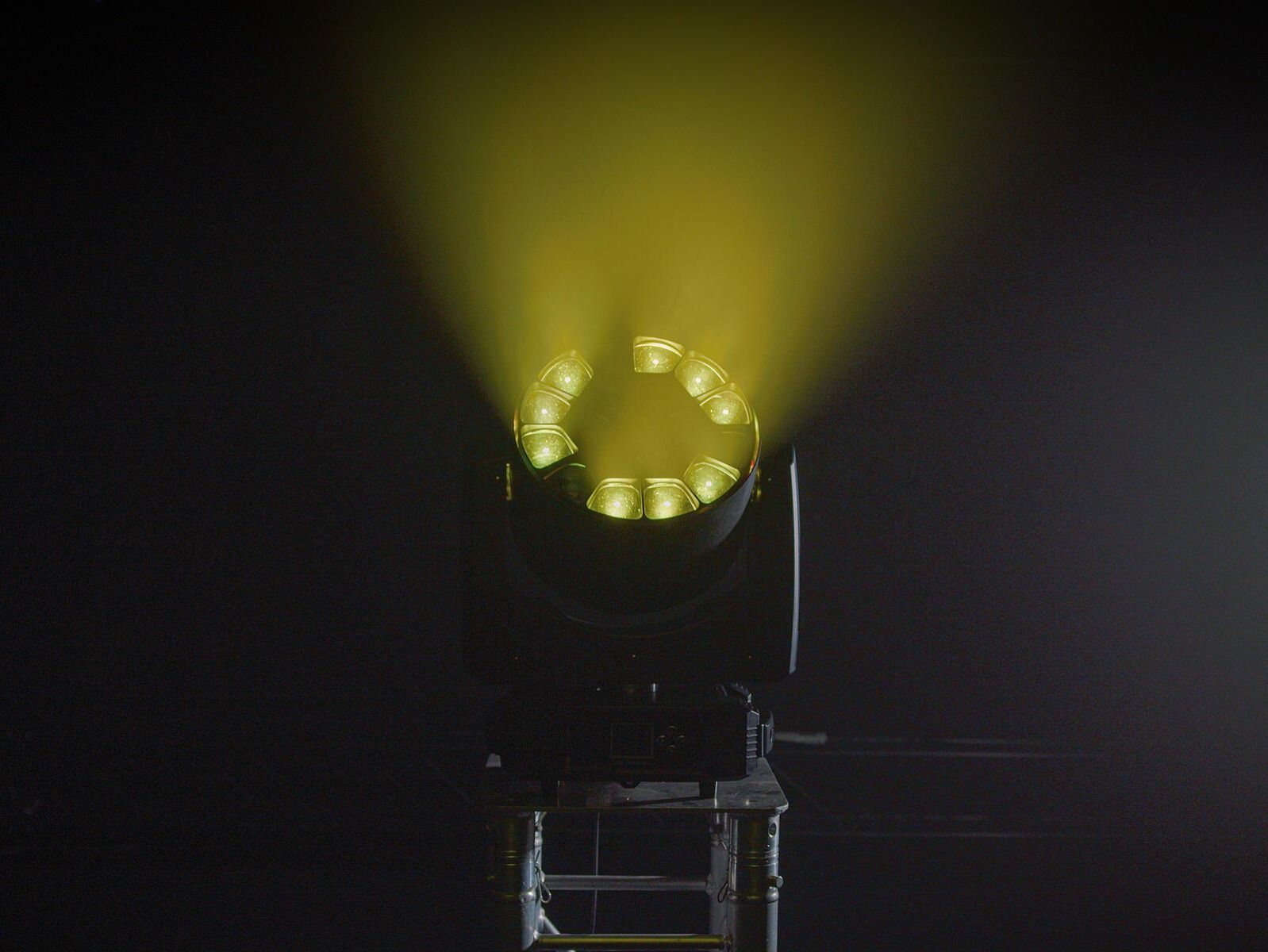

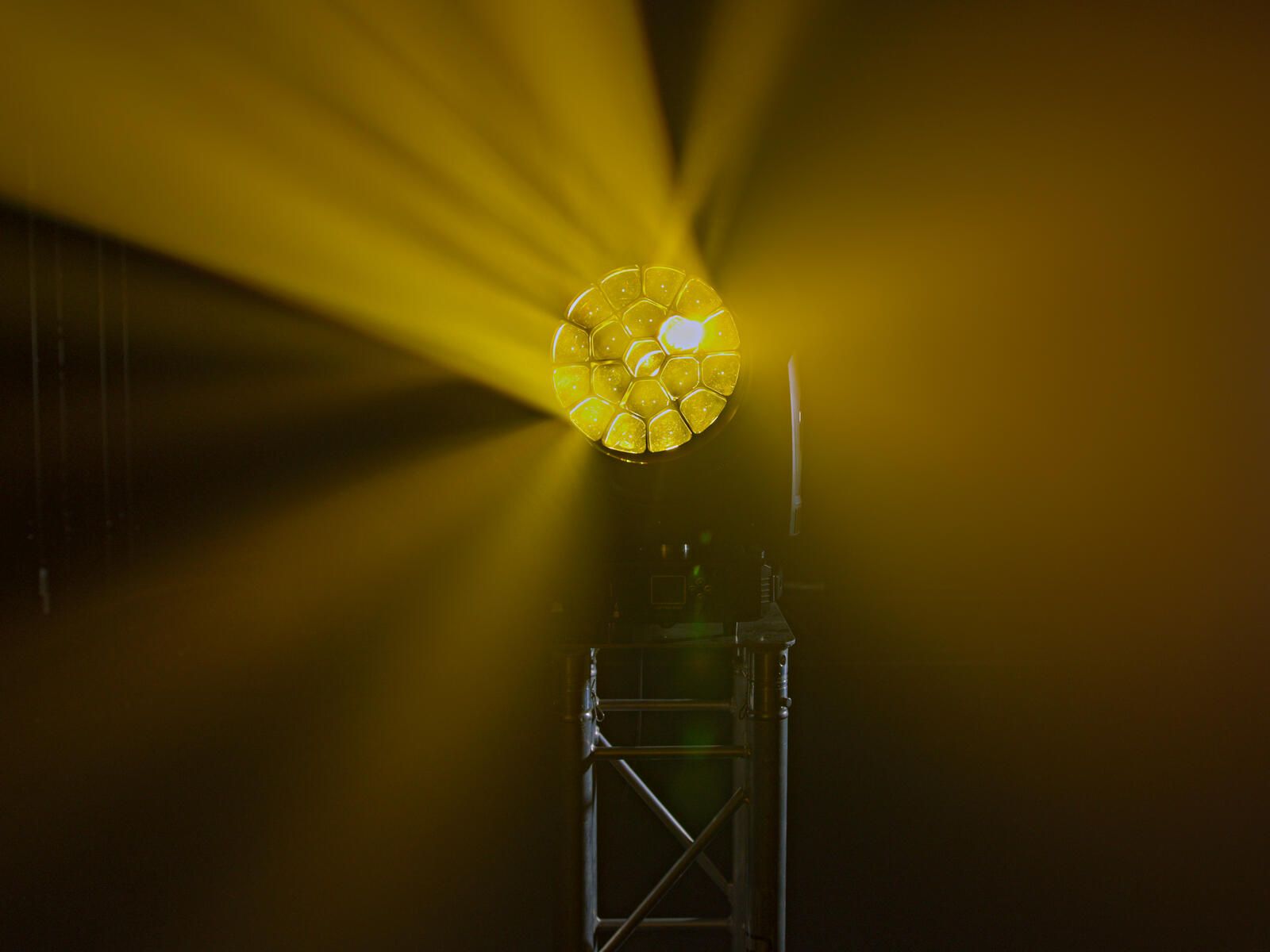

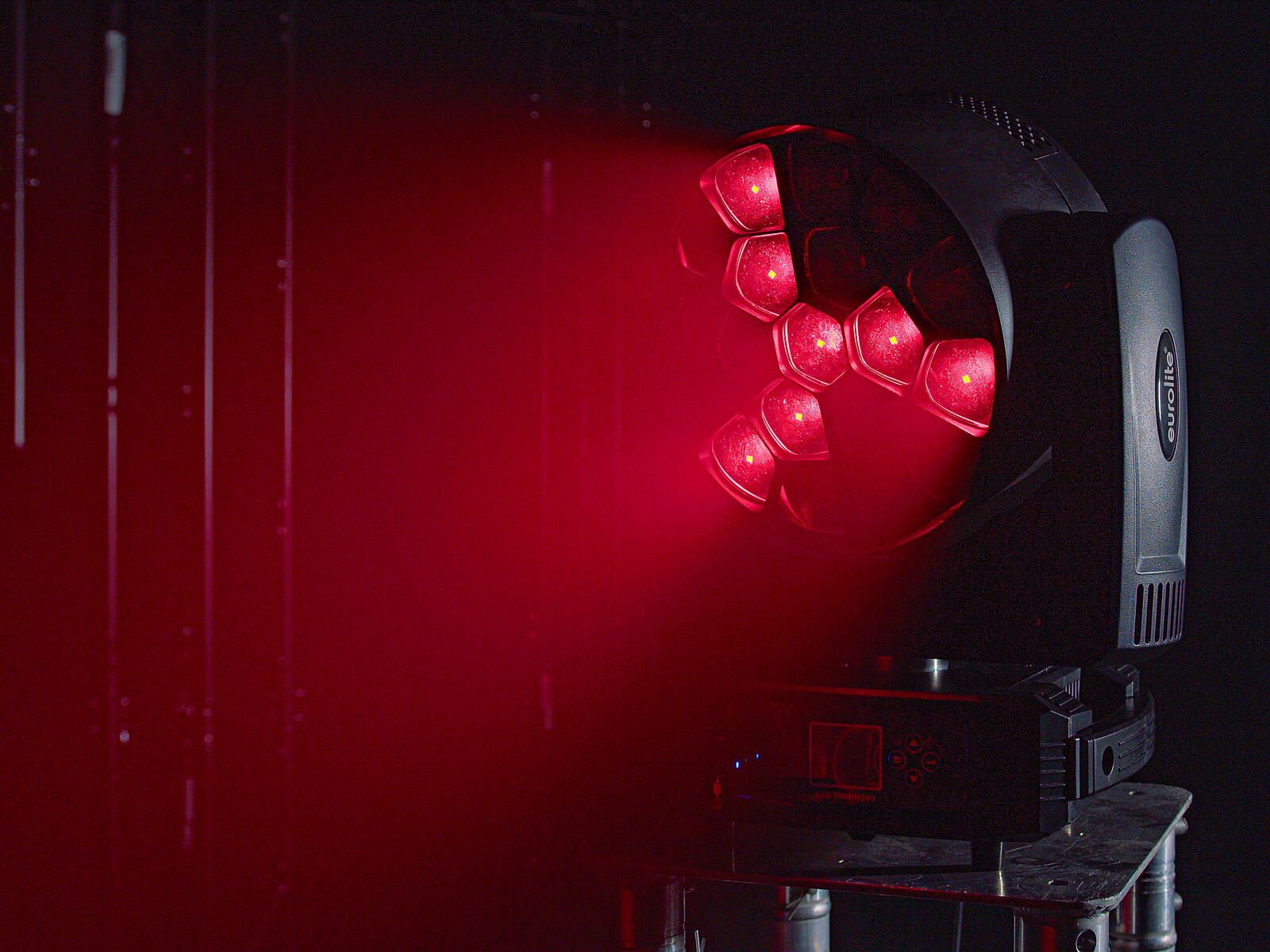

• Wash effect; flower effect; beam effect
• The device is cooled by cooling fan at the base; temperature-controlled fan at the head
• Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
• DMX fail mode (zero values; hold)
• With a beam angle of 1° - 35°
• With omega bracket
• Multicolor LCD display
• 2 Rugged carrying handles

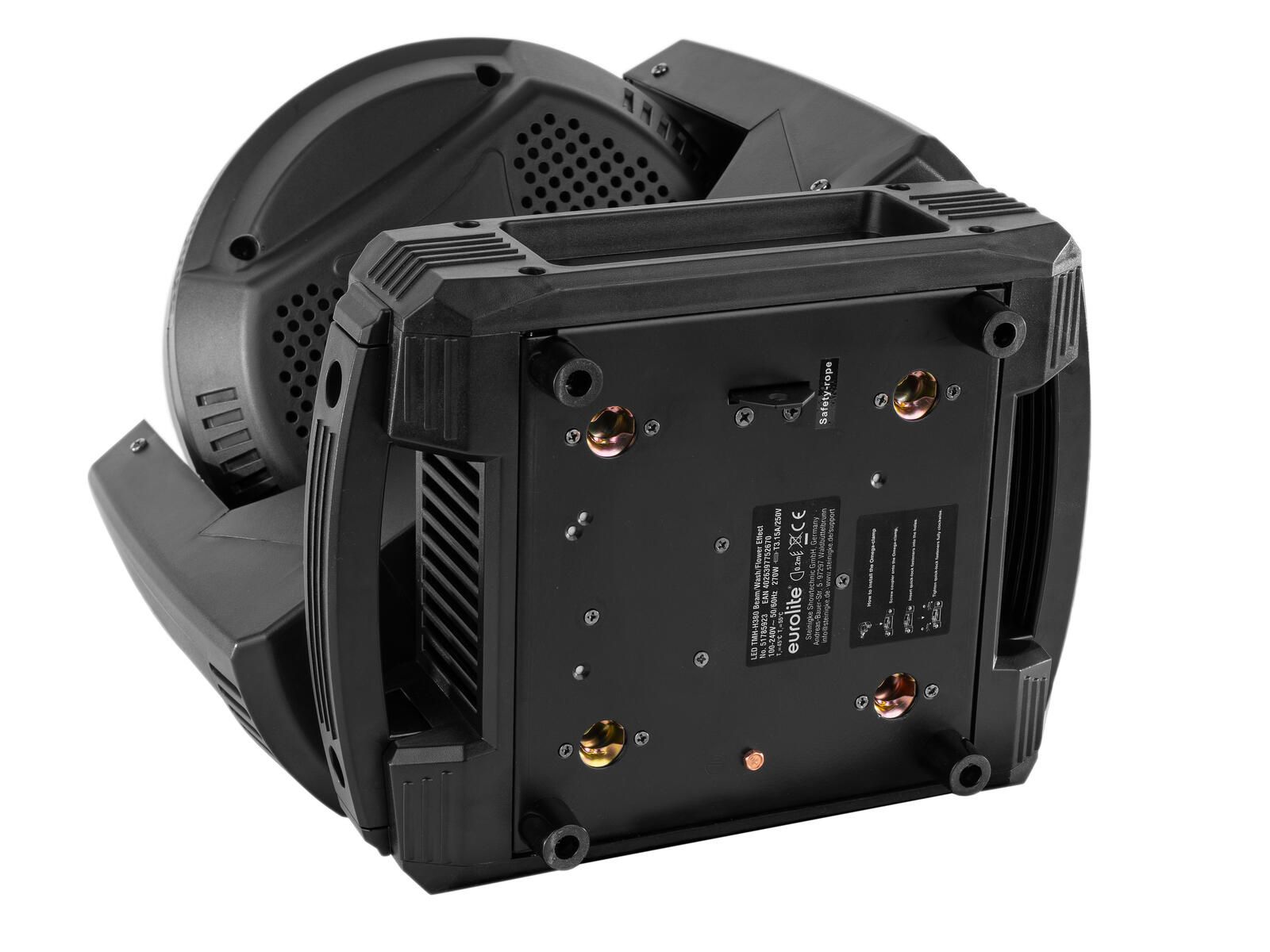

• 4 x rubber feet
• Mains input and output for power linking up to 8 units
• For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental
• Application possibility: Standing; suspended
• Preprogrammed in Light Captain
• Flicker-free
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	270 W
  IP classification:	IP20
  Protection class:	Protection class I

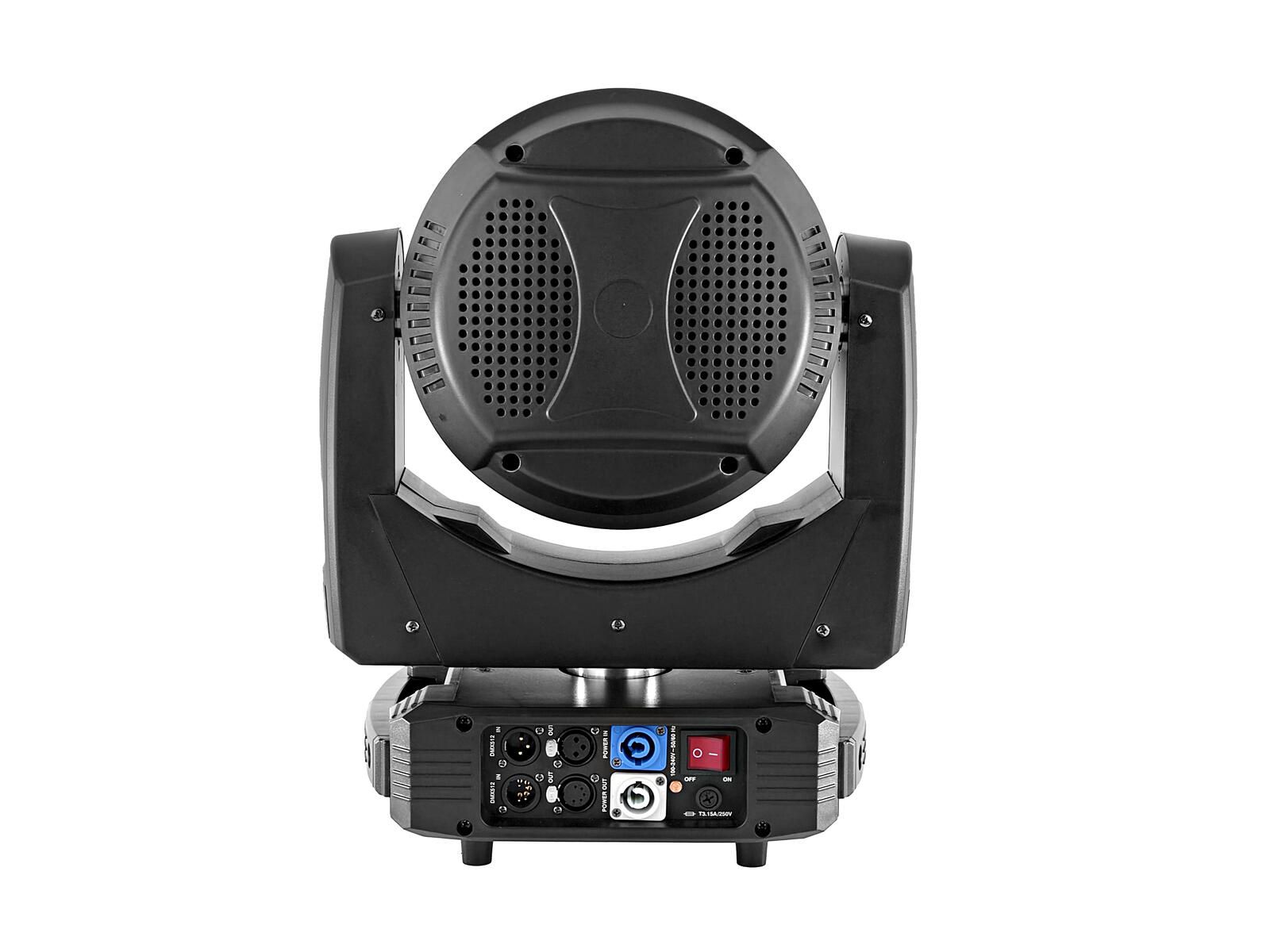

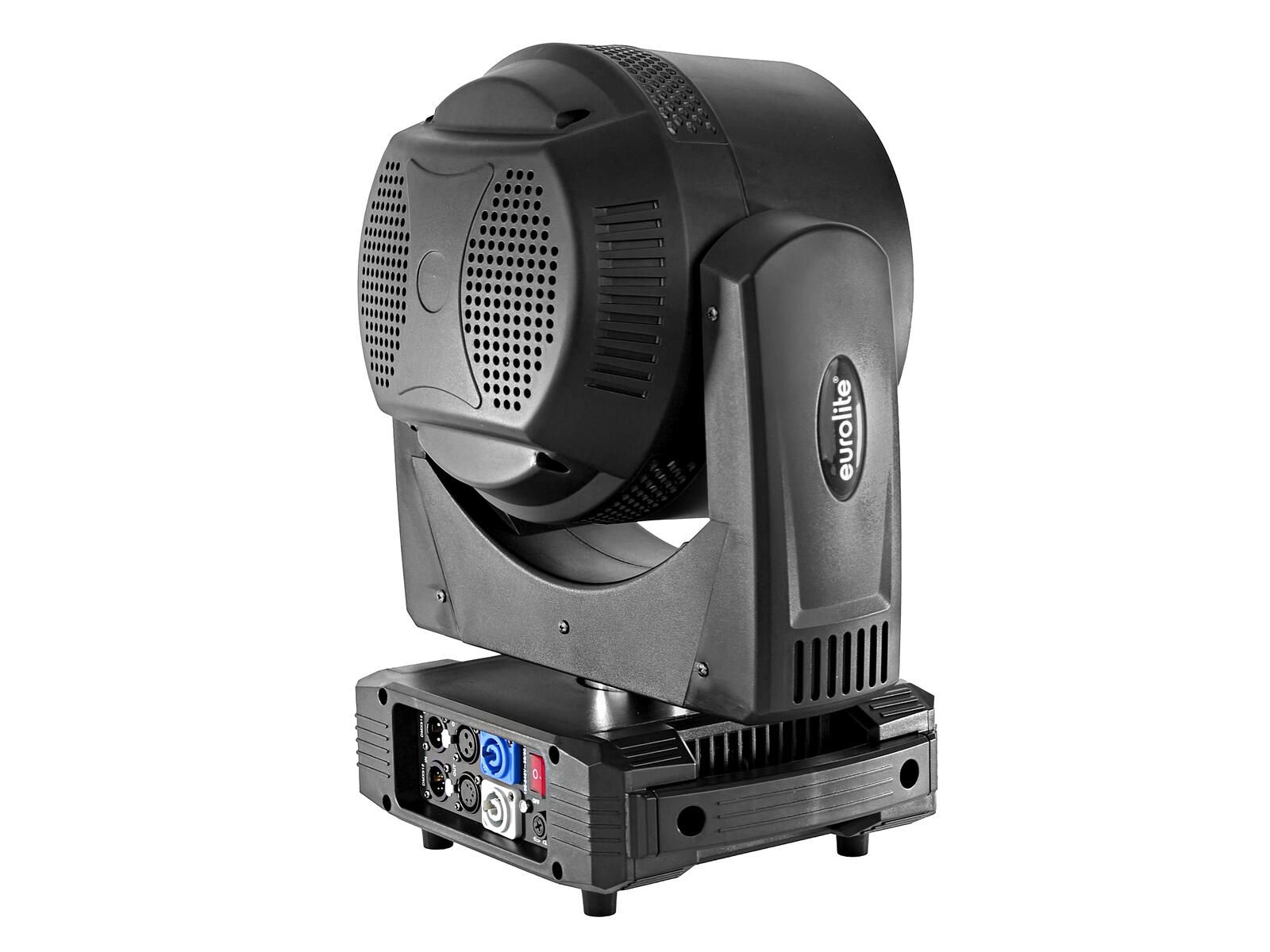

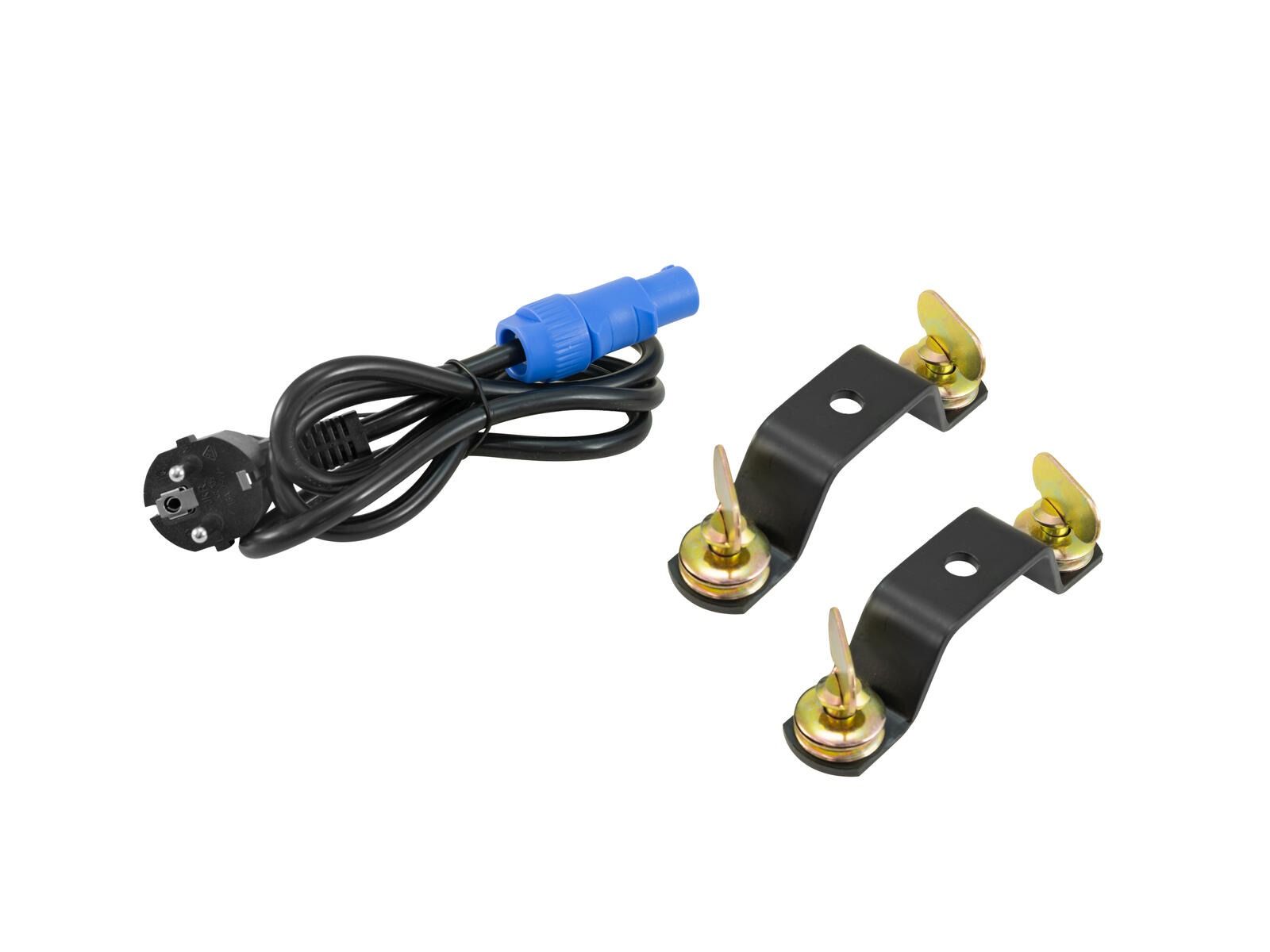

  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
  Cable construction:	3 x 1.0 mm² H05VV-F
  Power output:	P-Con (gray), mounting version
  Fuse:	5 x 20 mm, T 3.15 A fuse replaceable
  Lamp type:	LED lamp

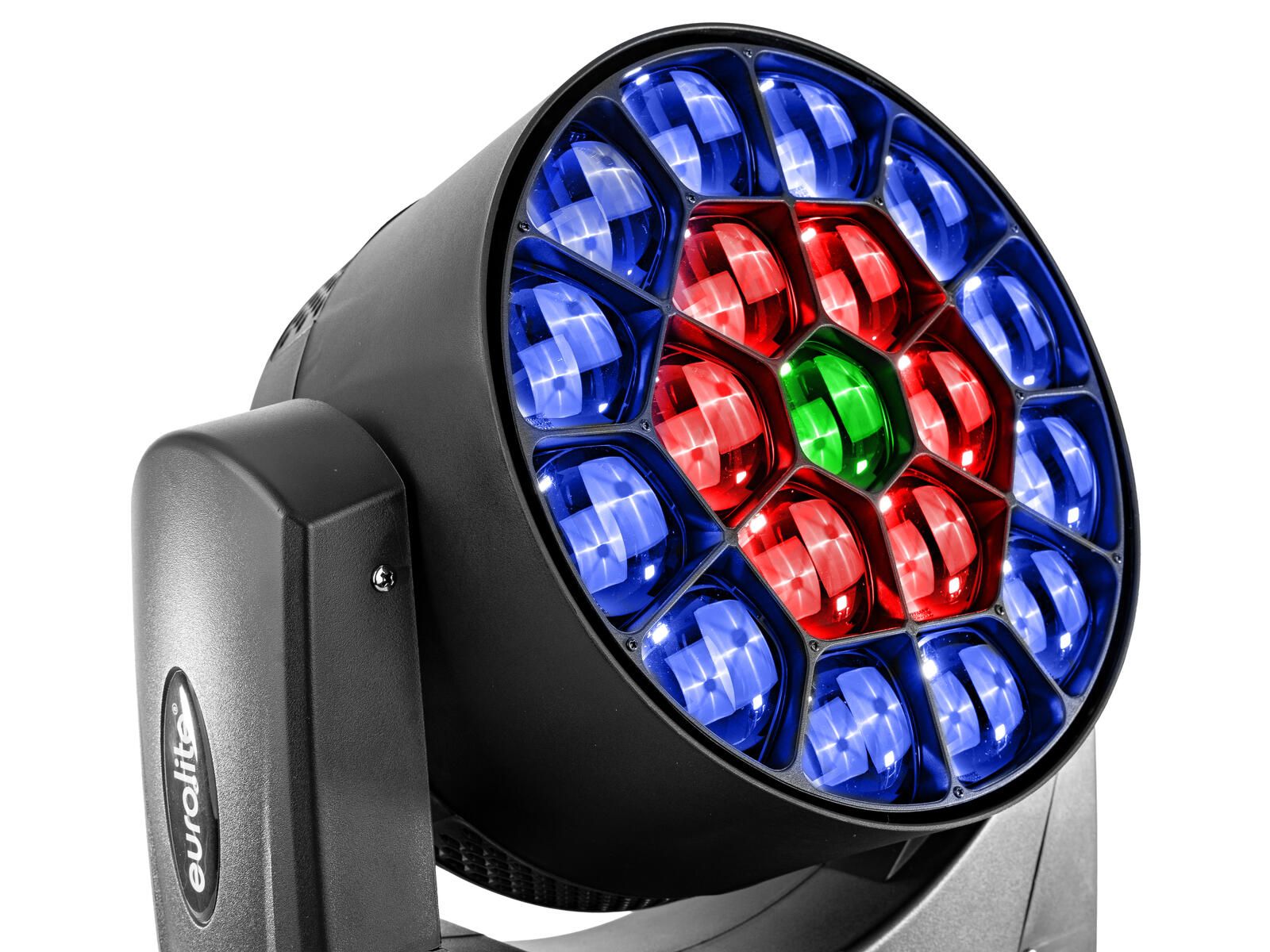

  LED type:	19 x 20 W 4in1 QCL RGBL (homogenous color mix)
  Max. TILT movement:	215° exact positioning (16 bit resolution) auto position correction (feedback)
  Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
  Flash rate:	1 - 18 Hz
  Equipment:	Zoom motor driven; lens rotation
  DMX channels:	18; 30; 94

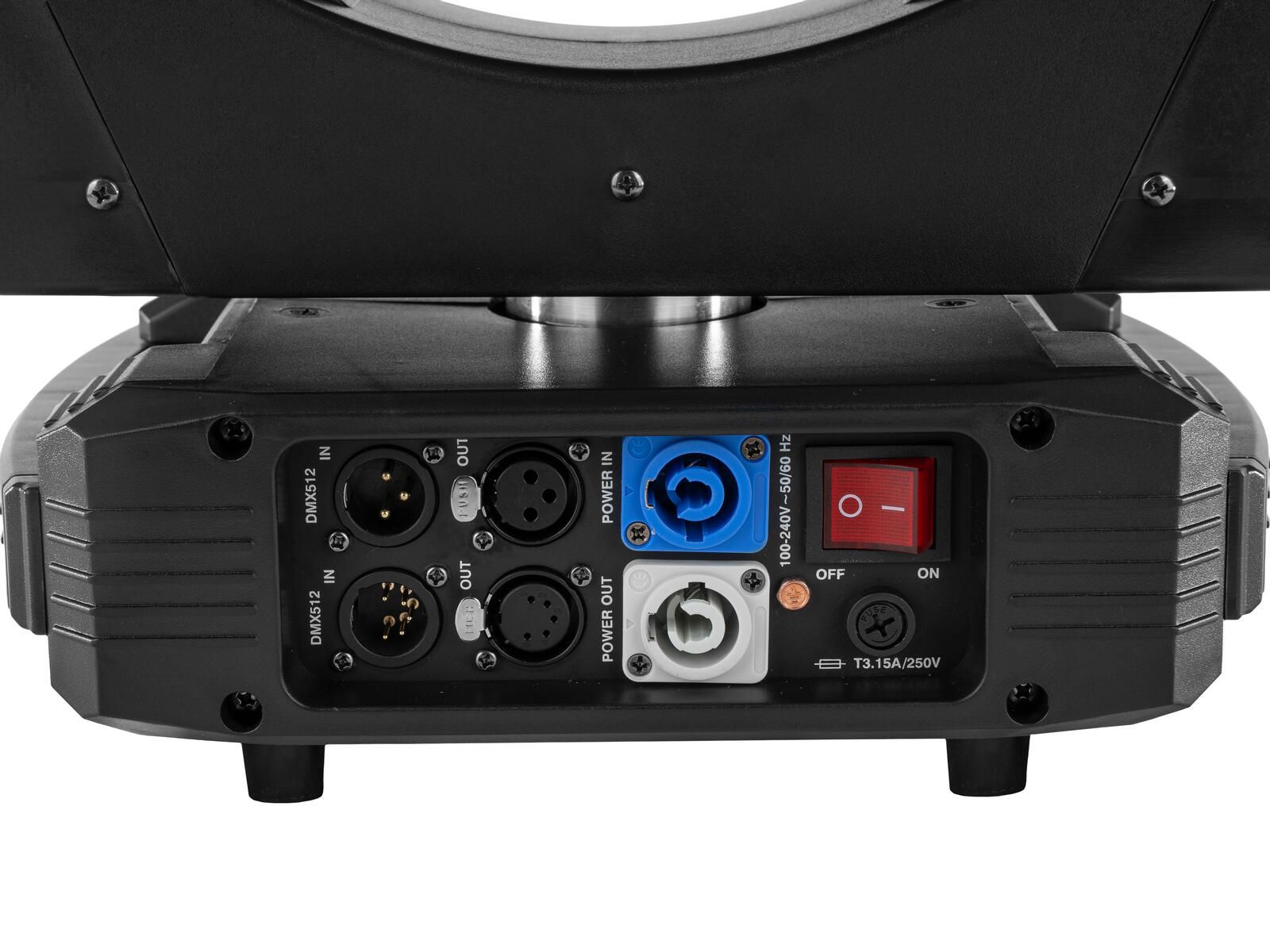

  DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
  DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
  Cooling:	1 x cooling fan at the base 2 x temperature-controlled fan at the head
  Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
  Preprogrammed in:	Light Captain
  Projection:	Flicker-free
  DMX fail mode:	Zero values; hold
  Beam angle:	1° - 35°
  Beam angle (1/2 peak):	1 - 21°
  Beam angle (1/10 peak):	6 - 35°
  Illuminance in Lux (lx):	Narrow red (R) 1m: 13251 lx, 3m: 5839 lx, 6m: 1772 lx Narrow green (G) 1m: 33878 lx, 3m: 14512 lx, 6m: 4482 lx Narrow blue (B) 1m: 6854 lx, 3m: 2372 lx, 6m: 831 lx Narrow lime 1m: 42876 lx, 3m: 18212 lx, 6m: 5554 lx Narrow all 1m: 86946 lx, 3m: 35241 lx, 6m: 11092 lx Wide red (R) 1m: 3735 lx, 3m: 458 lx, 6m: 119 lx Wide green (G) 1m: 9051 lx, 3m: 1106 lx, 6m: 289 lx Wide blue (B) 1m: 1639 lx, 3m: 204 lx, 6m: 54 lx Wide lime 1m: 11875 lx, 3m: 1430 lx, 6m: 381 lx Wide all 1m: 23450 lx, 3m: 2819 lx, 6m: 742 lx
  Lamp life:	20000 h
  Housing color:	Black
  Attachment system:	2x omega bracket

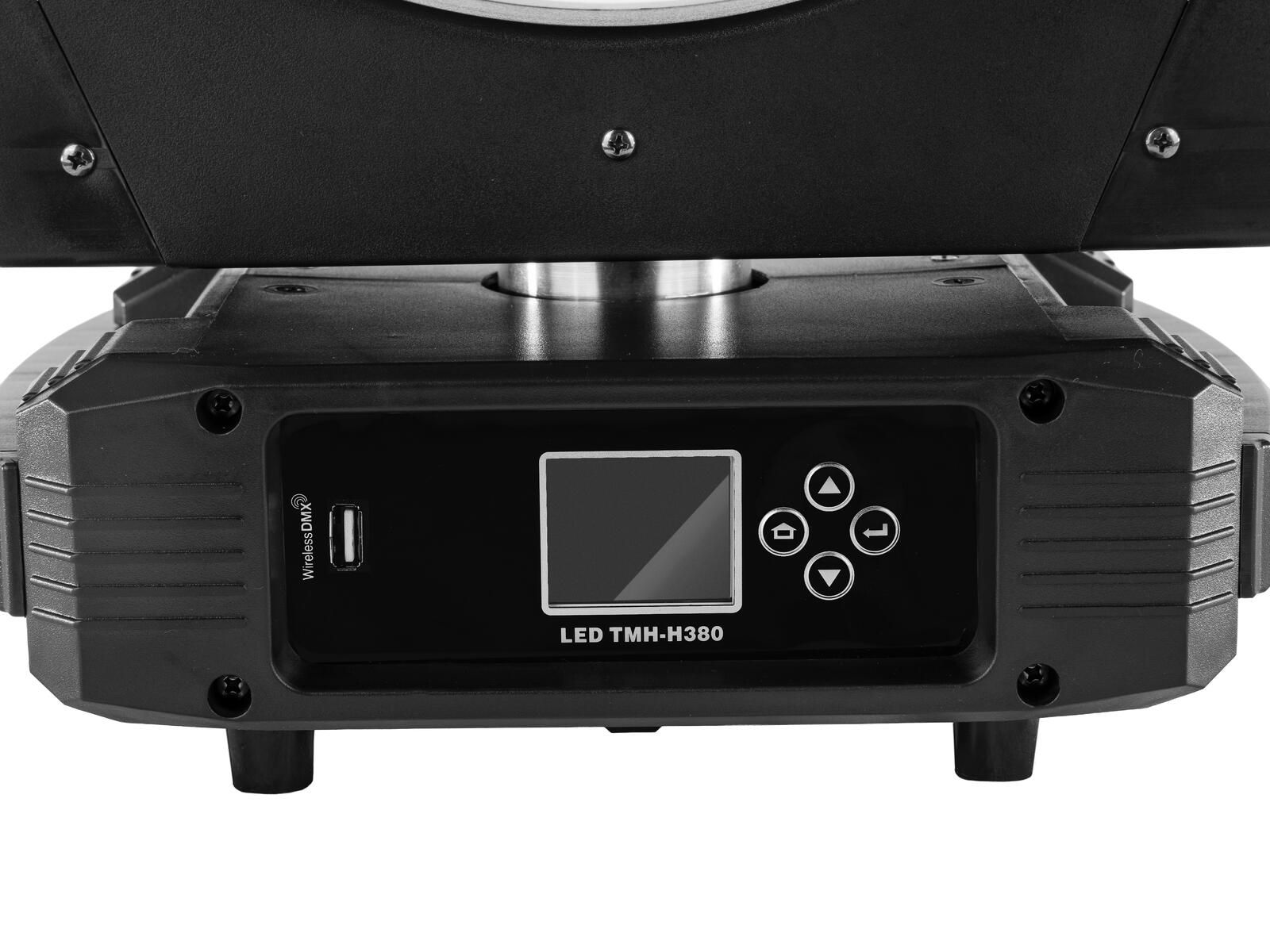

  Display type:	Multicolor LCD display
  Control elements:	Power switch
  USB port:	Type A
  Carrying handle:	2 pc/pcs
  Transport aid:	4 x rubber feet
  Diameter mounting holes:	2 x Ø10mm
  Material:	Metal
  Dimensions:	Width: 34.0 cm Depth: 22.5 cm Height: 34.5 cm
  Weight:	11.75 kg
  Noise classification:	Class 3 (clearly perceptible sounds)
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
