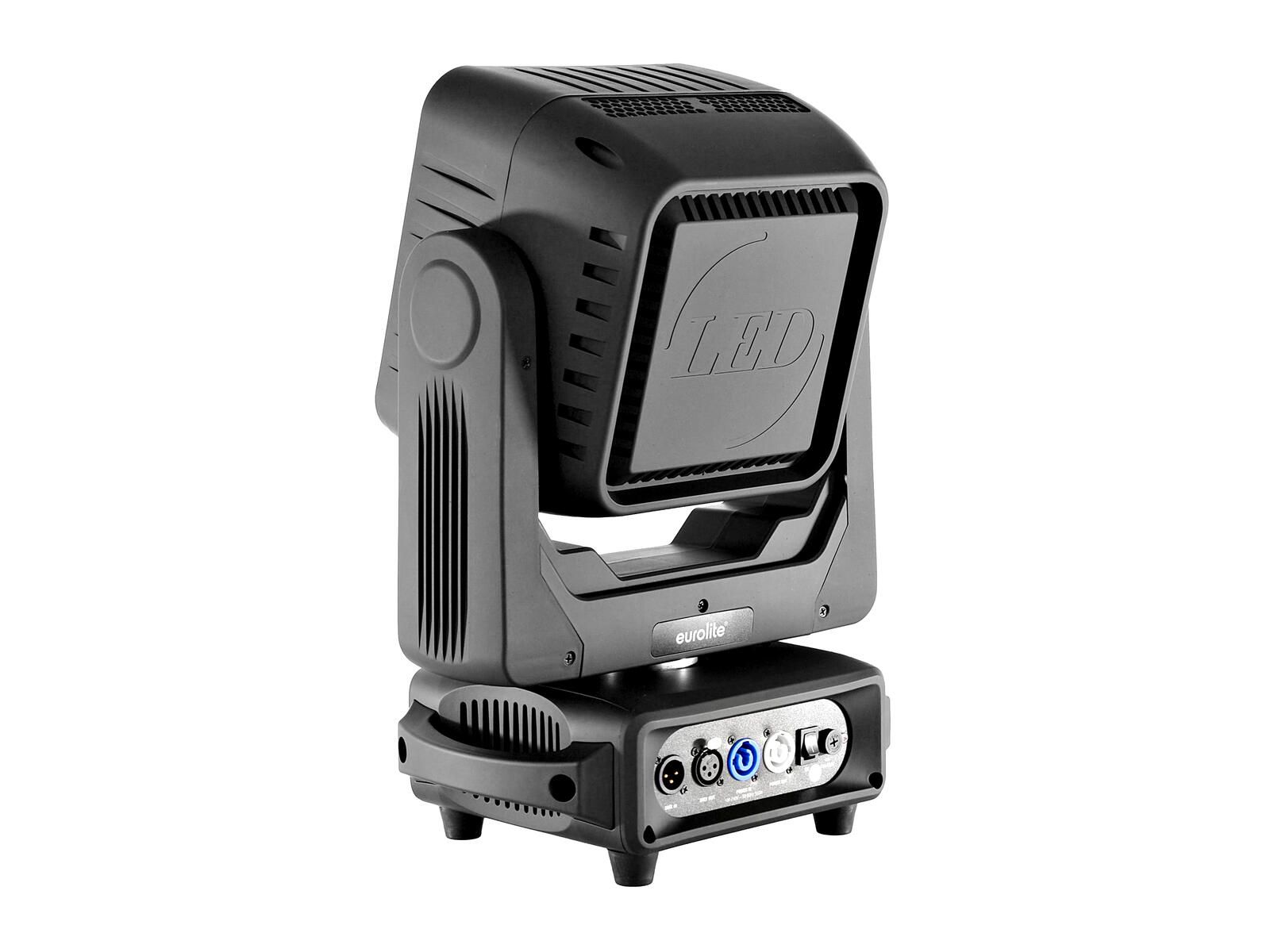

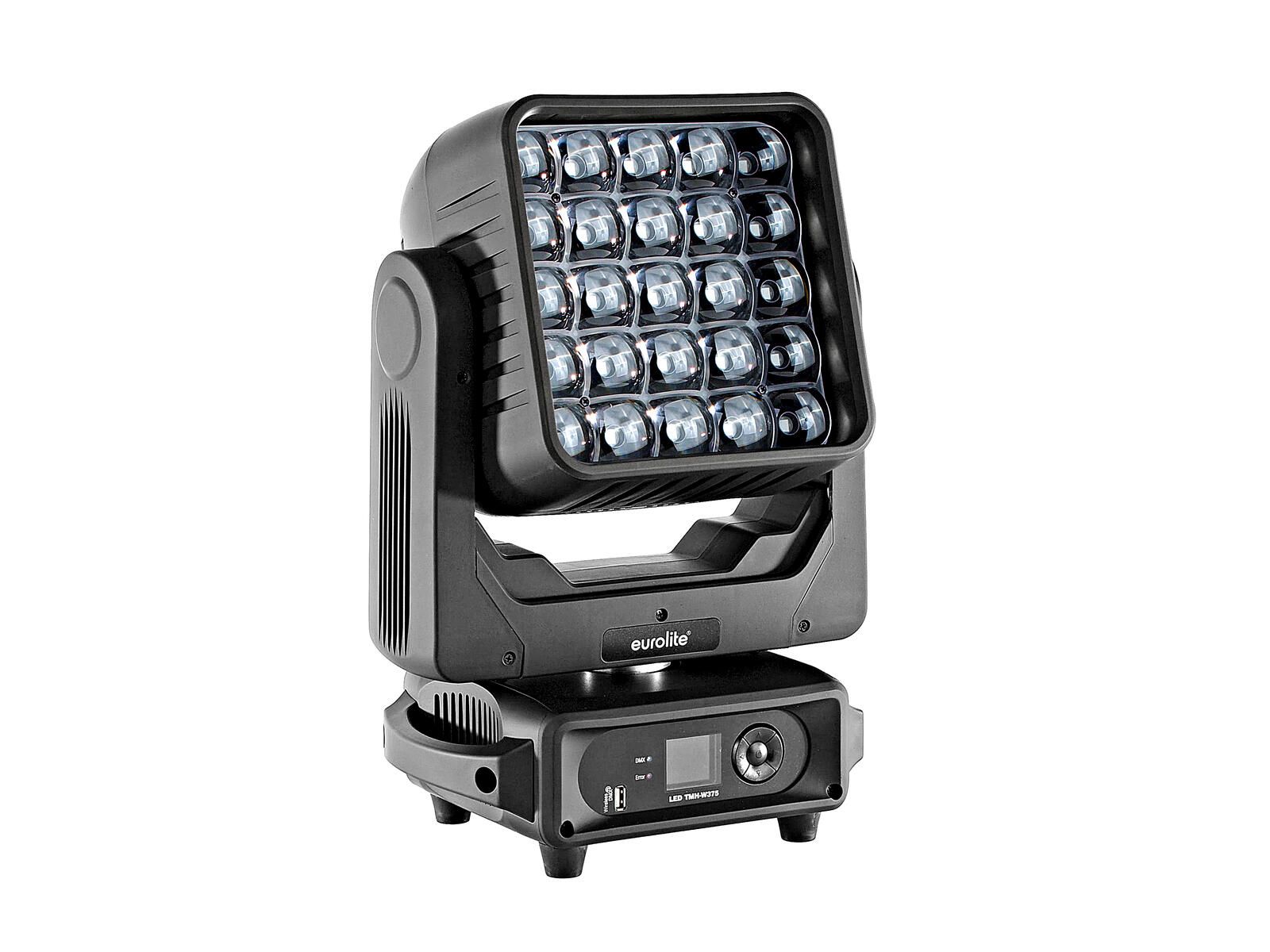

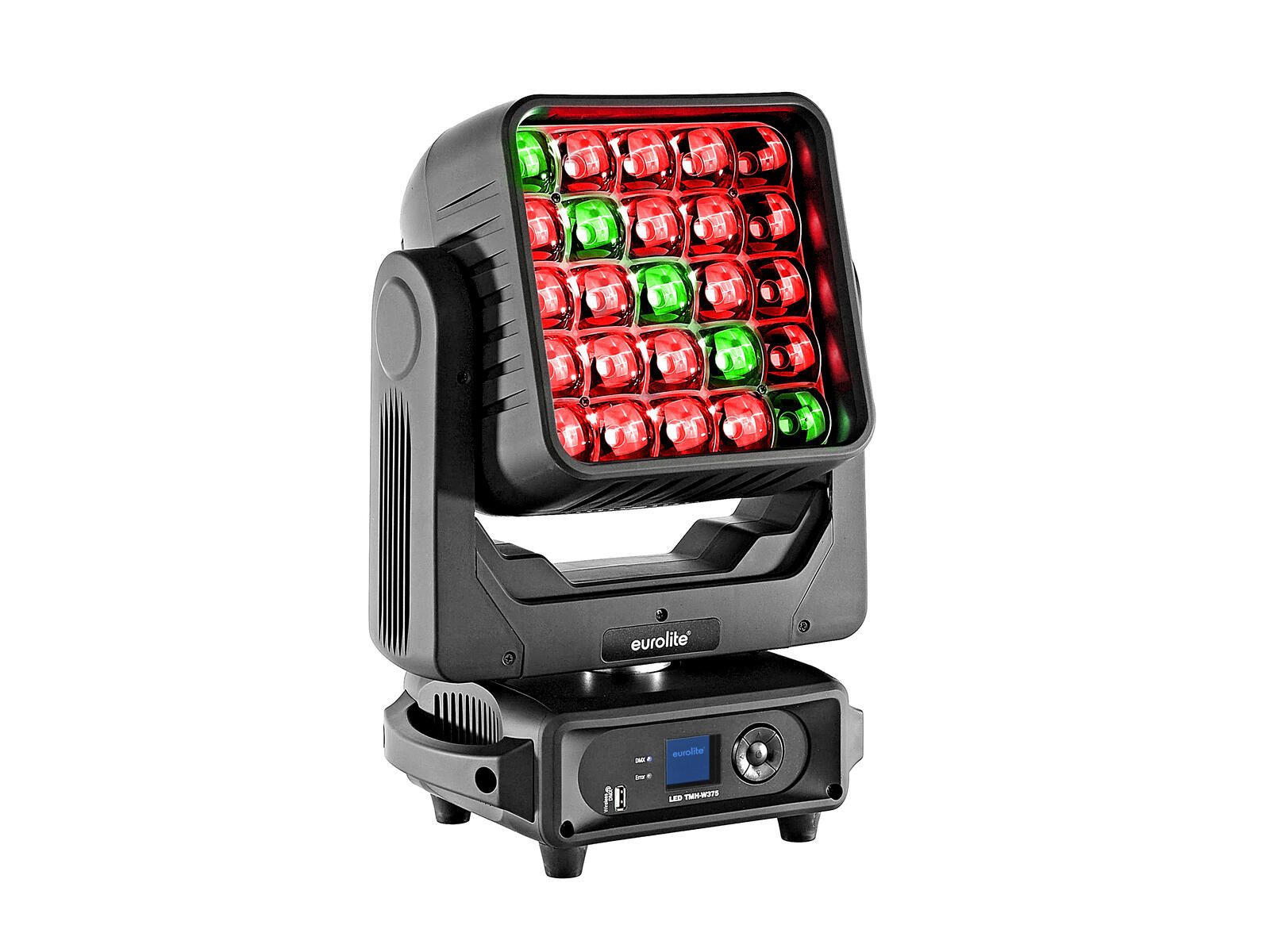

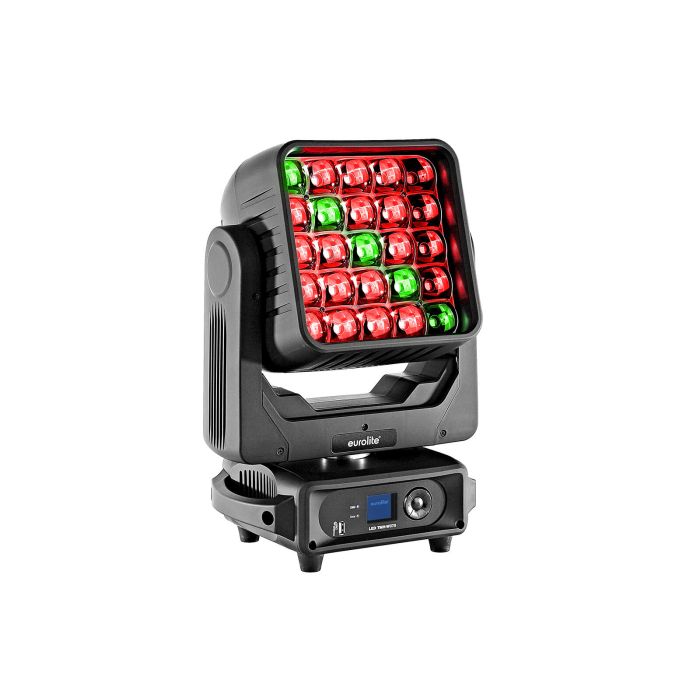

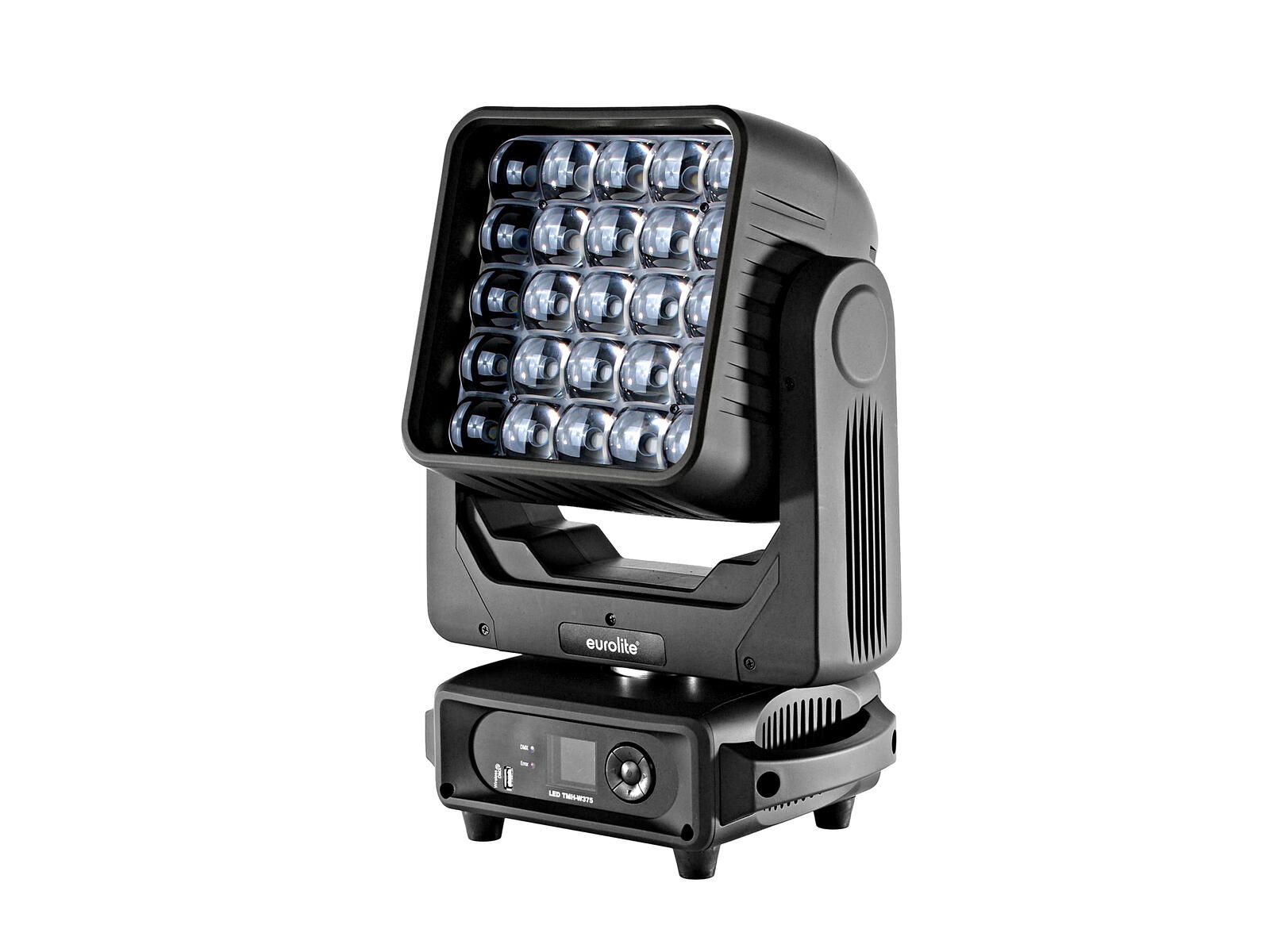

Matrix moving head with RGBW LEDs, pixel control & macros for animations, letters and numbers

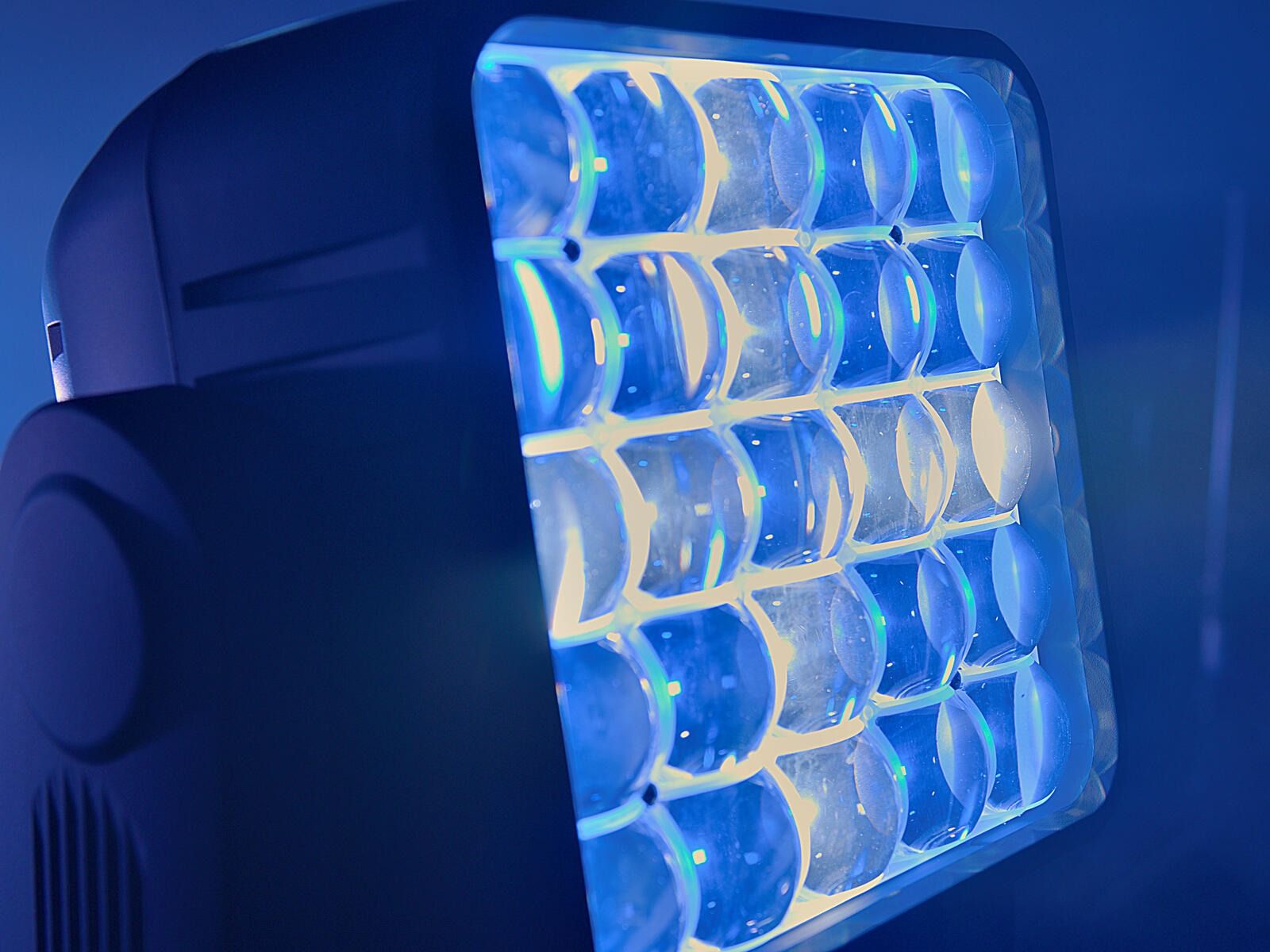

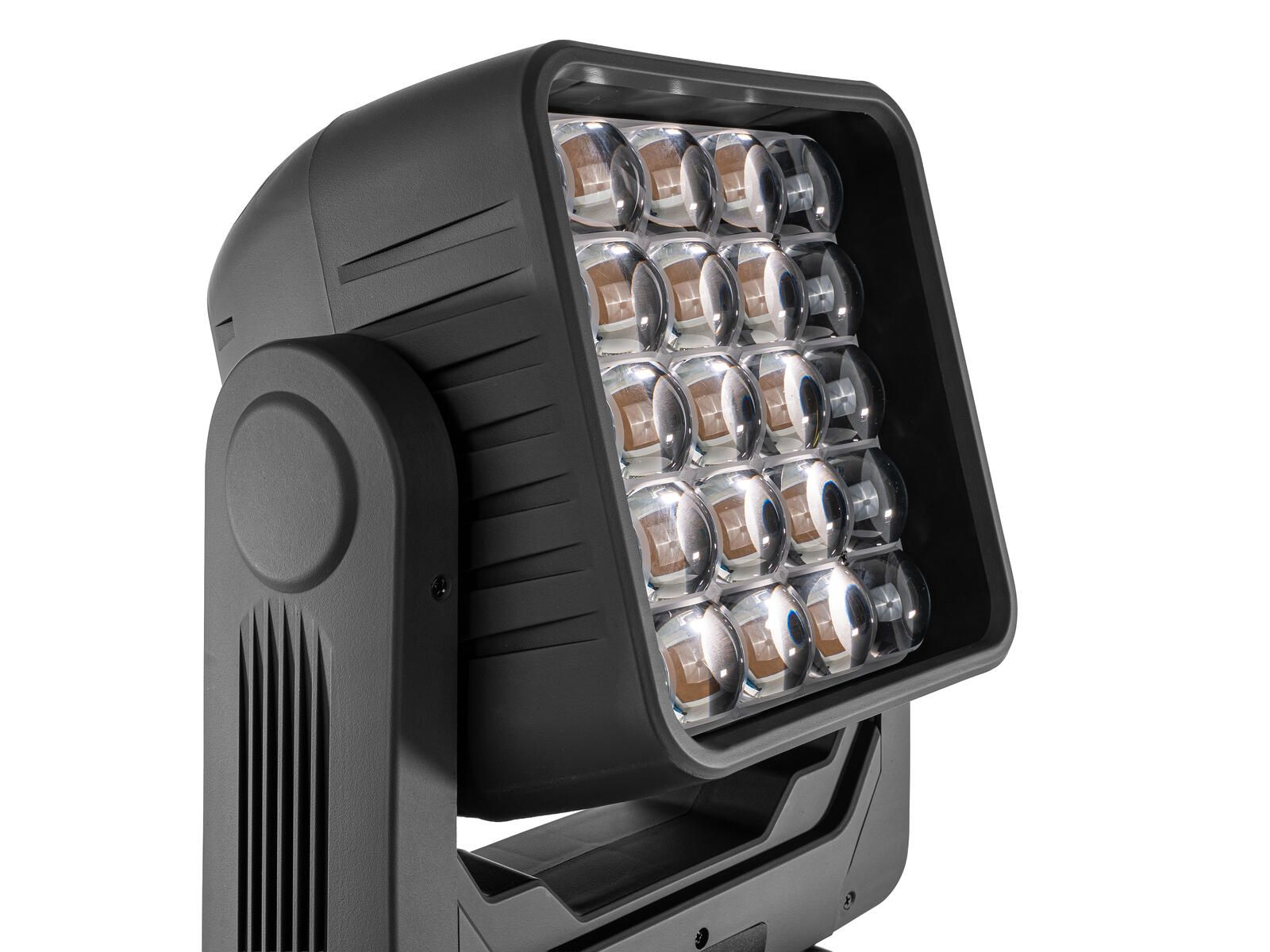

• 25 powerful LEDs 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
  LEDs controlled separately
• Positioning within 540° PAN, 215° TILT
• Auto position correction (feedback)
• Exact positioning (16 bit resolution)
• Zoom motor driven
• Dimmer electronic; white balance; color macros adjustable; patterns animated; background color adjustable; color fade; color blend stepless

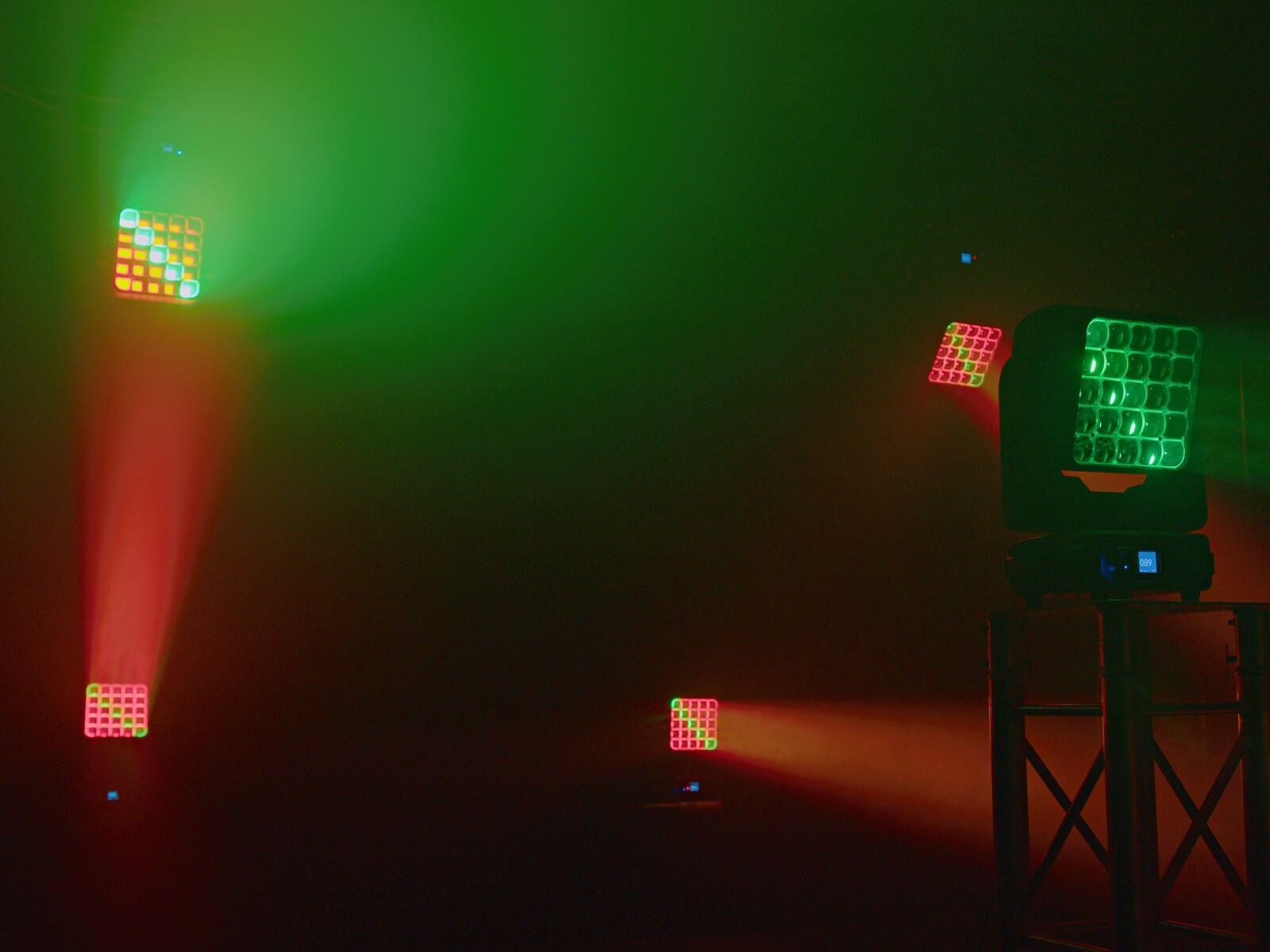

• Wash effect; matrix effect
• The device is cooled by cooling fan at the head
• Control via stand-alone; sound to light; master/slave function; DMX; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• DMX fail mode (hold; zero values)
• With a beam angle of 2° - 42°
• With omega bracket
• Multicolor LCD display
• 2 Rugged carrying handles
• 4 x rubber feet
• Mains input and output for power linking up to 4 units
• Preprogrammed in Light Captain
• For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
• Application possibility: Standing; suspended
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	350 W
  Protection class:	Protection class I

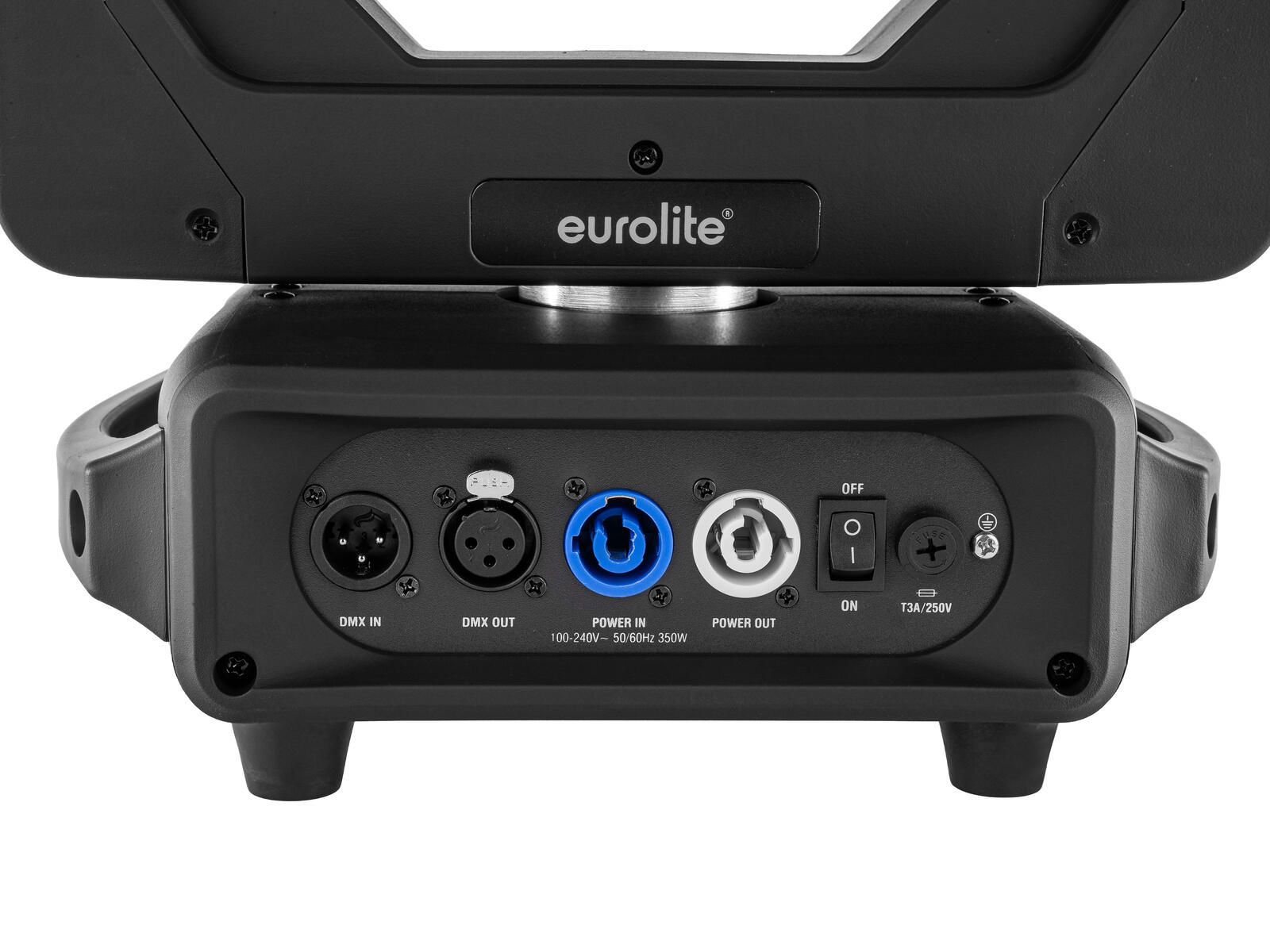

  Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
  Cable construction:	3 x 1.0 mm² H05VV-F
  Power output:	P-Con (gray), mounting version
  Fuse:	5 x 20 mm, T 3 A fuse replaceable
  Lamp type:	LED lamp
  LED type:	25 x 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
  Max. TILT movement:	215° exact positioning (16 bit resolution) auto position correction (feedback)
  Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
  Flash rate:	0.5 - 17 Hz
  Equipment:	Zoom motor driven
  DMX channels:	11; 22; 109; 122

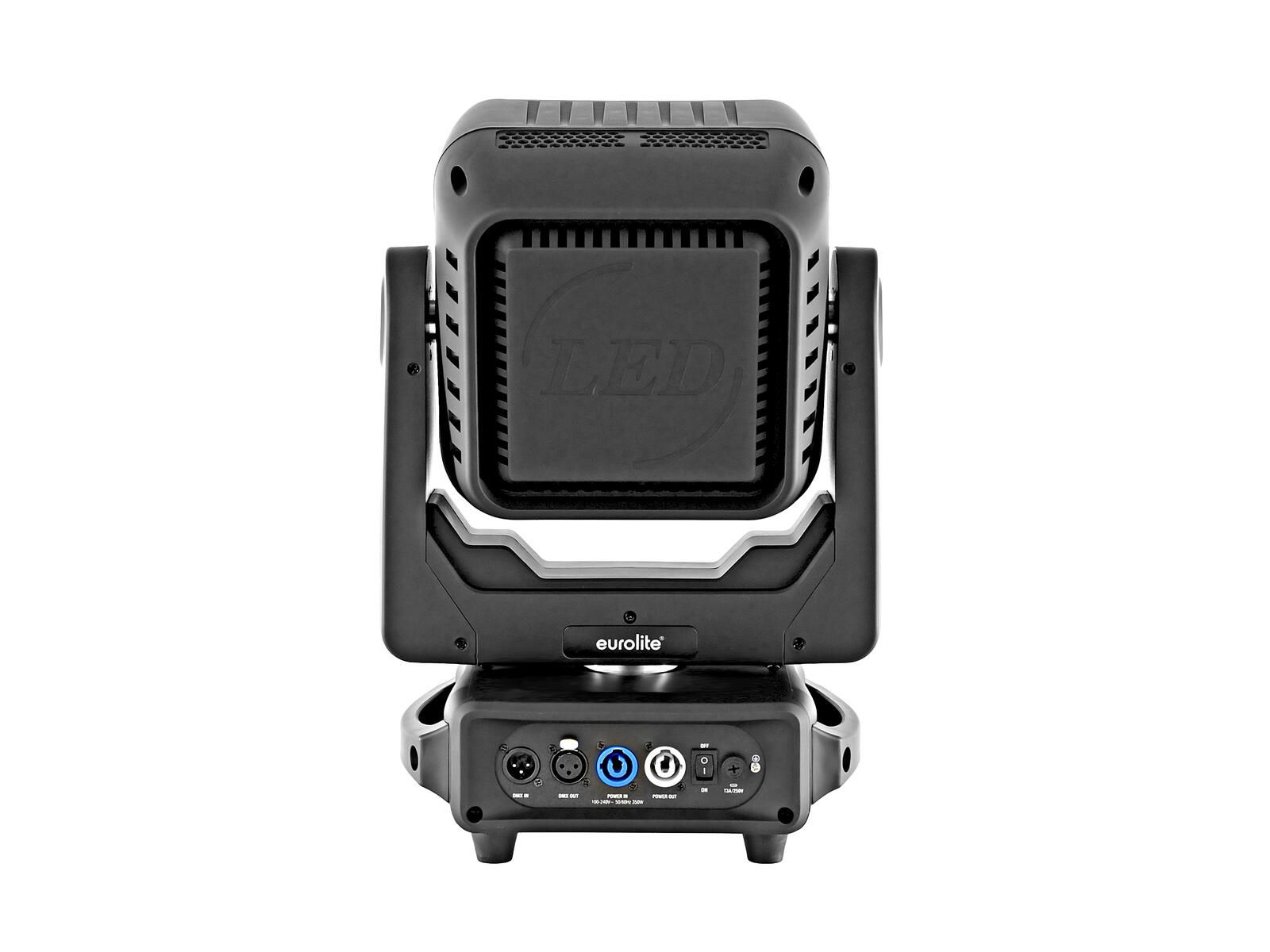

  DMX input:	3-pin XLR (M) mounting version
  DMX output:	3-pin XLR (F) mounting version
  Cooling:	2 x cooling fan at the head
  Control:	Stand-alone; sound to light; master/slave function; DMX; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  Preprogrammed in:	Light Captain
  Projection:	Flicker-free
  PWM frequency:	3700 Hz
  DMX fail mode:	Hold; zero values
  Beam angle:	2° - 42°
  Beam angle (1/2 peak):	2 - 26°
  Beam angle (1/10 peak):	8 - 42°
  Illuminance in Lux (lx):	Narrow red (R) 1m: 23482 lx, 3m: 5325 lx, 6m: 1516 lx Narrow green (G) 1m: 52510 lx, 3m: 12247 lx, 6m: 3458 lx Narrow blue (B) 1m: 9390 lx, 3m: 2326 lx, 6m: 657 lx Narrow cold white (CW) 1m: 69828 lx, 3m: 16074 lx, 6m: 4560 lx Narrow all 1m: 132161 lx, 3m: 30789 lx, 6m: 8704 lx Wide red (R) 1m: 3644 lx, 3m: 456 lx, 6m: 124 lx Wide green (G) 1m: 8216 lx, 3m: 1048 lx, 6m: 288 lx Wide blue (B) 1m: 1513 lx, 3m: 186 lx, 6m: 51 lx Wide cold white (CW) 1m: 10873 lx, 3m: 1330 lx, 6m: 368 lx Wide all 1m: 20729 lx, 3m: 2577 lx, 6m: 710 lx
  Housing color:	Black

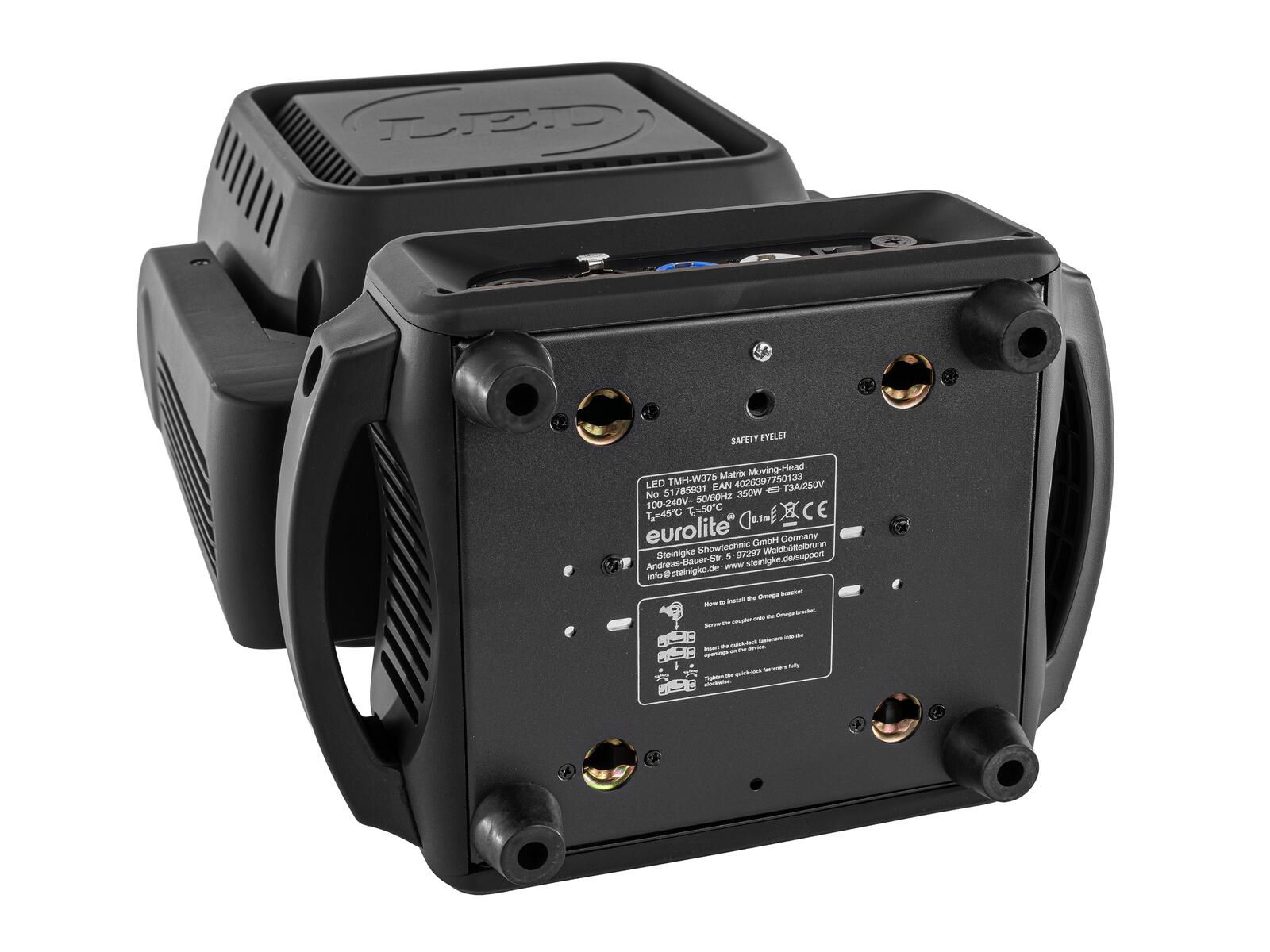

  Attachment system:	2x omega bracket

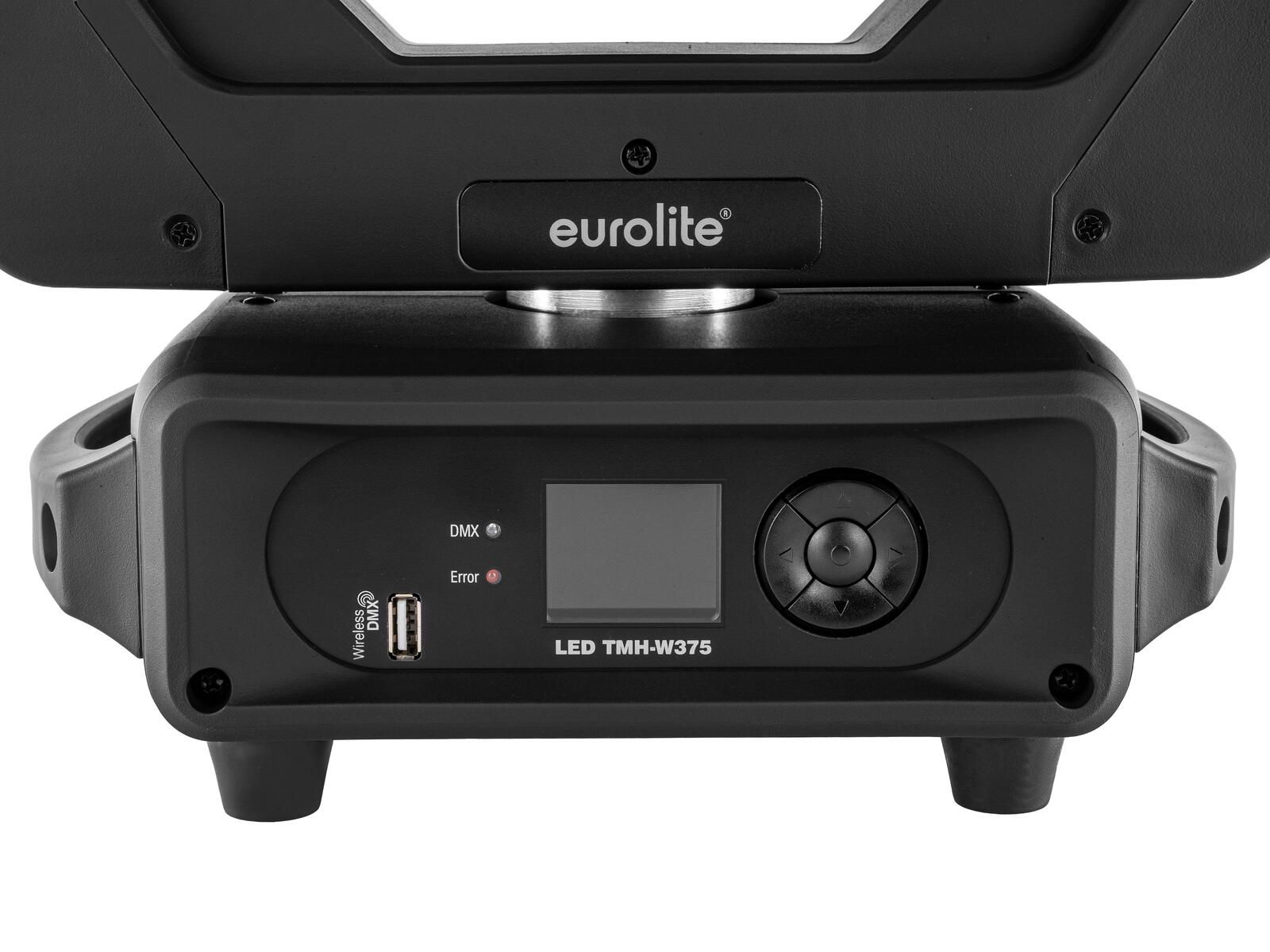

  Display type:	Multicolor LCD display
  Control elements:	Power switch
  Status LED:	DMX, fault
  USB port:	Type A
  Carrying handle:	2 pc/pcs
  Transport aid:	4 x rubber feet
  Diameter mounting holes:	2 x Ø10mm
  Material:	Plastic
  Dimensions:	Width: 30.3 cm Depth: 23.5 cm Height: 41.6 cm
  Weight:	9.70 kg
  Noise classification:	Class 2 (slight noise)
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
