€ 24,05
€ 19,88
?
SKU
st81013202

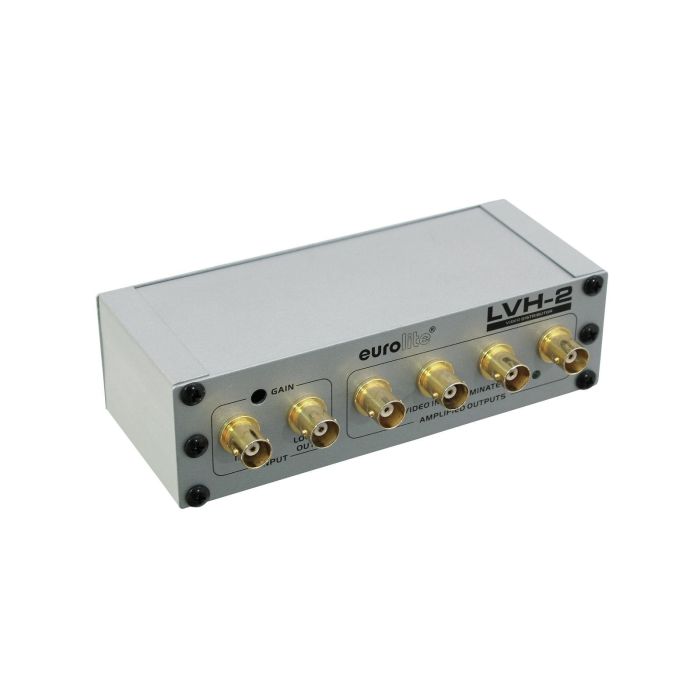

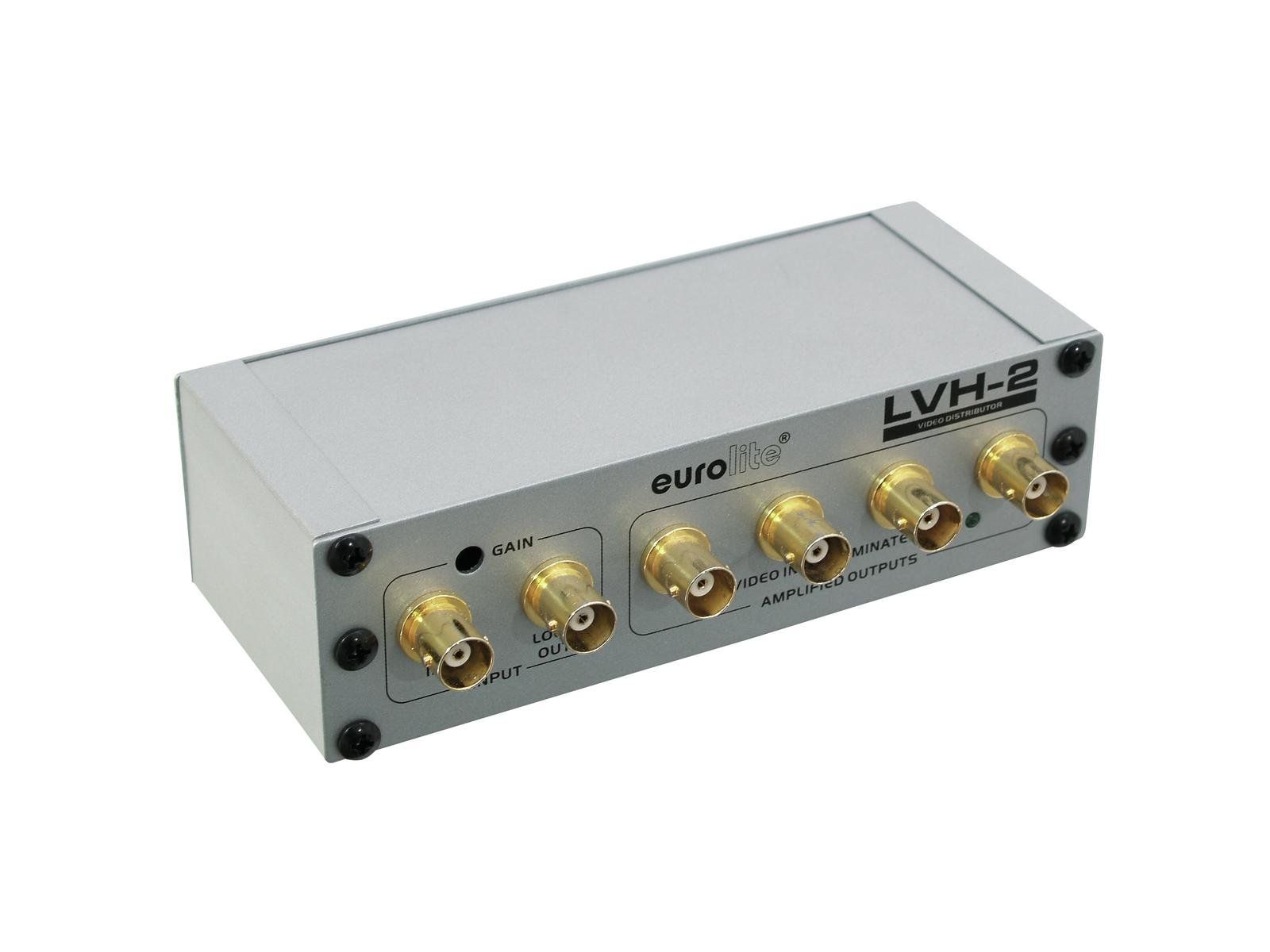

EUROLITE LVH-2 Video distribution amp
EUROLITE LVH-2 Video distribution amp
Features
- Distributes 1 input to 4 outputs
- 1 parallel output for feed-through of the input signal
- 75 ohms input and outputs via BNC plugs
- Adjustable gain amplification
- 10 MHz bandwidth
- 1 V video signal indicator

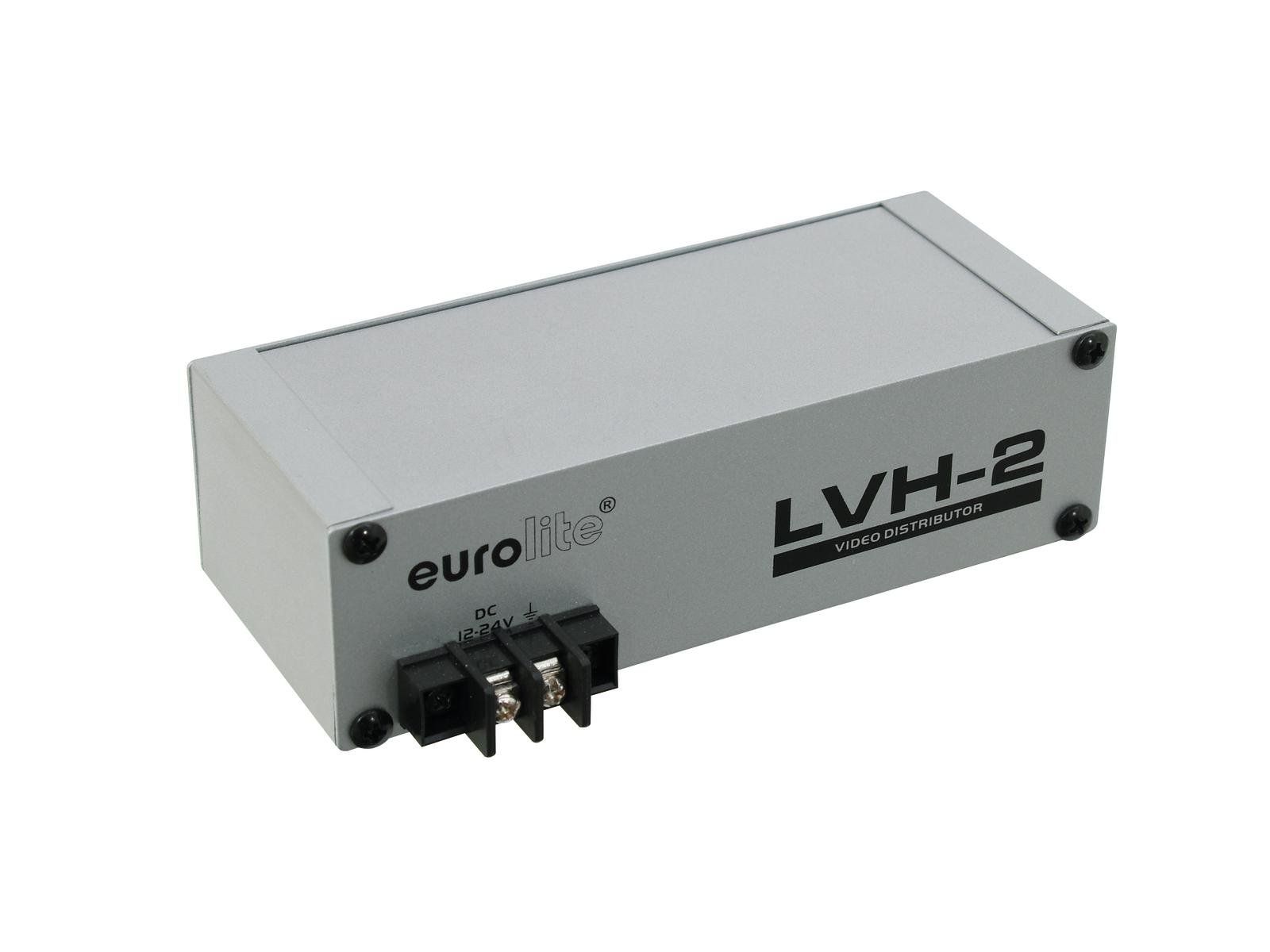

- 12-24 V DC power supply via block terminals (PSU not included in the delivery)
Technical specifications
| Power supply: | 12-24 V DC, 60 mA |
| 1 x video input: | 1 Vpp/ 1 kohms (bridged), 75 ohms (terminated), BNC |
| 5 x video outputs: | 1 Vpp/ 75 ohms, BNC (1 feed-through output, 4 amplified outputs) |
| Gain range: | 0 dB to +6 dB (0.9 to 2.25 Vpp) |
| S/N ratio: | >70 dB |
| Output isolation: | >40 dB |
| Differential gain: | 0.1% |
| Differential phase: | 0.1 degree |
| Dimensions (L x W x H): | 146 x 87 x 42 mm |
| Weight: | 0,37 kg |
| Frequency range: | 10 - 10000000 Hz |
| Height: | 4,2 cm |
| Depths: | 8,7 cm |
| Width: | 14,6 cm |
