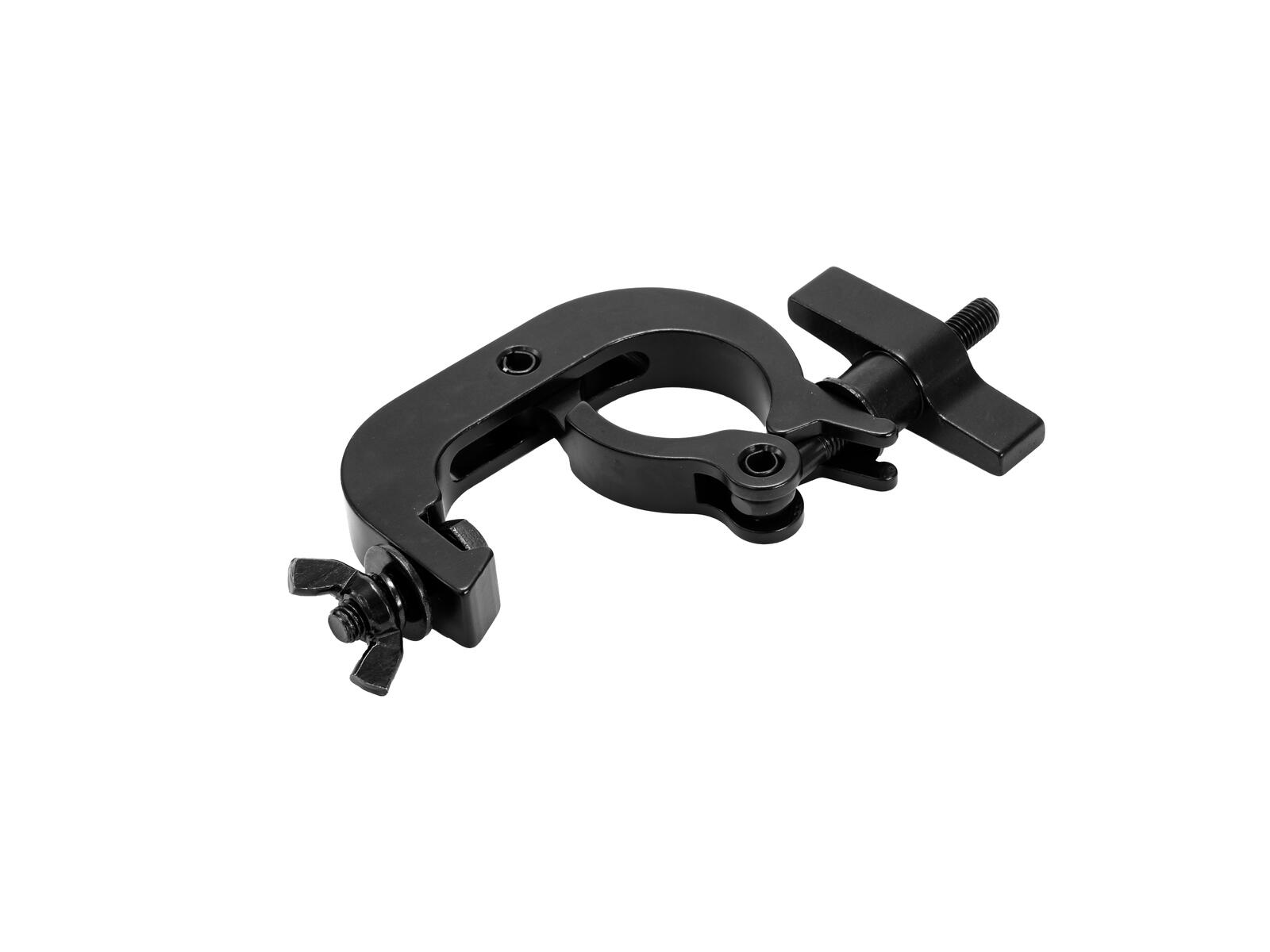

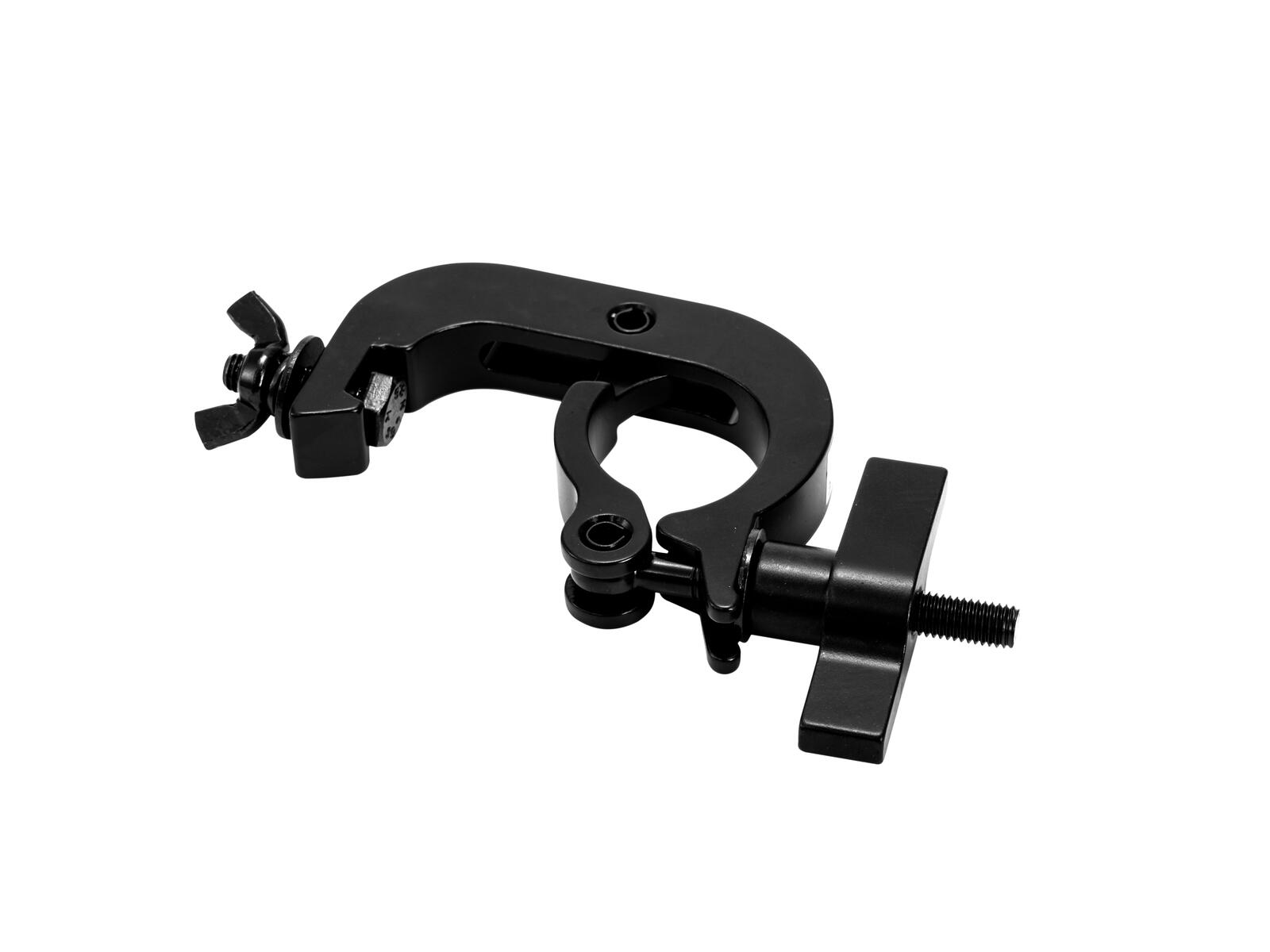

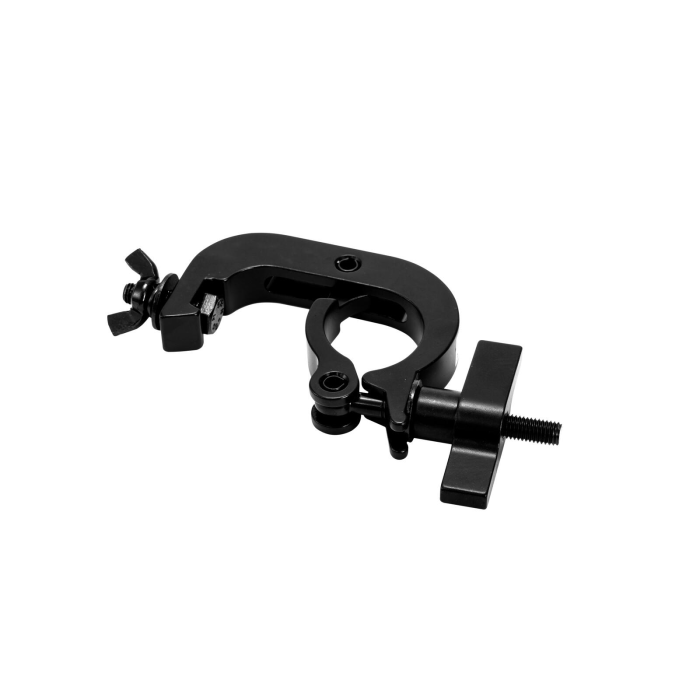

EUROLITE TH-220 QUICK-LOCK Coupler SLIM. black
EUROLITE TH-220 QUICK-LOCK Coupler SLIM. black
Features
Extra narrow (20mm) truss hook for more space on the truss diagonals
- For application areas such as: Trade fair and shop fitting
- Narrow truss hook fits between the diagonals of 290 mm trusses.
Package contents
- 1 x hooks
Technical specifications
| Maximum load BGV C1 (8-fold): | 50 kg |
| Maximum load WLL (4-fold): | 100 kg |
| Clamp area: | 44 - 50 mm |
| Material: | Aluminum casting |
| Color: | Black |
| Mounting screw: | 1 x M10 |
| Total thickness: | 20 mm |
| Dimensions: | Width: 2 cm Depth: 9,5 cm Height: 12 cm |
| Weight: | 0,37 kg |
