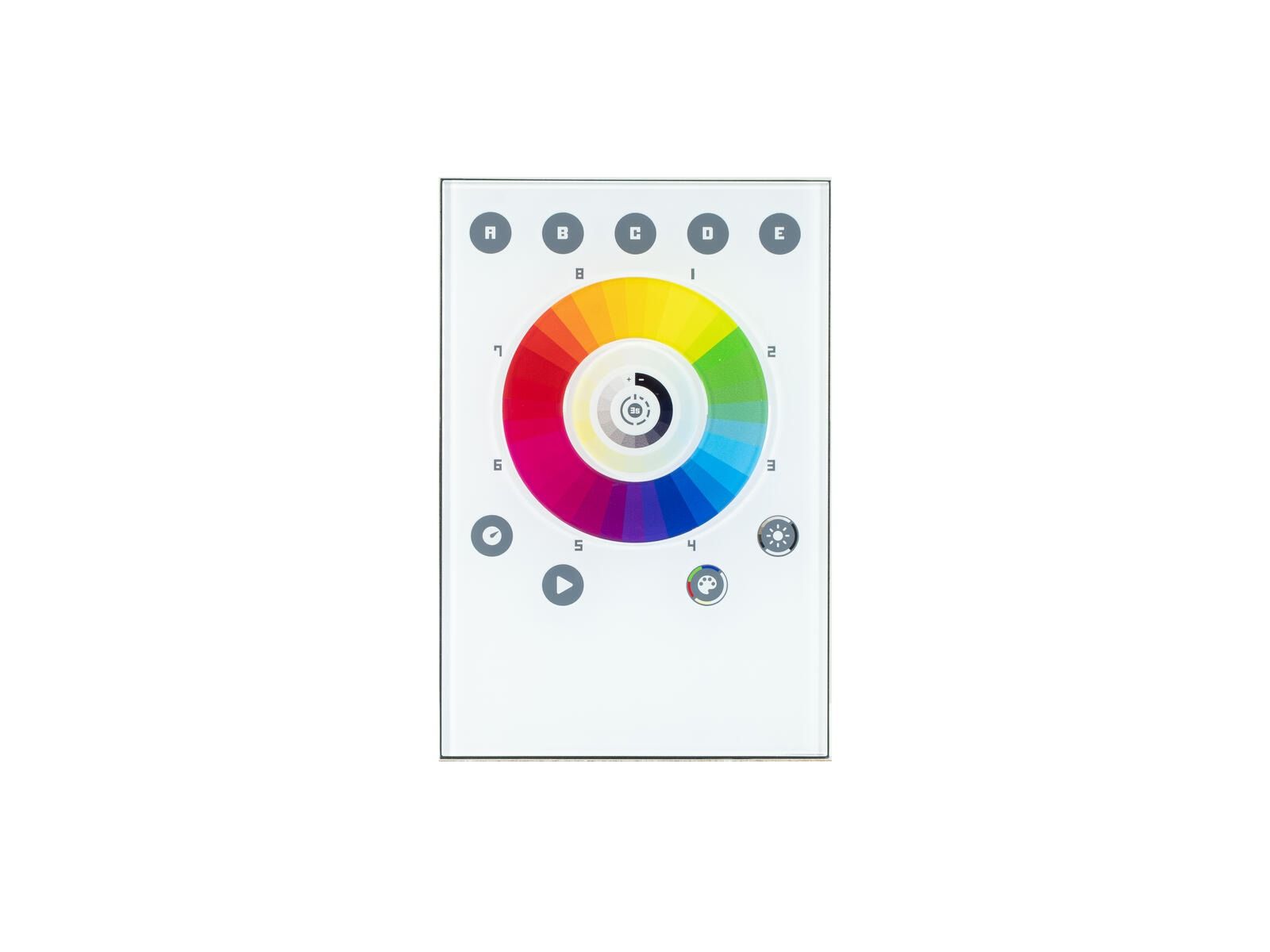

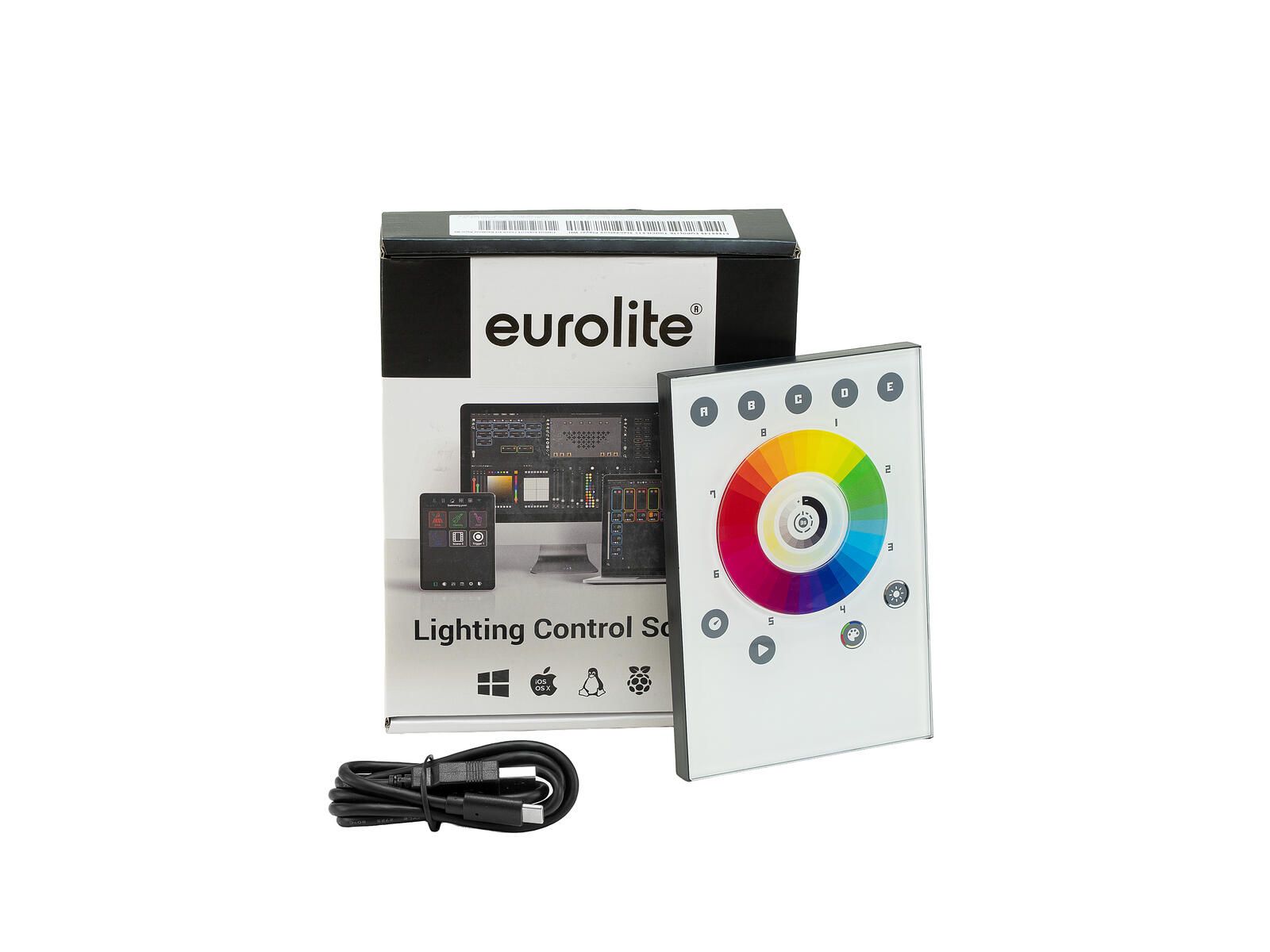

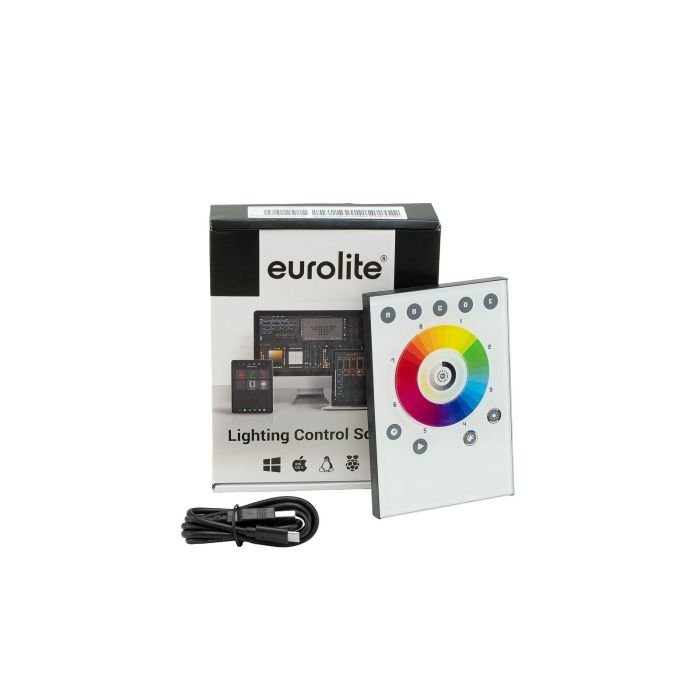

DMX wall controller with multi-function touchpad and software, 512 channels

• Flat, wall-mounted stand-alone player for DMX control of light effects without the need for a computer
• Can transmit up to 512 DMX channels
• Write a show in to the stand-alone memory of the player and play back sequences without a computer
• Real-time clock triggering for each scene (day, week, month, year)
• Automatic Scene Recovery if the power is accidently cut off
• Programmable 40 scenes/chases
• Control via DMX; master/slave function; sound to light; Wi-light 2 App
• In connection with Pro DMX 2
  firmware can be updated
• Flush mounting
• Compatible with Win 7, Win 10, Linux, OS X 10.13 or better
• For application areas such as: Restaurants, bars and hotels; Trade fair and shop fitting; installation
• Technical specifications

  Power supply:	9-24V DC 100 mA
  IP classification:	IP20
  Protection class:	Protection class III
  Power connection:	Via screw terminal
  Programs:	Programmable 40 scenes/chases
  DMX channels:	Output 512
  Control:	DMX; master/slave function; sound to light; Wi-light 2 App
  Connections:	Output: screw plug-in terminal RJ-45 (F) mounting version
  Available storage media:	MicroSD card
  USB port:	Type C
  Material:	Glass; plastic
  Color:	White
  PC connect:	Pro DMX 2, firmware can be updated
  Housing design:	Flush mounting
  Dimensions:	Width: 9.8 cm Depth: 1.3 cm Height: 14.4 cm
  Weight:	0.22 kg
  Operating system:	Win 7, Win 10, Linux, OS X 10.13 or better
