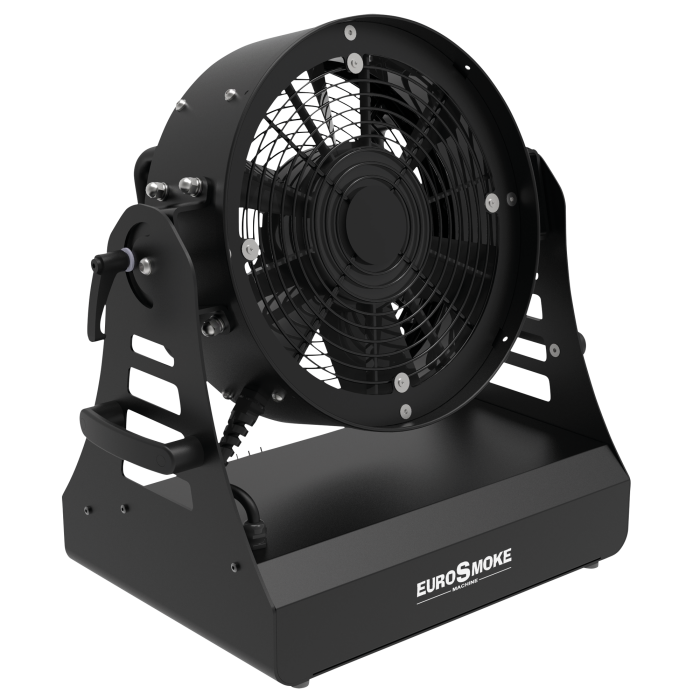

EuroSmoke Eurosmoke Fan Axial power fan
EuroSmoke Eurosmoke FanAxial power fan
The Eurosmoke Fan is a powerful and versatile wind generator designed to enhance artificial smoke dispersion and create dynamic wind effects on stage.
With adjustable fan speeds ranging from 1000 to 4500 RPM, it ensures optimal smoke spread and atmospheric movement.
It supports DMX512 control for synchronised effects and can also operate independently, offering flexibility for various setups.
Built for professional use, the fan features metal guards for safety, a modular mounting bracket for floor or rig installation, and PowerCon True1 connectors for linking multiple units. Its compact design and transport-friendly build make it a reliable choice for mobile productions and fixed installations. It’s ideal for theatres, concert tours, and large-scale events and delivers high-performance airflow with precision control.
Specifications
Electrical Specifications and Connections
Power Supply 230 V AC 50 Hz
Power Consumption 800W
Power Connector In powerCON TRUE1
DMX Connector XLR 5P In/Out
Cable Length 1.5 m
Mechanical Specifications
Housing Metal
Color Black
Length (mm) 329mm (12.953″)
Height (mm) 517mm (20.354″)
Width (mm) 514mm (20.236″)
Weight 20 kg (44,092 lb)
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual
DMX Channels 1
Thermal Specifications
Maximum Ambient Temperature 45°C (113°F)
Minimum Ambient Temperature 5 °C (41 °F)
Included Items
Included Cables powerCON TRUE1 cable
