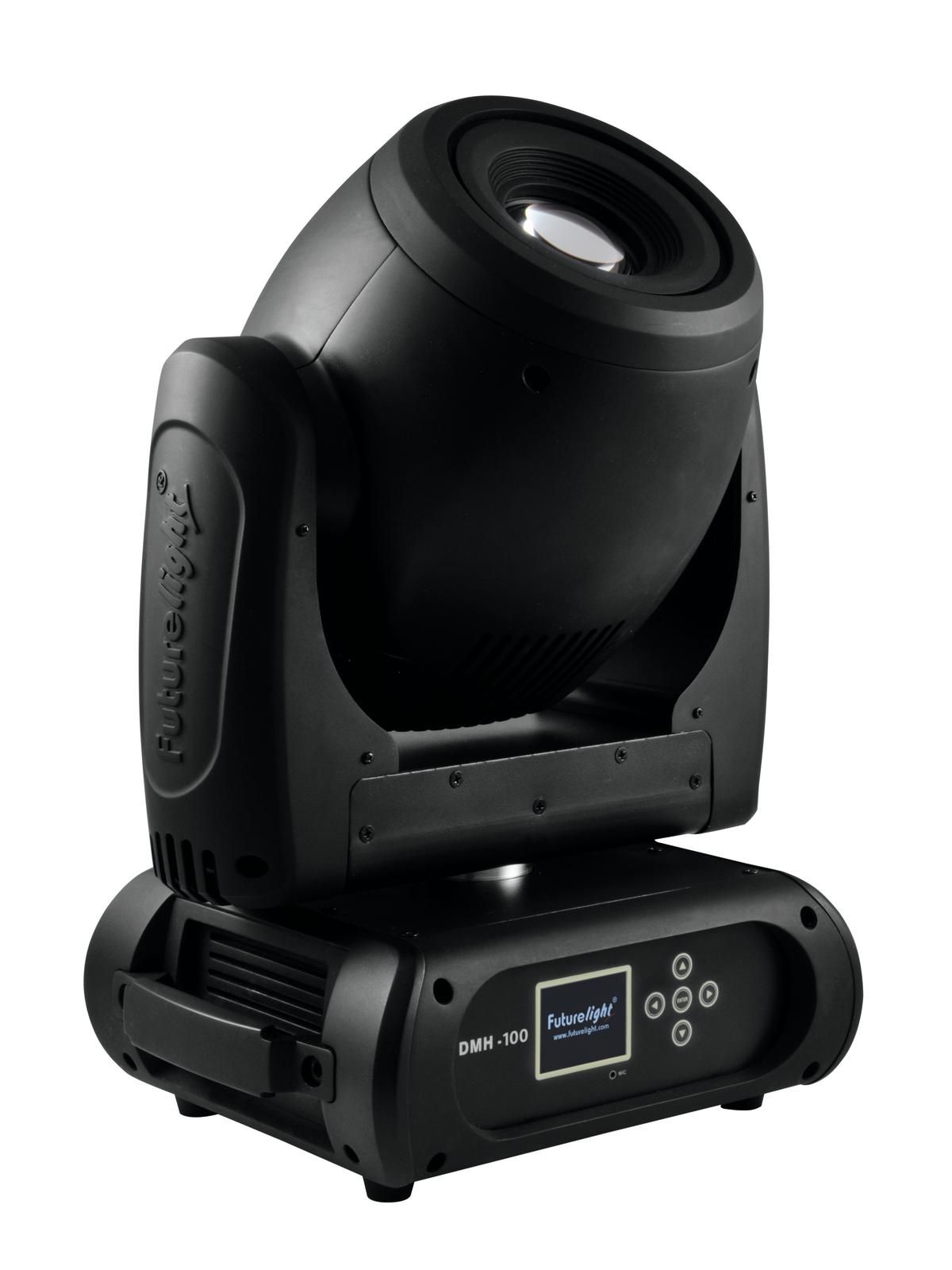

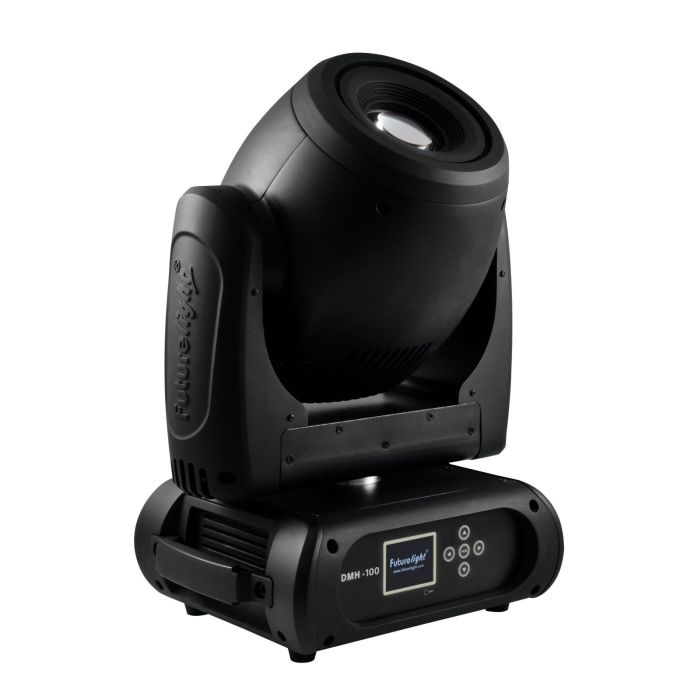

FUTURELIGHT DMH-100 RGBW LED Moving Head

Equipped with a 100 W COB LED in RGBW colors
With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
Color effect prism: Not only the gobos, also the colors are split
Supports RDM (Remote Device Management)
17, 19, 26 or 33 DMX channels selectable
Stepless RGBW color changing
Color presets
Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
Gobo wheel 1 with 7 rotating gobos plus open
All gobos can be interchanged
Slot-in gobo system for exchanging gobos without tools
With gobo shake function
Gobo wheel 2 with 7 static gobos plus open
Exact positioning via 16 bit PAN/TILT movement resolution
Exact color setting via 16 bit resolution
Motorized focus
Autofocus
Steplessly adjustable iris
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Sound-controlled via built-in microphone
Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link

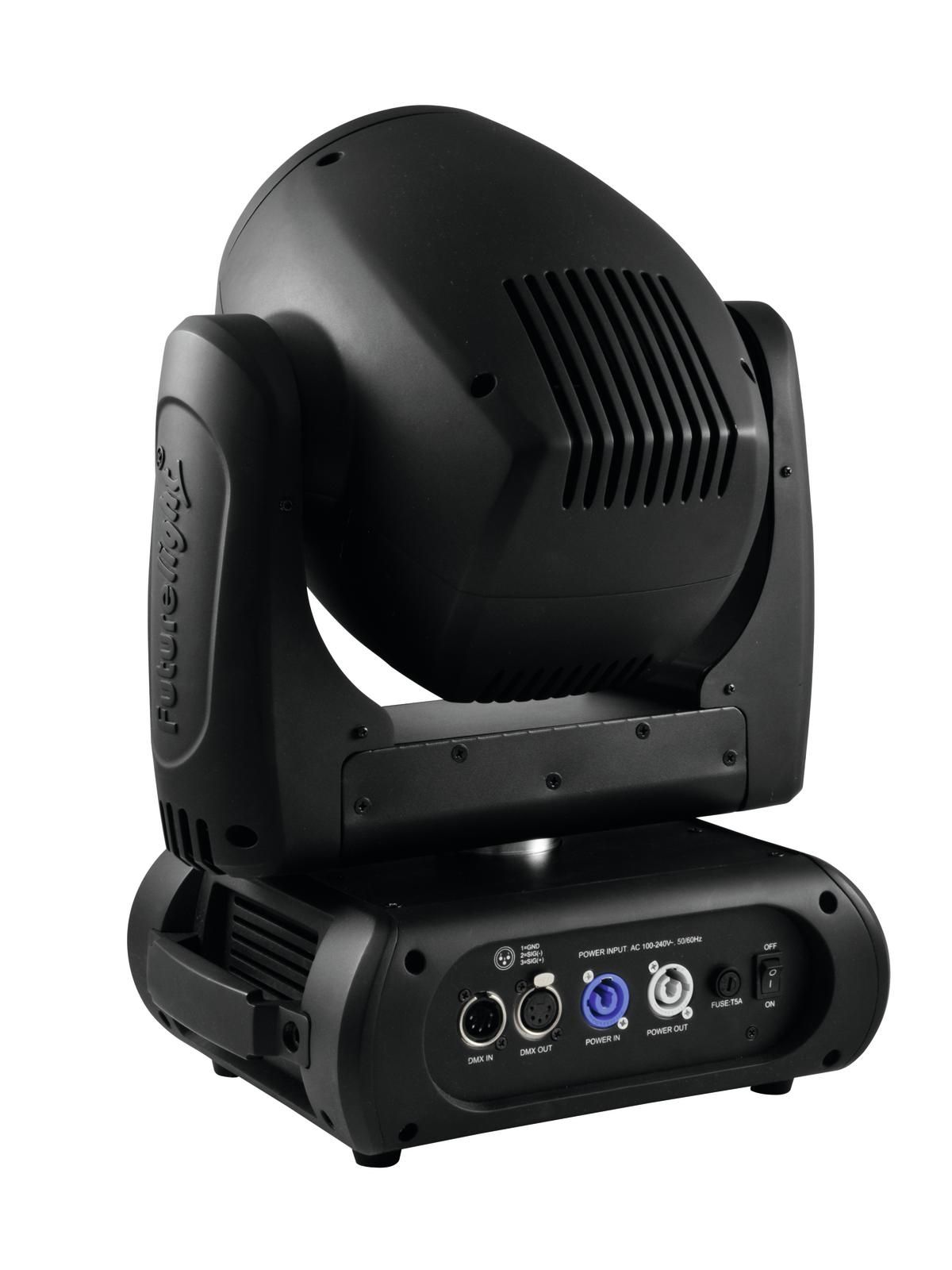

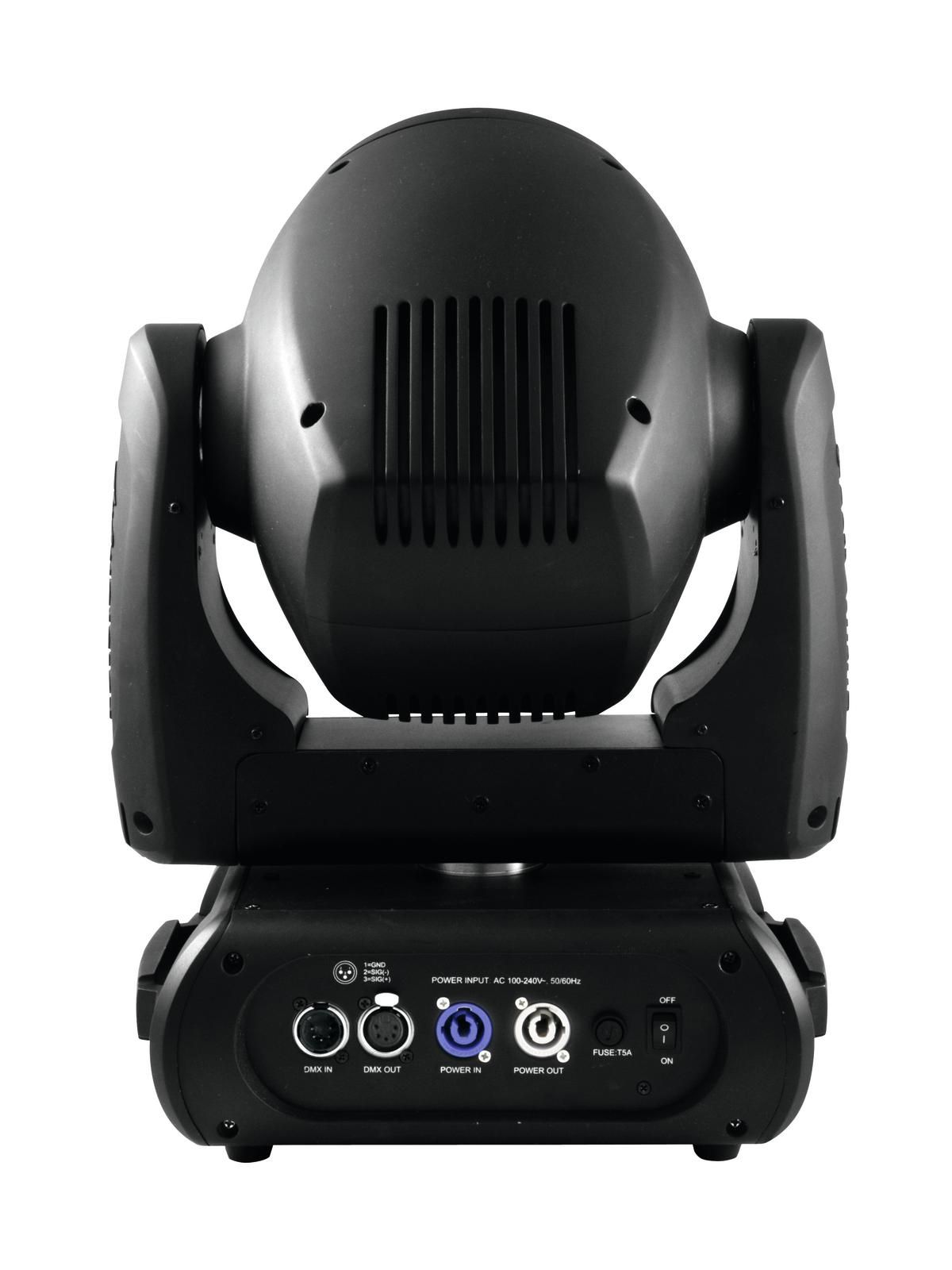

Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power another device
After 8 devices the fixtures must have a renewed connection with the power mains
DMX control via every standard DMX controller

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 200 W
DMX channels: 17/19/26/33
DMX connection: 5-pin and 3-pin XLR
Sound-control: via built-in microphone
Wireless signal transmission: 2.4 GHz (ISM)
LED type: Array Cluster 100 W
LED number: 1
Beam angle: 13°
Static gobo-wheel: 7 gobos and open
Rotating gobo-wheel: 7 gobos and open
Outside diameter of the gobos: 27 mm
Image diameter of the gobos: 22 mm
Maximum PAN-movement: 630°
Maximum TILT-movement: 270°
Dimensions (L x W x H): 343 x 250 x 428 mm
Weight: 13 kg
Color: Black
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
