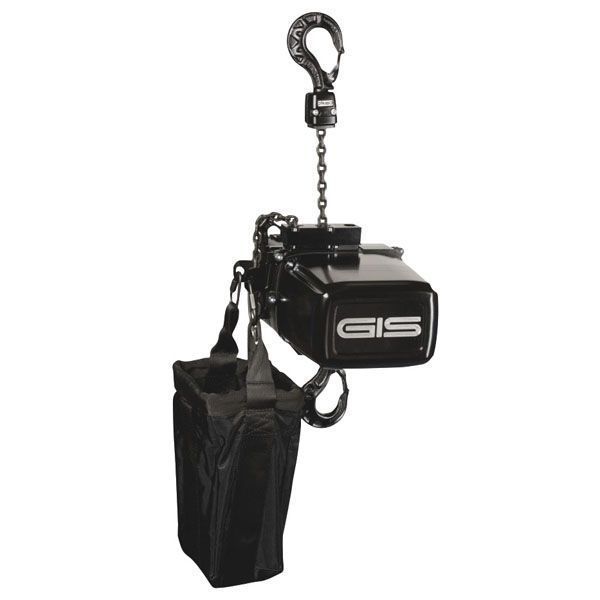

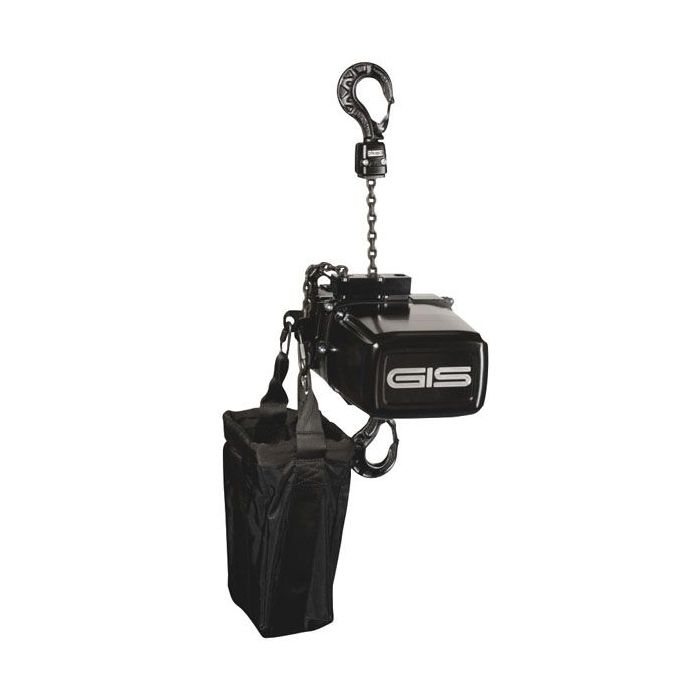

GIS 500kg D8+ Electic Chainhoist 20m

Two independent brake systems and a safety factor 8:1 allows people to stand under the load without a
secondary safety device. By means of direct control, the chain hoists can be easily combined as group hoists.
The ergonomic control switch is controlled by low voltage in stationary hoists. The chain hoist is in accordance
with BGV D8+ as a modular chain hoist for lifting loads.
A Single reeved 0,5t chain hoist. The chain hoists are perfectly suitable for both mobile and outdoor use. The
top and bottom end positions can be individually and precisely set. The optional locking load hook prevents the
load from accidentally slipping off the load hook.

MAIN FEATURES:
• Safety factor 8:1 according to DIN 56950:2012;
• Model LP, single reeved;
• Aluminium casing and cover;
• Profile steel chain;
• Dry-running slipping clutch;
• Geared limit switch with high postioning accuracy;
• Standard voltage: 400V-3Ph-50Hz;
• Working load limit: 0,5t;
• Classification group: M5: duty cycle; 40% 240 s/h (2m);
• Lifting speed: 4m/min;
• Standard lifting height: 20m;
• Protection class: IP65;
• Isolation class F (motor);
• Hook suspension.

INCLUSIVE:
• Approx. 0,8m power cable with 16A CEE plug, 5 pin red;

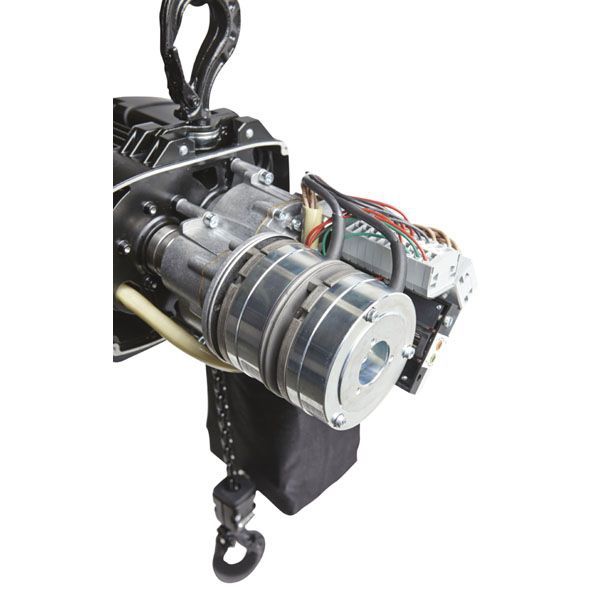

• Double brake;
• Chain bag.
