Bluetooth connectivity

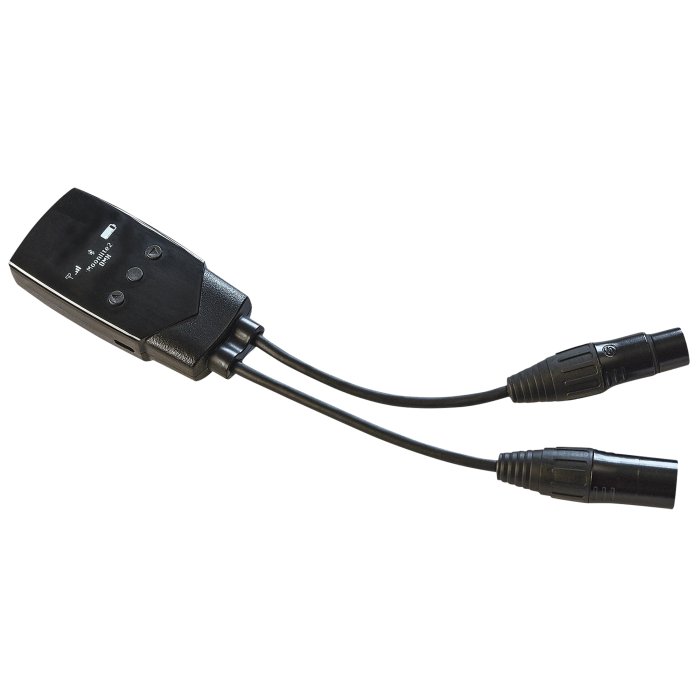

Lumenradio's MoonLite² is a portable, battery-powered CRMX transceiver that can be plugged directly into your light fixture's DMX port, giving it instant wireless capability.

Featuring a simple user interface with navigation buttons and a clear screen, the MoonLite² makes it easy to test and check DMX data, while the RDM controller functionality makes it possible to configure fixtures directly from the CRMX Toolbox app.

The built-in rechargeable battery lasts up to 12 hours in CRMX RX mode.

With Bluetooth connectivity and the ability to handle both CRMX and W-DMX signals, the MoonLite² is a wireless DMX/RDM transmitter and receiver that can do it all.

Wireless Specifications

Wireless Mode G3, G4s, CRMX

Gain (mW) 100 mW

Antenna Type Omni

Battery

Battery Type Lithium ion

Control and Programming

Protocols Bluetooth 5.0, DMX, RDM

Operational Modes Transceiver

Electrical Specifications and Connections

Power Supply 5 V DC

Power Connector In USB-C Power adapter

DMX Connector In XLR 5P

DMX Connector Out XLR 5P

Mechanical Specifications

Weight 0.7 kg (1.543 lb)

IP Rating

IP20 (indoor use only)

Housing Plastic

Colour Black

Thermal Specifications

Maximum Ambient Temperature 55 °C (131 °F)

Minimum Ambient Temperature -20 °C (-4 °F)
