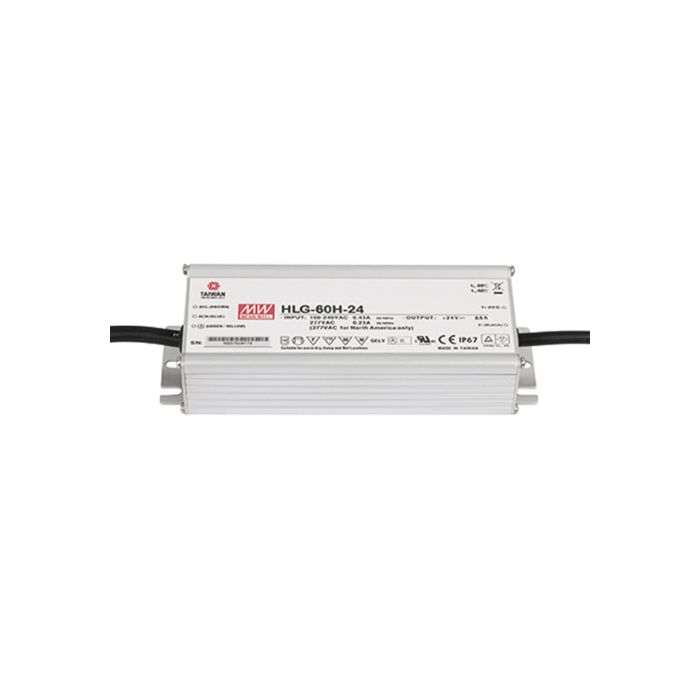

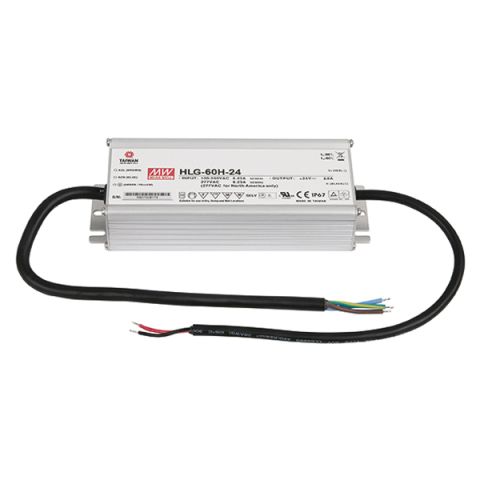

Meanwell LED Power Supply 60 W 24 VDC MEAN WELL HLG-60H-24

High performance IP67 24 V LED power supplies with built-in active PFC-function (Power Factor Correction).
The HLG-power supplies meet the harmonic current limitation per EN61000-3-2 Class-C, also fulfill PF>0.9 if loading over 50-60% and possess 4KV surge immunity ability complying with the requierments of street lighting. With up-to date LLC and synchronize rectify technology, they posses up to 94% of high efficiency, so they can be cooled by free air convection from -30°C to +70° ambient temp. and meet the requirements of outdoor installation. Beside standard functions of protections for short circuit, over voltage, overload and over temperature, these power units are equiped with 1-10VDC, PWM, and resistance as –3-in-one dimming function–. This high efficiency power supplies offer system designers great flexibility of designing luminairs with energy saving and brightness reduction alternative. The HLG-serie is very suitable for LED garden- & street-lighting,  LED spotlights, outdoor electric display and LED decorative lighting and also good solutions for general applications at outdoor environment with high dust and moisture.

Specifications

• Prim: 110-277VAC
• Sec: 24V / 60W / 2,5A
• Afmetingen: LxBxH: 171 x 61,5 x 36.8 mm
• Gewicht: 0,73 Kg
