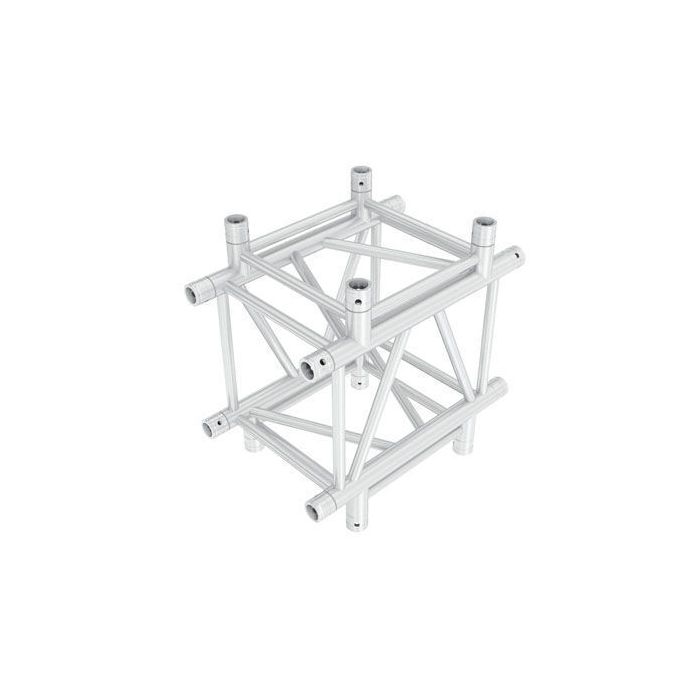

Milos 4KH-40-J41 Cross 4-way Heavy Duty Pro-40 Square G Truss

The Pro-40 Heavy Duty truss is a larger format product line which provides remarkable weight loading capabilities while fitting the needs of more substantial spans and booth designs such as concert stages, larger exhibit displays or any other types of indoor or outdoor stages. Constructed out of certified 48x3mm thick aluminium alloy tubes with 20x2mm braces, this Heavy Duty version measures 388x388mm and can be used for interior or exterior applications. Available in Prolyte compatible F-version or Global/Euro truss compatible G-version in alu colour. For other colours, specific lengths or junctions please contact our Sales department.

Cross 4-way Heavy Duty Pro-40 Square G Truss

Certified 48mm heavy-duty tube
Connection kit supplied with every truss length & junction
Fast connection for quick, simple and secure assembly
Great free-span & loading characteristics (up to 20m/65.61ft)
Colour Silver
Finish Polish
Weight 16.875 kg
Diameter Brace Tube 25 x 3
Diameter Main Tube 48 x 3
Length (m) 0.75 m
Length (mm) 750 mm
Size 400mm x 400mm
Truss Type 4-Way, Cross
Truss Corner Degree 90
Compatibility Eurotruss, Global Truss
Included Accessories 1x Set Spigot, Pin, Spring
