Neutrik NF2D-9 WIT
Phono socket Nickel WhitePhono (RCA) / Phono (RCA) Sockets

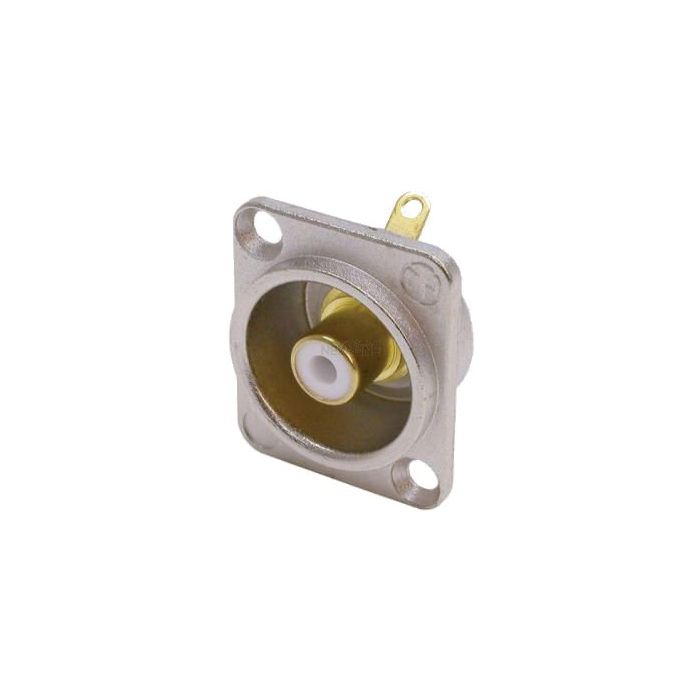

Chassis Phono (RCA) socket in D-shape housing.TECHNICAL DATARated Current: 16A
Rated Voltage: 50V
Insulation Resistance: 5 GOhm
Contact Resistance: 10 mOhm
Dielectric Strength: 500V
Solderability acc. IEC68-2-20
Temperature Range: -25°C to +70°CMaterials and Platings:
Shell of the RCA : Brass, Au plated
contacts : Brass, Au plated
D-housing: ZnAl4Cu1, gal Ni or black Cr plating
Insulator: PA6+30GF
