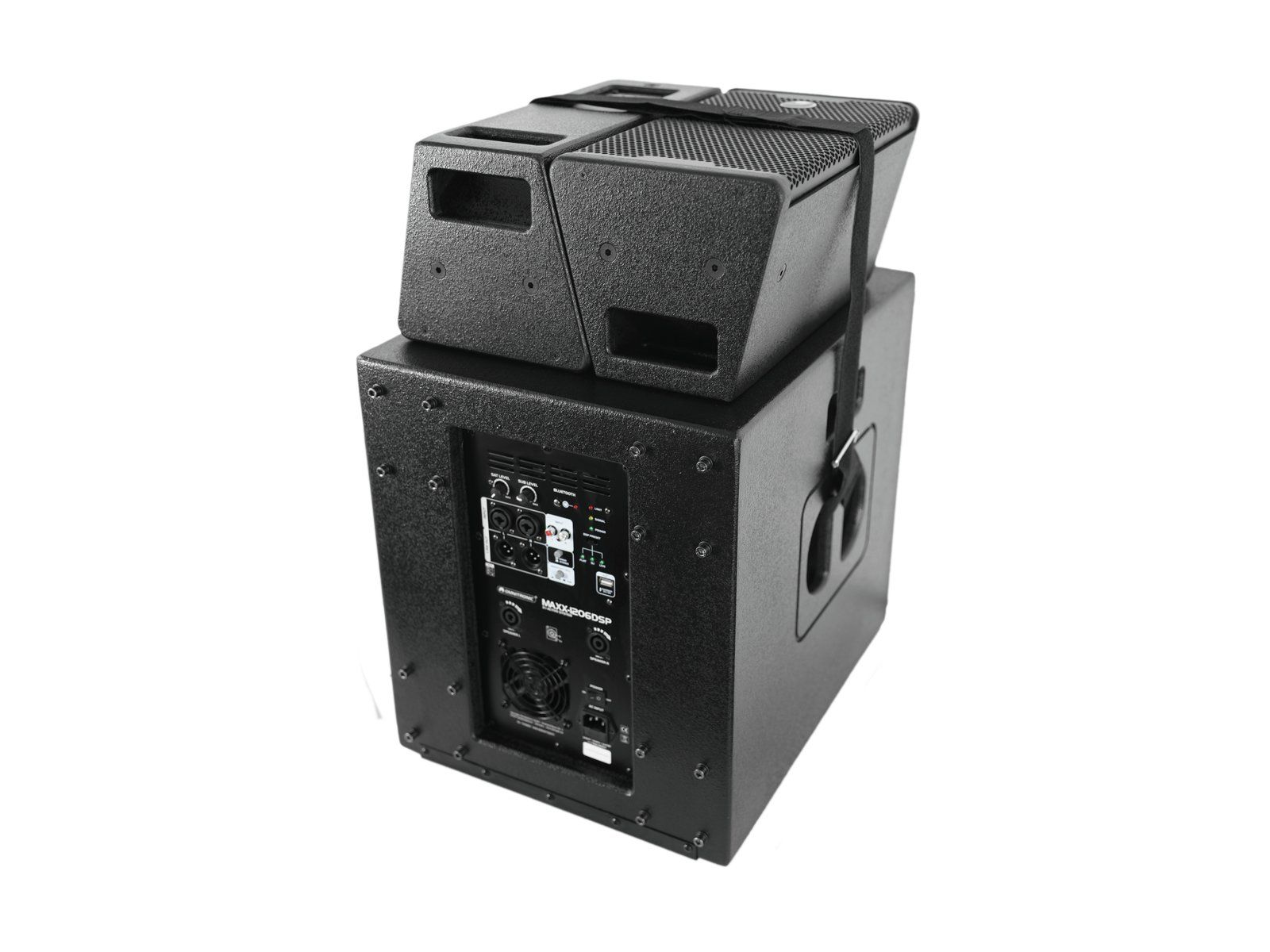

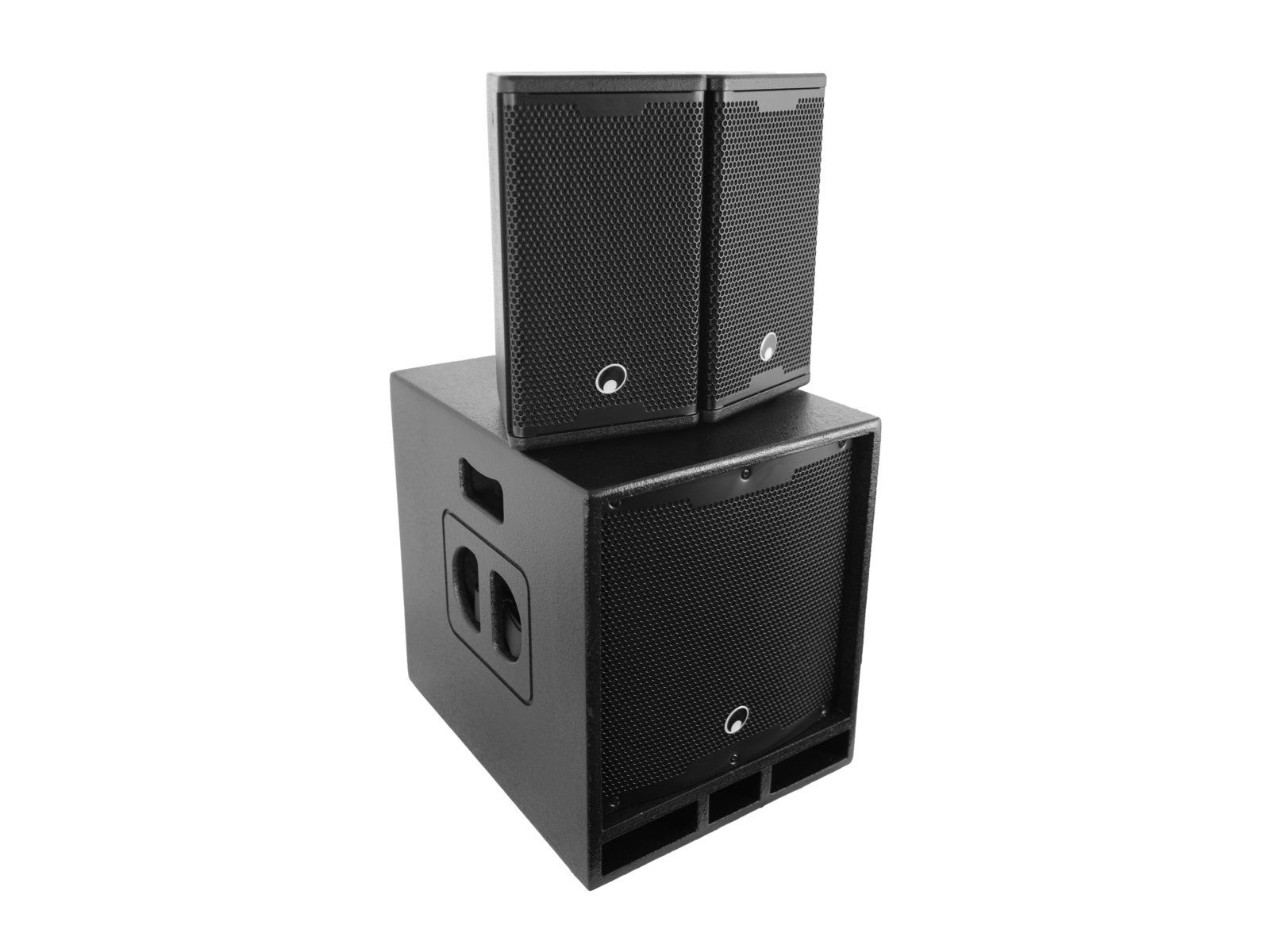

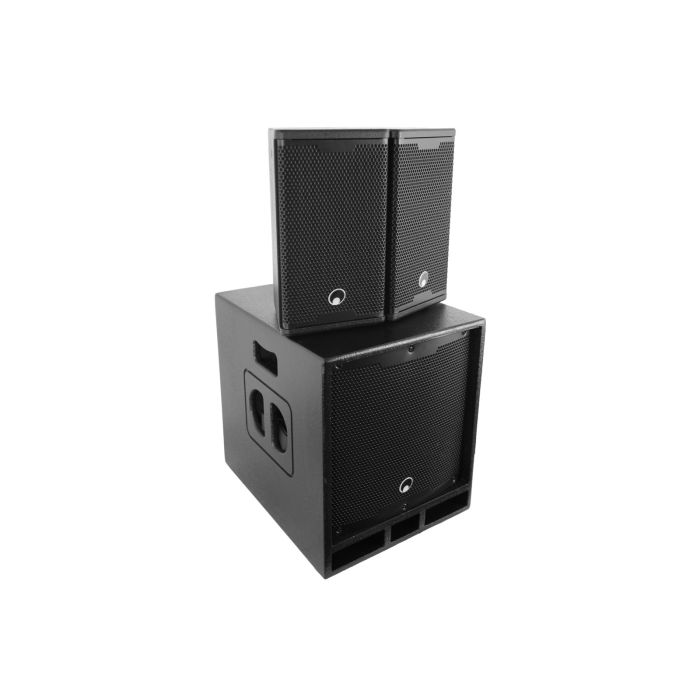

OMNITRONIC MAXX-1206DSP 2.1 Active System
OMNITRONIC MAXX-1206DSP 2.1 Active System
Features
- For application areas such as: Mobile use; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; mobile djs / entertainer
OMNITRONIC MAXX-1206 2-Way Top 6.5" 2x
2 x 6.5" passive full-range speaker, 100 W RMS
- 2-way bass-reflex system with 6.5" bass-midrange speaker and 1" titanium compression driver
- Serve as a mobile 2.1 system together with the MAXX-1206 subwoofer
- With passive 2-way crossover, PTC tweeter protection
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- 2 pieces per set
- For application areas such as: Mobile djs / entertainer; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
- Application possibility: Standing; suspended; monitoring; on stand
Package contents
- 2 x top, 2 x speaker cable
OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer 12"
High-power 12" active subwoofer with DSP and Bluetooth, 450 watts
- 12" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power: 250 W RMS + 2 x 100 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1206 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- Rubber feet
- DSP presets: FLAT; DJ; LIVE
- Black metal grille with acoustic foam
- Application possibility: Standing
- Wheels optional
- For application areas such as: Mobile djs / entertainer; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
Package contents
- 1 x bass, 1 x power cord, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Weight: | 34,35 kg |
| OMNITRONIC MAXX-1206 2-Way Top 6.5" 2x | |
| Power: | Program: 200W Rated: 100W RMS |
| Frequency range: | 100 - 17000 Hz |
| Sensitivity: | 91 dB |
| Max. SPL: | 115 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 4 ohms |
| Attachment system: | Flange: Ø 35mm |
| Flying points: | 3 x M8 thread |
| Connections: | Input: speaker via 1 x speaker built-in socket (F) |
| Speaker: | 1 x woofer 6,5" Basket material: steel Conematerial: cardboard/paper 1 x compression tweeter highs 1" |
| Type of speaker: | Compact cabinet speaker |
| Carrying handle: | 1 pc/pcs |
| Material: | MDF (medium density fiberboard), 16 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 20,4 cm Depth: 19 cm Height: 36,2 cm |
| Weight: | 12,70 kg |
| OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer 12" | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 4 A fuse replaceable |
| Power: | Rated: 250W RMS LF Rated: 2x 100W RMS HF |
| Frequency range: | 100 - 17000 Hz top |
| Sensitivity: | 97 dB |
| Max. SPL: | 119 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE |
| Control: | Bluetooth |
| Bluetooth device name: | OMNITRONIC MAXX1206 |
| Attachment system: | Flange: M20 thread |
| Circuitry: | Class D |
| Control elements: | Power switch, level control, Input sensitivity switch, connect, tone control |
| Controls: | Limiter |
| Status LED: | Power, signal, limit, pairing, DSP presets |
| Connections: | Input: line via 1 x stereo RCA Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via XLR or RCA or bluetooth, channel control via rotary dial |
| Speaker: | 1 x woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper |
| USB port: | 1 x type C, 2 A |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Transport aid: | Rubber feet Wheels optional |
| Material: | MDF (medium density fiberboard), 16 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 38,4 cm Depth: 47,4 cm Height: 45,8 cm |
| Weight: | 19,10 kg |
| Bass | |
| Frequency range: | 38 - 250 Hz bass |
