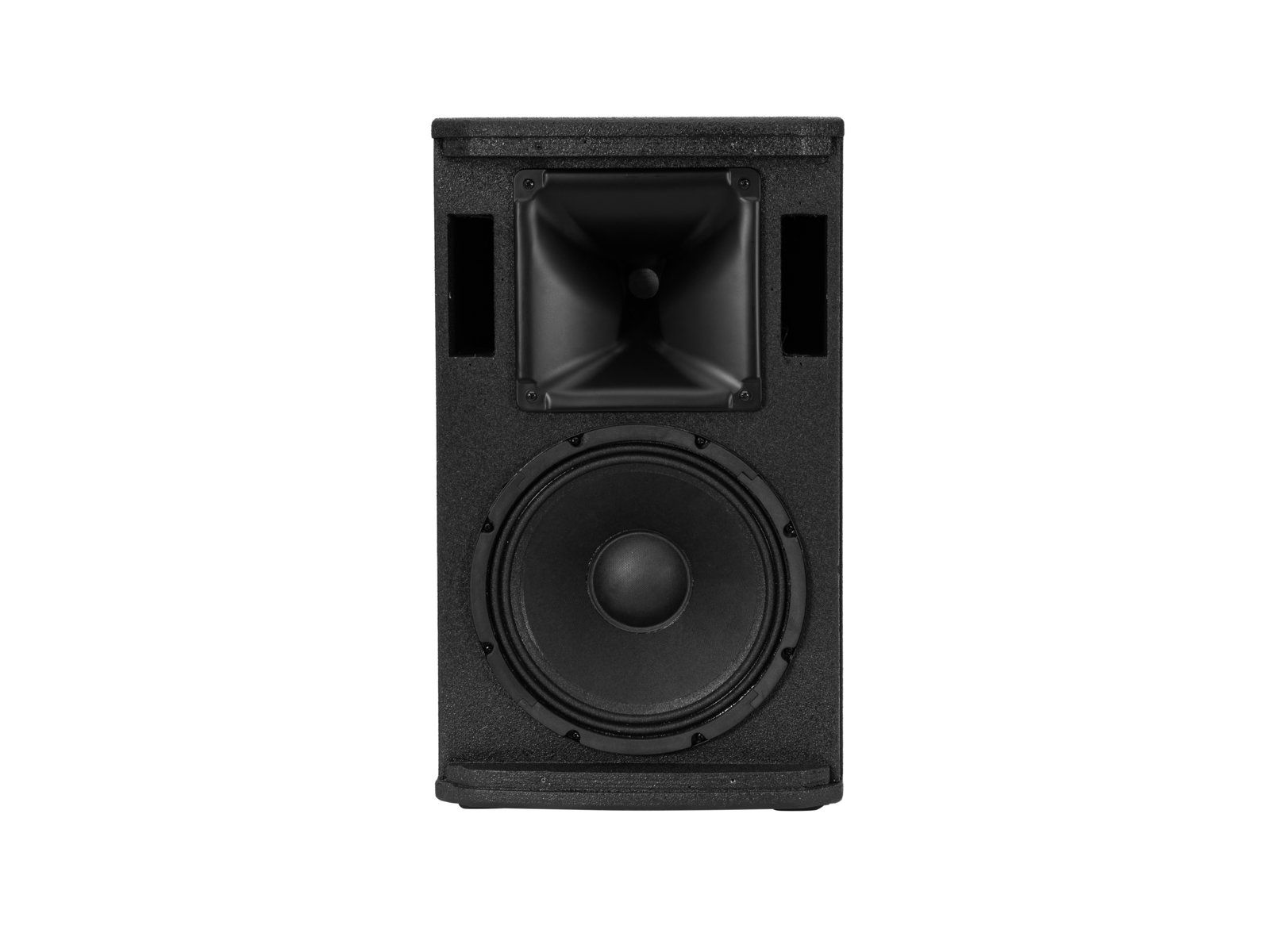

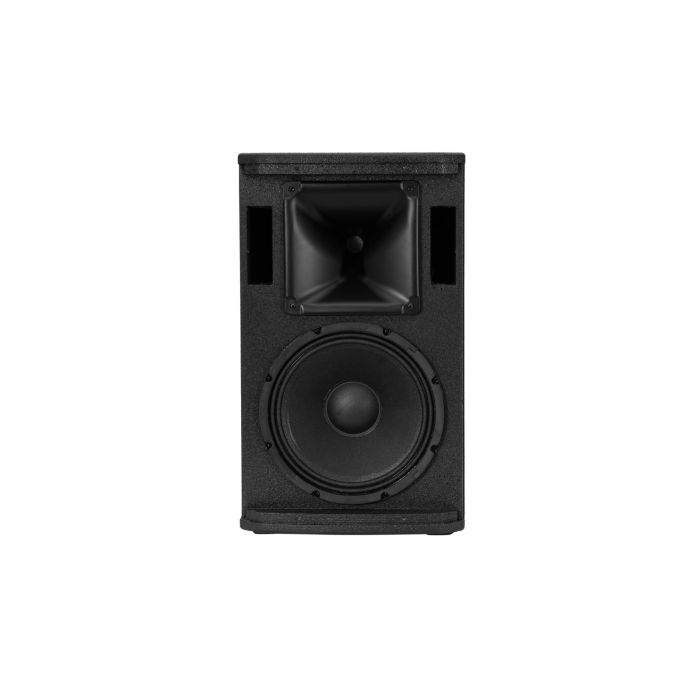

OMNITRONIC PAS-210 MK4 2-way Top
OMNITRONIC PAS-210 MK4 2-way Top
Features
Passive speaker with 10" woofer, 1" driver and 200 W RMS
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- Optimized for combination with PAS subwoofers
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on stand
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental
Package contents
- 1 x compact cabinet speaker, 1 x user manual
Technical specifications
| Power: | Program: 400W Rated: 200W RMS |
| Frequency range: | 75 - 20000 Hz |
| Sensitivity: | 93 dB (1W/1m) |
| Max. SPL: | 119 dB |
| Dispersion angle: | 90° x 60° |
| Impedance: | 8 ohms |
| Attachment system: | Dual flange: Ø 35mm (0°/5°) |
| Flying points: | 12 x M8 thread; 4 x M10 thread |
| Connections: | Input: speaker via 2 x speaker built-in socket (F) |
| Crossover frequency: | 2800 Hz |
| Speaker: | 1 x woofer 10" with ferrit magnet Basket material: steel Conematerial: weatherproof Cardboard/paper Voice coil lows 2" 1 x compression tweeter highs 1" with ferrit magnet Voice coil compression tweeter highs 1,35" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Material: | Plywood multi-layer glued, 12 mm |
| Color: | Black, painted |
| Dimensions: | Width: 31 cm Depth: 52 cm Height: 28 cm |
| Weight: | 12,35 kg |
