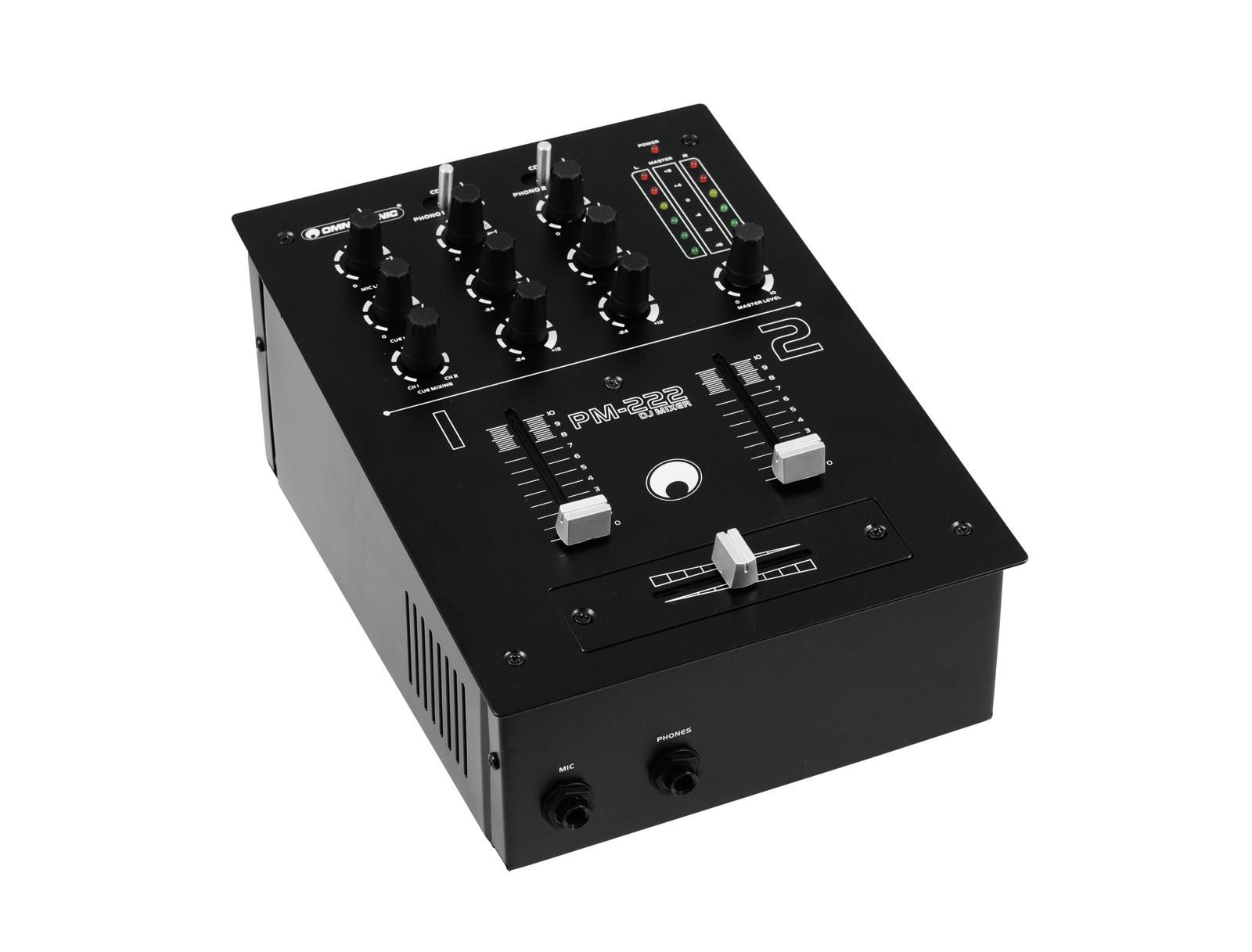

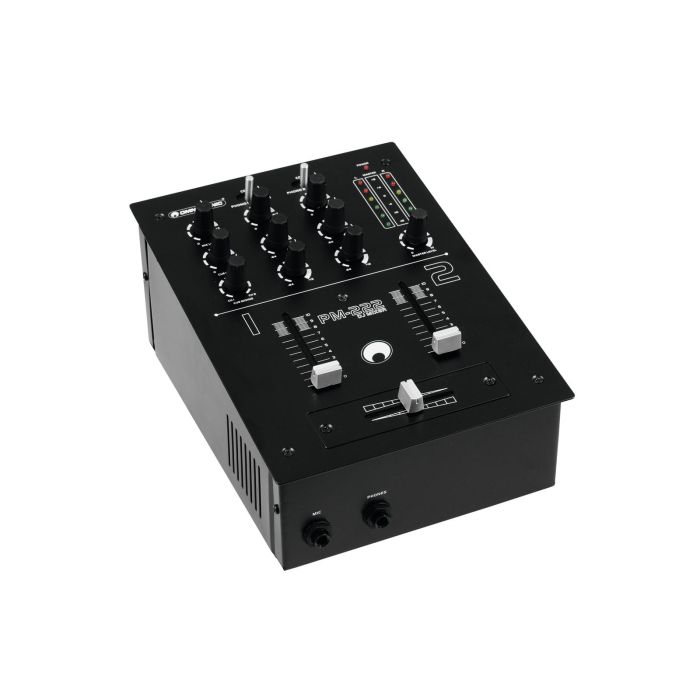

Omnitronic PM-222 2-Channel-DJ-Mixer


    2 input channels with gain control, 2-way equalizer and phono/line switching
    DJ microphone input with level control
    Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control
    Replaceable crossfader for crossfading between both channels
    6-digit stereo LED level meter and master level control

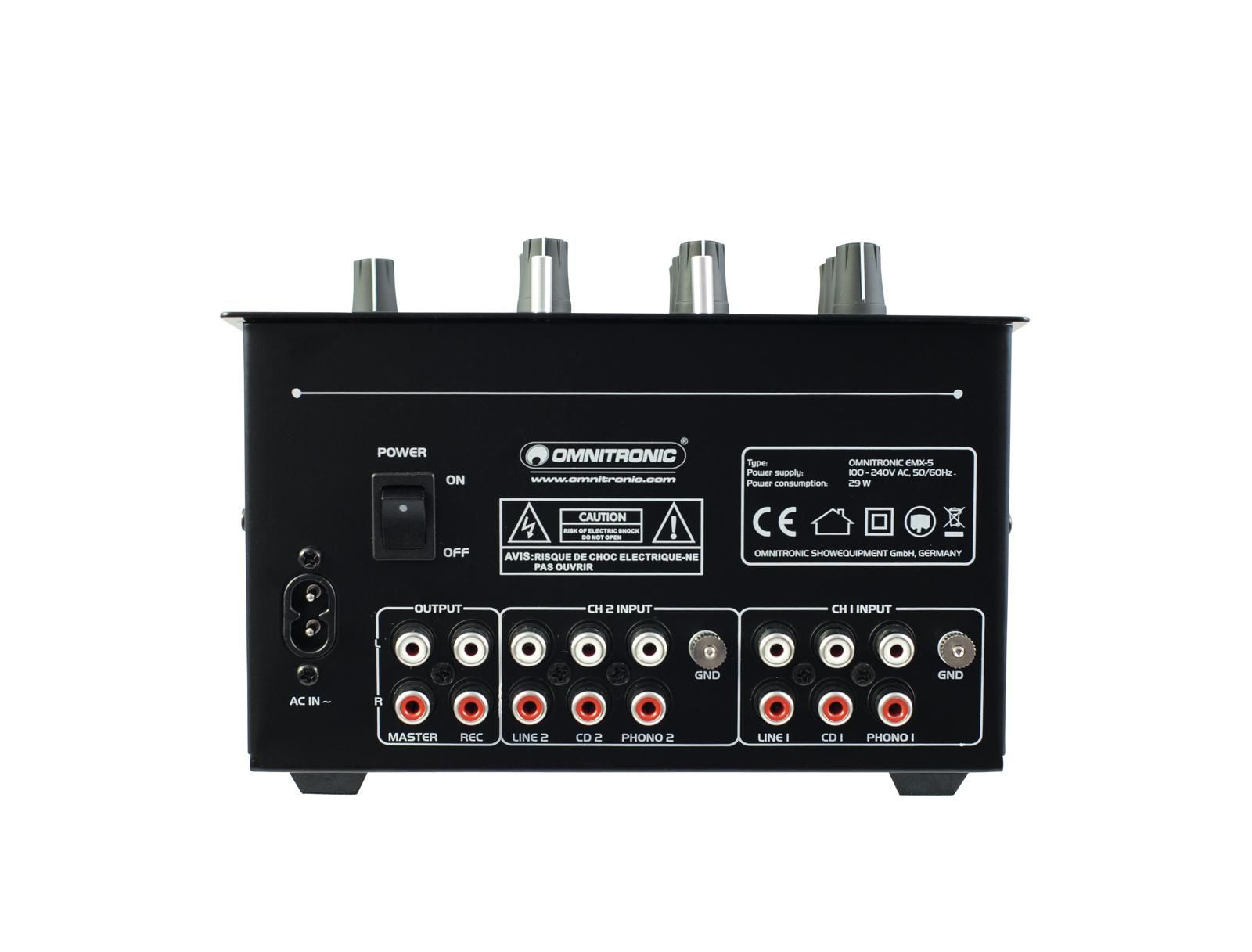

    Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
    Outputs: master and record (stereo RCA)

Power supply:    100-240 V AC, 50/60 Hz
Power consumption:    30 W
Inputs:
DJ MIC:    6.3 mm jack
Minimum input voltage:    3 mV RMS/ 47 kohms
LINE:    stereo RCA
Minimum input voltage:    150 mV RMS/ 47 kohms
PHONO:    stereo RCA
Minimum input voltage:    3 mV RMS/ 47 kohms
Outputs:
MASTER:    stereo RCA
Max. output level:    +19 dBu
Output voltage:    7 V RMS
REC:    stereo RCA
Output voltage:    2.4V RMS
Headphones:    6.3 mm stereo jack (min. 32 ohms)
Tone control:
2 x High:    -24 dB to +15 dB/ 12 kHz
2 x Low:    -24 dB to +15 dB/ 100 Hz
S/N ratio:    >70 dB
Frequency range:    20-20000 Hz
Distortion:    <0.025%
Dimensions (LxWxH):    260 x 190 x 137 mm
Weight:    2 kg
Shipping weight:    2.35 kg
