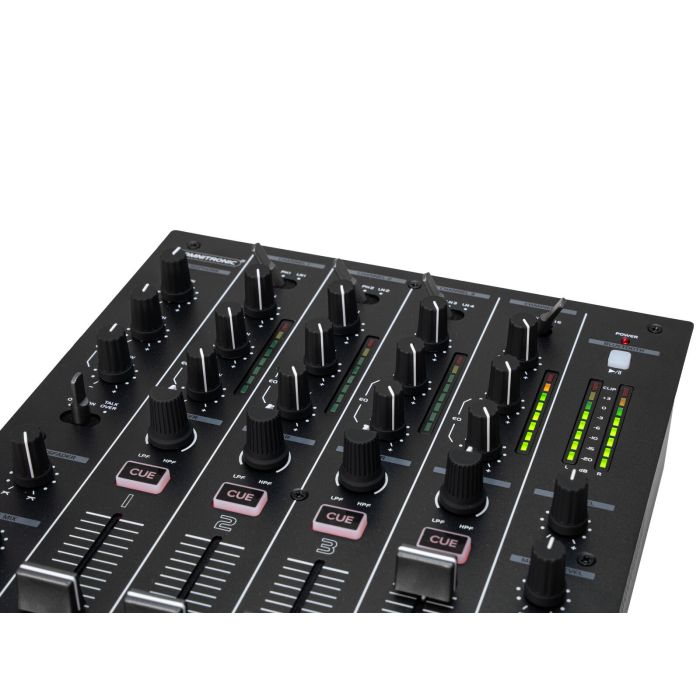

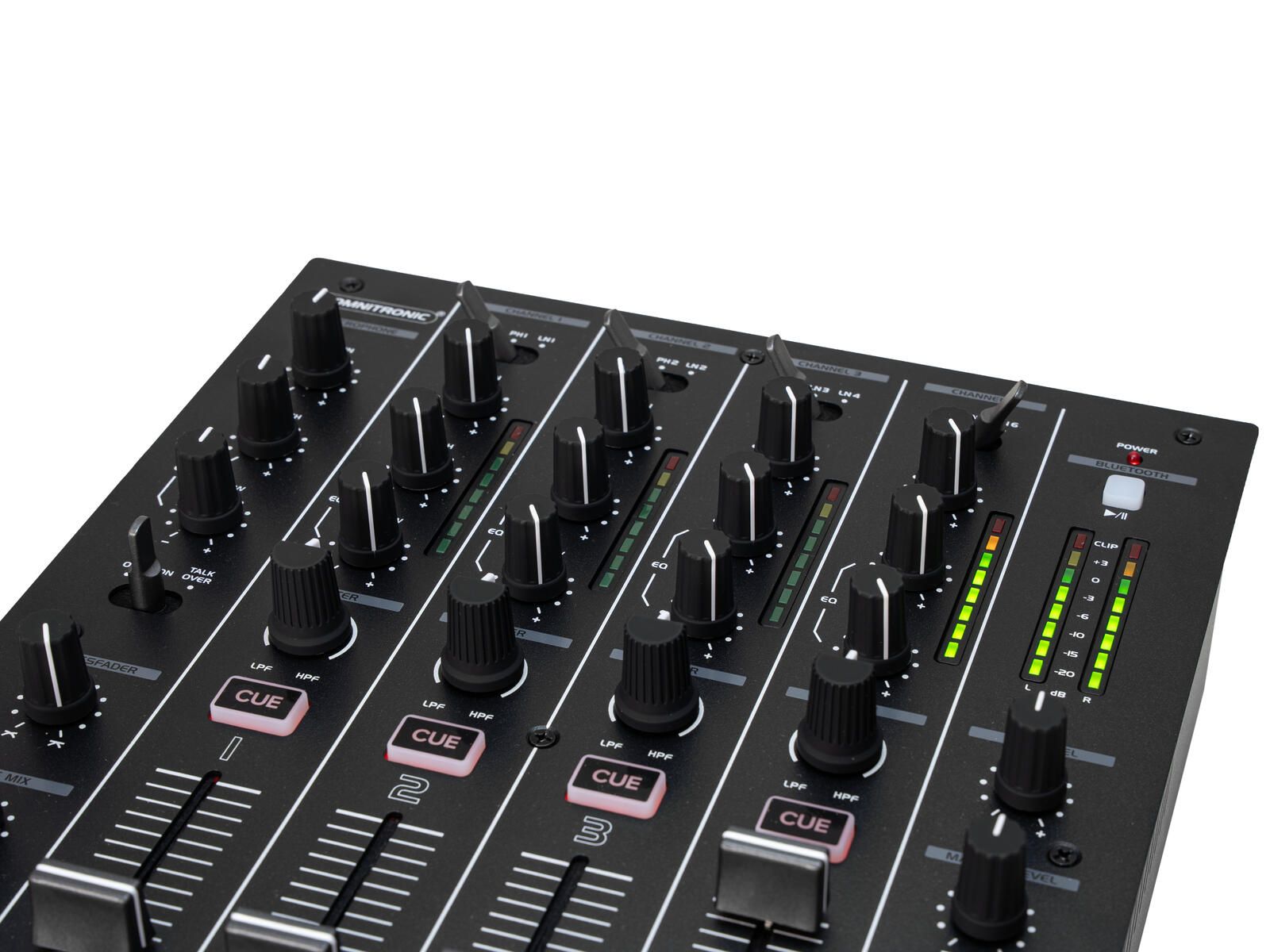

DJ mixer with Bluetooth connectivity and sound filter

• Bluetooth signal routable to channel 1 to 4
• DJ filter LPF/HPF bipolar per channal
• DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
• Crossfader with adjustable curve and reverse function
• Master channel with level and balance control
• 6 line and 2 phono inputs via RCA jacks
• Additional recording output
• Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
• Control via Bluetooth
• Bluetooth: operating range up to 20m
• Desktop console housing
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	15 W

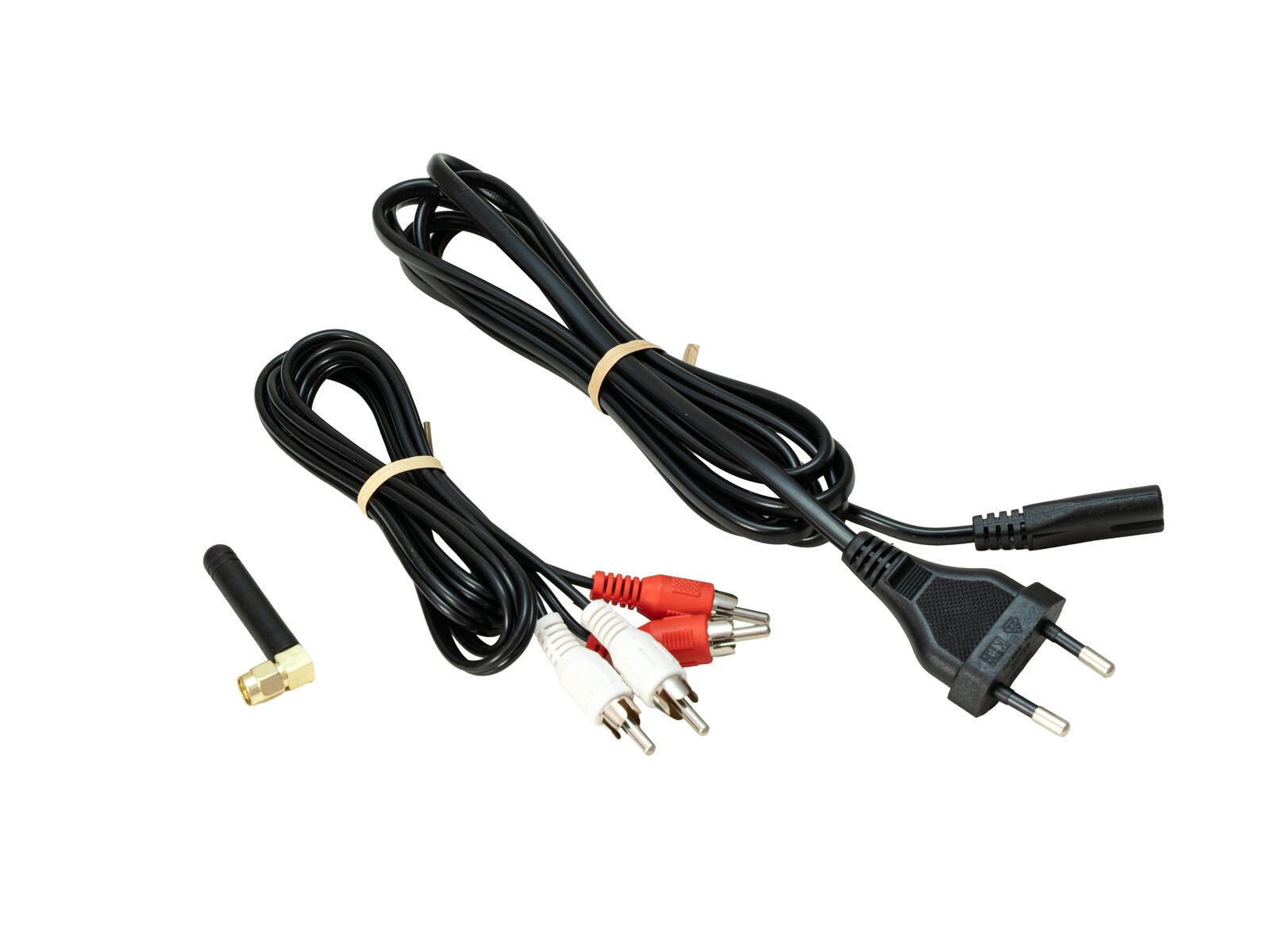

  Power connection:	Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
  Frequency range:	20 - 20000 Hz
  S/N ratio:	>75 dB
  THD:	<0.1 % at 1 kHz
  DJ filter:	Per channal: LPF/HPF bipolar,
  Control:	Bluetooth
  Bluetooth device name:	PM-404F
  Range:	Bluetooth: range up to 20m
  Carrier frequency:	2.4 GHz
  Housing color:	Black matte
  Crosstalk:	>60 dB

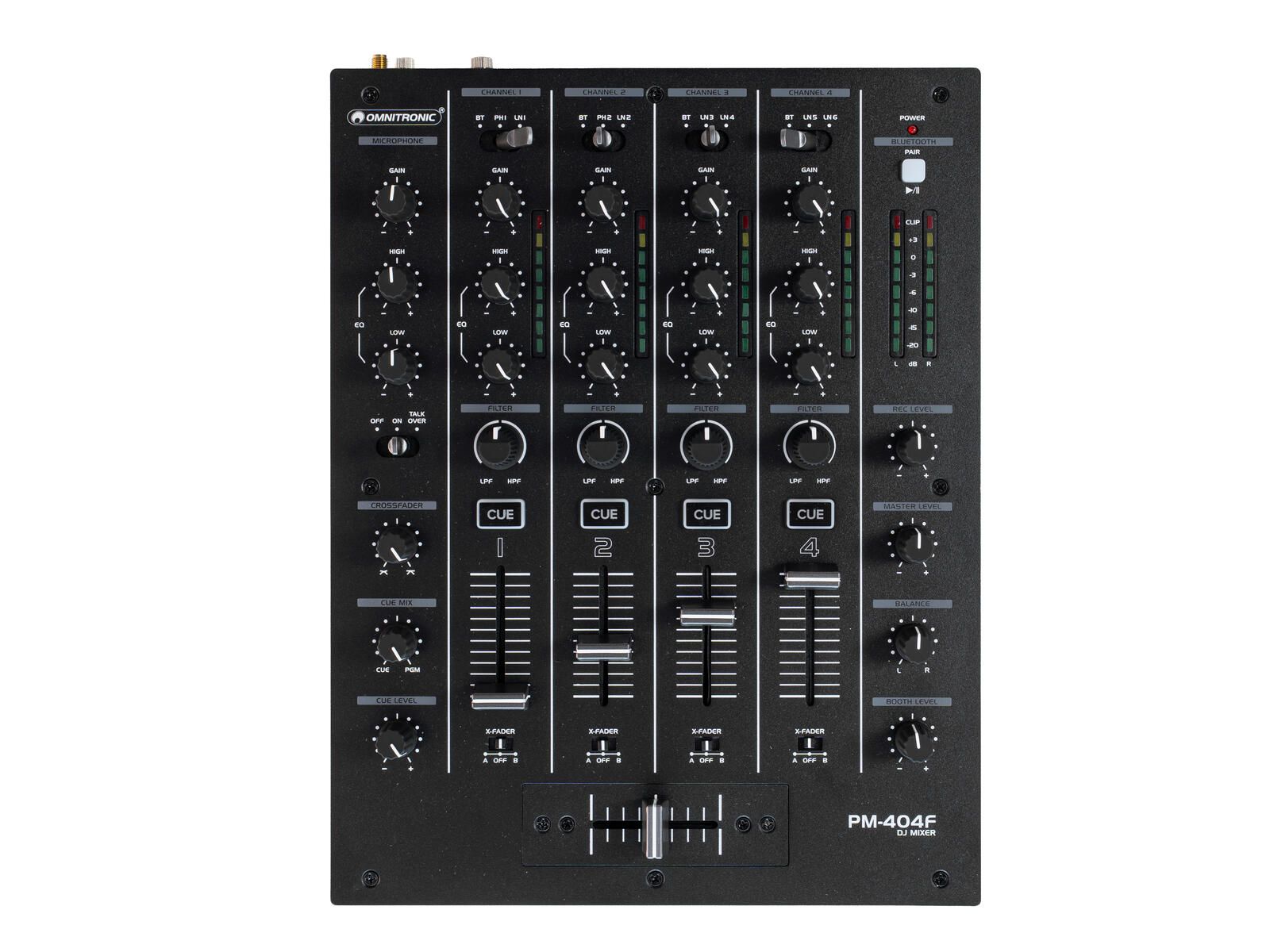

  Control elements:	Power switch, Master control, level control per channel, Input sensitivity switch, source selector; tone control, talkover, crossfader selector switch, crossfader, connect; cue mix function, Crossfade curve control, crossfade reverse switch, balancecontrol
  Status LED:	Power, master level meter, channel level meter, CUE, pairing

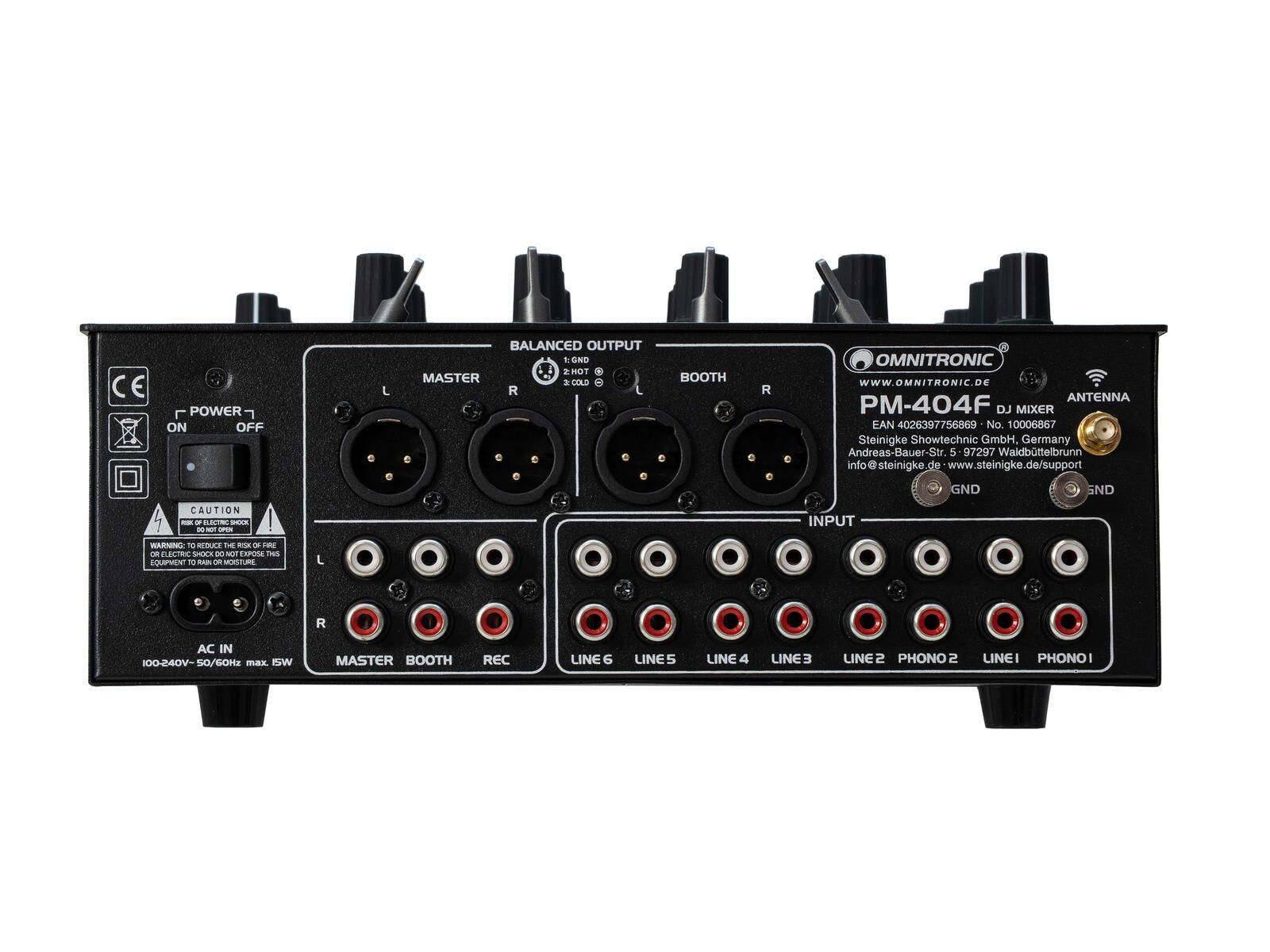

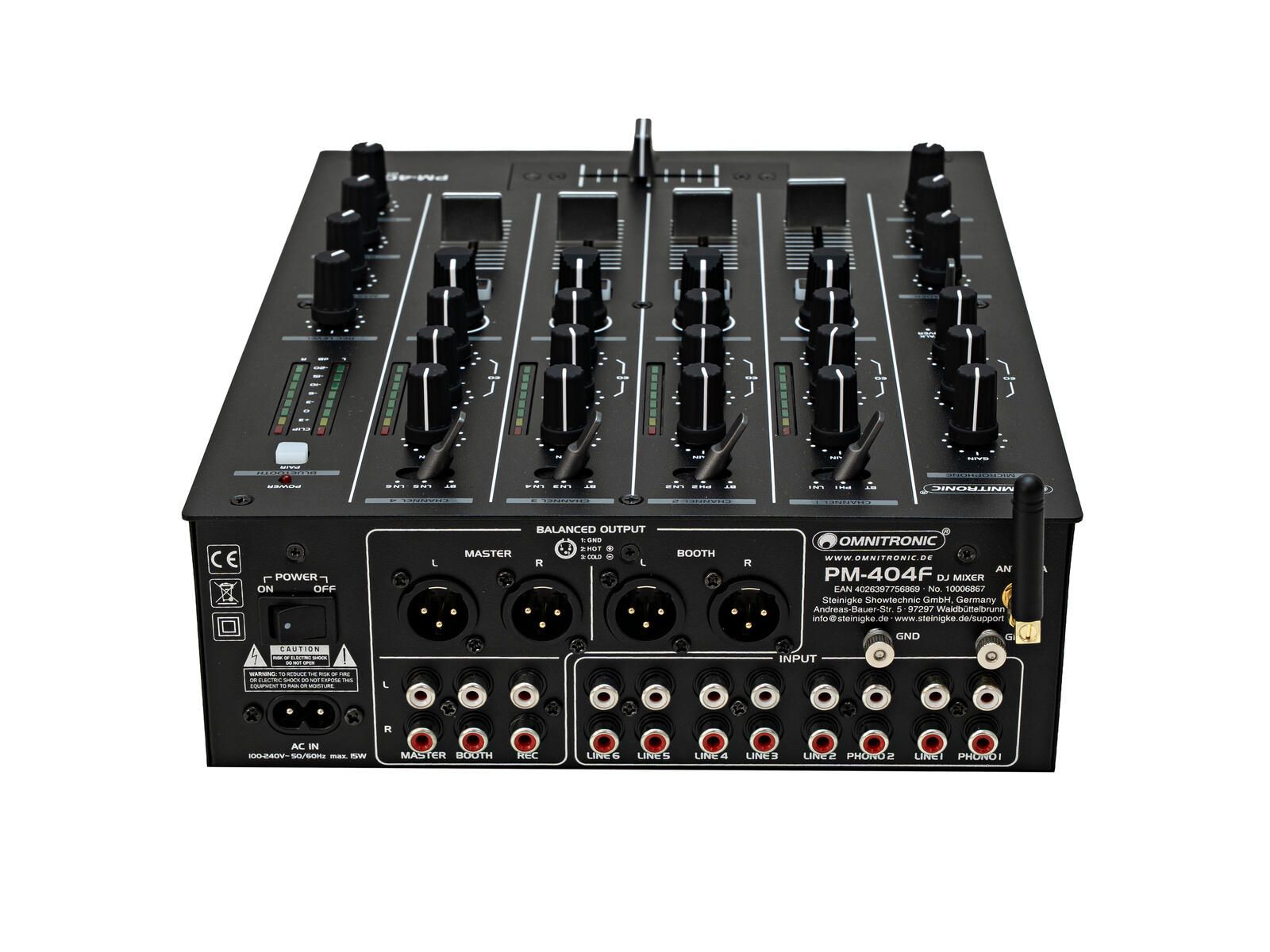

  Connections:	Input: line via 6 x stereo RCA Input: phono via 2 x stereo RCA Input: microphone via 1 x 3-pin XLR (F) mounting version Input: antenna via 1 x SMA (F) mounting version Input: Earthing connection via 2 x screw terminal Output: master via 2 x 3-pin XLR (M) mounting version Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: booth via 1 x stereo RCA Output: booth via 2 x 3-pin XLR (M) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
  Channels:	Input channel: 2 x stereo with Line-Phono-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolar Input channel: 2 x stereo with Line-Line-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolar Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ, talkover switch, gain control Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial Rec. output: 1 x stereo via RCA, channel control via rotary dial Headphones output: 2 x stereo via jack, channel control via rotary dial
  Material:	Metal
  Housing design:	Desktop console housing
  Dimensions:	Width: 24 cm Depth: 33.8 cm Height: 11 cm
  Weight:	2.85 kg
