€ 50,82
€ 42,00
?
SKU
st13063608

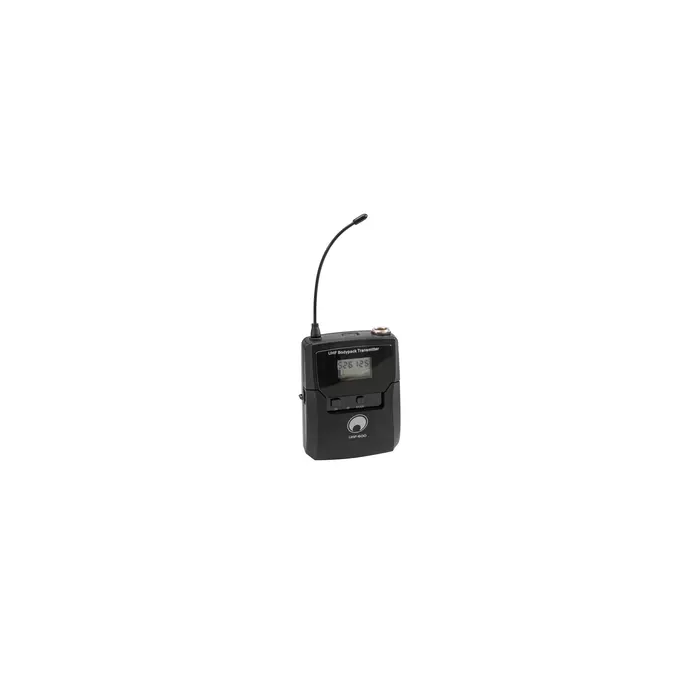

OMNITRONIC UHF-600 Bodypack 823-832/863-865 MHz
OMNITRONIC UHF-600 Bodypack 823-832/863-865 MHz
Features
This product is suitable for
OMNITRONIC UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz
OMNITRONIC UHF-602 2-channel Wireless Mic System 823-832/863-865 MHz
OMNITRONIC UHF-604 4-channel Wireless Mic System 823-832/863-865 MHz
Bodypack transmitter for UHF-600 receivers
- Bodypack transmitter with PLL multifrequency transmitter
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Gain level adjustable in 4 steps
- Operating range up to 60m with line-of-sight
- Up to 12 transmitters can be operated in parallel without interference
- Ultra-low latency
- Charge status indicator
- Multicolor LCD display
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
microphone
- Polar pattern: Cardioid
Package contents
- 1 x transmitter, 1 x microphone, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Type: | Bodypack with microphone |
| Power supply: | 3V DC 155 mA |
| Battery: | 2 x Mignon (AA) (not included) |
| Phantom power: | Or 2,48 V DC |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: | 13 MHz |
| Parallel mode: | Max. 12 transmitter |
| RF power output: | 5 mW (LO); 10 mW (HI) |
| Latency: | < 3 ms |
| Modulation: | FM |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Display: | Frequency , charge status indicator , Mute , RF signal level; AF audio level |
| Control elements: | Gain-switch (high-mid-low) |
| Connections: | Input: microphone via 1 x mini XLR (M) 3-pin mounting version |
| Switch: | On/off switch; mute control |
| Material: | Plastic |
| Dimensions: | Width: 6,6 cm Depth: 2,8 cm Height: 8,5 cm |
| Weight: | 0,07 kg |
| Microphone | |
| Type: | Lavalier microphone |
| Power supply: | 1,5-10V DC |
| Cable length: | 0,9 m |
| Capsule type: | Condenser Size: Ø 12 mm x 26,5 mm |
| Polar pattern: | Cardioid |
| Frequency range: | 80 - 18000 Hz |
| Sensitivity: | -53 dB |
| Impedance: | 600 Ohm |
| Color: | Black |
| Weight: | 0,02 kg |
