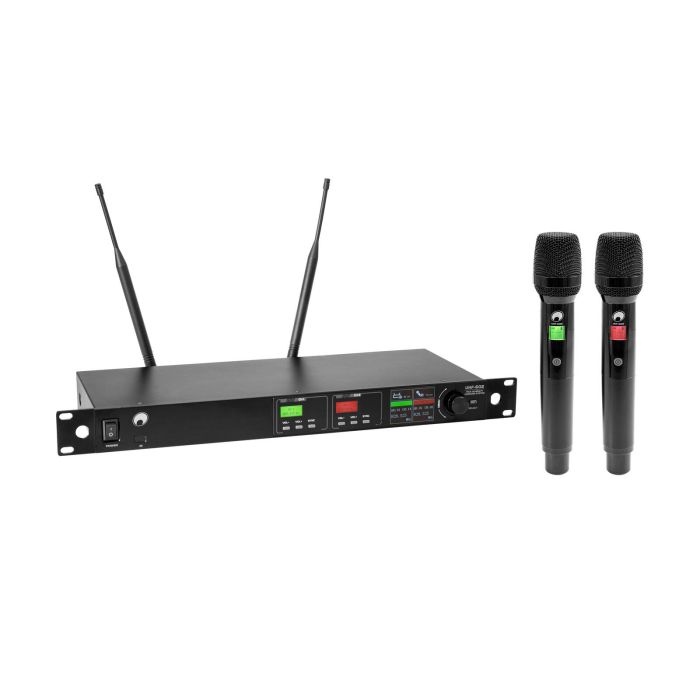

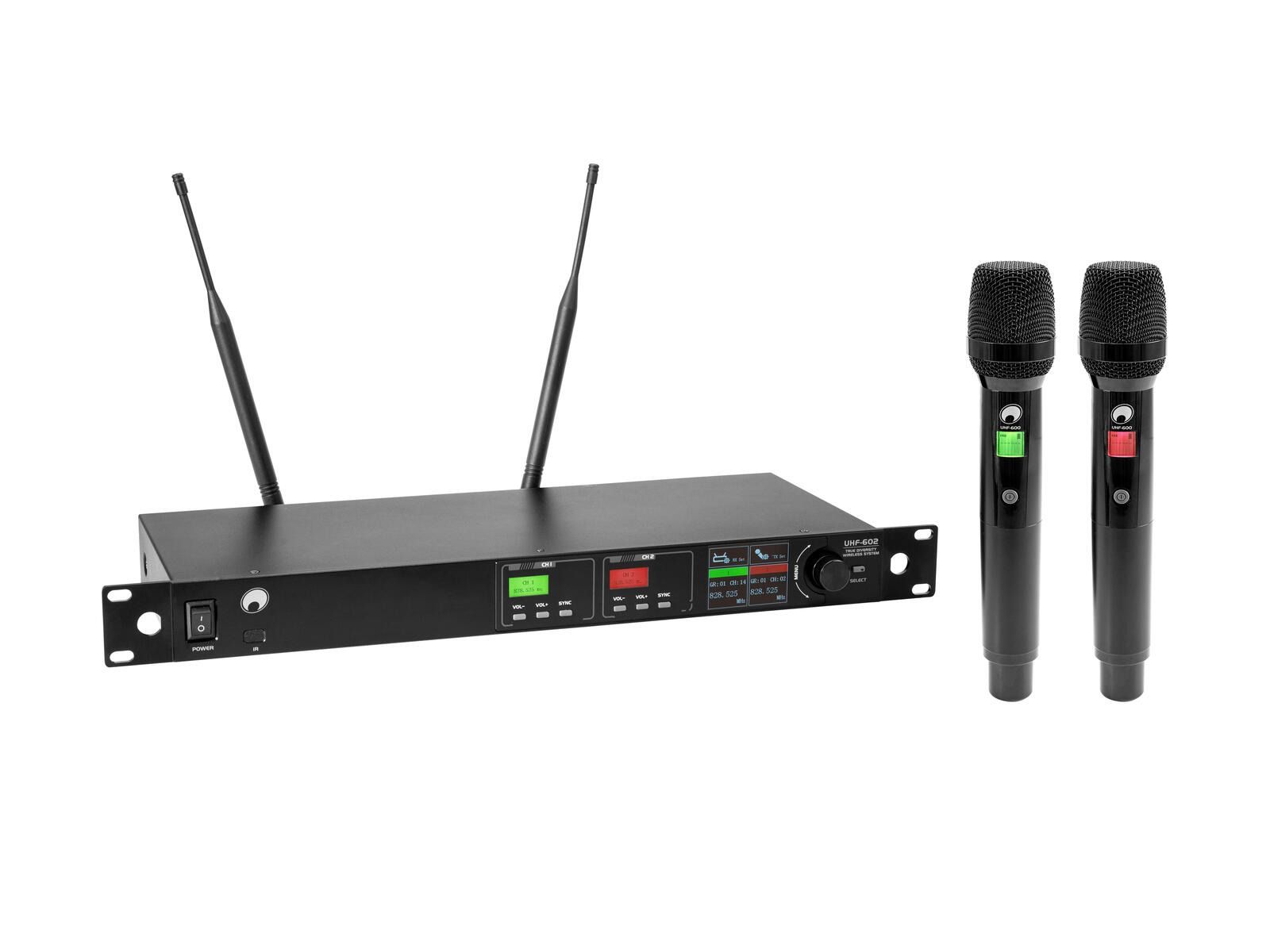

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

• Multifrequency wireless receiver with high-quality true diversity reception
• Ideal for large multi-channel systems
• Operating range up to 60m with line-of-sight
• License-free in Germany for professional use
• Up to 24 transmitters in 2 bands can be operated in parallel without interference

receiver

• Automatic frequency setup
• ID transmitter verification prevents incorrect use and interference from external radio transmitters

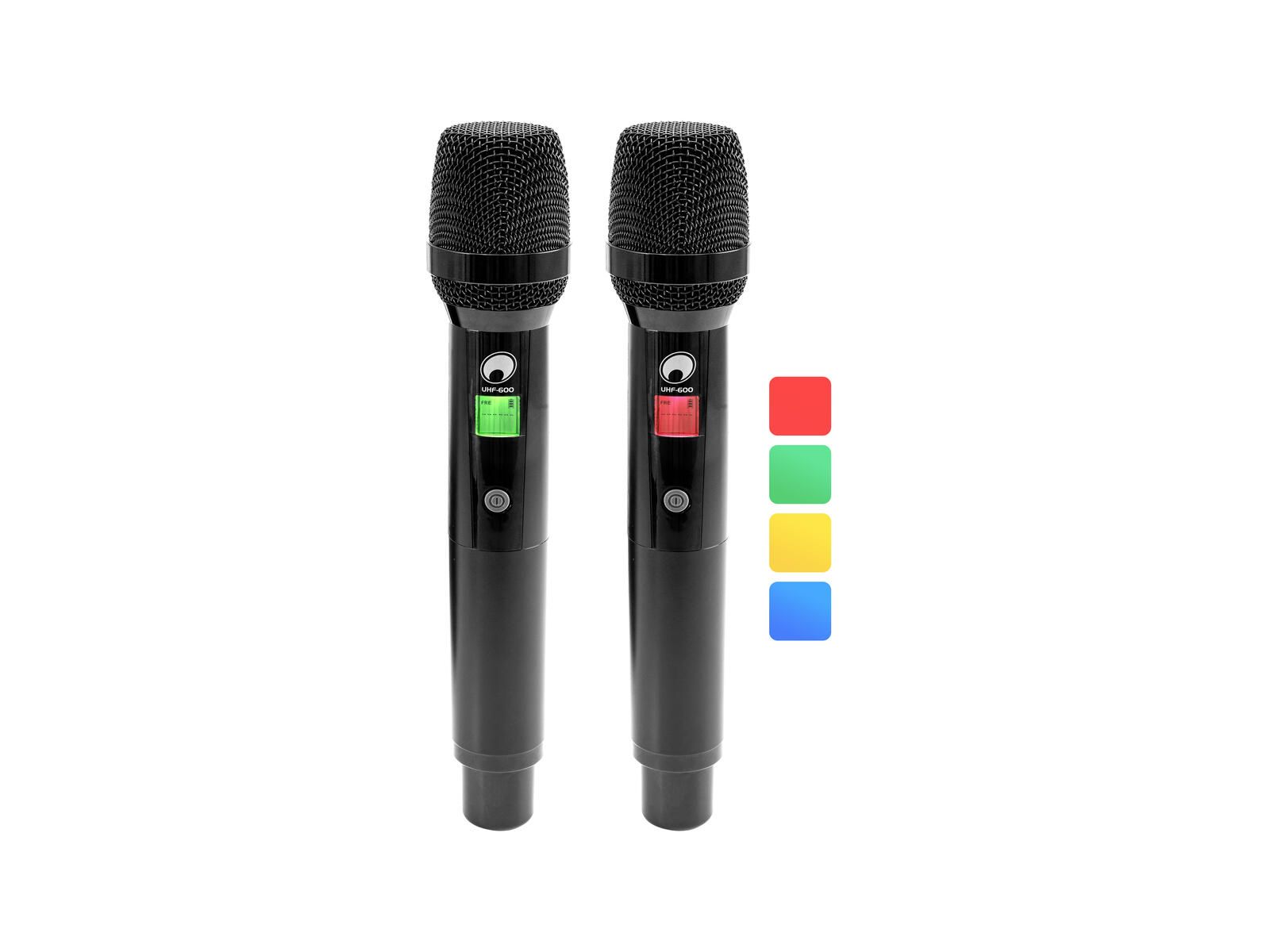

• Different user colors selectable for easy differentiation
• 7-band equalizer for sound tuning
• Multifunctional jogdial for menu settings
• Lock function for prevents undesired changes to settings
• (19") 48.3 cm rack installation 1 U
• Ultra-low latency
• Multicolor TFT display
• Technical specifications

  Type:	Wireless set
  Range:	Range up to 60m with line-of-sight
  Frequency band:	UHF 520 - 554 MHz
  Switching bandwidth:	34 MHz
  Parallel mode:	Max. 24 transmitter in 2 bands
  Frequency selection:	Frequencies automatically scannable
  Weight:	2.52 kg

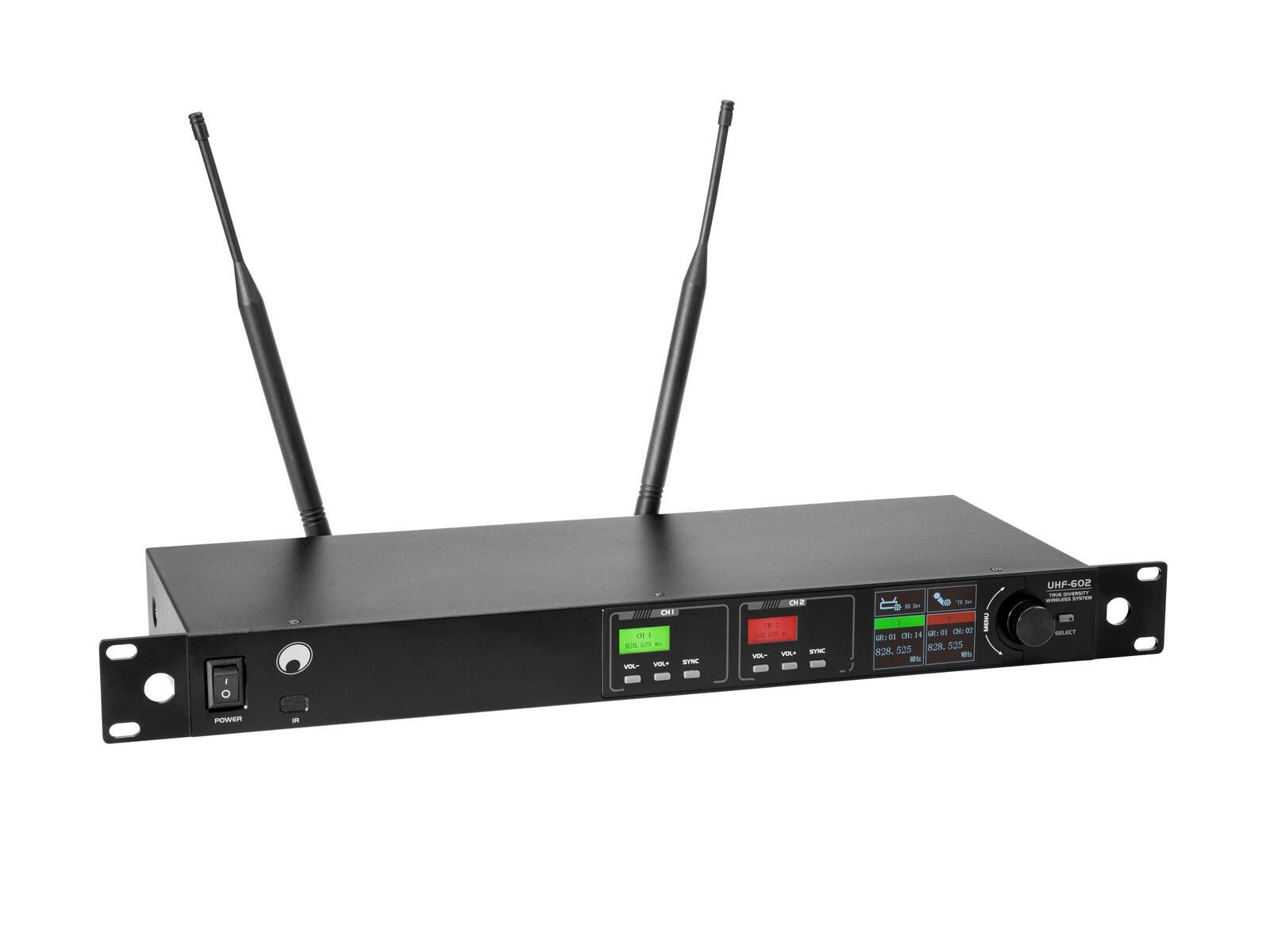

  Receiver
  Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
  Power consumption:	4.5 W
  Protection class:	Protection class III

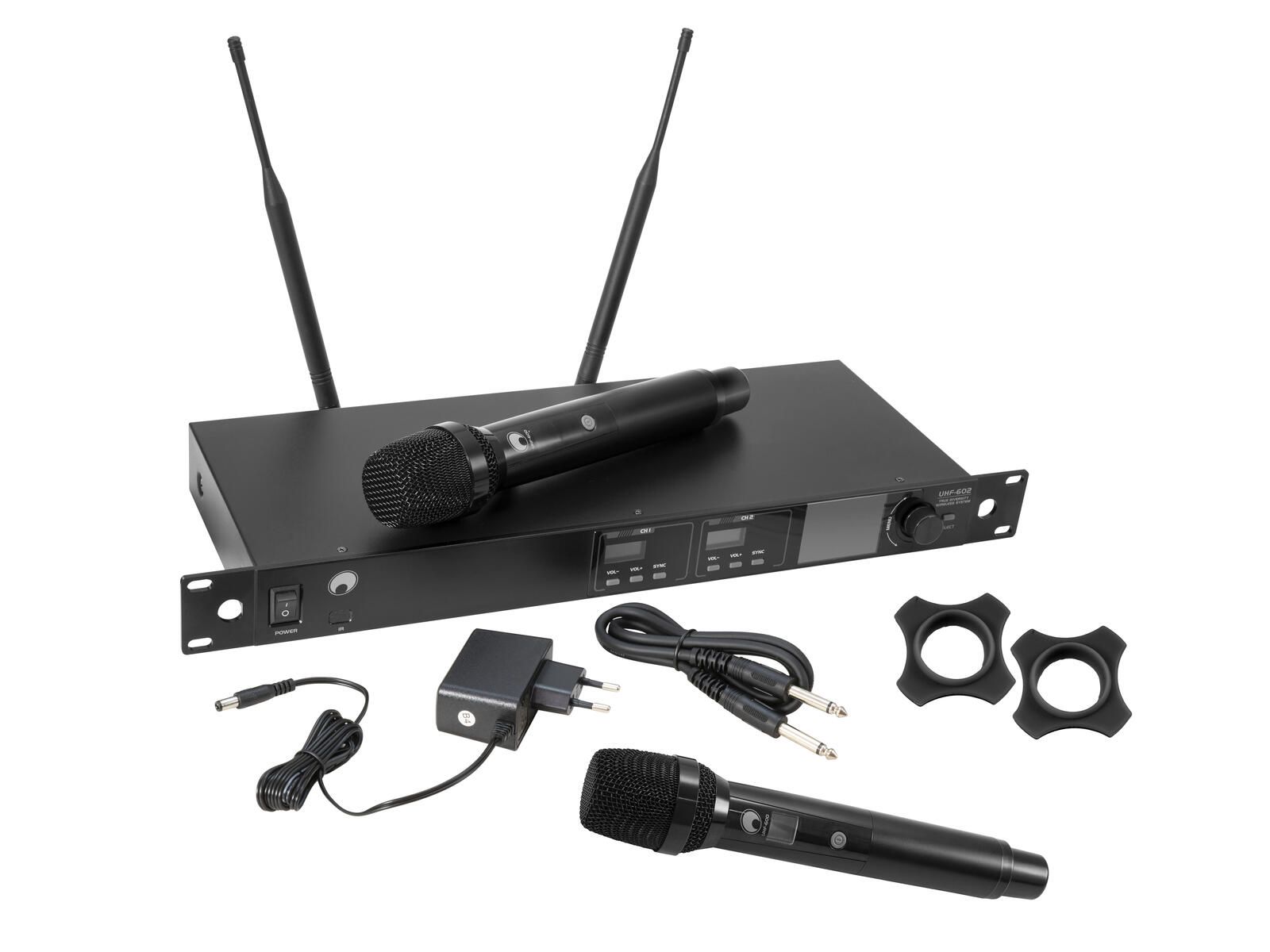

  Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
  Number of channels:	2
  Frequency range:	50 - 16000 Hz
  S/N ratio:	>80 dB
  THD:	<0.5 % at 1 kHz
  Diversity:	True diversity
  Latency:	< 3 ms
  Modulation:	FM
  Housing color:	Black
  Display type:	3 x multicolor TFT display
  Display:	Frequency , goup , channel , RF signal level; AF audio level , Mute
  Control elements:	Level control per channel, power switch, encoder, menu

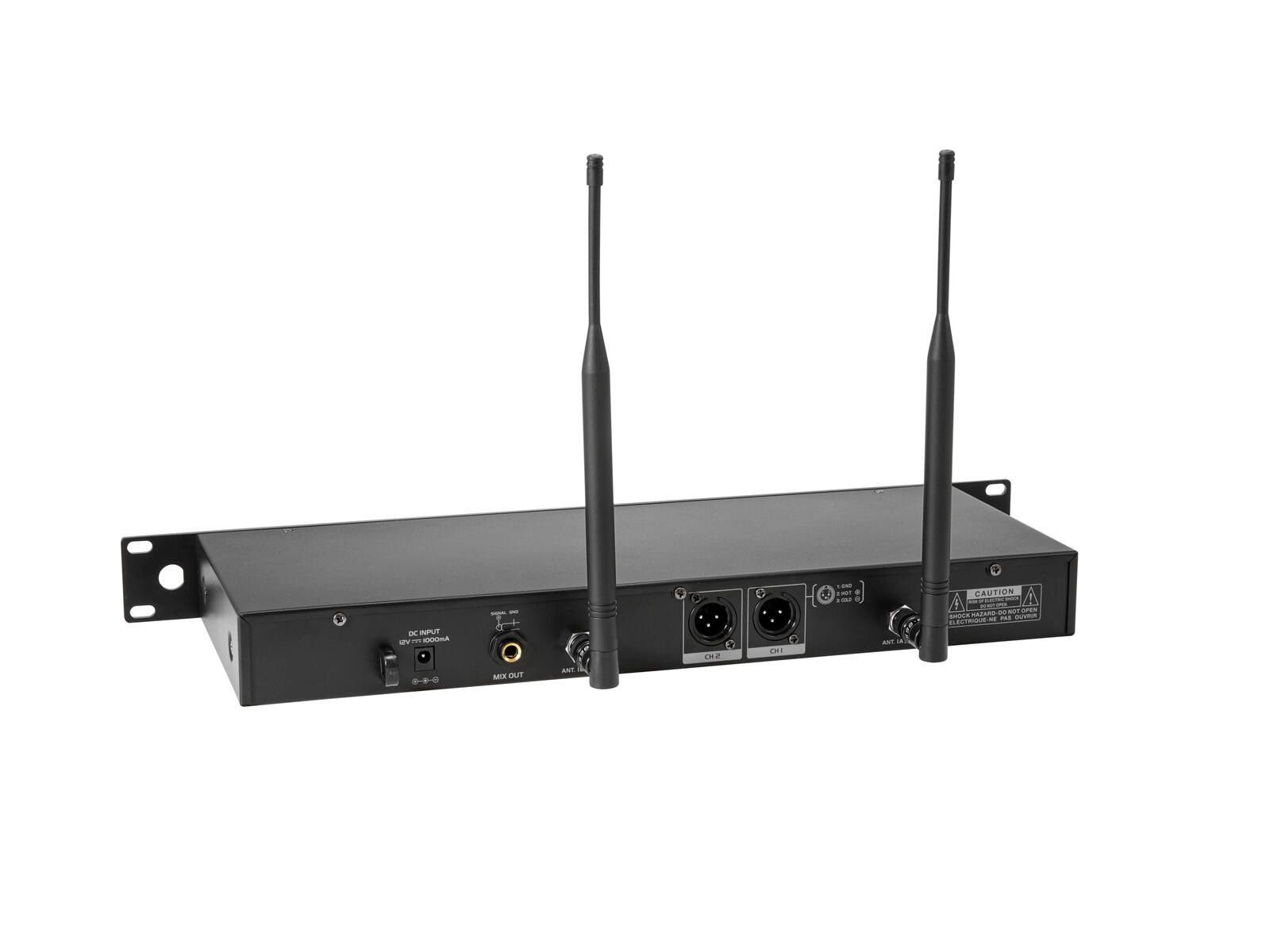

  Connections:	Input: antenna via 2 x BNC (F) Output: microphone via 2 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.)
  Equalizer:	Graphic equalizer 7-band
  Material:	Metal
  Housing design:	(19") 48.3 cm rack installation 1 U
  Mounting depth:	21 cm
  Dimensions:	Width: 48.5 cm Depth: 21 cm Height: 4.4 cm
  Weight:	1.5 kg

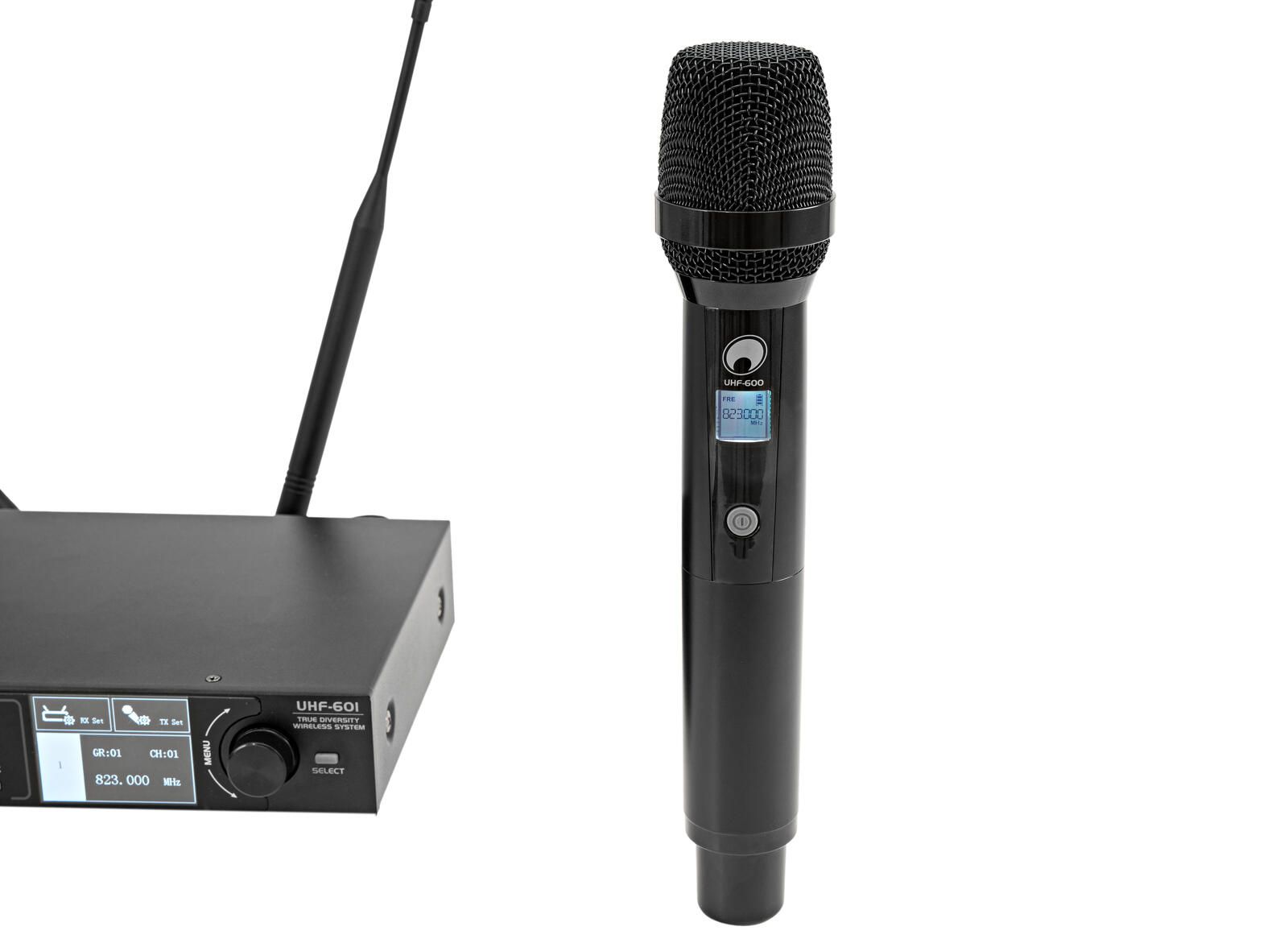

  Microphone
  Power supply:	3V DC 118 mA
  Capsule type:	Dynamic Size: Ø 2.54 mm
  Polar pattern:	Cardioid
  Battery:	2 x Mignon (AA) (not included)
  RF power output:	30 mW (HI); 20 mW (LO)
  Housing color:	Black
  Display type:	Multicolor LCD display
  Display:	Frequency , charge status indicator , Mute , RF signal level
  Switch:	On/off/mute switch
  Material:	Metal
  Dimensions:	Length: 25.9 cm Diameter: Ø 4.95 cm
  Weight:	0.351 kg
