€ 369,66
€ 305,50
?
SKU
st11038076

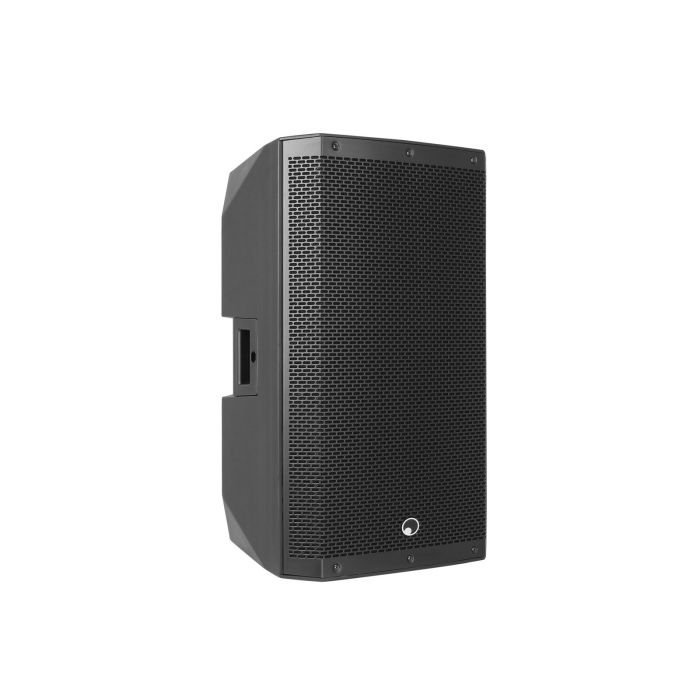

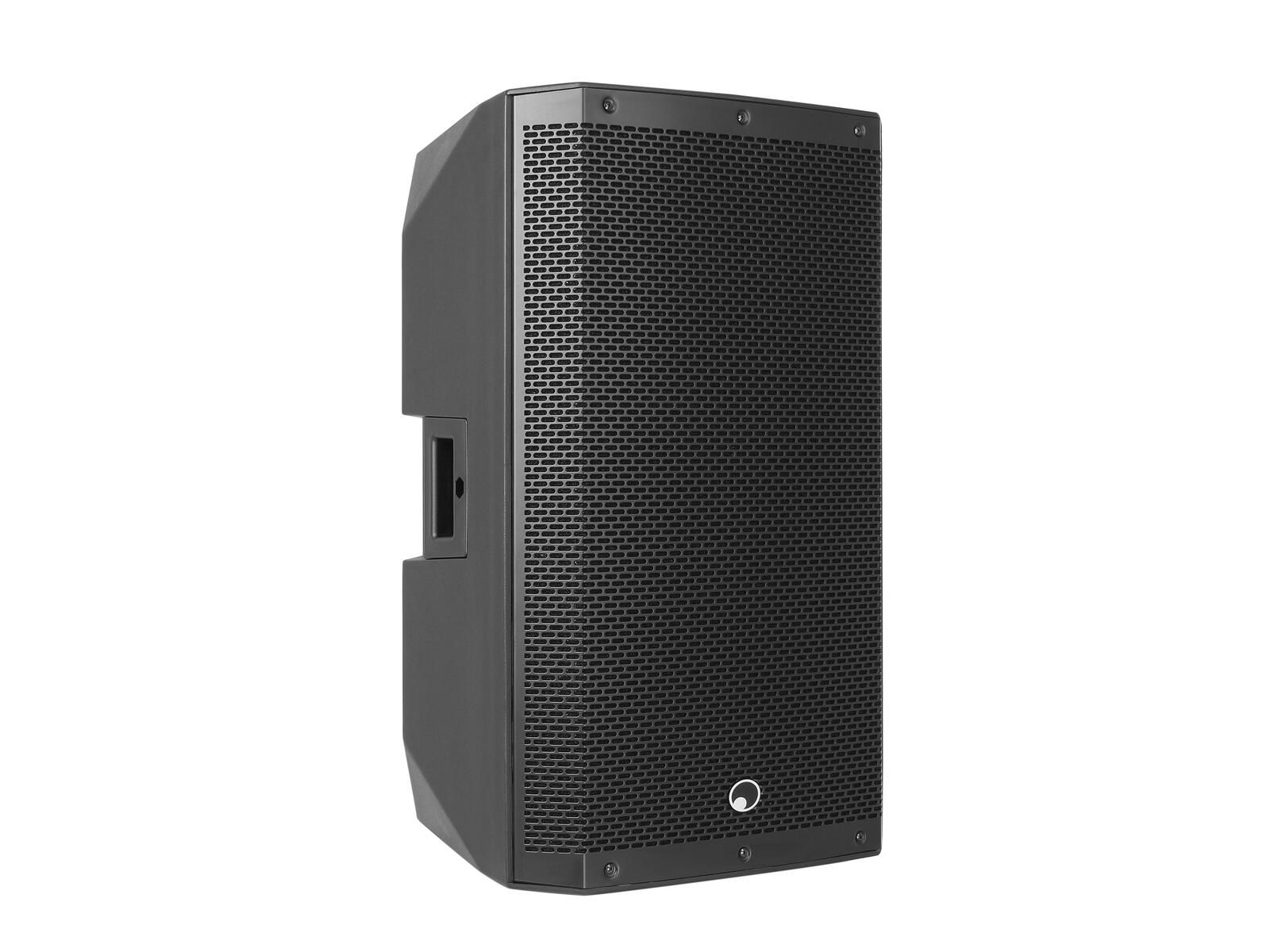

OMNITRONIC XNG-215A 2-way Speaker, active, DSP
OMNITRONIC XNG-215A 2-way Speaker, active, DSP
Features
Active speaker with 15" woofer, 1" driver, 400 W RMS
- Active PA speaker system for touring applications and permanent installations
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
- DSP presets: DEFAULT; LIVE; DANCE; MONITOR; SPEECH
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Monochrome LCD display
- Black metal grille with acoustic foam
- 2 Rugged carrying handles
- The device is cooled by passive convection cooling
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; rental; sports centres/gyms; mobile djs / entertainer
Package contents
- 1 x compact cabinet speaker, 1 x power cord, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| Output power: | 400 W RMS system 300 W RMS (8 ohms) LF 100 W RMS (8 ohms) HF |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 45 - 20000 Hz |
| Max. SPL: | 125 dB |
| DSP: | Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| DSP presets: | DEFAULT; LIVE; DANCE; MONITOR; SPEECH |
| Dispersion angle: | 90° x 60° |
| Cooling: | Passive convection cooling |
| Low cut: | FLAT, 80Hz, 100Hz, 120Hz, switchable |
| Delay: | 0 - 10 ms |
| Control: | Bluetooth |
| Bluetooth: | With stereo link (TWS) |
| Bluetooth device name: | XNG-215A DSP |
| Range: | Bluetooth: range up to 10m in buildings |
| Carrier frequency: | 2,4 GHz |
| Attachment system: | Flange: Ø 35mm |
| Circuitry: | Class D Biamp; class AB Biamp |
| Display type: | Monochrome LCD display |
| Control elements: | Power switch, encoder, level control per channel |
| Controls: | Overheat; DC voltage; short-circuit; limiter |
| Status LED: | Power, limit |

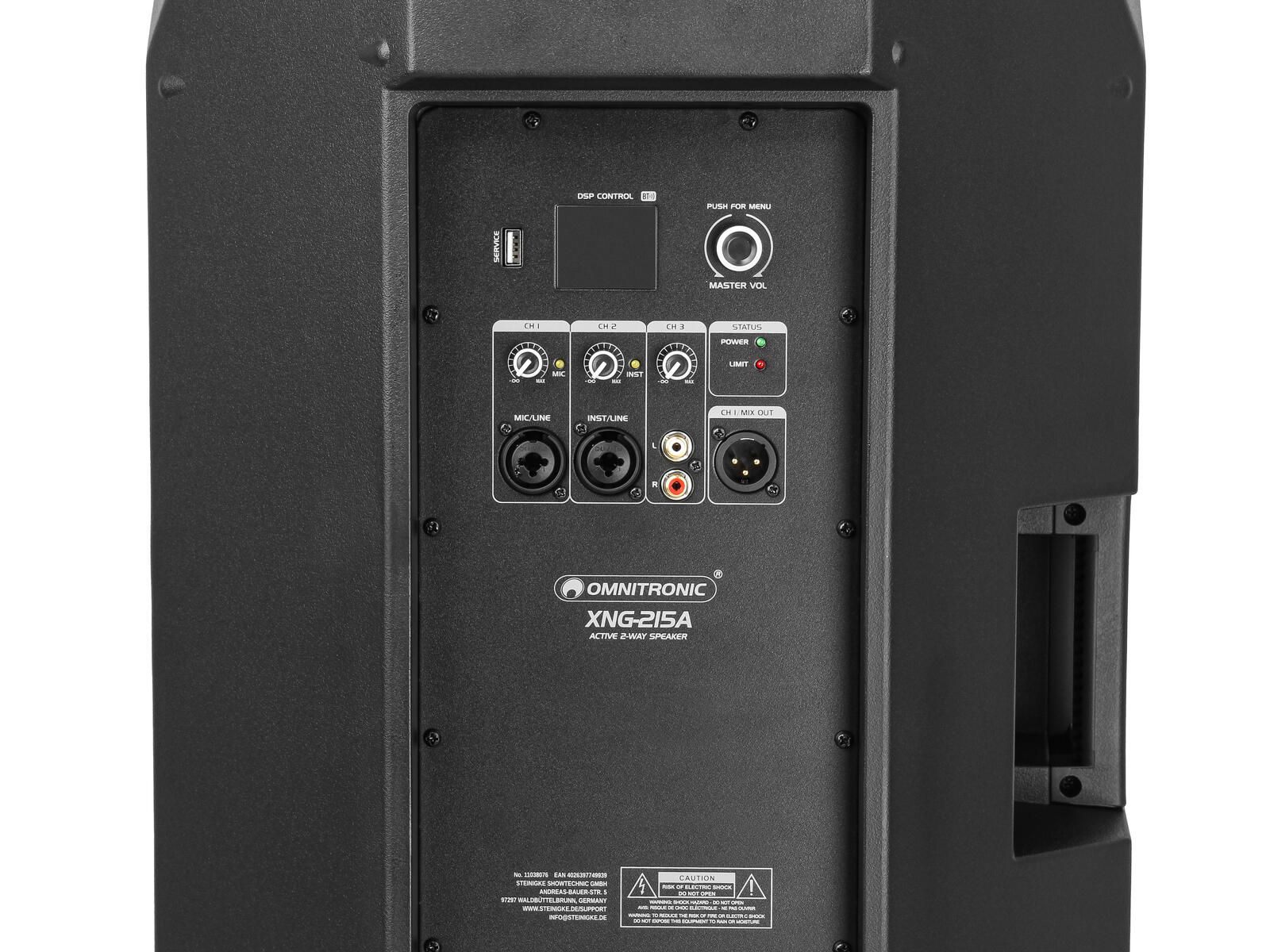

| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: Line/Hi.Z. via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR (M) mounting version |
| Speaker: | 1 x woofer 15" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 3" Compression tweeter highs 1" Voice coil compression tweeter highs 1.75" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 2 pc/pcs |
| Material: | PP polypropylene |
| Color: | Black, powder-coated |
| Dimensions: | Width: 42,0 cm Depth: 38,2 cm Height: 69,5 cm |
| Weight: | 19,20 kg |
