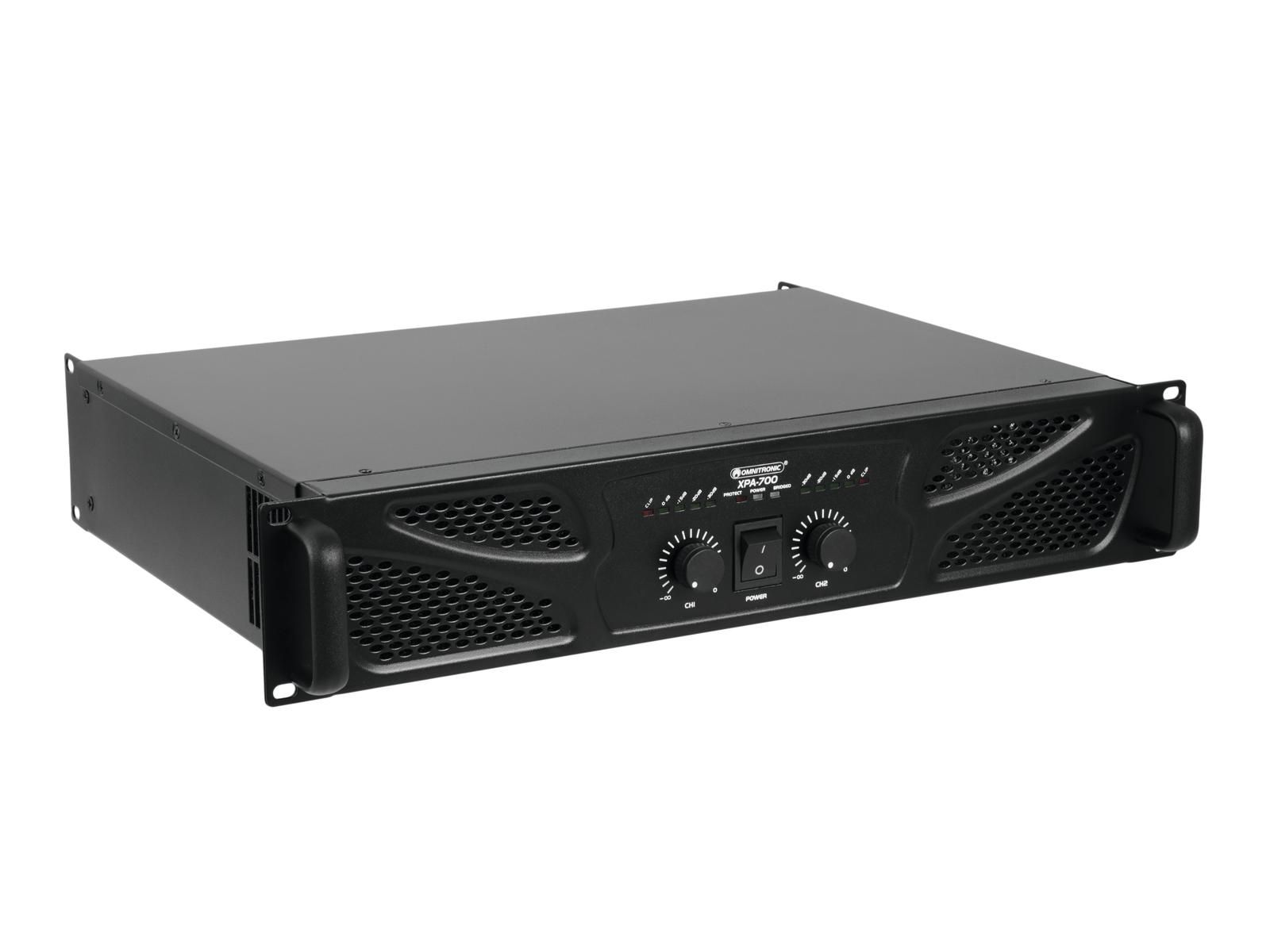

OMNITRONIC XPA-700 Amplifier2 operating modes can be selected (stereo or bridged) Limiter, switchable Speaker switch-on delay 2 level controls Each channel with LED for activated protective circuit (protect) and output meter with clip LED Complete protection set against short-circuit, overheat, DC voltage, power on/off transients Groundlift switch against humming Fan cooling Signal inputs via XLR or 6.3mm jack connectors Speaker outputs via lockable speaker jacks and pairs of screw terminals Additional Speaker plug for 8-ohm bridge operation Class AB circuitry Rack installation with 2 unitsPower supply: 115/230 V AC, 50/60 Hz Power consumption: 495 W (1/8 power) Power output sine: Stereo 4 ohms 2 x 350 W Stereo 8 ohms 2 x 240 W 8 ohms bridged 1 x 700 W Frequency range: 20-20000 Hz, ±1 dB Damping factor: >350 Distortion factor: 0.5 % Slew rate: 20 V/µsec S/N ratio: >95 dB Input sensitivity: 1.4 V Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input voltage: max. 21 dBV/9V Input connectors: 2 x XLR, 2 x 6.3 mm jack Output connectors: 2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals Control elements: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector LED indicators: bridged, protect, and 5-fold output meter with clip LED (per channel) Protection circuits: short-circuit, overheat, DC voltage, power on/off transients, softstart Construction: steel chassis with aluminum front panel Dimensions (DxWxH): 354 x 483 x 103 mm (19", 2 U) Weight: 9 kg
