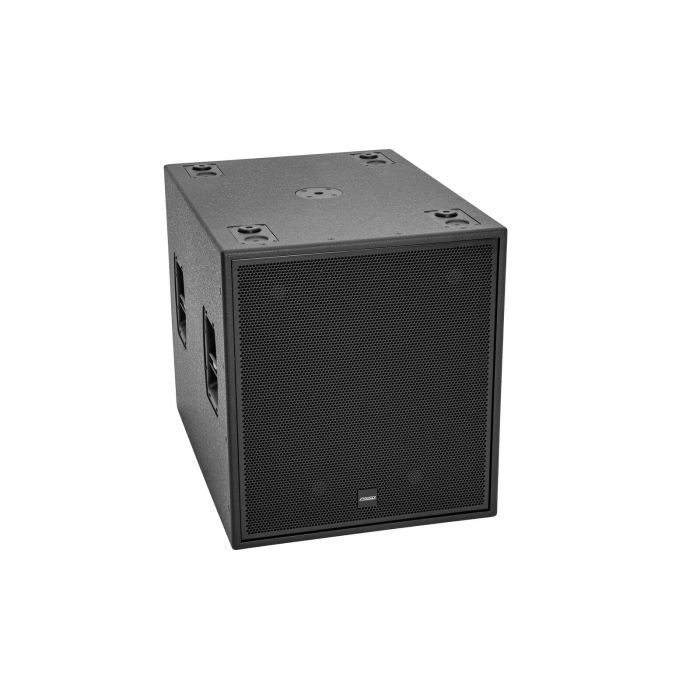

PSSO KX-181A Subwoofer, actievesubwoofer met DSP 1400w rms
PSSO KX-181A Subwoofer, actievesubwoofer met DSP 1400w rms
Features
Active 18" PA bassreflex subwoofer, 1400 W RMS
- Active PA subwoofer for touring applications and permanent installations
- Versatile setup options with the KX top speakers and specially tuned presets
- Endfire and cardioid array configurations possible
- Digital signal processor
- DSP presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz

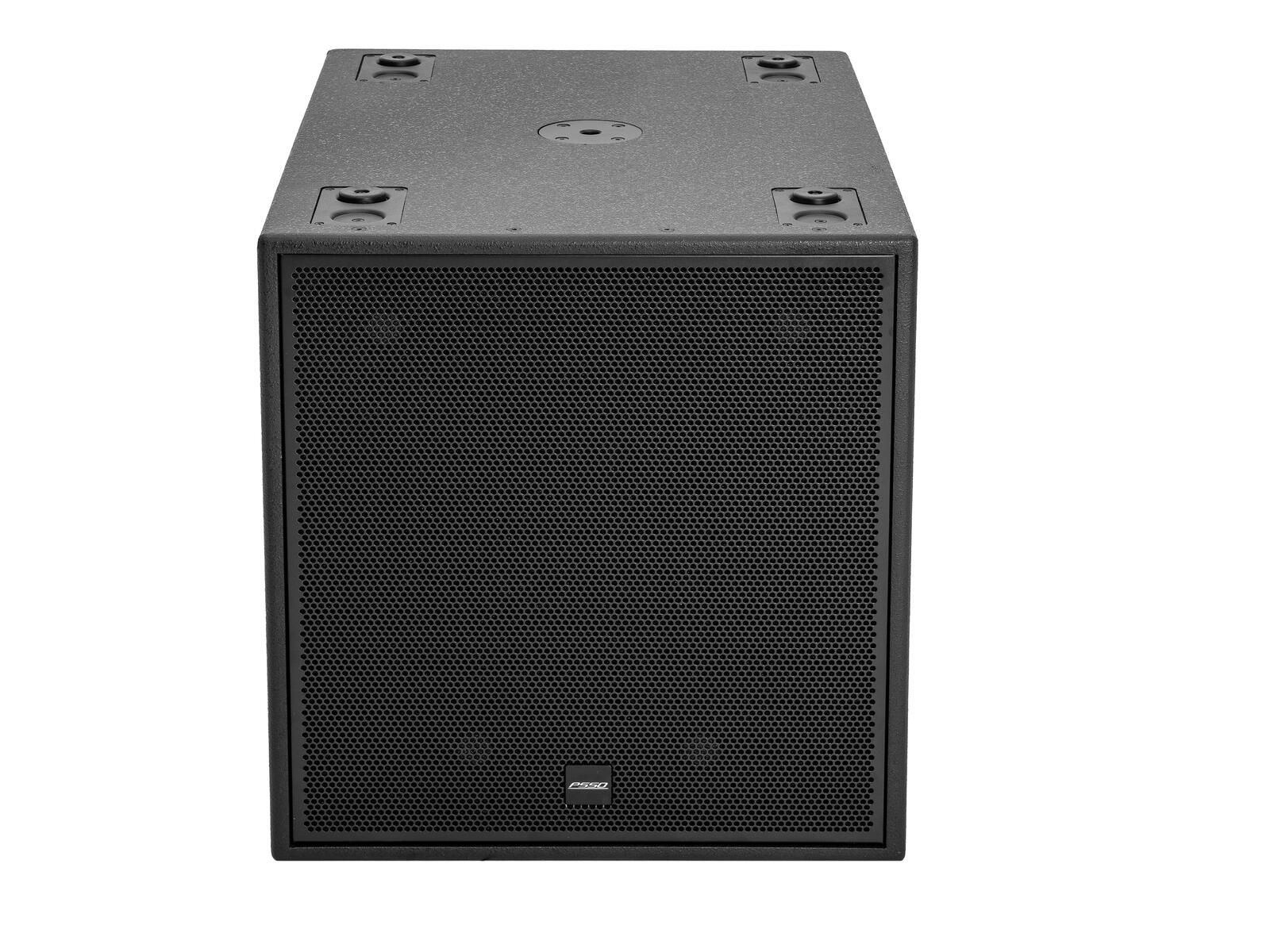

- Black metal grille with acoustic foam

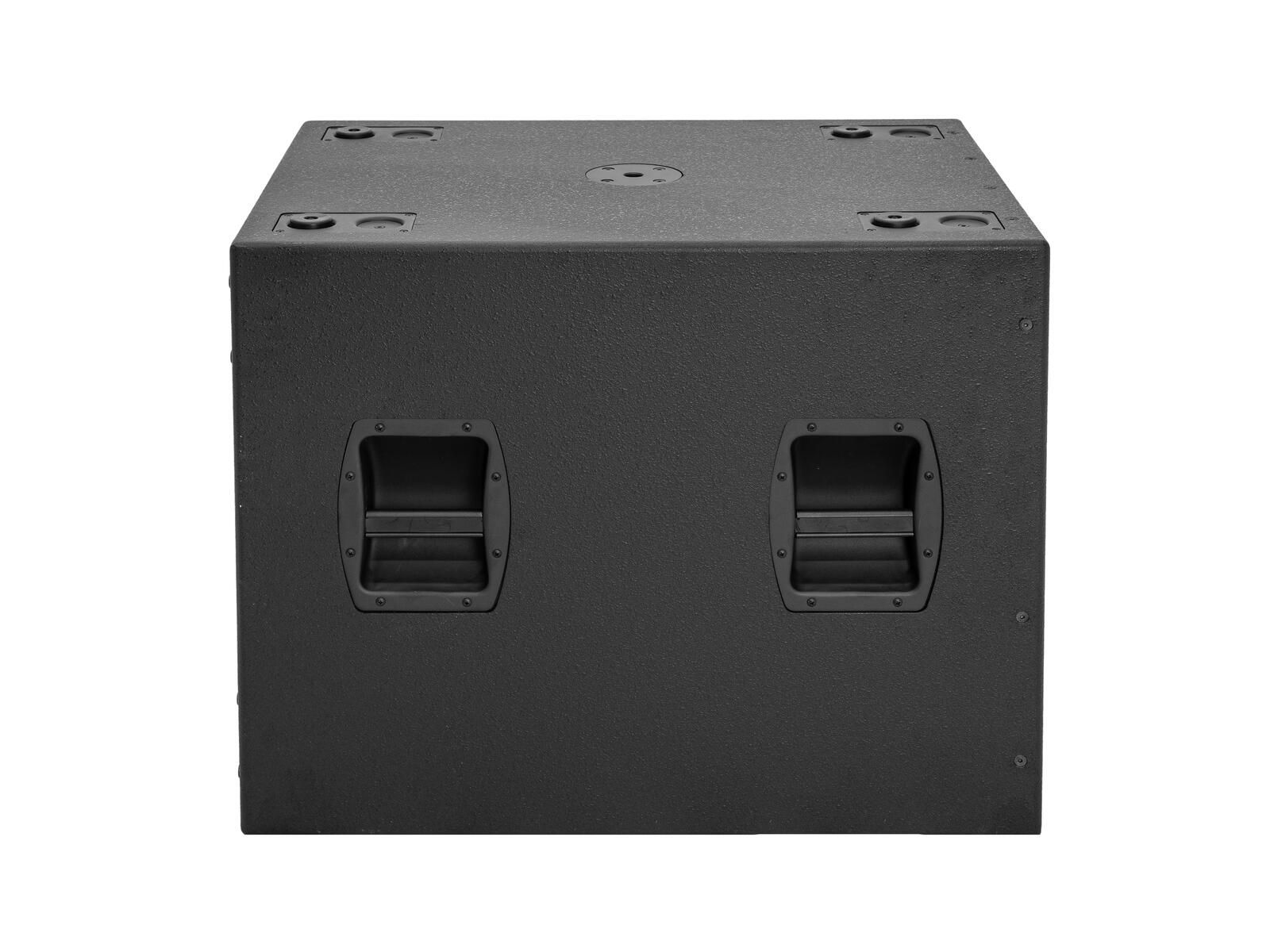

- 4 Rugged carrying handles
- The device is cooled by temperature-controlled fan
- Mains input and output for power linking up to 4 units
Package contents
- 1 x bass, 1 x power cord, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1800 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Device fuse: | 5 x 20 mm, F 8 A fuse replaceable |
| Power: | 1400W RMS Peak: 2800W |
| Frequency range: | 30 - 400 Hz |
| Max. SPL: | 134 dB |
| DSP: | Digital signal processor |
| DSP presets: | 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz |
| Cooling: | 1 x temperature-controlled fan |
| Attachment system: | M20 thread |
| Circuitry: | Class D |

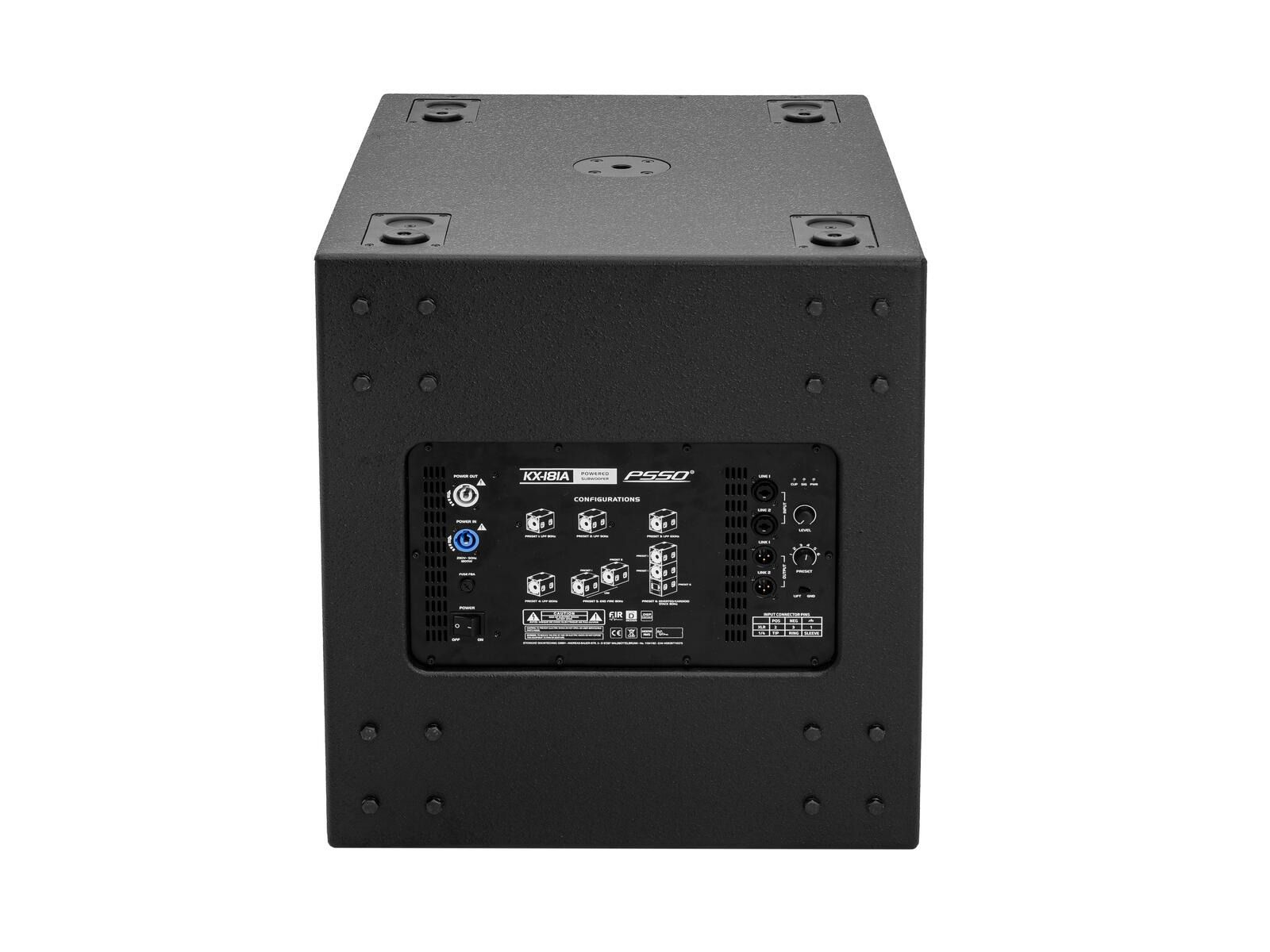

| Control elements: | Power switch, groundlift selector, level control, DSP preset switch |
| Controls: | Overheat; short-circuit; DC voltage; limiter |
| Status LED: | Power, signal, clip |
| Connections: | Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR (M) mounting version |

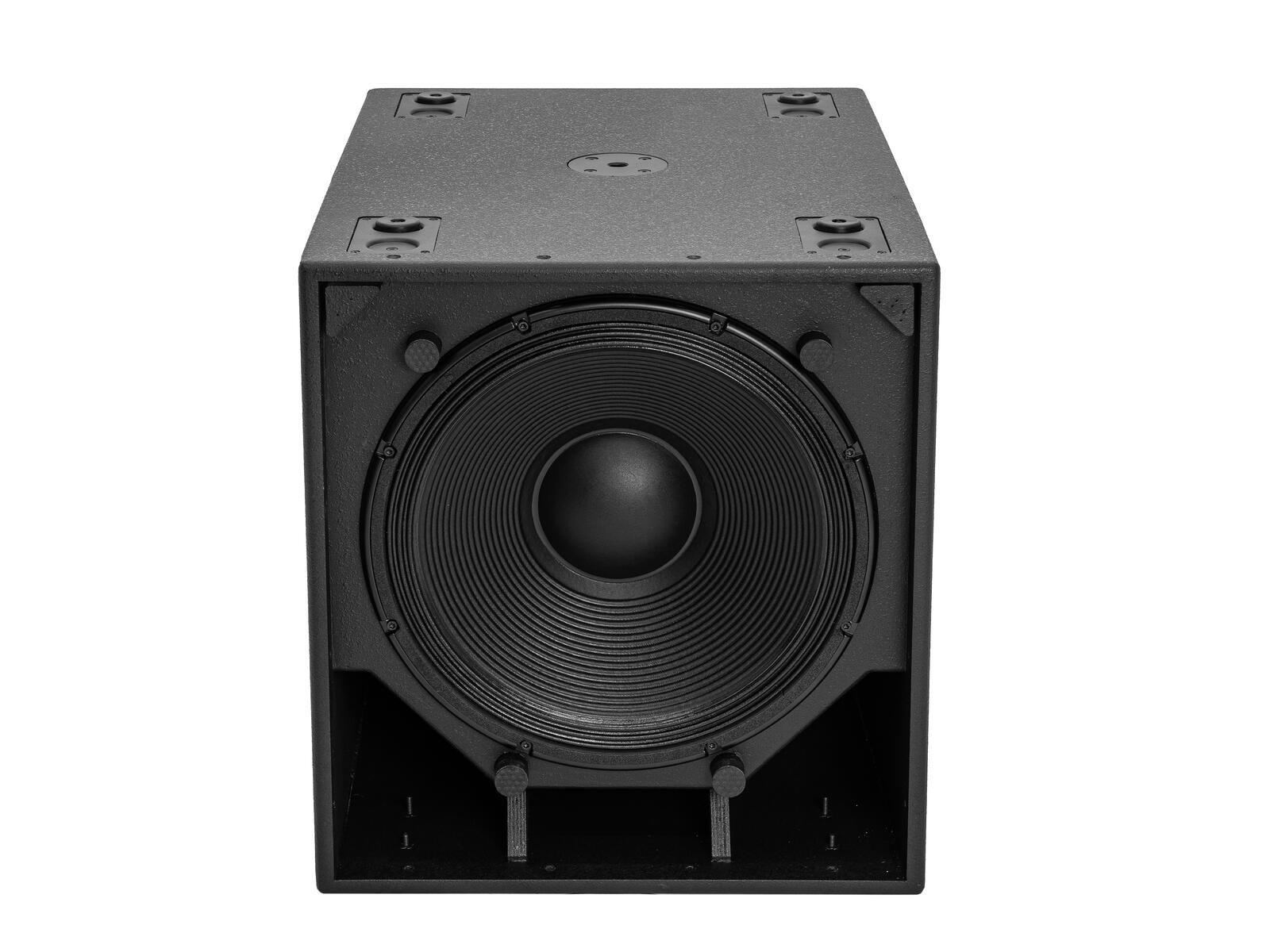

| Speaker: | 1 x woofer 18" with ferrit magnet Basket material: aluminum Conematerial: cardboard/paper Voice coil woofer in/out wound 4" |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 4 pc/pcs |
| Material: | Baltic birch plywood, 18 mm |
| Color: | Black, matte |
| Dimensions: | Width: 56 cm Depth: 76 cm Height: 62,8 cm |
| Weight: | 53,25 kg |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | 2,5 m detachable |
